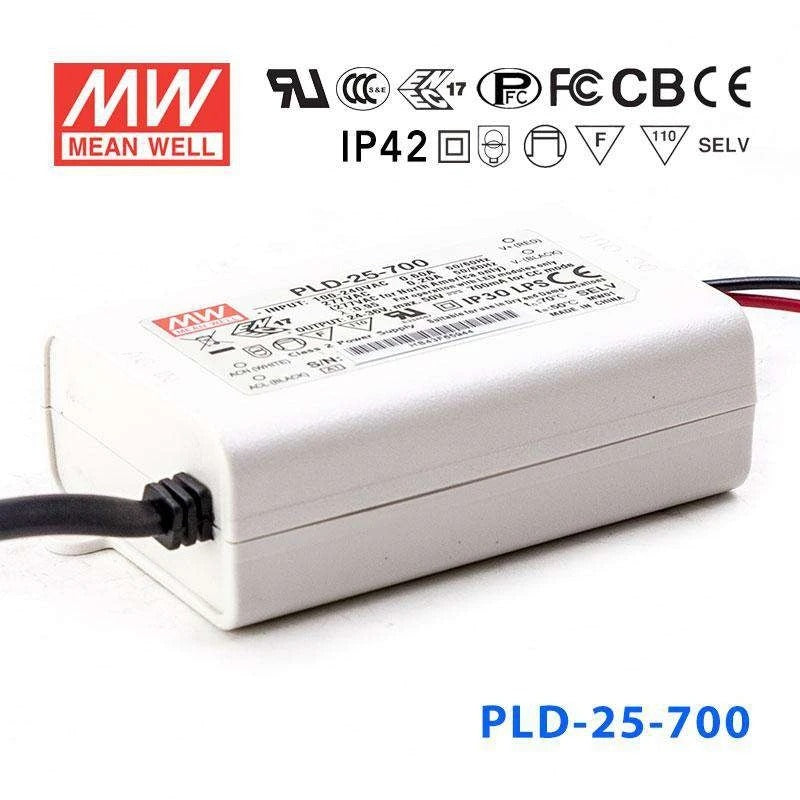

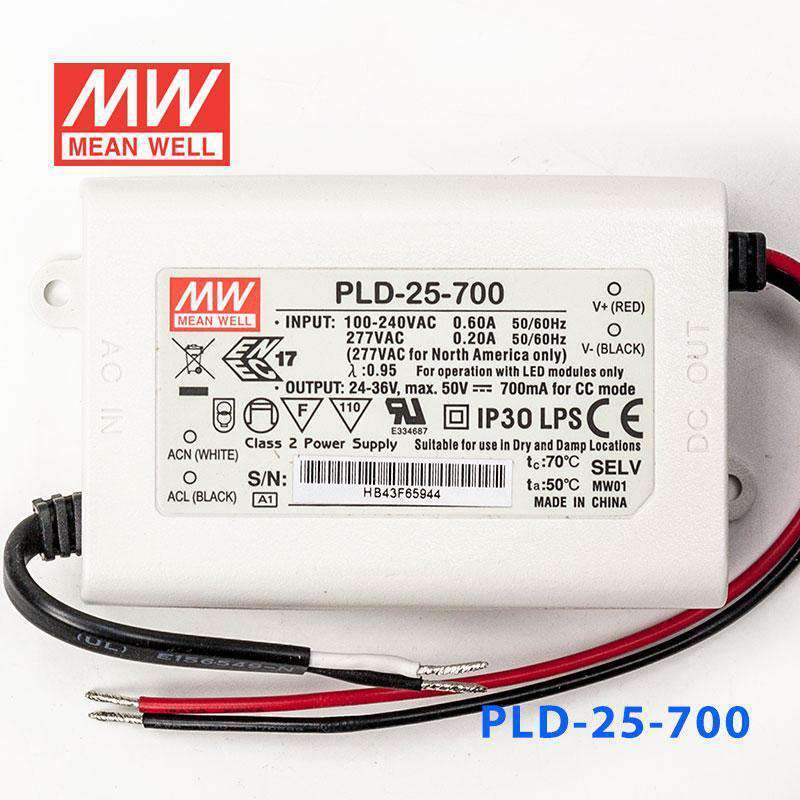

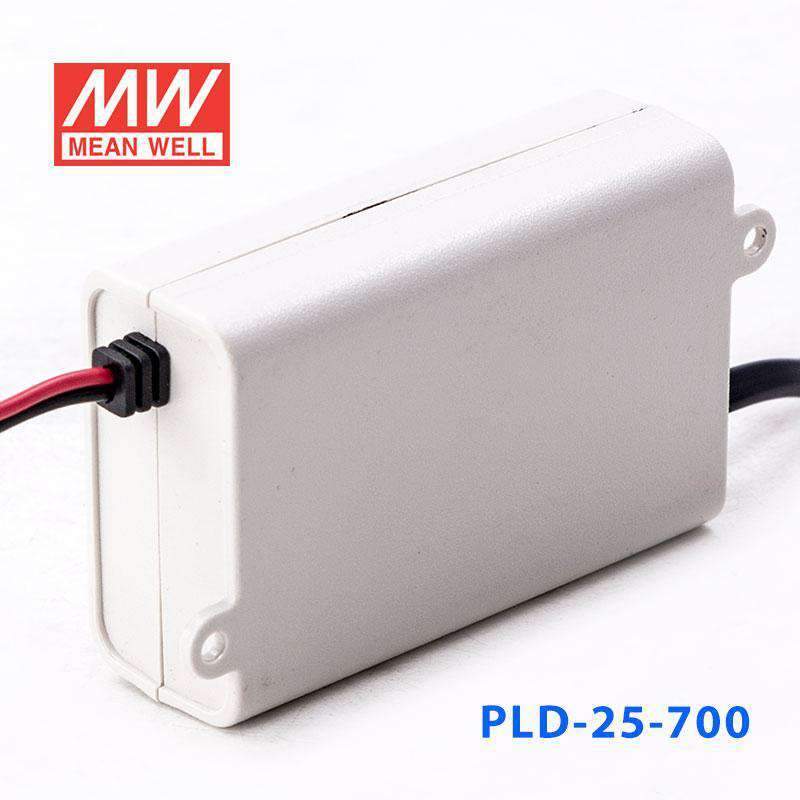

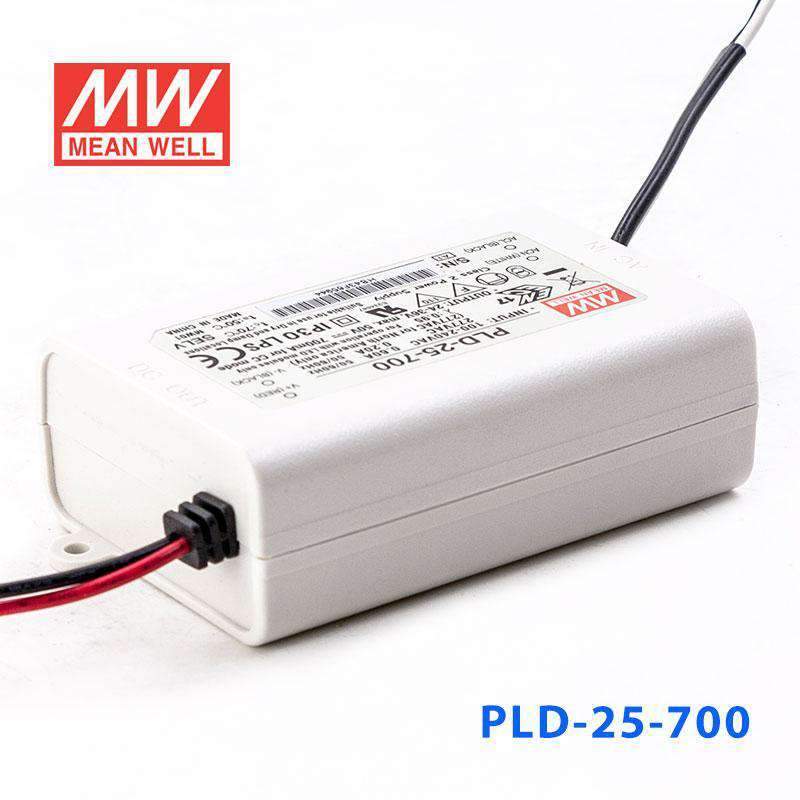

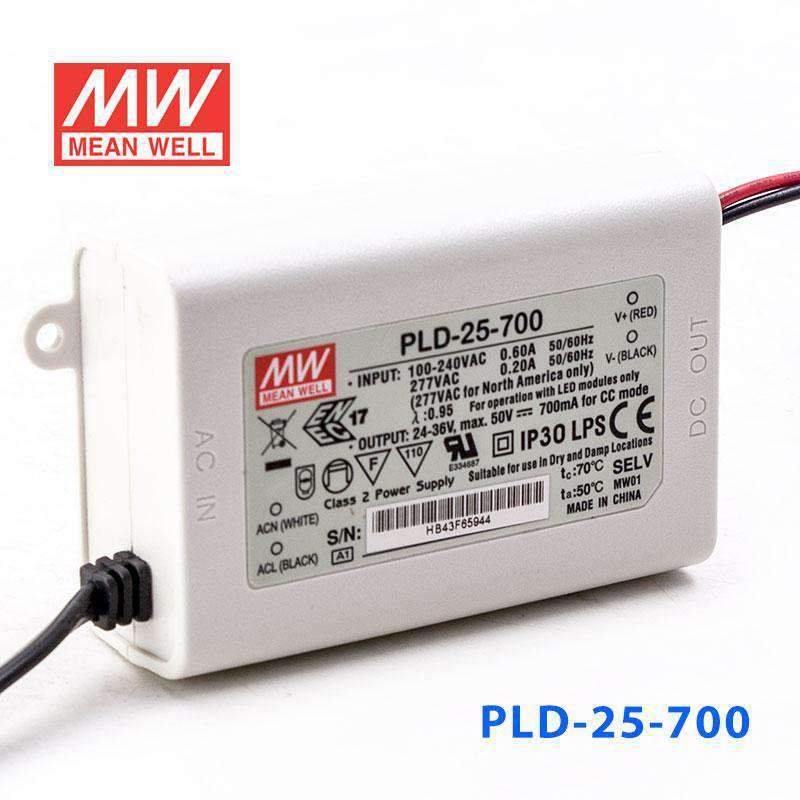

Mean Well PLD-25-700 Power Supply 25W 700mA

plastic caseIP42Class II design without FG

SKU:

PLD-25-700

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PLD-25 is a 25W Mean Well power converter (input range: 40~58V, operating temperature: -30~+60℃).

Key Features

✓ Input voltage range: 40~58V
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+60℃
✓ Protections: Short circuit / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PLD-25-350, PLD-25-700), ENEC EN 61347-1, EN 61347-2-13 independent, EN 62384, IP42
✓ 3 years warranty

Frequently Asked Questions

Can I use the PLD-25-700 for a 700mA LED downlight?

Yes, this model is intended for constant current LED loads at 700mA. It is suitable when the downlight's total forward voltage falls within the 24-36V constant current range and the load stays within 25.2W.

Will the PLD-25-700 work with a small COB LED array?

It can work with a COB or small LED array if the array is specified for constant current operation at 700mA. The total forward voltage of the array must stay within 24V to 36V, since this is not a constant voltage driver.

Is this driver appropriate for compact illuminated signage?

It may be used for compact signage only when the LED modules are built for constant current at 700mA. Constant voltage signage modules are not the right match, and the total LED load must remain within 25.2W.

Can the PLD-25-700 be used in protected indoor commercial fixtures?

Yes, its IP42 plastic case and Class II design suit protected indoor fixture environments. It also supports operating temperatures from -30°C to +60°C, but IP42 is not intended for direct weather exposure.

What kind of LED load is compatible with the PLD-25-700?

The PLD-25-700 delivers constant current at 700mA across a 24-36V CC output range. The number of LEDs depends on each LED's forward voltage, so the correct match is determined by the load's combined forward voltage rather than a specific LED quantity.

What is the difference between the PLD-25-700 and the other 25W PLD drivers?

The PLD-25-700 is the 700mA member of the 25W group, with a 24-36V CC range and 25.2W output. Other 25W versions are PLD-25-350 at 350mA, 40-58V, 20.3W; PLD-25-1050 at 1050mA, 16-24V, 25.2W; and PLD-25-1400 at 1400mA, 12-18V, 25.2W.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PLD-25-350Power Supply 25W 350mA	20.3W	58V	0.35A	Indoor	View
Mean Well PLD-25-1400 Power Supply 25W 1400mA	25.2W	18V	1.4A	Indoor	View
Mean Well PLD-25-1050 Power Supply 25W 1050mA	25.2W	24V	1.05A	Indoor	View
