Can I use the PLM-12-1050 for a 1050mA LED downlight?

Yes, if the downlight is designed for constant current operation at 1050mA and its LED load falls within the 7-12V constant current range. This is a 12.6W constant current driver, so it is intended for LED loads that match that current requirement rather than constant voltage products.

Is the PLM-12-1050 suitable for LED signage modules?

It can be suitable for signage modules that require 1050mA constant current and operate within the 7-12V CC range. It is not the right match for constant voltage signage modules because this model regulates current, not fixed output voltage.

Can this driver run a small high-current LED array?

Yes, this model is suited to small LED arrays built for 1050mA constant current as long as the total forward voltage stays within 7-12V. With a 12.6W rating, it fits lower-voltage constant current arrays rather than larger higher-voltage assemblies.

How do I know if the PLM-12-1050 is compatible with my LEDs?

Check that your LEDs are specified for 1050mA constant current and that their combined forward voltage falls within the 7-12V CC output range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count for this driver.

Is the PLM-12-1050 appropriate for cold or warm operating areas?

It is rated for operation from -30°C to +50°C, so it covers a fairly wide ambient range. The driver uses a fully isolated plastic case with Class II design, but no IP rating is listed, so enclosure requirements should be considered for the final environment.

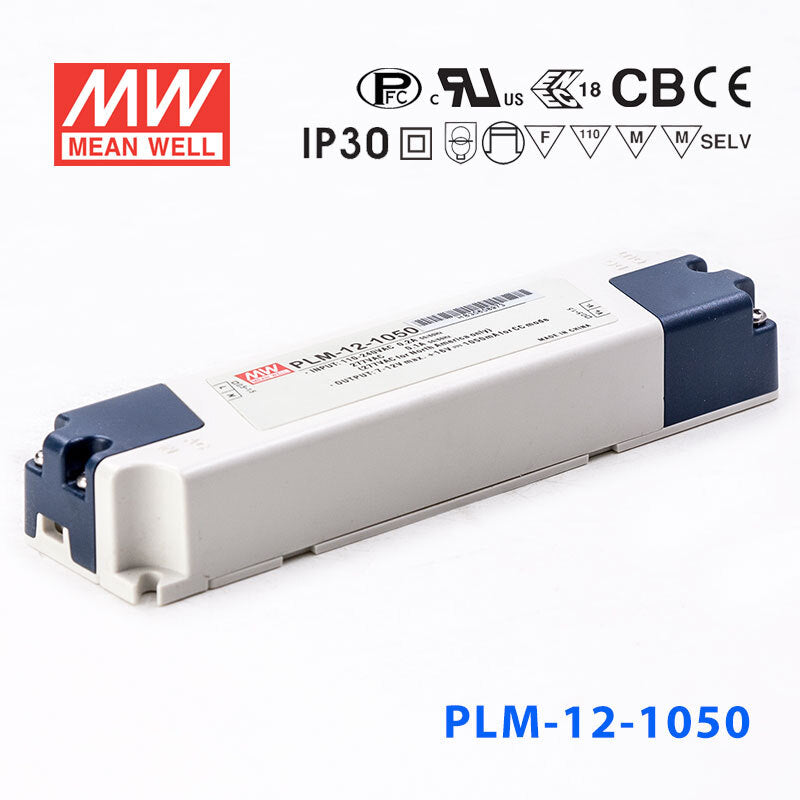

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well PLM-12-1050, 1050mA Constant Current with PFC - Terminal Block

fully isolated plastic caseClass II design without FGpush terminal I/O

SKU:

PLM-12-1050

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PLM-12 is a 12W Mean Well DIN rail power converter with a 145mm profile (input range: 110~295VAC, operating temperature: -30~+50℃).

Key Features

✓ 145mm width — DIN rail TS-35 compatible
✓ Input voltage range: 110~295VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+50℃
✓ Protections: Short circuit
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1 (for E type only) ,EAC TP TC 004, IP30
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PLM-12-700, 700mA Constant Current with PFC - Terminal Block	12.6W	22V	0.7A	Indoor	View
Mean Well PLM-12-500, 500mA Constant Current with PFC - Terminal Block	12W	30V	0.5A	Indoor	View
Mean Well PLM-12-350, 350mA Constant Current with PFC - Terminal Block	12.6W	42V	0.35A	Indoor	View
