Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

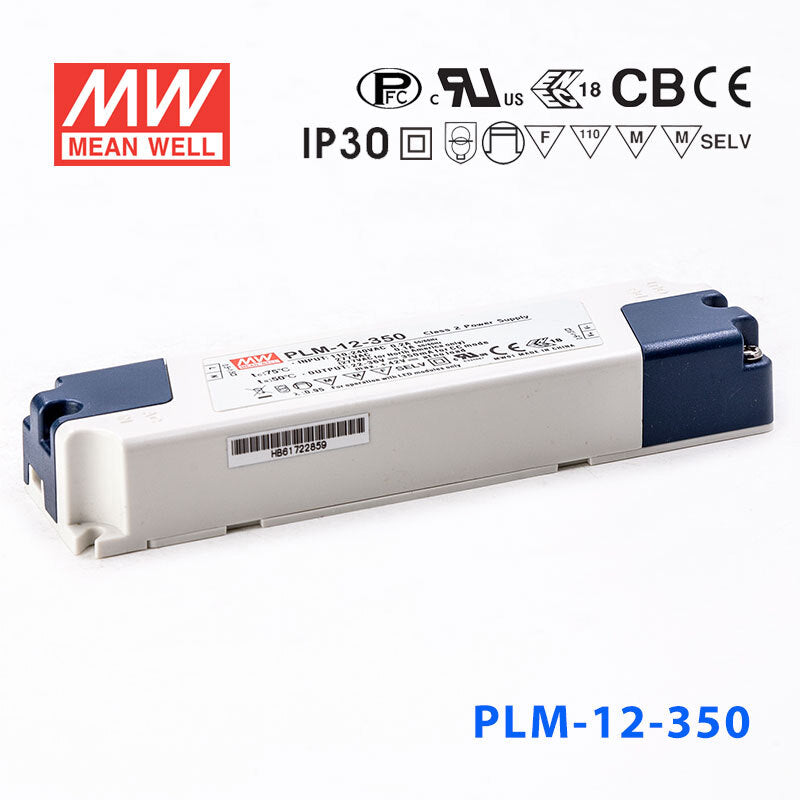

Mean Well PLM-12-350, 350mA Constant Current with PFC - Terminal Block
Please Login for Pricing
Description
Description
Features
| 230VAC only or Full range(up to 295VAC) models available |
| Built-in active PFC function |
| Constant current design |
| Protections: Short circuit |
| Cooling by free air convection |
| Fully isolated plastic case |
| IP30 design |
| Class II power unit, no FG |
| Class 2 power unit (Blank type only) |
| No load power consumption < 0.5W |
| High reliability, low cost |
| 2 years warranty |
General Specification
| AC input voltage range | Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC |
| AC inrush current (max.) | COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC |
| DC adjustment range | |
| Current adjustment range | |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over temperature protection | Hiccup mode, auto-recovery |
| Setup time | Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -30~+50ºC |
| Safety standards | UL8750, ENEC EN61347-1,2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection | DG235-7.2-2P |
|
Dimension (LxWxH) (mm) |
145*38*22mm |
| Packing | 60pcs/8.6Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLM Series
-
Power Rating12.6 Watt
-
Output Voltage42 Volt
-
Rated Current0.35 Ampere
-
Input Voltage110V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length14.5 cm
-
Width3.8 cm
-
Height2.2 cm
-
Weight0.13 kg
