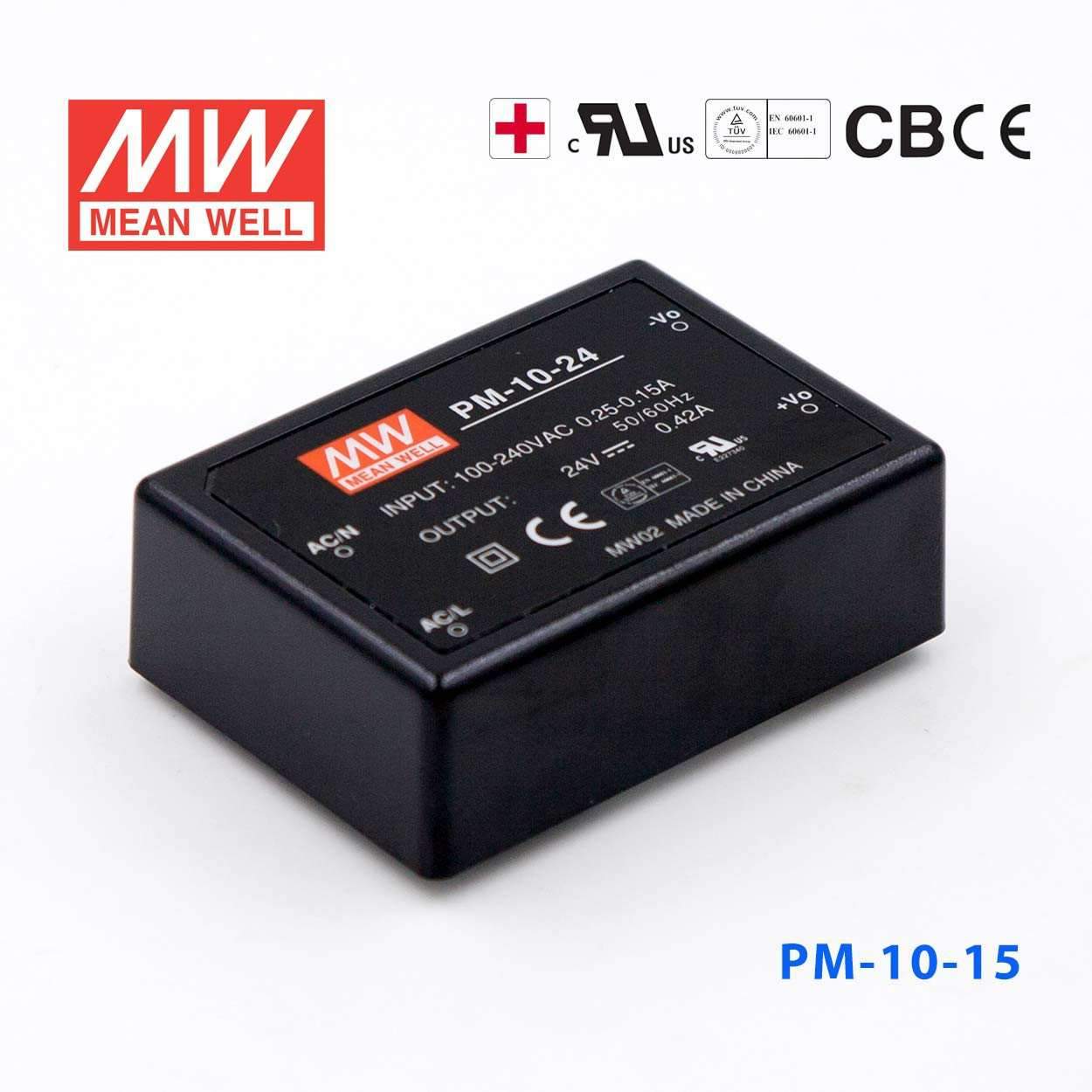

Mean Well PM-10-15 Power Supply 10W 15V 670mA

SKU PM-10-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by MPM-10-15
Available to order
|

Overview

PM-10-15 is the 15V output model of this series: rated current 0.67A, rated power 10.05W, typical efficiency 79%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation classⅡ
  • Medical safety approved (2 x MOPP between primary to secondary)
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • Suitable for BF application with appropriate system consideration
  • 3 years warranty

Specifications

PM-10-15Specifications from the official datasheet (2022-09-20 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
0.67A
CURRENT RANGE
0 ~ 0.67A
RATED POWER
10.05W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1800ms, 20ms/230VAC 1800ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
79%
AC CURRENT (Typ.)
0.25A/115VAC 0.15A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENTNote.5
Touch current < 80μ A/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020

OTHERS

MTBF
723.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
70*50*22.7mm (L*W*H)
PACKING
0.105Kg; 120pcs/13.6Kg/0.94CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  5. 5. Touch current was measured from primary input to DC output.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

PM-10-15 Block Diagram
Block Diagram
PM-10-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the PM-10-15 for a 15V instrumentation or analog control circuit?

Yes, if the equipment needs a constant 15V DC supply and the total draw stays within 0.67A and 10.05W. This output range is commonly matched to low-power instrumentation, control, and interface electronics built for 15V input.

Is the PM-10-15 suitable for a small 15V industrial sensor or transmitter assembly?

It can be appropriate for a compact 15V sensor or transmitter assembly when the total load remains under 0.67A. The supply provides a fixed 15V constant-voltage output from an 85-264VAC input range.

Would this 15V power supply work for embedded test equipment or measurement hardware?

Yes, for embedded test or measurement hardware that is designed for 15V DC input and stays within the 10.05W capacity. The 70.0 × 50.0 × 22.7 mm package can also help in space-constrained instrument housings.

Can the PM-10-15 be used for a low-power 15V control subsystem inside a machine?

It is a fit for low-power 15V subsystems where a constant-voltage output is required and the load is no more than 0.67A. It is better suited to electronics and control sections than to larger 15V power loads.

Is the PM-10-15 rated for outdoor use or wide-temperature indoor equipment?

The published temperature range is -20°C to +70°C, with output derating at higher ambient temperatures per the derating curve, which supports use across a wide indoor operating range. No IP rating is shown in the specs, so exposed outdoor or water-prone environments should not be assumed to be supported.
