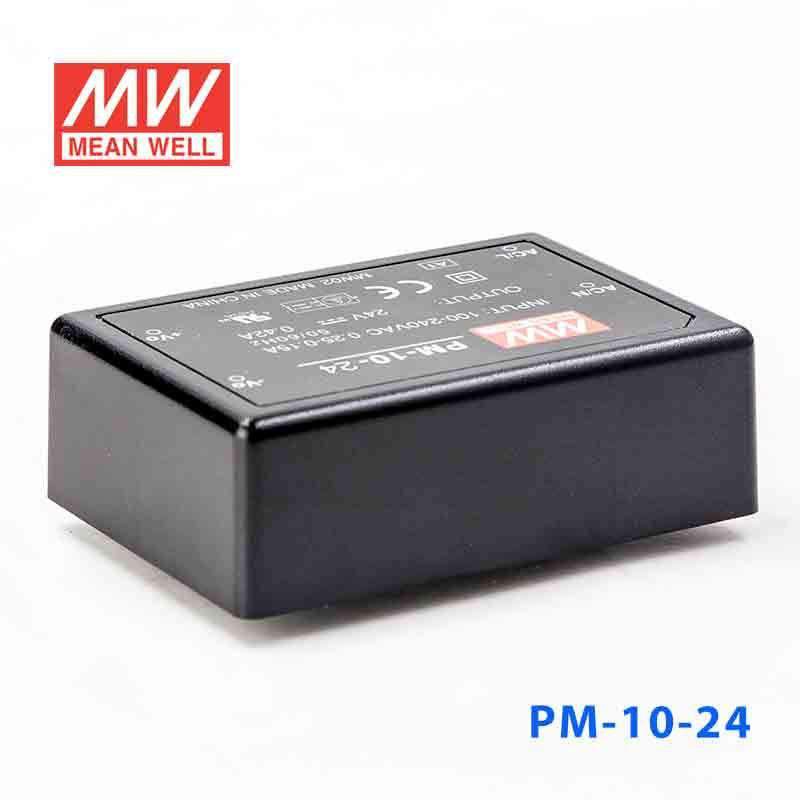

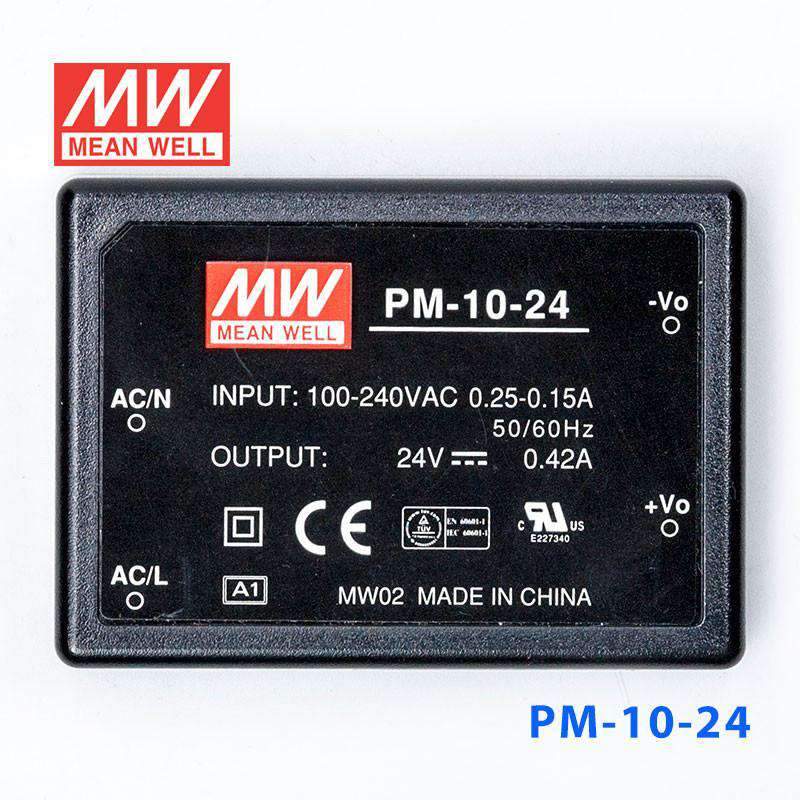

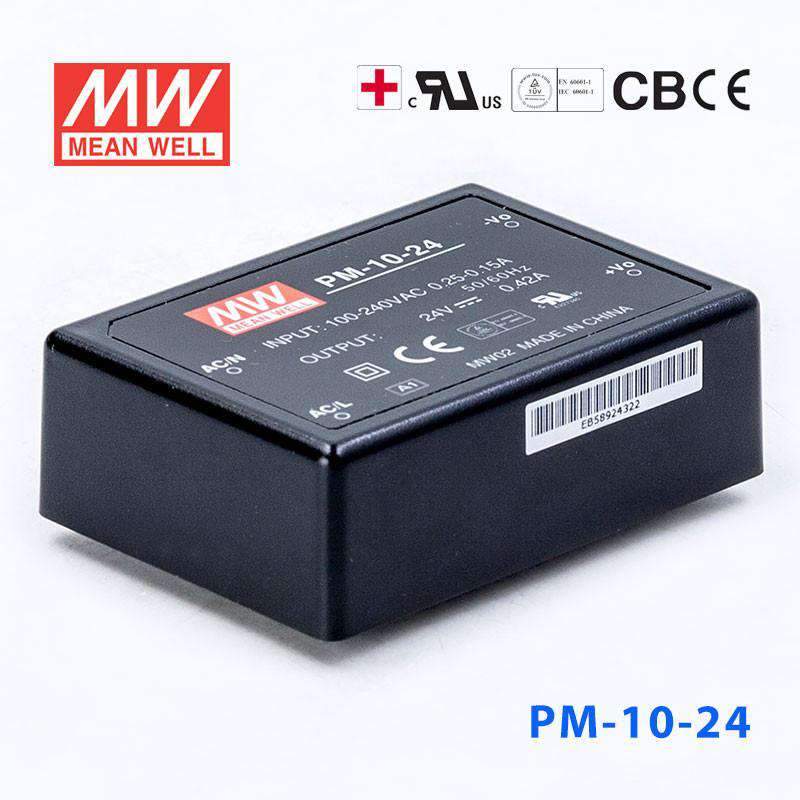

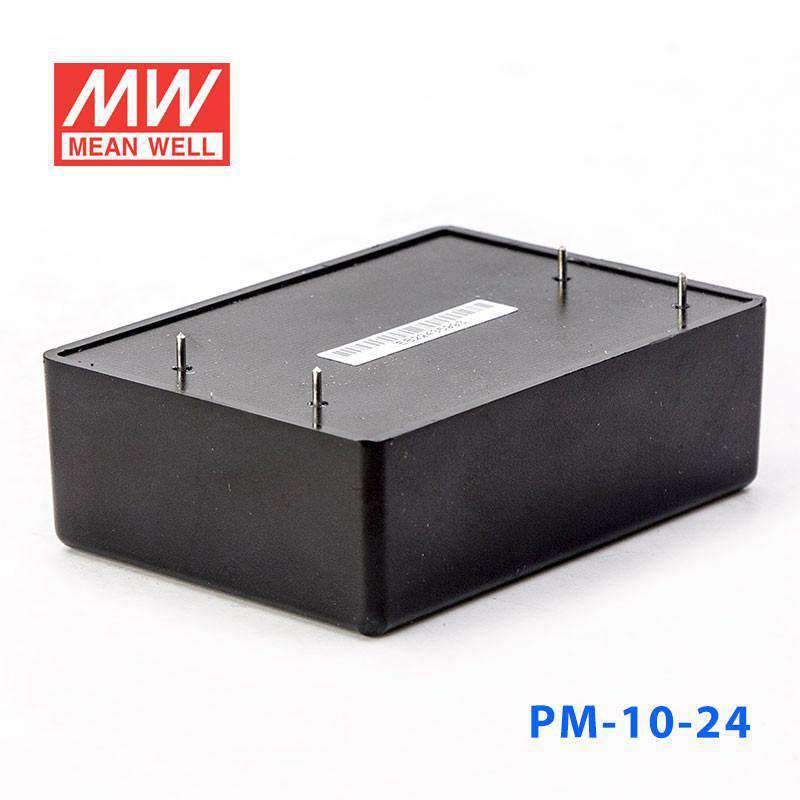

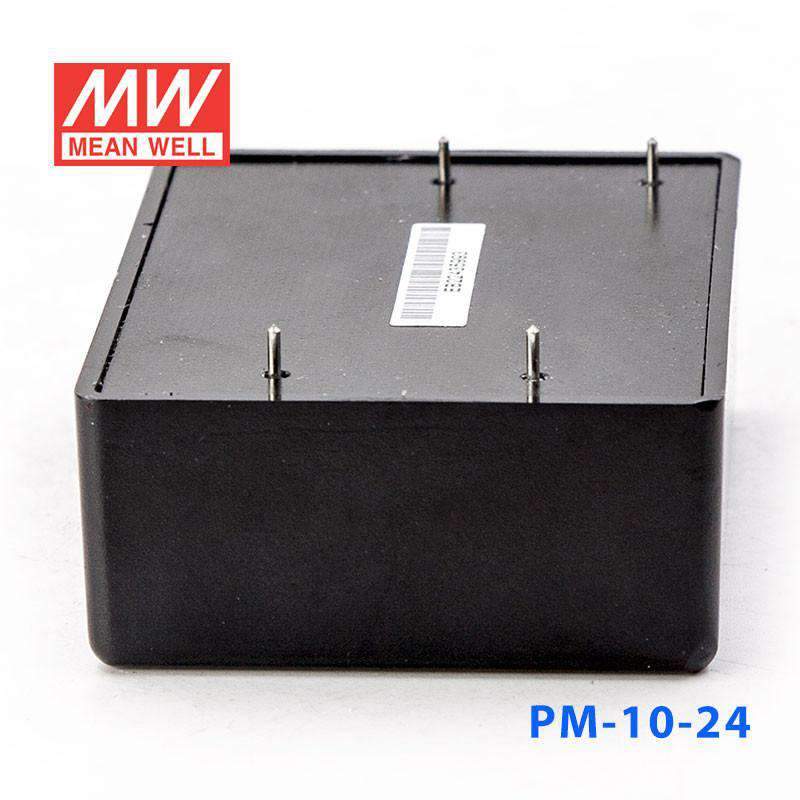

Mean Well PM-10-24 Power Supply 10W 24V 420mA
Log in to see priceOverview
PM-10-24 is the 24V output model of this series: rated current 0.42A, rated power 10.08W, typical efficiency 79%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Ultra-miniature size, light weight
- Cooling by free air convection
- Isolation classⅡ
- Medical safety approved (2 x MOPP between primary to secondary)
- No load power consumption<0.5W
- 100% full load burn-in test
- Fixed switching frequency at 67KHz
- High reliability
- Suitable for BF application with appropriate system consideration
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.42A
- CURRENT RANGE
- 0 ~ 0.42A
- RATED POWER
- 10.08W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1800ms, 20ms/230VAC 1800ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 100ms/230VAC 24ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 79%
- AC CURRENT (Typ.)
- 0.25A/115VAC 0.15A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A/115VAC 45A/230VAC
- LEAKAGE CURRENTNote.5
- Touch current < 80μ A/264VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.

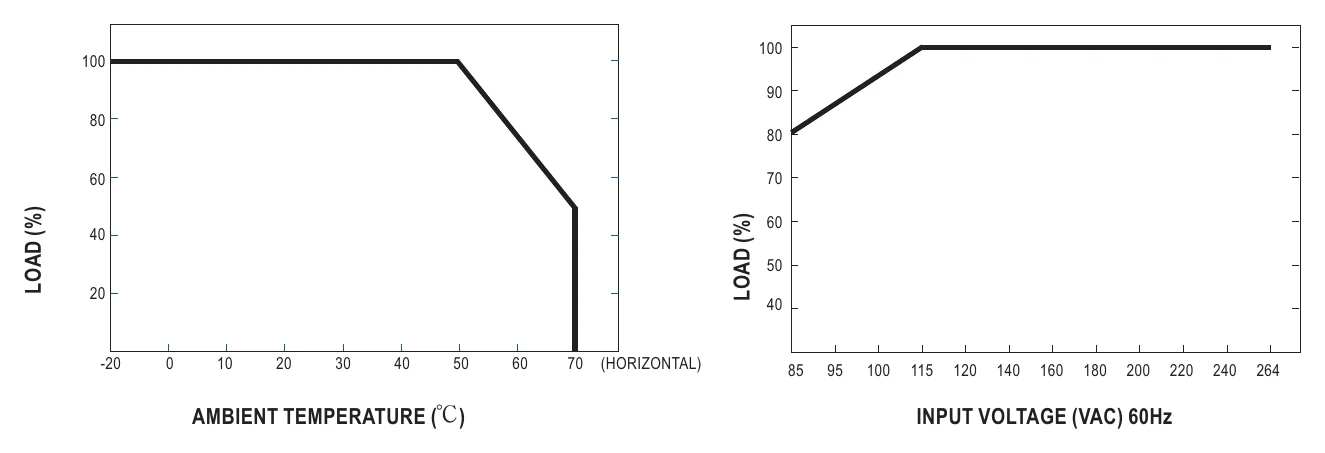

- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1, EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55011(CISPR11),EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020
OTHERS
- MTBF
- 723.2Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 70*50*22.7mm (L*W*H)
- PACKING
- 0.105Kg; 120pcs/13.6Kg/0.94CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- 5. Touch current was measured from primary input to DC output.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

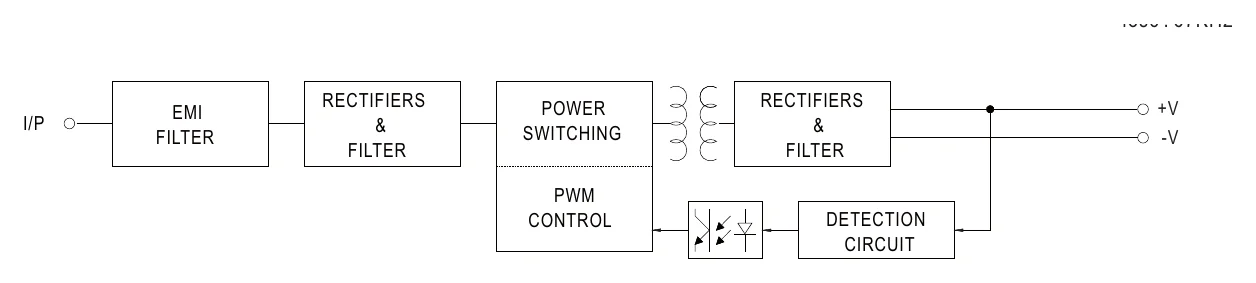

Technical drawings
Downloads
FAQ
Can I use the PM-10-24 for a small 24V industrial sensor or control circuit?
Yes, this model is a constant-voltage 24V supply for low-power 24V DC loads. It is rated for 10.08W and 0.42A, so it fits small industrial sensors, relays, and control circuits that need 24V and stay within that output limit.
Is the PM-10-24 suitable for embedded 24V electronics inside OEM equipment?
It can be a fit for embedded 24V electronics in compact equipment because it provides constant 24V output in a 70.0 x 50.0 x 22.7 mm package. The 85-264VAC input range also supports use across common AC mains conditions.
Can I use this 24V power supply for light-duty automation interfaces?
Yes, for light-duty automation interfaces that require 24V DC, this unit can work if the total load is no more than 10.08W or 0.42A. It is intended for constant-voltage applications rather than higher-power 24V automation loads.
Is the PM-10-24 meant for outdoor or harsh exposed environments?
The listed operating temperature is -20C to +70C, with output derating at higher ambient temperatures per the derating curve, and no IP rating is provided in the product specs. That makes it better suited to protected indoor equipment or enclosed systems rather than exposed wet or dusty outdoor use.
