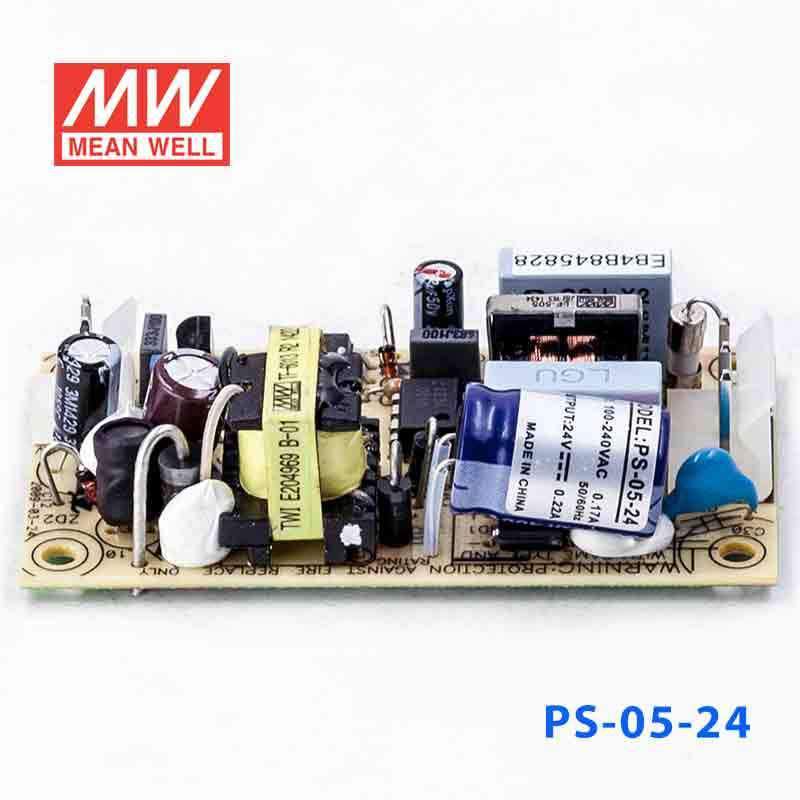

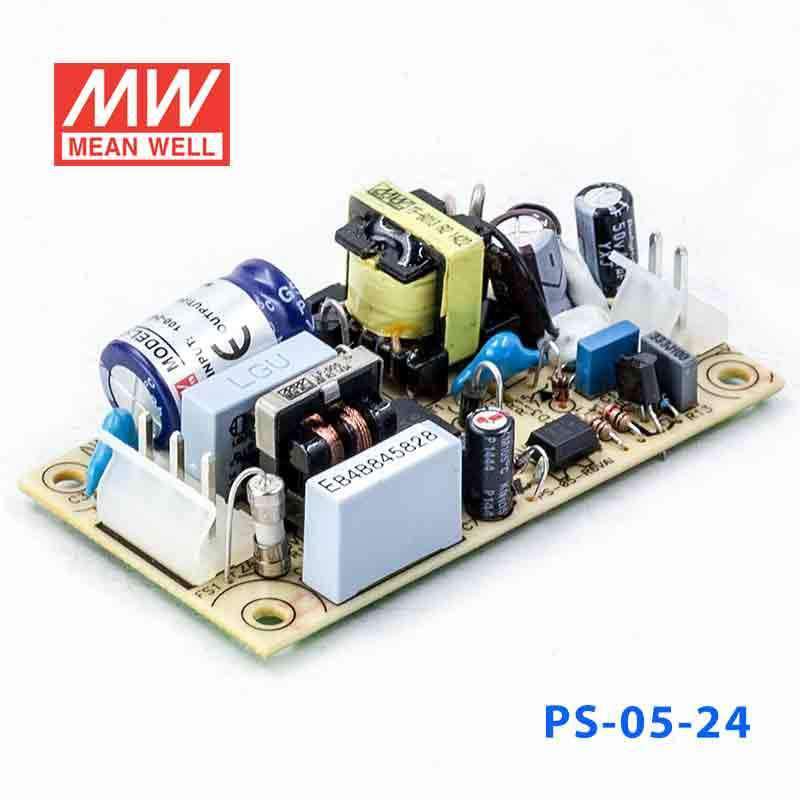

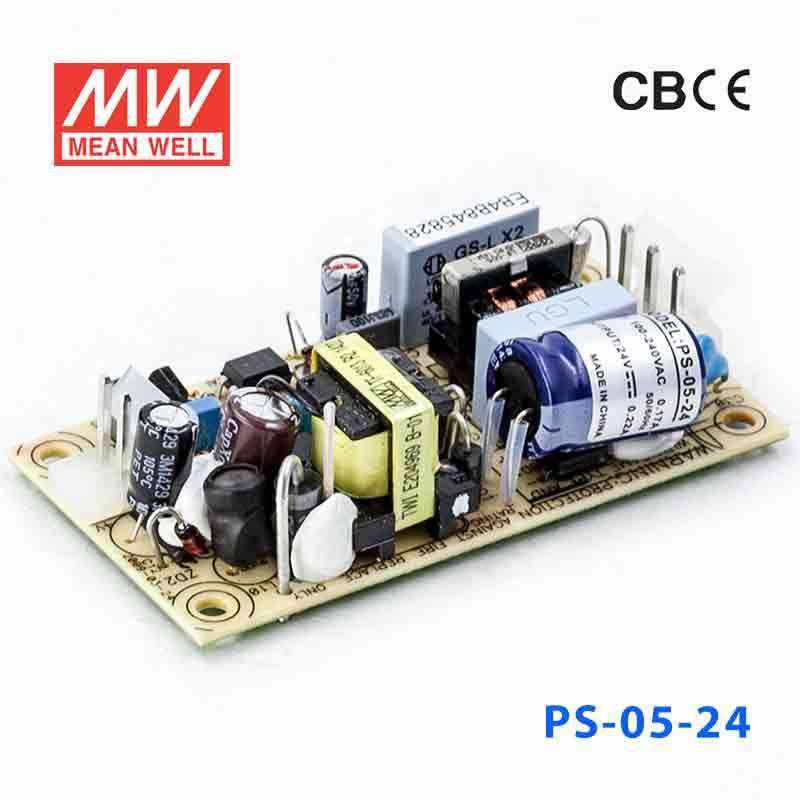

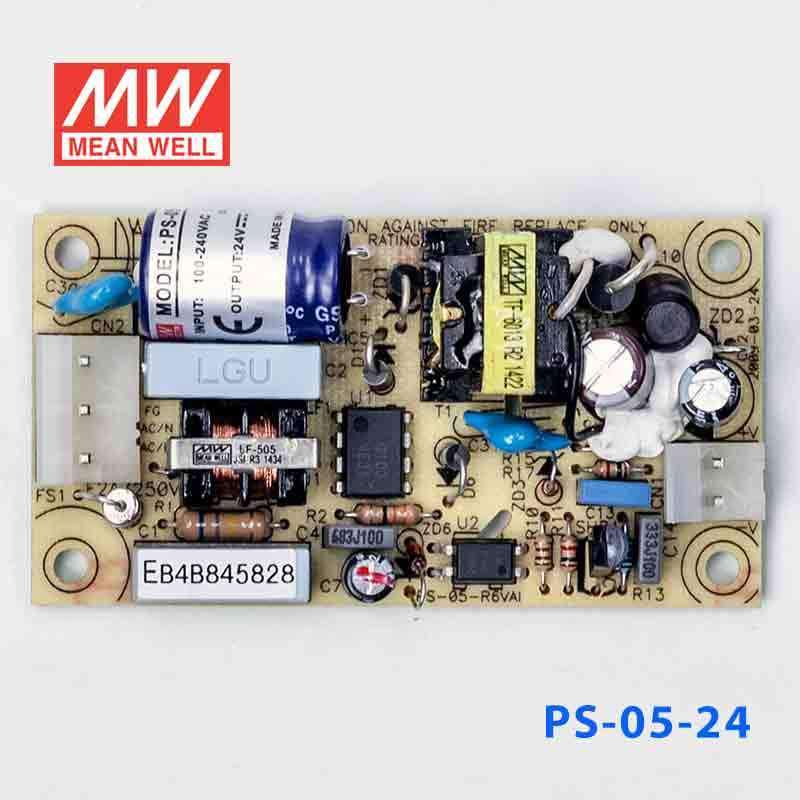

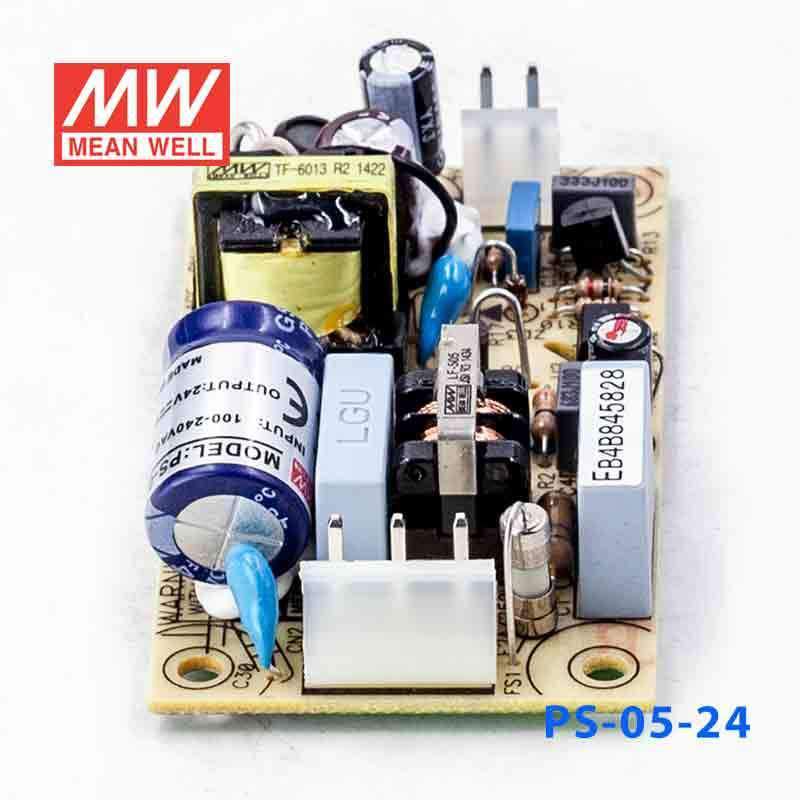

Mean Well PS-05-24 Power Supply 5W 24V

low leakage current < 0.5mA, low cost, high reliability

|

Description

Features

Universal AC input / Full range
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over Temp.
Fixed switching frequency at 67kHz
Low leakage current <0.5mA
100% full load burn-in test
Low cost, high reliability
2 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start, 30A at 230VAC
Over temp. protection U1, Tj:140°C, hiccup mode, auto-recovery
Overload protection >105% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature -10~+60°C (refer to output derating curve)
Leakage current Less than 0.5mA at 240VAC
Safety standards UL60950-1 CB approval by TUV
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 3P/ 5mm, 2P/ 3.96mm pitch, Molex 5285-03,5273-02
Dimension (LxWxH) 75x 40x 20 mm
Packing 0.05kg ; 120pcs / 6.25kg / 1.0CUFT

Specifications

  • Brand
    Mean Well
  • Series
    PS Series
  • Power Rating
    5.28 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    0.22 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    7.5 cm
  • Width
    4 cm
  • Height
    2 cm
  • Weight
    0.05 kg
