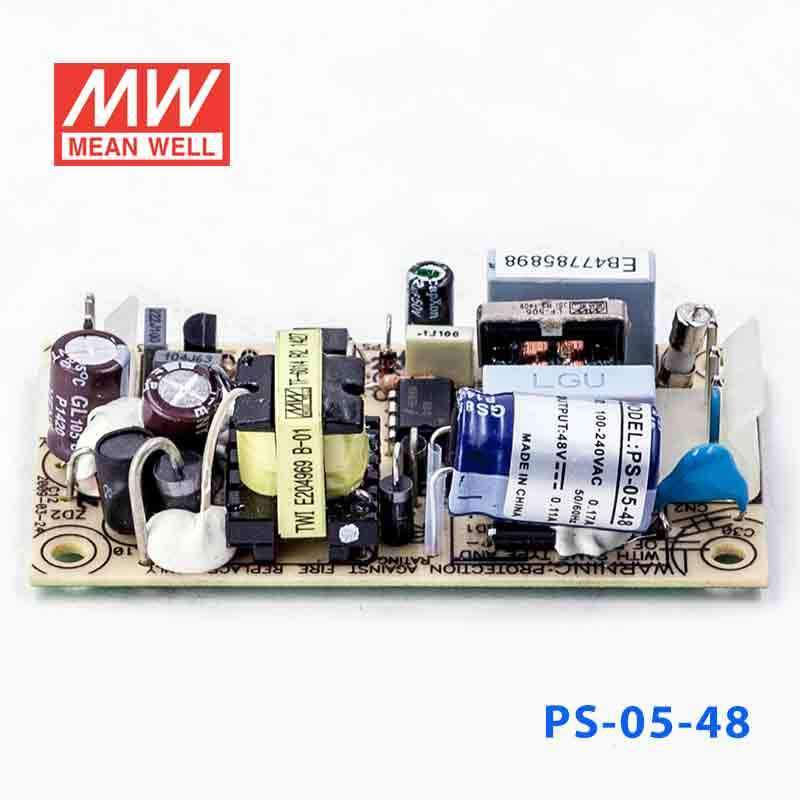

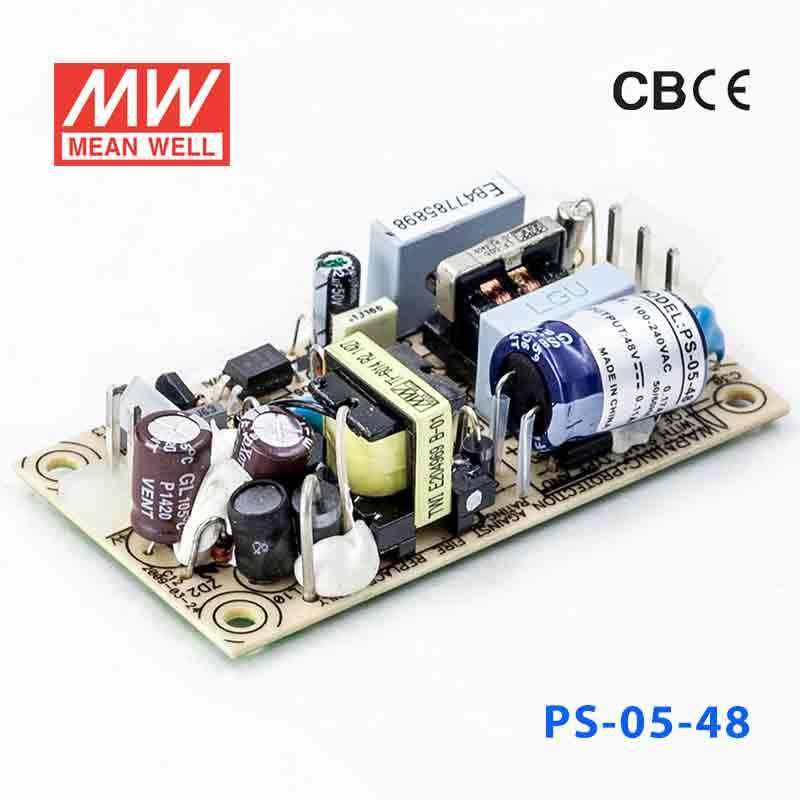

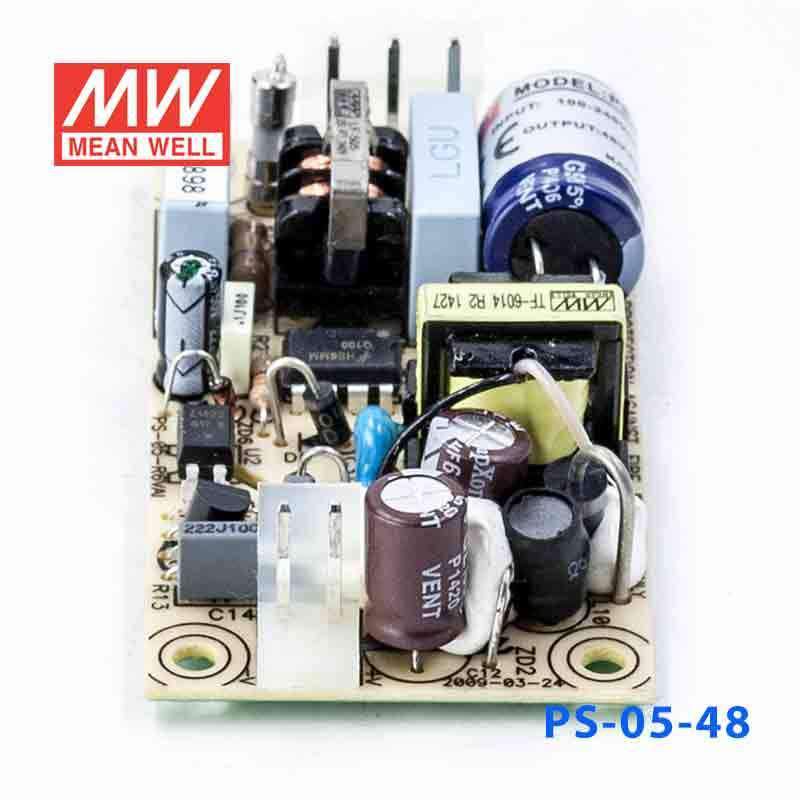

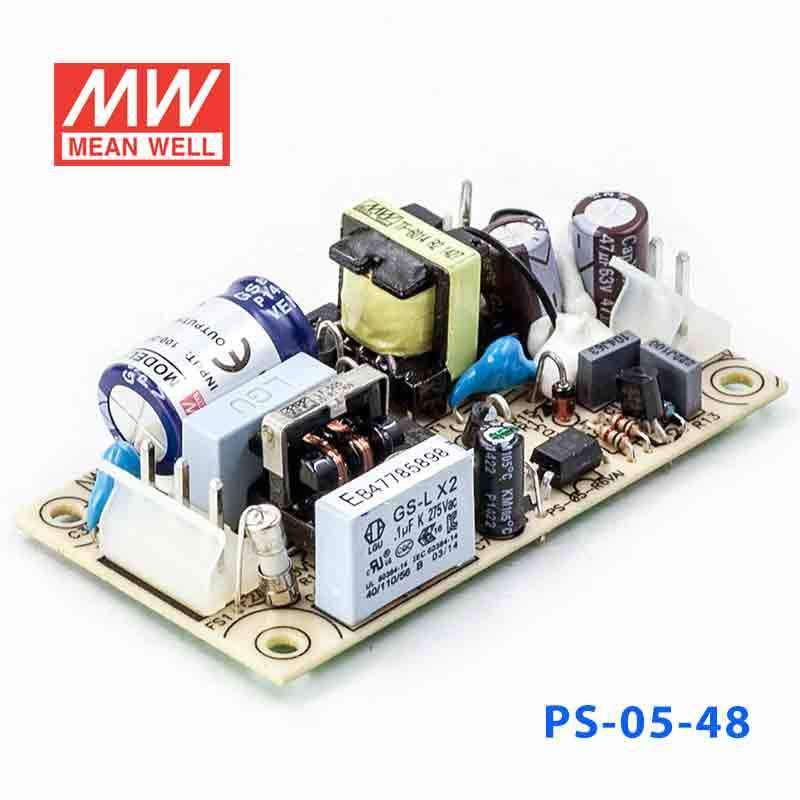

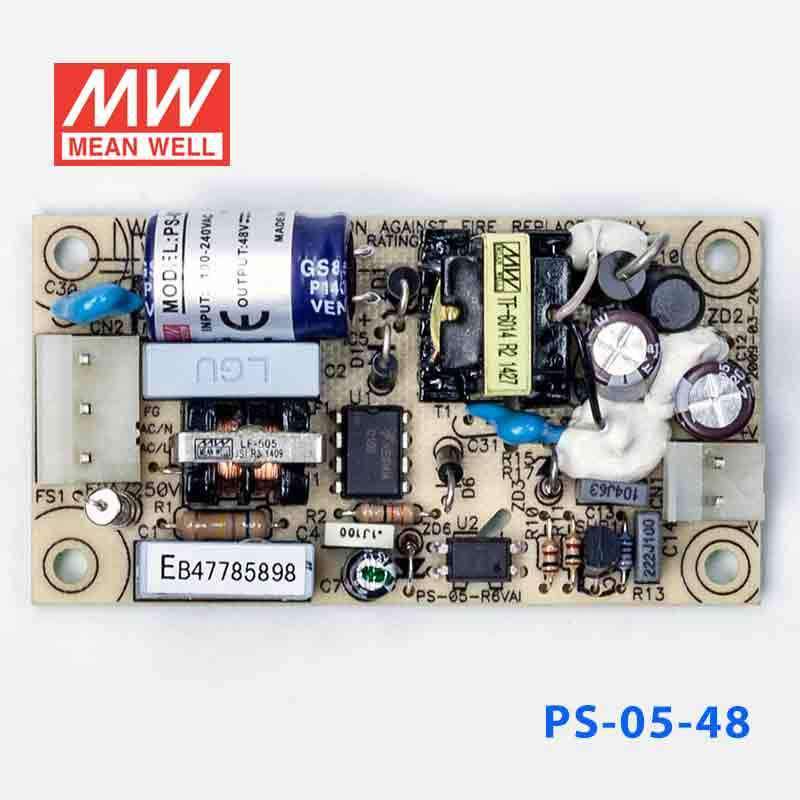

Mean Well PS-05-48 Power Supply 5W 48V 110mA

Q: Can I use the PS-05-48 for a low-power 48V industrial control circuit?

Yes, this unit provides constant-voltage 48V output for low-power control loads that stay within 5.28W and 0.11A. It is intended for light 48V electronics rather than equipment with higher startup or continuous current demand.

Q: Is the PS-05-48 suitable for a small 48V telecom or IT module?

It can be suitable for a small 48V telecom or IT device if that load requires constant 48V and does not exceed 0.11A. With 5.28W available, it fits low-current electronics better than multi-module or higher-draw systems.

Q: Would this work for a compact 48V embedded controller or monitoring device?

Yes, provided the controller or monitoring device is designed for 48V constant-voltage input and remains within 5.28W total draw. The 0.11A output limit makes it appropriate for very low-current embedded applications.

Q: Can the PS-05-48 power a single 48V field device in an automation panel?

It can power a single low-power 48V field device when the device stays under 0.11A and 5.28W. That makes it better for small instrumentation or interface loads than for larger panel devices.

Q: Can I use the PS-05-48 in outdoor or washdown conditions?

The specified operating range is -10°C to +60°C, but no IP rating is listed in the product data. Because of that, the published specs do not establish suitability for outdoor exposure, washdown, or other ingress-sensitive environments.

Q: What are the differences between the PS-05-48 and the other PS-05 models?

In the PS-05 series, PS-05-5 is 5W at 5V and 1A, PS-05-12 is 5.4W at 12V and 0.45A, PS-05-15 is 5.25W at 15V and 0.35A, PS-05-24 is 5.28W at 24V and 0.22A, and PS-05-48 is 5.28W at 48V and 0.11A. The family keeps similar low-power form factors while changing output voltage and the corresponding available current.

low leakage current < 0.5mA, low cost, high reliability

SKU:

PS-05-48

End of Life, Succeeded by EPS-15-48

Please for Pricing

Notify me when it's back in stock

Description

The PS-05 is a 5W Mean Well power converter (input range: 85~264VAC).

Key Features

✓ Input voltage range: 85~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Safety approvals: IEC60950-1 CB
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

PS Series
Power Rating

5.28 Watt
Output Voltage

48 Volt
Rated Current

0.11 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

7.5 cm
Width

4 cm
Height

2 cm
Weight

0.05 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PS-05-48 for a low-power 48V industrial control circuit?

Yes, this unit provides constant-voltage 48V output for low-power control loads that stay within 5.28W and 0.11A. It is intended for light 48V electronics rather than equipment with higher startup or continuous current demand.

Is the PS-05-48 suitable for a small 48V telecom or IT module?

It can be suitable for a small 48V telecom or IT device if that load requires constant 48V and does not exceed 0.11A. With 5.28W available, it fits low-current electronics better than multi-module or higher-draw systems.

Would this work for a compact 48V embedded controller or monitoring device?

Yes, provided the controller or monitoring device is designed for 48V constant-voltage input and remains within 5.28W total draw. The 0.11A output limit makes it appropriate for very low-current embedded applications.

Can the PS-05-48 power a single 48V field device in an automation panel?

It can power a single low-power 48V field device when the device stays under 0.11A and 5.28W. That makes it better for small instrumentation or interface loads than for larger panel devices.

Can I use the PS-05-48 in outdoor or washdown conditions?

The specified operating range is -10°C to +60°C, but no IP rating is listed in the product data. Because of that, the published specs do not establish suitability for outdoor exposure, washdown, or other ingress-sensitive environments.

What are the differences between the PS-05-48 and the other PS-05 models?

In the PS-05 series, PS-05-5 is 5W at 5V and 1A, PS-05-12 is 5.4W at 12V and 0.45A, PS-05-15 is 5.25W at 15V and 0.35A, PS-05-24 is 5.28W at 24V and 0.22A, and PS-05-48 is 5.28W at 48V and 0.11A. The family keeps similar low-power form factors while changing output voltage and the corresponding available current.

Model	Power	Voltage	Current
Mean Well PS-05-24 Power Supply 5W 24V 220mA	5.28W	24V	0.22A	View
Mean Well PS-05-5 Power Supply 5W 5V 1A	5W	5V	1A	View
Mean Well PS-05-15 Power Supply 5W 15V 350mA	5.25W	15V	0.35A	View
Mean Well PS-05-12 Power Supply 5W 12V 450mA	5.4W	12V	0.45A	View
