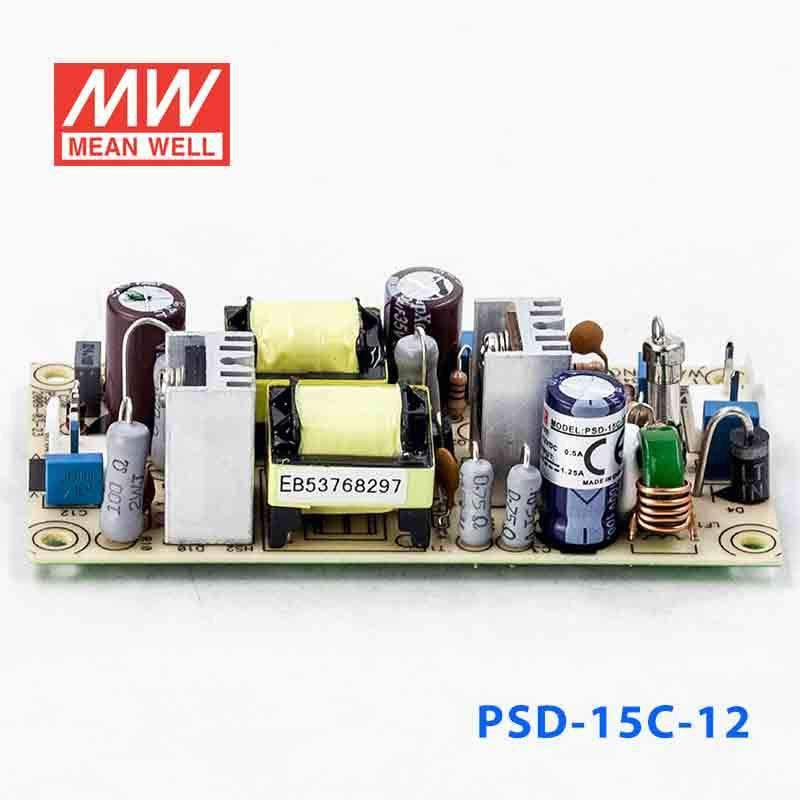

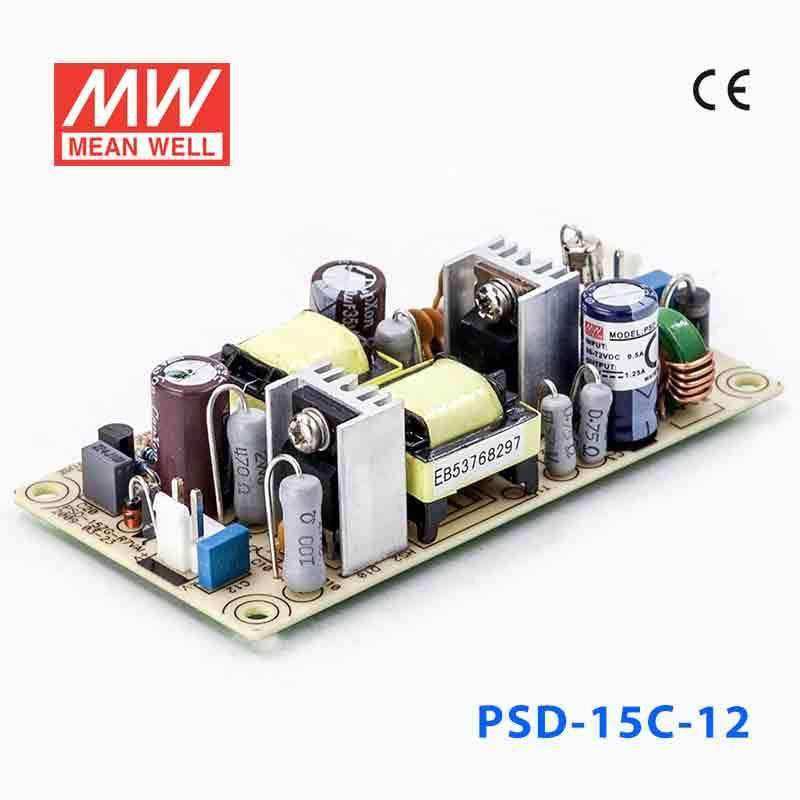

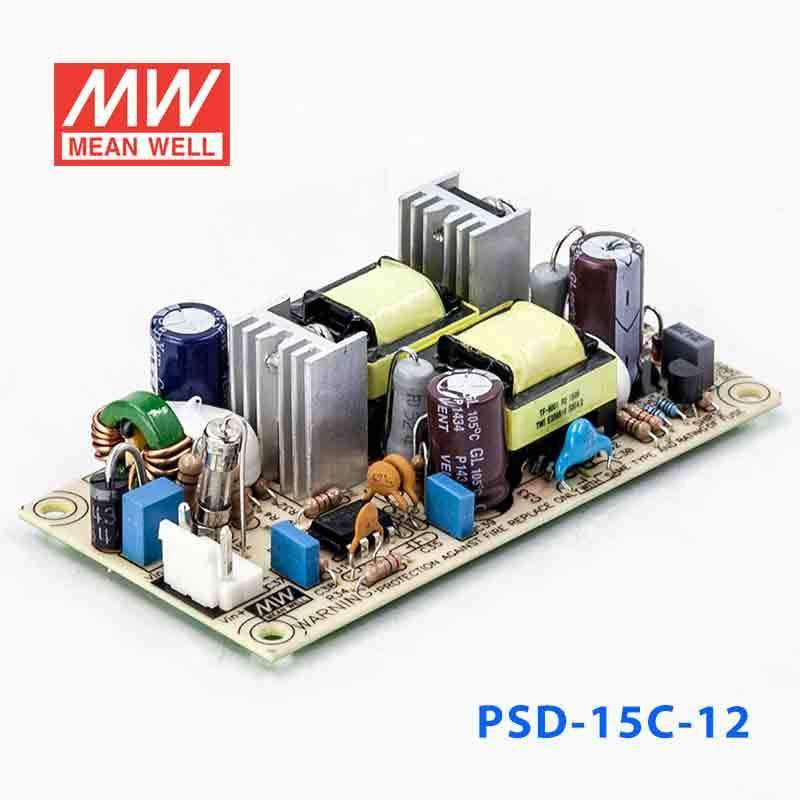

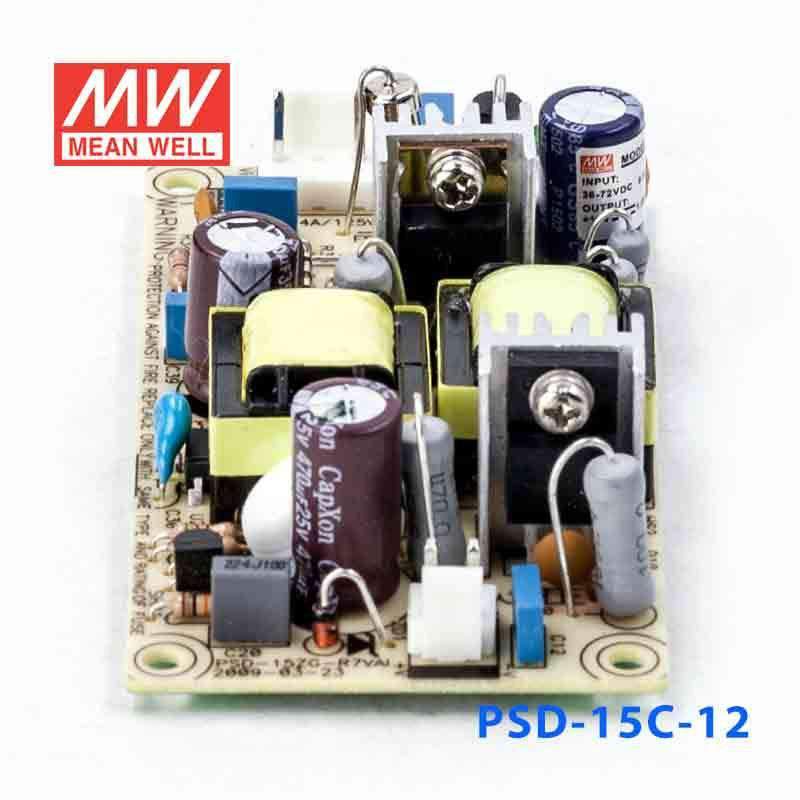

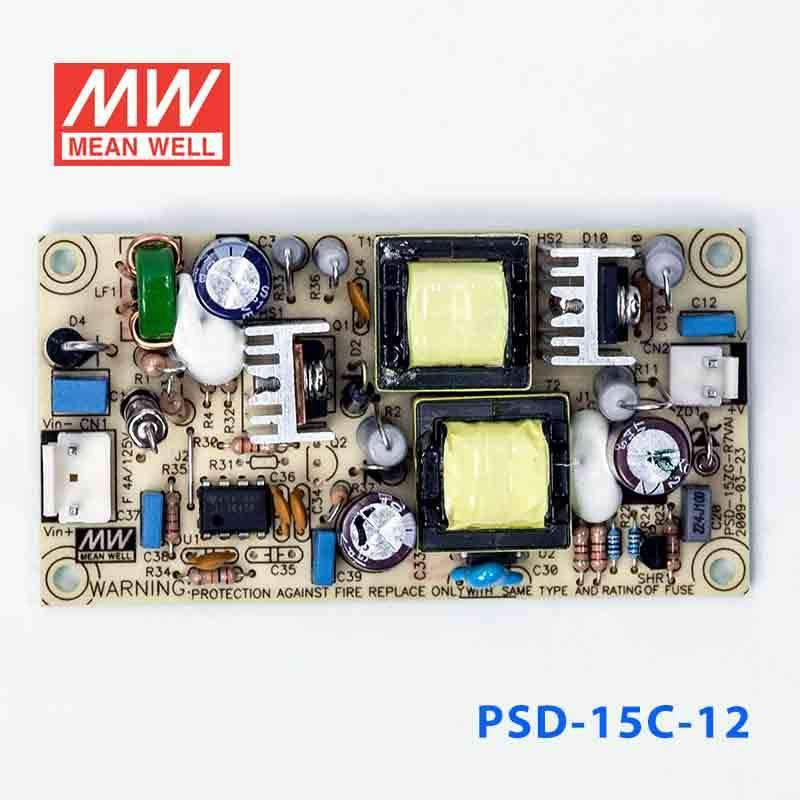

Mean Well PSD-15C-12 DC-DC Converter - 15W - 36~72V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

PSD-15C-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

2000VAC I / O isolation

Built-in EMI filter, low ripple noise

Protections: Short circuit / Overload / Over voltage / Polarity

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 1.0% (max.)
Overload protection	105% ~ 150% hiccup mode, auto-recovery
Over voltage protection	115% ~ 135% rated output voltage
Withstand voltage	I / PO / P: 2 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Isolation resistance	100MQ(min.)@500VDC
Working temperature	-10 ~ + 60°C
Safety standards	Meet LVD
SEMC standards	EN55022 class B, EN61000-4-2, 3, 4, 6, 8
Connection	3P, 2P / 3.96mm pitch, JST B3P / B2P-VH
Packing	0.081 kg; 120 pcs / 10.72 kg
Dimension (LxWxH) (mm)	94x 49x 25 mm

Specifications

Brand

Mean Well
Series

PSD Series
Power Rating

15 Watt
Output Voltage

12 Volt
Rated Current

1.25 Ampere
Input Voltage

36V~72V
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.4 cm
Width

4.9 cm
Height

2.5 cm
Weight

0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PSD-15C-12 for 12V industrial control electronics in a higher-voltage system?

It can fit low-power 12V control electronics when the source is within the listed 36-72VAC range and the load stays within 15W and 1.25A. Because it is a constant voltage 12V converter, it is better suited to fixed-voltage electronics than to larger 12V loads above its rated output.

Is the PSD-15C-12 suitable for instrumentation or monitoring devices that need 12V power?

This model can suit compact instrumentation, sensing, or monitoring electronics that require regulated 12V and modest power demand. Its 15W rating and 1.25A output keep it in the low-power category for embedded and industrial equipment.

Can the PSD-15C-12 be used inside telecom or network equipment cabinets for auxiliary 12V loads?

It can serve low-power 12V auxiliary electronics if the available input is within 36-72VAC and the total load remains within 15W and 1.25A. The stated 1.5~2KVAC isolation by models is also relevant for cabinet-based IT and control applications.

Would the PSD-15C-12 work for embedded automation modules in a compact enclosure?

The 94.0 x 49.0 x 25.0 mm dimensions and 0.081 kg weight make it practical for compact enclosures. Its constant voltage 12V output is appropriate for low-power automation modules and electronics that do not exceed 1.25A.

How does the PSD-15C-12 compare with the 5V and 24V versions in the same family?

The PSD-15C-12 is rated at 15W, 12V, and 1.25A. In the same PSD-15C family, the 5V version is rated at 15W and 3A, while the 24V version is rated at 14.4W and 666A.

Can the PSD-15C-12 be used outdoors or in dusty industrial areas?

The listed operating temperature is -10C to +60C, so the temperature condition needs to stay inside that range. No IP rating is provided in the specs, which means this product data does not confirm outdoor or dust-tight use.

Model	Power	Voltage	Current	IP Rating
Mean Well PSD-15C-5 Switching Power Supply 15W 5V	15W	5V	3A	Indoor	View
Mean Well PSD-15C-24 DC-DC Converter - 14.4W - 36~72V in 24V out	14.4W	24V	0.66A	Indoor	View
Mean Well PSD-15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
