Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

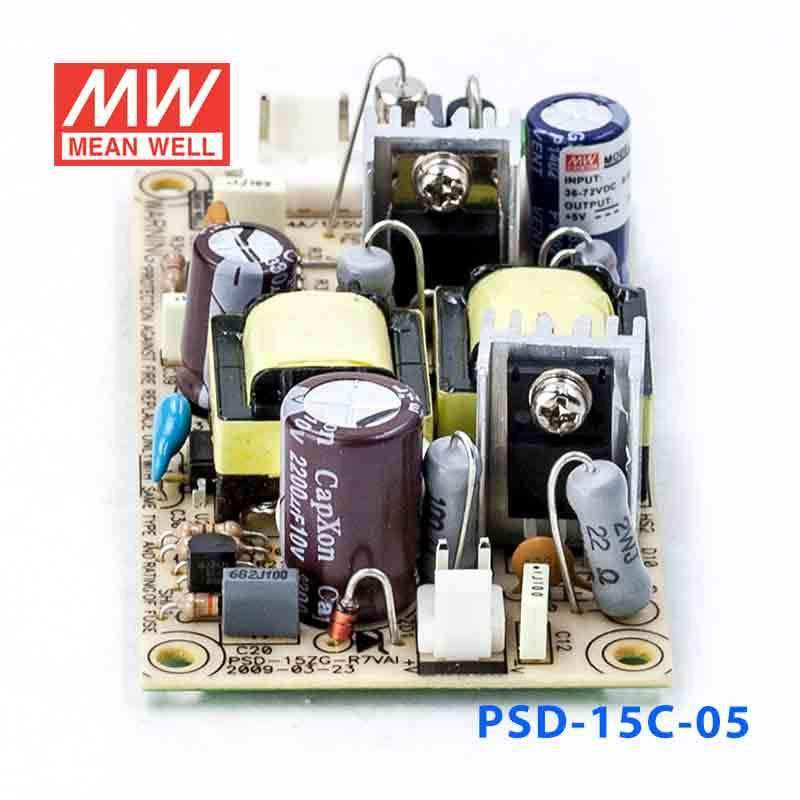

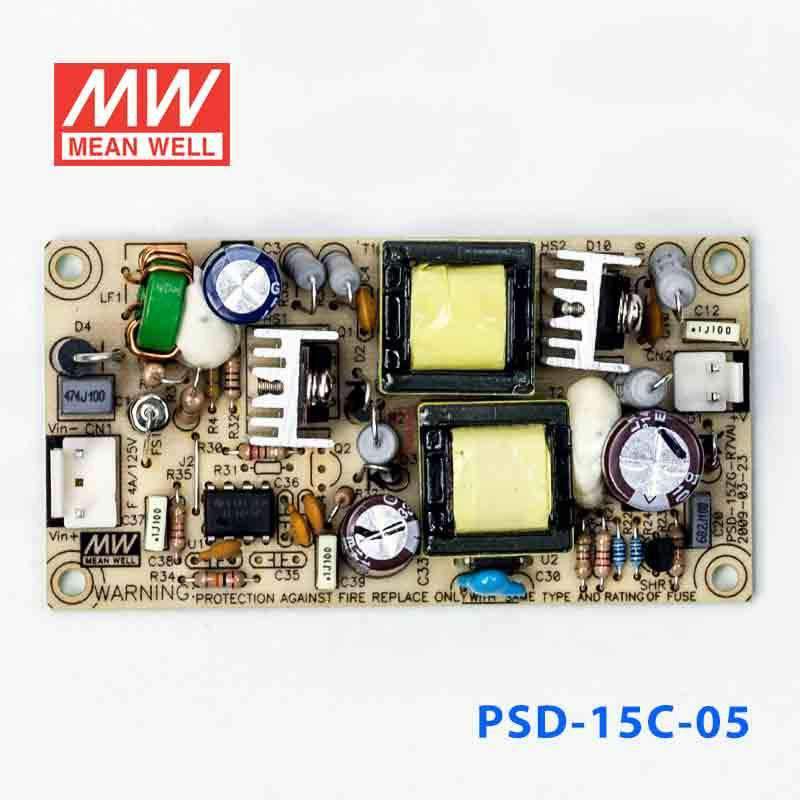

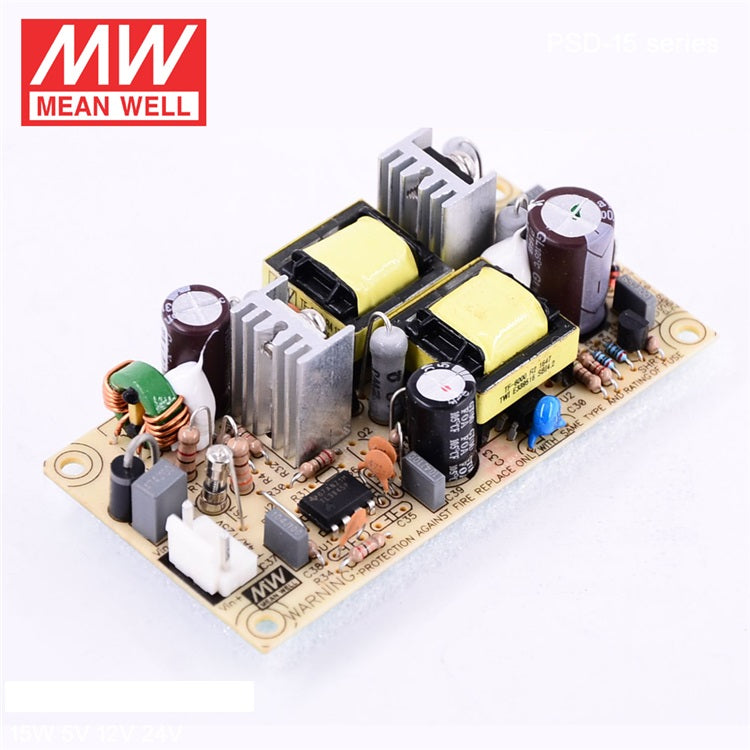

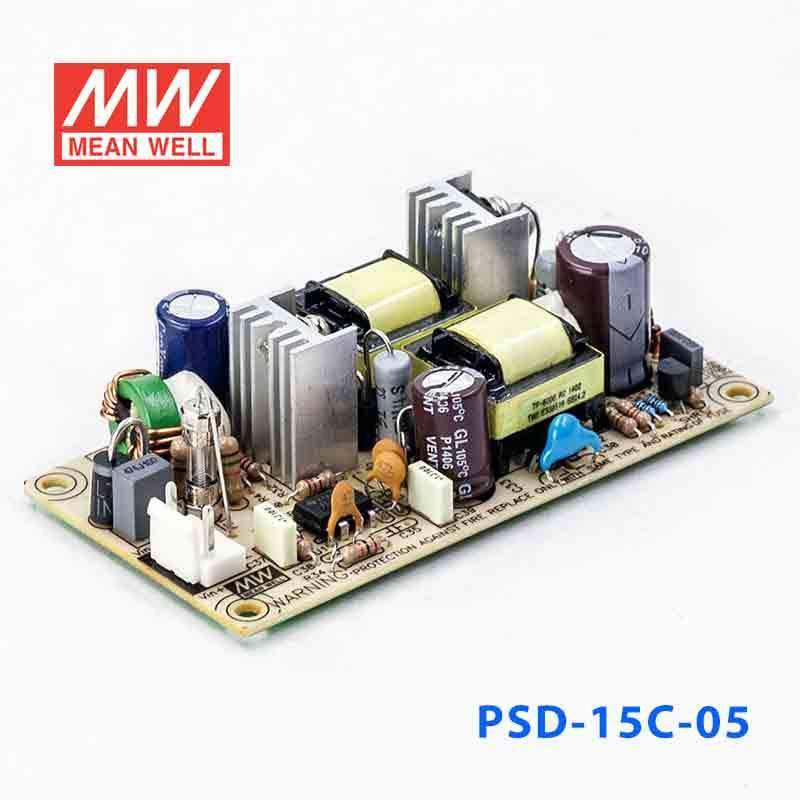

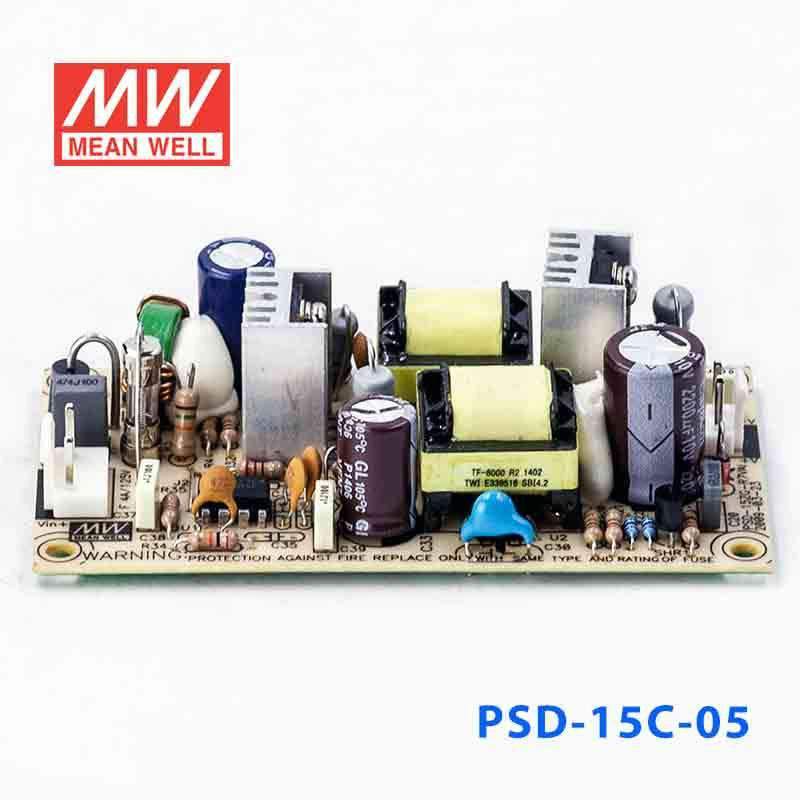

Mean Well PSD-15C-5 Switching Power Supply 15W 5V 3A

2:1 wide input range1.5~2KVAC isolation by models

SKU PSD-15C-5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

PSD-15C-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 78%.

Features

Protections:Short circuit/Over load /Over voltage/ Polarity
Cooling by free air convection
100% full load burn-in test
Low cost
High reliability
2 year warranty

Specifications

PSD-15C-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 3A
CURRENT RANGE: 0 ~ 3A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 50mVp-p
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE, HOLD UP TIME: 2.5s, 25ms, ----/12VDC/24VDC/48VDC at full load

INPUT

VOLTAGE RANGE: C:36~72VDC(48VDC)
EFFICIENCY(Typ.): 78%
DC CURRENT(Typ.): 1.9A/12VDC 0.9A/24VDC 0.45A/48VDC

PROTECTION

OVER LOAD: 105% ~150% rated output power Protection type : hiccup mode ,recovery automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:2.0KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms/500VDC / 25℃/ 70% RH
EMI CONDUCTION&RADIATION: Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020
EMS IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8,BS EN/EN55035, BS EN/EN61000-6-1,light industry level,EAC TP TC 020

OTHERS

MTBF: 7598.3K hrs min. Telcordia SR-332 (Bellcore) ; 740.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 94*49*25mm (L*W*H)
PACKING: 81g;120pcs/10.72Kg/0.9CUFT

Test conditions and notes5

1.All parameters NOT specially mentioned are measured at normal input,rated load and 25℃ of ambient temperature.
2.Ripple & noise are measued at 20 MHz of bandwidth by using a 12inch twisted pair-wire termined with a 0.1μF & 47μF capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

PSD-15C-5 Mechanical Specification — Mechanical Specification

Downloads

Certificates1

EMC Certificate (PSD-15)(EN) PDF Download

Test reports1

Test Report (PSD-15C-5)(EN) PDF Download

FAQ

Can I use the PSD-15C-5 to power 5V industrial control electronics?

Yes, this model is a constant voltage DC-DC converter with a 5V output rated for up to 3A and 15W. It fits 5V industrial control, embedded, or automation loads when the total load stays within that 5V, 3A, 15W output rating.

Is the PSD-15C-5 a good fit for embedded 5V boards and logic devices in OEM equipment?

It can be a fit for embedded 5V electronics because it provides constant 5V output and up to 3A. The 15W rating makes it more appropriate for lower-power 5V assemblies than for larger 5V loads that need more than 3A.

Can this converter be used in a 5V automation subsystem with a wide source range?

Yes, the PSD-15C-5 is intended for constant-voltage 5V applications and has a 36~72VDC input range. That wide input range can help in automation or industrial systems where the available source varies across that 36~72VDC range.

Is the PSD-15C-5 suitable for outdoor or harsh-environment use?

The listed operating temperature is -10°C to +60°C, so that is the defined environmental range in the product data. No IP rating is provided in these specs, so the product data does not support an outdoor or washdown claim by itself.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PSD-15C-24 DC-DC Converter - 14.4W - 36~72V in 24V out 666mA	14.4W	24V	0.6A	IP20	View
Mean Well PSD-15C-12 DC-DC Converter - 15W - 36~72V in 12V out 1.25A	15W	12V	1.25A	IP20	View
Mean Well PSD-15C-05 DC-DC Converter - 15W - 36~72V in 5V out 3A	15W	5V	3A	IP20	View
