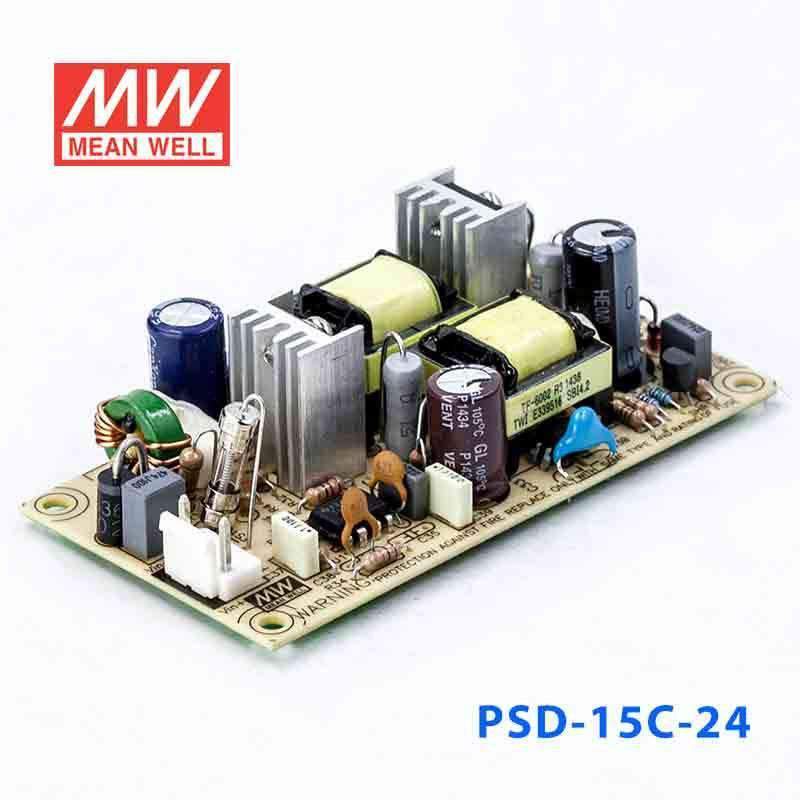

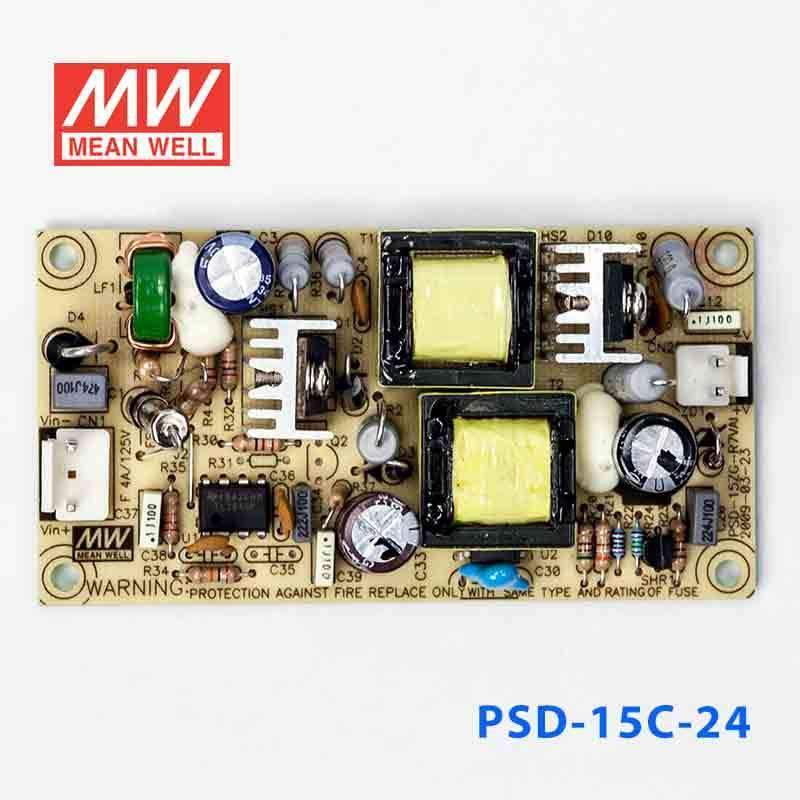

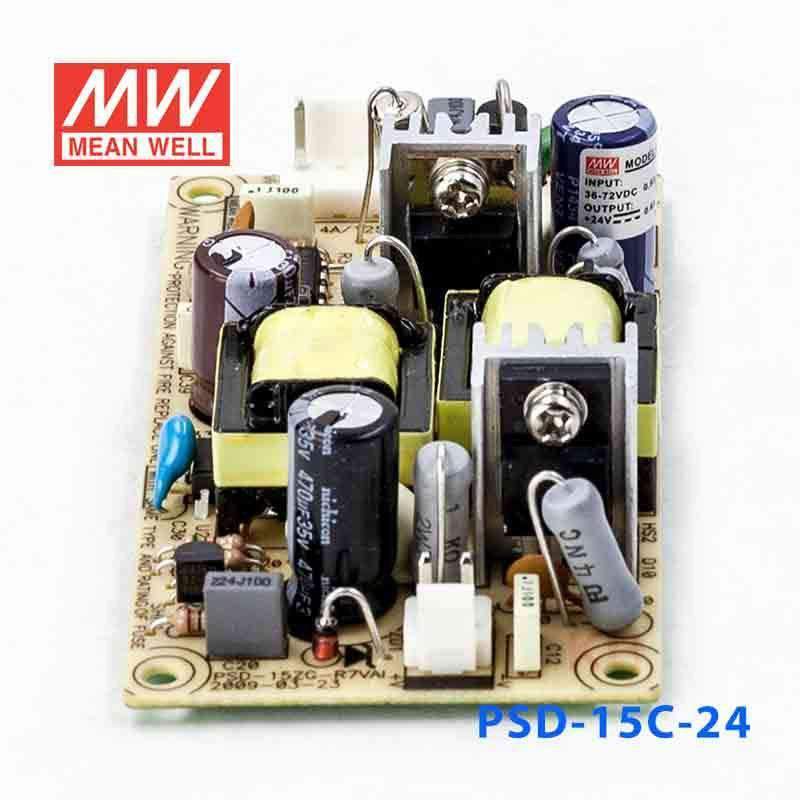

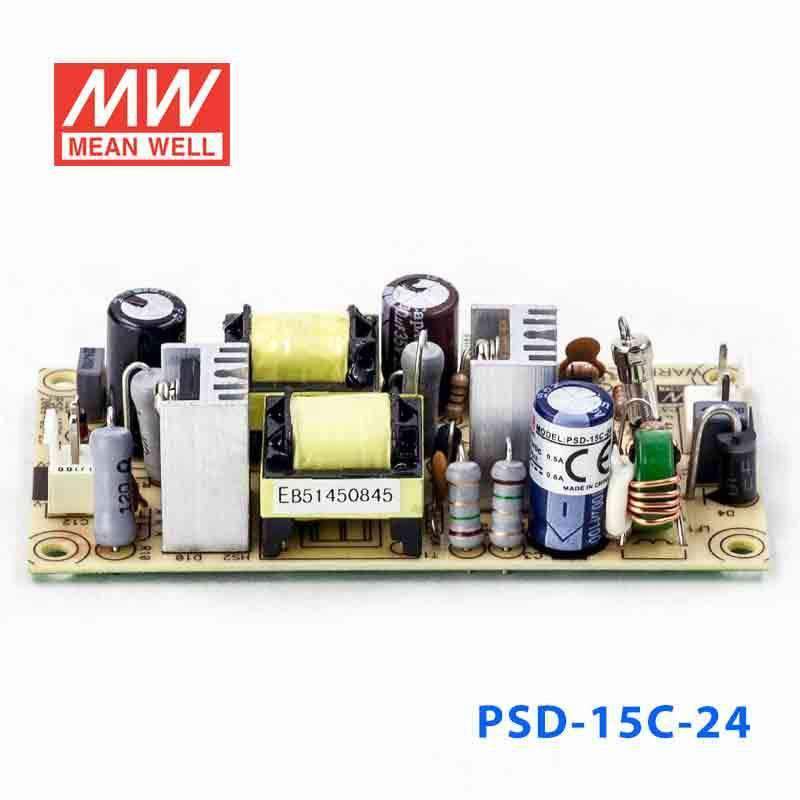

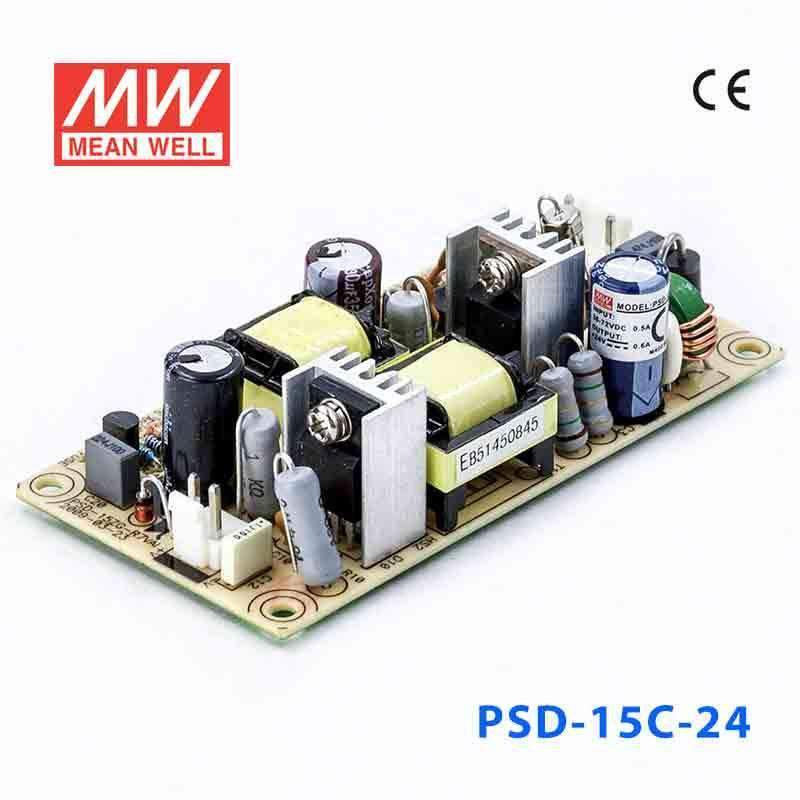

Mean Well PSD-15C-24 DC-DC Converter - 14.4W - 36~72V in 24V out 666mA
Log in to see priceOverview
PSD-15C-24 is the 24V output model of this series: rated current 0.6A, rated power 14.4W, typical efficiency 79%.
Features
- Protections:Short circuit/Over load /Over voltage/ Polarity
- Cooling by free air convection
- 100% full load burn-in test
- Low cost
- High reliability
- 2 year warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.6A
- CURRENT RANGE
- 0 ~ 0.6A
- RATED POWER
- 14.4W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE, HOLD UP TIME
- 2.5s, 25ms, ----/12VDC/24VDC/48VDC at full load
INPUT
- VOLTAGE RANGE
- C:36~72VDC(48VDC)
- EFFICIENCY(Typ.)
- 79%
- DC CURRENT(Typ.)
- 1.9A/12VDC 0.9A/24VDC 0.45A/48VDC
PROTECTION
- OVER LOAD
- 105% ~150% rated output power Protection type : hiccup mode ,recovery automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:2.0KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms/500VDC / 25℃/ 70% RH
- EMI CONDUCTION&RADIATION
- Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8,BS EN/EN55035, BS EN/EN61000-6-1,light industry level,EAC TP TC 020
OTHERS
- MTBF
- 7598.3K hrs min. Telcordia SR-332 (Bellcore) ; 740.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 94*49*25mm (L*W*H)
- PACKING
- 81g;120pcs/10.72Kg/0.9CUFT
Test conditions and notes5
- 1.All parameters NOT specially mentioned are measured at normal input,rated load and 25℃ of ambient temperature.
- 2.Ripple & noise are measued at 20 MHz of bandwidth by using a 12inch twisted pair-wire termined with a 0.1μF & 47μF capacitor.
- 3.Tolerance:includes set up tolerance,line regulation and load regulation.
- 4.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PSD-15C-24 to power 24V control circuits from a higher-voltage DC source?
It is intended for 36-72VDC input and provides a constant 24V output with a 14.4W power rating. That makes it relevant for low-power 24V control, sensing, or interface electronics within that input window.
Is the PSD-15C-24 suitable for 24V industrial or automation electronics in a compact cabinet?
Its 94.0 x 49.0 x 25.0 mm size and 0.081 kg weight support compact installation inside control equipment. The 24V constant voltage output and 14.4W capacity point it toward lighter-duty electronic loads rather than larger 24V devices.
Can the PSD-15C-24 be used for 24V auxiliary power in telecom or IT equipment?
It can fit low-power 24V auxiliary electronics when the available source is within 36-72VDC and the load stays within 14.4W. The datasheet also specifies a 2.0KVAC input-to-output withstand voltage, which is relevant for isolated auxiliary power designs.
Would the PSD-15C-24 work for embedded monitoring or signaling devices that run on 24V?
It can suit embedded monitoring, signaling, or interface hardware that needs constant 24V and modest power. With 14.4W available, it is positioned for low-power electronics rather than larger 24V subsystems.
What are the output differences across the PSD-15C series?
In the PSD-15C family, the 5V model is rated at 15W and 3A, the 12V model is rated at 15W and 1.25A, and the 24V model is rated at 14.4W and 0.6A. They are sibling models in the same series, but the output voltage and rating differ by version.
Is the PSD-15C-24 rated for outdoor use or exposed conditions?
The specified operating temperature range is -10C to +60C. No IP rating appears in the provided specs, so the listing does not confirm suitability for outdoor or washdown environments.
