Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

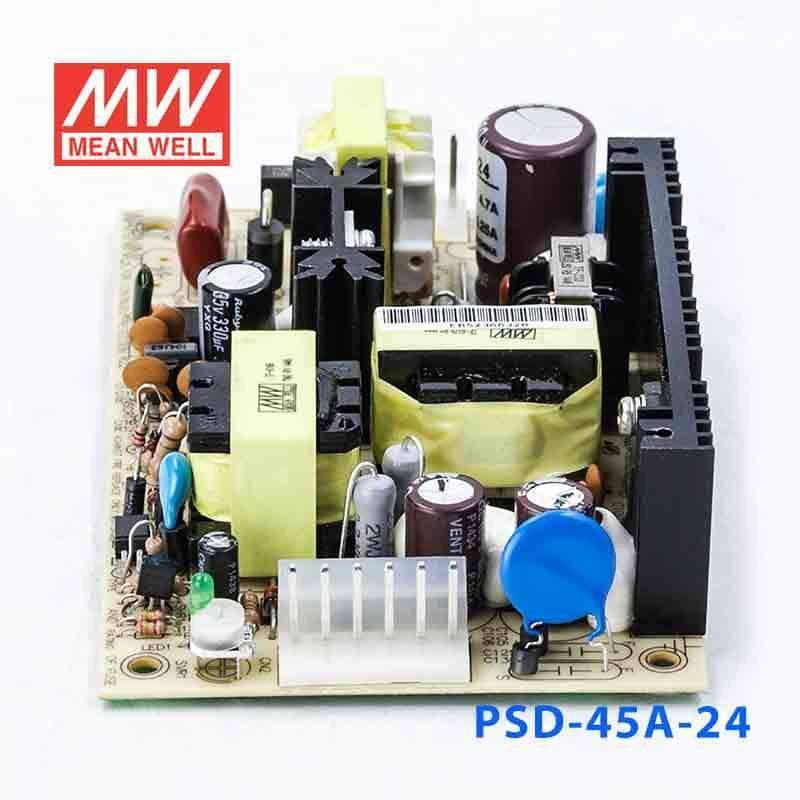

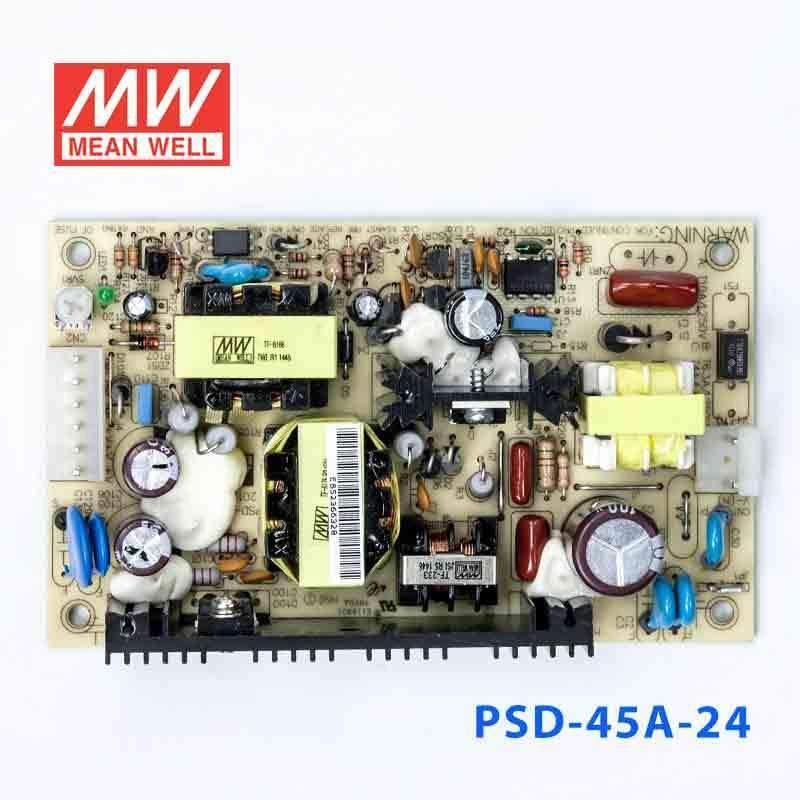

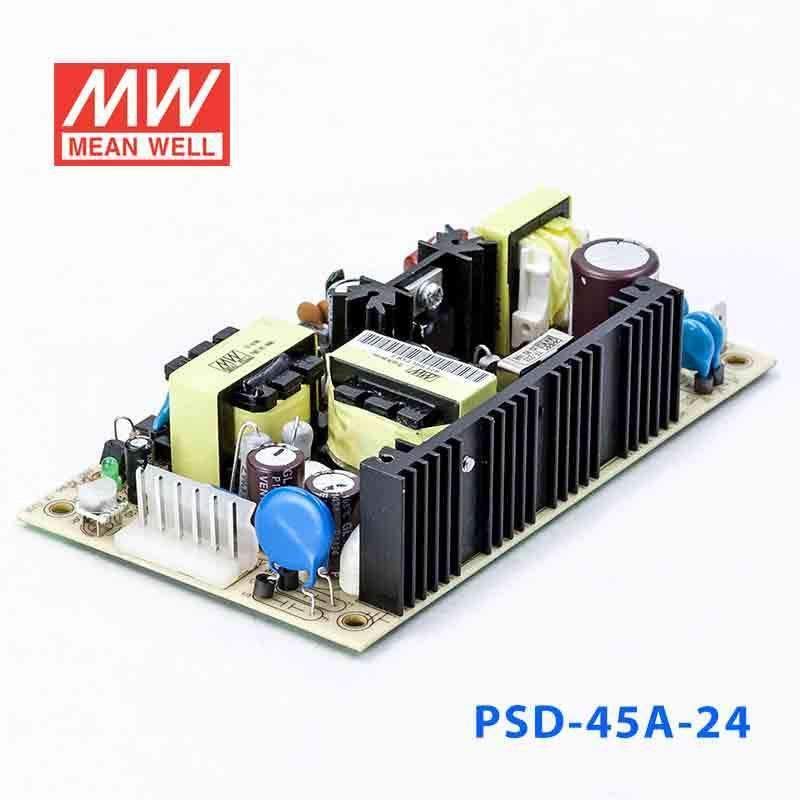

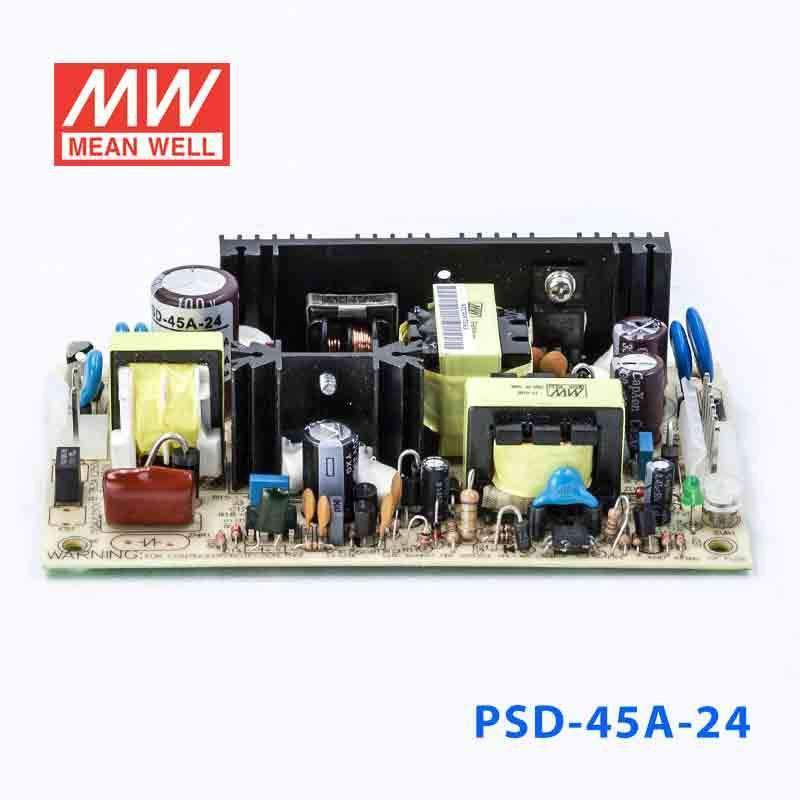

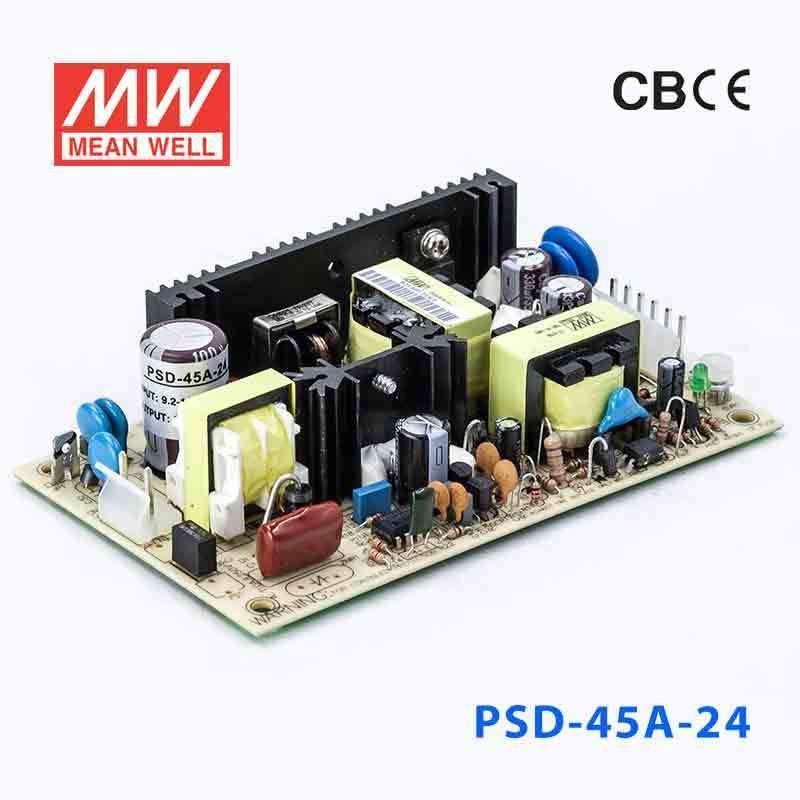

Mean Well PSD-45A-24 DC-DC Converter - 30W - 9~18V in 24V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

PSD-45A-24

Please for Pricing

Notify me when it's back in stock

Description

The PSD-45A is a 45W Mean Well power converter (input range: 9.2~18VDC).

Key Features

✓ Input voltage range: 9.2~18VDC
✓ 1.5KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: TUV EN62368-1 , EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

PSD Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

1.25 Ampere
Input Voltage

9V~18V
Standards Met

CB,CE,EAC,EMC,RCM,TUV
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

12.7 cm
Width

7.6 cm
Height

3 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PSD-45A-24 for a 24V PLC, HMI, or industrial control circuit on a 9-18VAC source?

Yes, this converter is built for constant-voltage 24V output from a 9-18VAC input. It suits 24V control equipment when the load stays within 30W and 1.25A.

Is the PSD-45A-24 a good option for 24V sensors, transmitters, or field devices in automation panels?

It can be a fit for 24V field devices that need stable constant-voltage power and have a combined demand no higher than 1.25A. Its total output capacity is 30W, so sizing should be based on both the 24V output and the 30W limit.

Can this model support a compact 24V communications or control subsystem?

Yes, if the subsystem requires 24V constant-voltage power and falls inside the converter's 30W rating. The maximum output current for this version is 1.25A, which is the main sizing limit for 24V loads.

Would the PSD-45A-24 work for a 24V embedded controller inside industrial equipment?

It is suitable for enclosed 24V embedded electronics where the available source is within 9-18VAC and the load does not exceed 30W. The 2:1 wide input range can also help in systems with variable input within that stated range.

Can the PSD-45A-24 be used outdoors or in exposed conditions?

The temperature spec is -10°C to +60°C, which defines its operating range. Since no IP rating is listed, the published specs do not establish suitability for outdoor, washdown, or dust-heavy environments.

Model	Power	Voltage	Current	IP Rating
Mean Well PSD-45A-5 DC-DC Converter - 30W - 9~18V in 5V out	30W	5V	6A	Indoor	View
Mean Well PSD-45A-12 DC-DC Converter - 30W - 9~18V in 12V out	30W	12V	2.5A	Indoor	View
