Can I use the PSD-45A-5 for 5V embedded controllers or industrial logic boards?

Yes, this model provides a constant 5V output and can supply up to 6A. It is suited to 5V embedded or logic loads when the total requirement stays within its 30W rating.

Is the PSD-45A-5 appropriate for powering multiple 5V sensors or interface modules in one system?

It can be a practical choice for grouped 5V electronics because it offers more current headroom than lower-current 5V versions, up to 6A. The total connected load still needs to remain at or below 30W.

Would this converter work for a compact industrial computer or SBC that needs 5V power?

It can fit 5V computing or embedded hardware when the source is within 9-18VAC and the load stays inside 5V, 6A, and 30W. That makes it more suitable for higher-current 5V electronics than small 5W or 15W converters.

Can the PSD-45A-5 power 5V communications or automation accessories in an enclosure?

Yes, for enclosed 5V accessories that need constant-voltage output, this unit provides up to 6A. The main selection check is whether the full accessory load stays within the 30W output capacity.

Is the PSD-45A-5 suitable for outdoor cabinets or harsh plant areas?

Its specified operating temperature is -10°C to +60°C. No IP rating is shown, so the provided specs support temperature evaluation only and do not confirm exposed outdoor or water-ingress environments.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

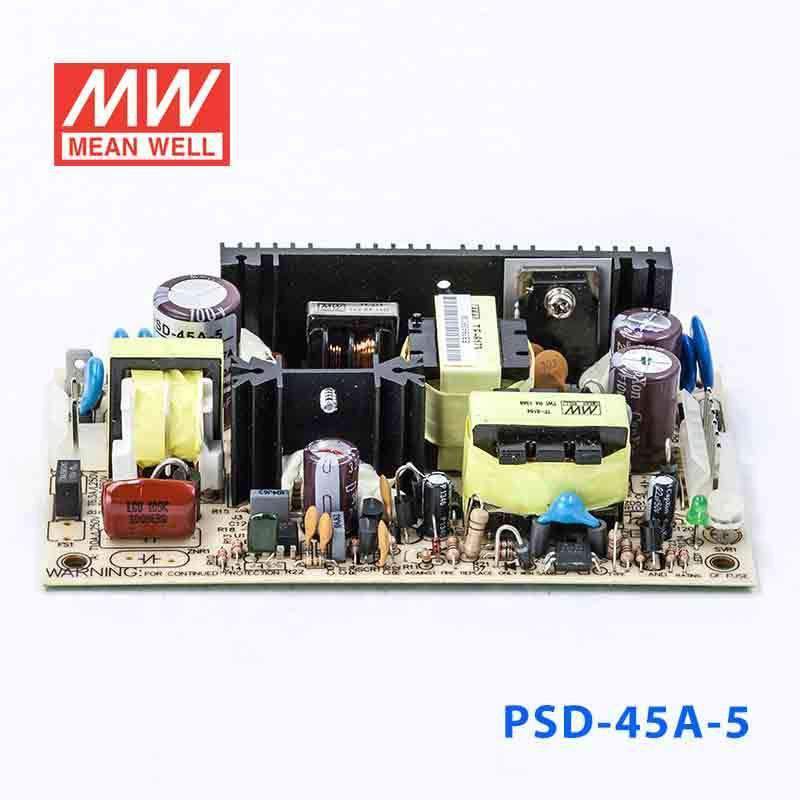

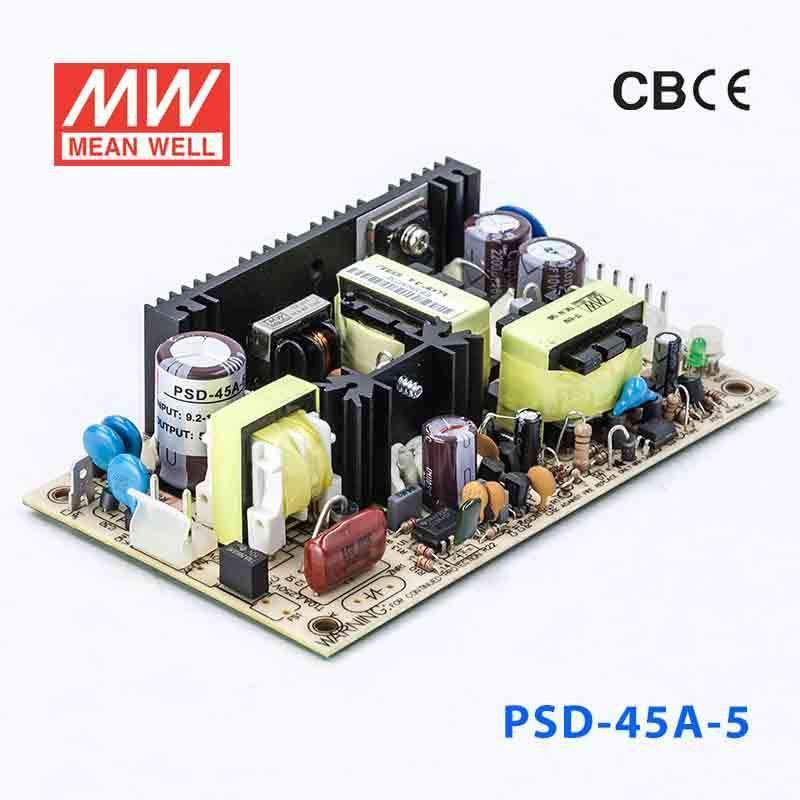

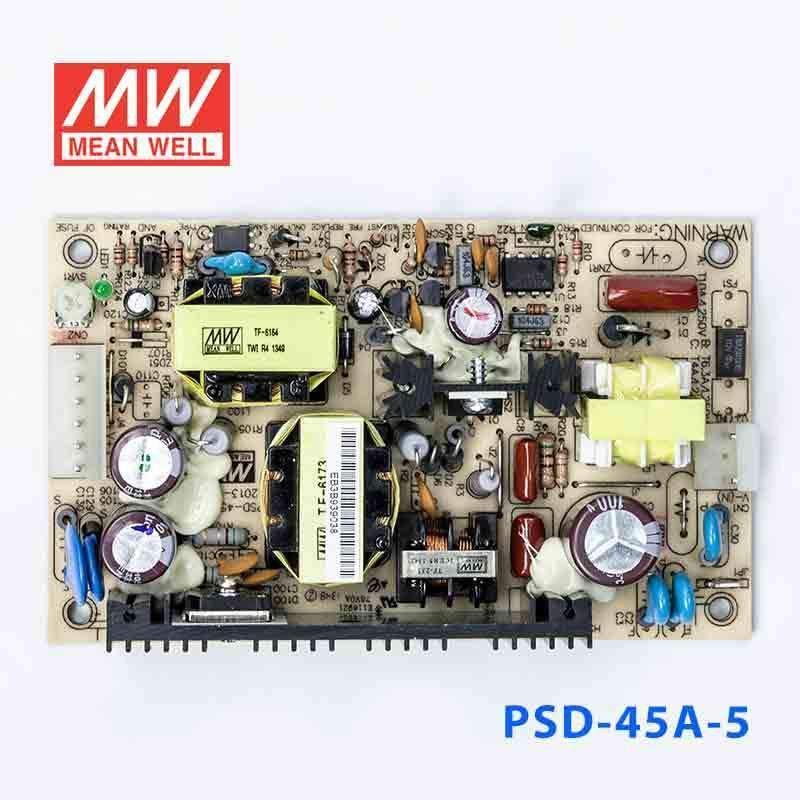

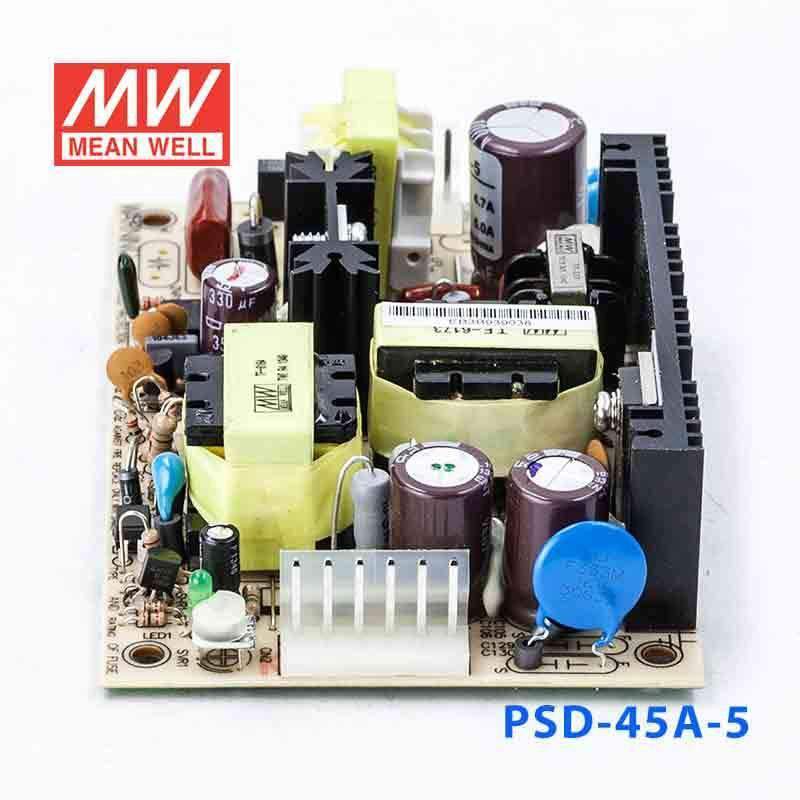

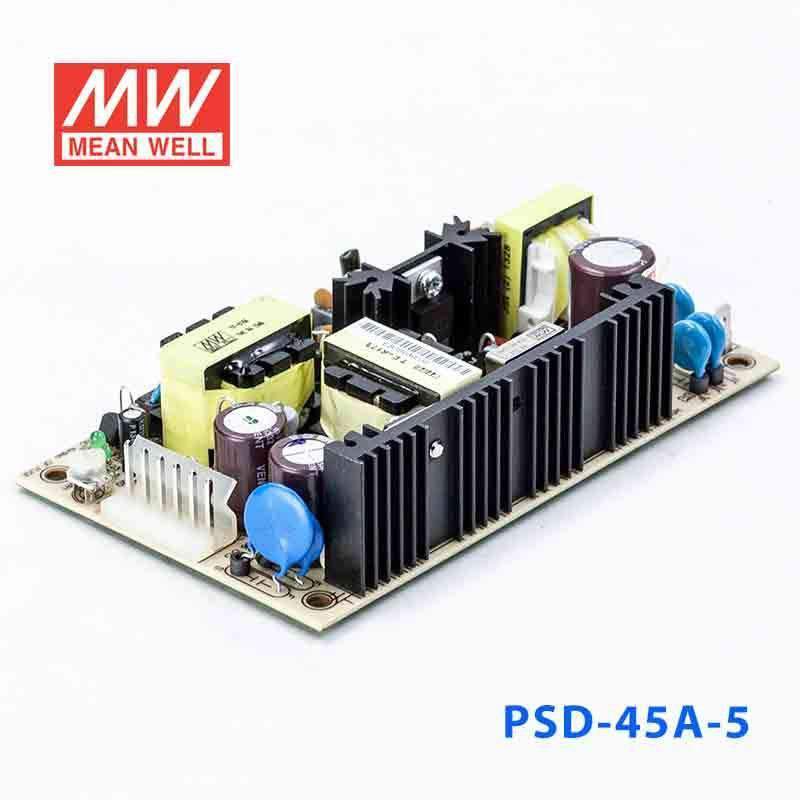

Mean Well PSD-45A-5 DC-DC Converter - 30W - 9~18V in 5V out 6A

2:1 wide input range1.5~2KVAC isolation by models

SKU:

PSD-45A-5

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PSD-45A is a 45W Mean Well power converter (input range: 9.2~18VDC).

Key Features

✓ Input voltage range: 9.2~18VDC
✓ 1.5KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: TUV EN62368-1 , EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PSD-45A-24 DC-DC Converter - 30W - 9~18V in 24V out 1.25A	30W	24V	1.25A	Indoor	View
Mean Well PSD-45A-12 DC-DC Converter - 30W - 9~18V in 12V out 2.5A	30W	12V	2.5A	Indoor	View
