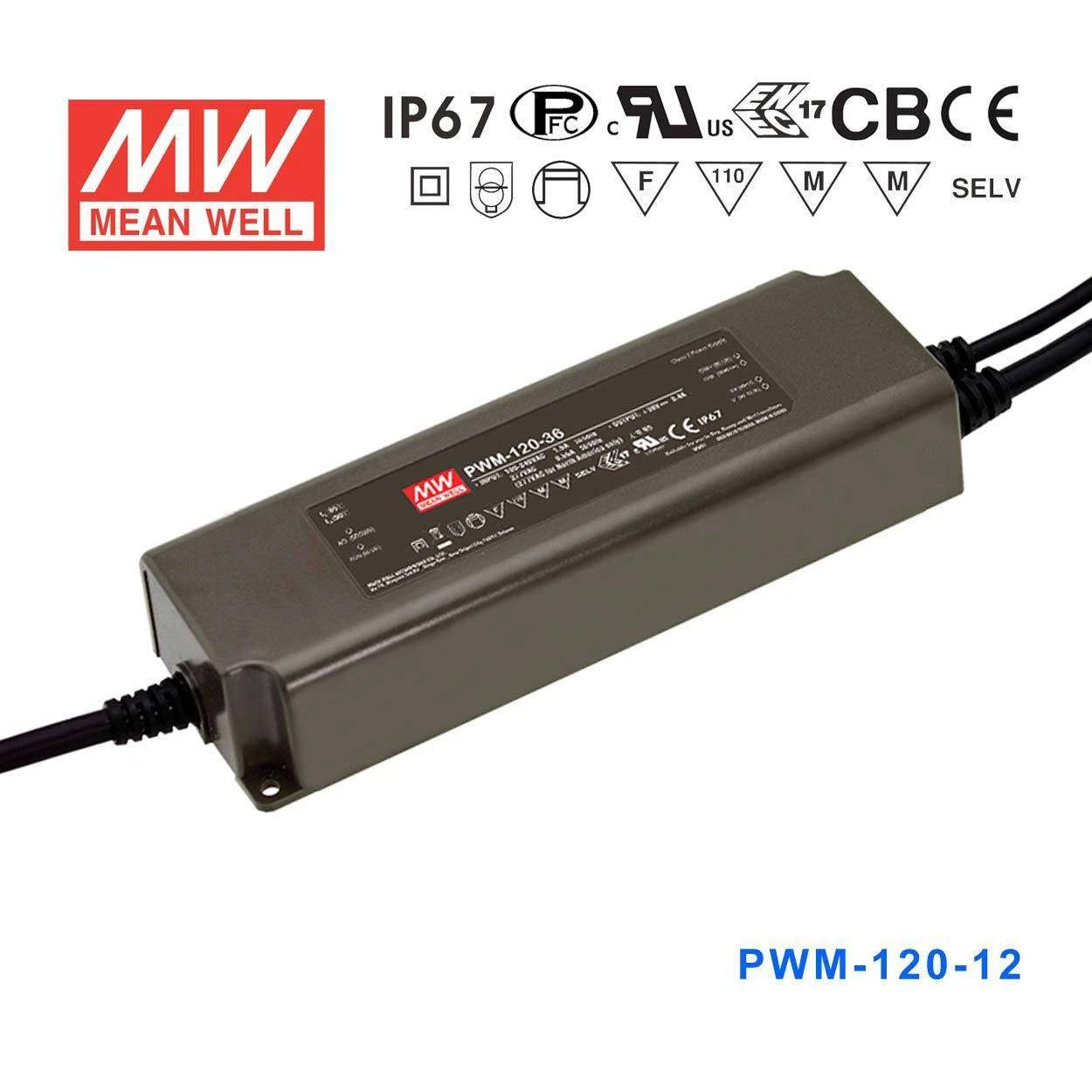

Mean Well PWM-120-12 Power Supply 120W 12V - Dimmable

PWM style output, fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
SKU:
PWM-120-12

|

Description

Features

Universal AC input (up to 305VAC) / Full range
Constant voltage PWM style output
Built-in active PFC function
High efficiency up to 90.5%
No load power consumption <0.5W
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully isolated plastic case
Fully encapsulated with IP67 level
Class 2 power unit
Isolation class II, no F.G.
Built-in 3 in 1 dimming (dim-to-off);DALI
Suitable for dry, damp and wet location
Suitable for LED strip lighting
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 60A at 230VAC
Overload protection 108%~120% hiccup mode, auto-recovery
Over voltage protection Shut down o/p voltage, re-power on to recover
Over temp. protection Shut down output voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -40~+90ºC (refer to output derating curve)
Safety standards UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Connection Output SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm) 191x63x 37.5
Packing 15pcs / 15.6kg

Specifications

  • Brand
    Mean Well
  • Series
    PWM Series
  • Power Rating
    120 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    19.1 cm
  • Width
    6.3 cm
  • Height
    3.75 cm
  • Weight
    0.97 kg

File Downloads

::specification::
