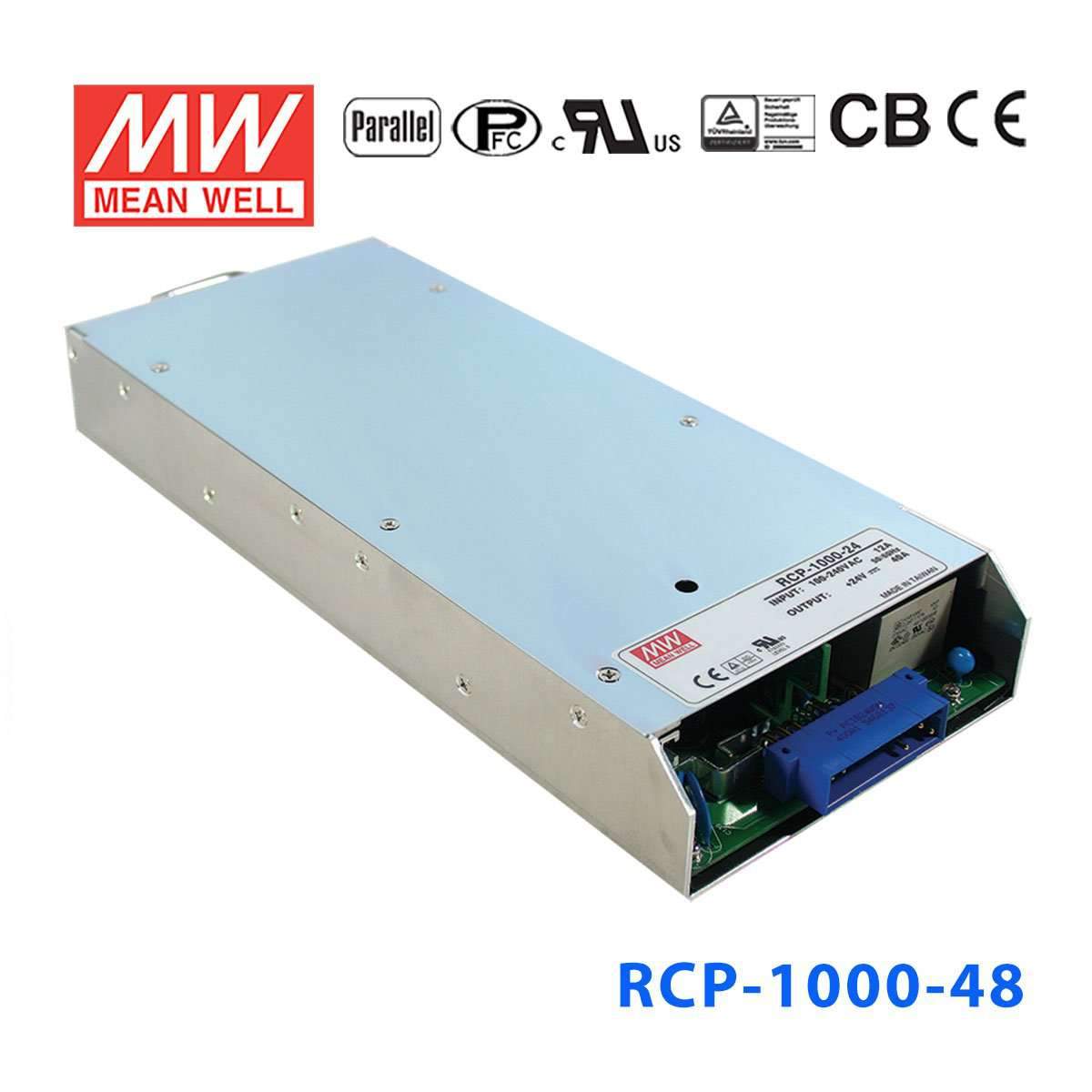

Mean Well RCP-1000-48 power supply 1000W 48V 21A

high efficiency up to 89%, output voltage programmable, active currecnt sharing up to 3000W, support hot swap
SKU:
RCP-1000-48

|

Description

Features

Universal AC input / Full range
Built-in 5V/0.3A standby power
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Forced air cooling by built-in DC fan
High power density 10.7W/inch2
1U low profile: 44mm
Output voltage can be trimmed between 90% ~ 110% of the rated output voltage
Active current sharing up to 3000W (3 units) in one 19"" rack, 3 racks max. can be operated in parallel (up to 8 units)
Remote control for single unit
Built-in remote sense function
Hot-swap operation
Internal OR-ing diode
AC OK and DC OK signal output
Optional I2C serial data bus
3 years warranty

General Specification

AC input voltage range 90~264VAC
DC adjustment range ±3% rated output voltage
Overload protection 105%~125% constant current limiting, auto-recovery
Over voltage protection 110%~135% rated output voltage
Setup, rise, hold up time 1000ms, 60ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1 minute
Working temperature -20~+60°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61204-3, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
Dimension (LxWxH) (mm) 295x 127x 41 mm
Packing 1.91kg (single unit of RCP-1000); 12.3kg (empty rack)
CASE: 952A

Specifications

  • Brand
    Mean Well
  • Series
    RCP Series
  • Power Rating
    1008 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    21 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    5 Year
  • Length
    29.5 cm
  • Width
    12.7 cm
  • Height
    4.1 cm
  • Weight
    1.93 kg
