Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

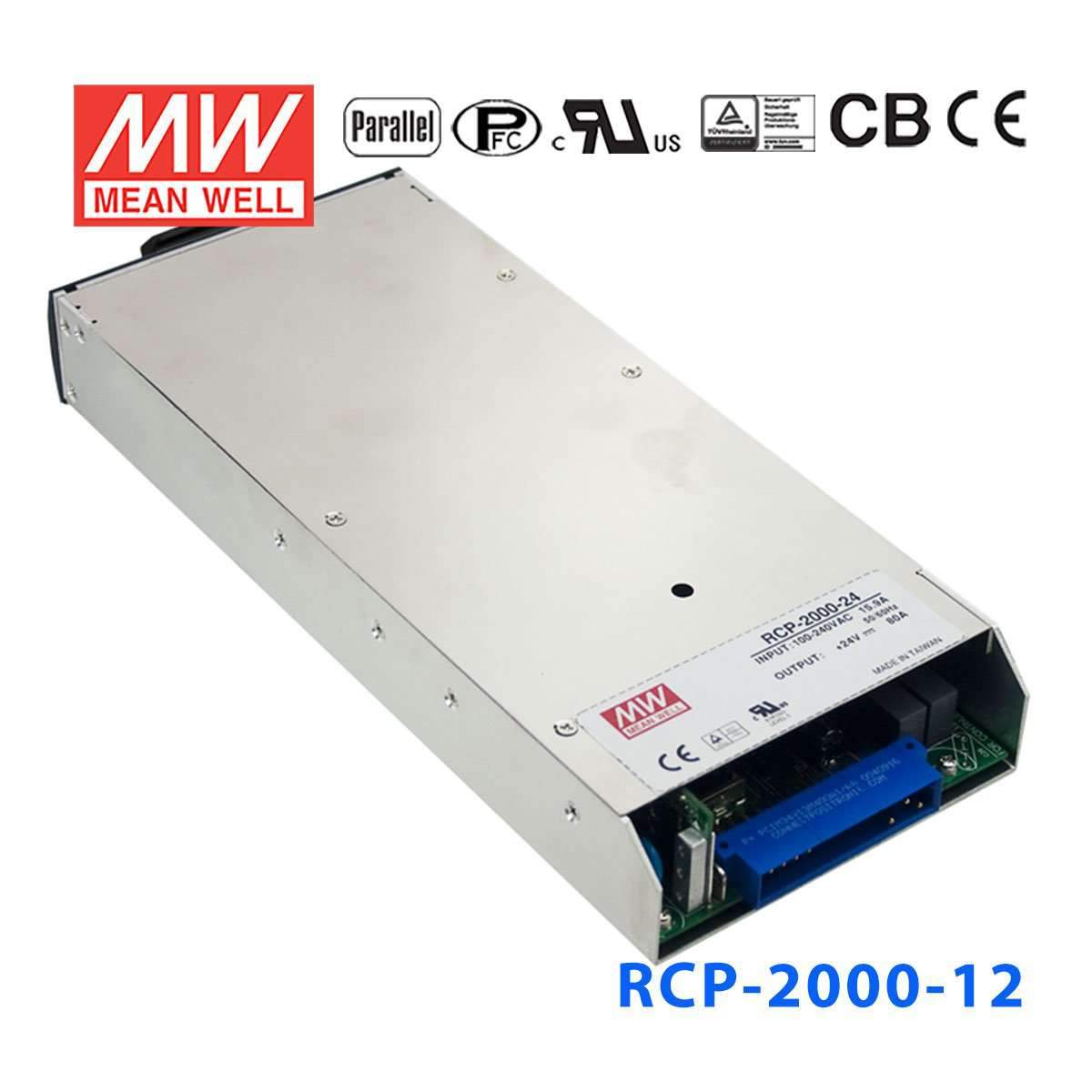

Mean Well RCP-2000-12 power supply 2000W 12V 100A

high efficiency up to 92%output voltage programmableactive currecnt sharing up to 6000Wsupport hot swap

SKU RCP-2000-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RCP-2000-12 is the 12V output model of this series: rated current 100A, rated power 1200W, typical efficiency 86%.

RCP-2000 is a 2KW single output rack mountable front end AC/DC power supply with a 1U low profile and a high power density up to 25W/inch 3. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control, working for the temperature up to 70℃. RCP-2000 provides vast design flexibility by equipping various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 18000W via three 19" rack shelves, RKP-1U), remote control, auxiliary power, alarm signal, external control/monitor via the control model RKP-CMU1, etc. Maximum number that can be monitored by master controller in communication shall be 9 power supplies.

Features

Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
High efficiency up to 92%
Forced air cooling by built-in DC fan
Output voltage programmable
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 6000W for one 19" rack shelf
Built-in I2C interface, PMBus protocol
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RCP-2000-12Specifications from the official datasheet (2026-04-24 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 100A
CURRENT RANGE: 0 ~ 100A
RATED POWER: 1200W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 10.5 ~ 14V
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.5,6: 90 ~ 264VAC 250 ~ 320VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.98/230VAC at full load
EFFICIENCY (Typ.): 86%
AC CURRENT (Typ.): 13A/115VAC 7A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <1.1mA / 230VAC

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
OVER VOLTAGE: 14.7 ~ 17.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

AUXILIARY POWER: 5V @ 0.3A, 12V @ 0.8A
REMOTE ON-OFF CONTROL: Please refer to the Function Manual
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V
OUTPUT VOLTAGE PROGRAMMABLE: Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage. Please refer to the Function Manual.
DC OK SIGNAL: The isolated TTL signal out, Please refer to the Installation Manual
AC OK SIGNAL: The isolated TTL signal out, Please refer to the Installation Manual
OVER TEMP WARNING: Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal
FAN FAIL SIGNAL: The isolated TTL signal out, Please refer to the Installation Manual

ENVIRONMENT

WORKING TEMP.: -35 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 444.9K hrs min. Telcordia SR-332 (Bellcore) ; 37.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 295*127*41mm (L*W*H)
PACKING: 2Kg; 6pcs/13Kg/1.04CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Under parallel operation of more than one rack connecting together, ripple of the output voltage may be higher than the SPEC at light load condition. It will go back to normal ripple level once the output load is more than 10%.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Please contact MEANWELL for 320~370VDC application.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RCP-2000-12 Block Diagram — Block Diagram

RCP-2000-12 Static Characteristics — Static Characteristics

RCP-2000-12 Derating Curve — Derating Curve

RCP-2000-12 Function Manual — Function Manual

RCP-2000-12 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates4

EMC Certificate(RCP-2000)(EN) PDF Download

UL Certificate (RCP-2000)(EN) PDF Download

CB Certificate (RCP-2000)(EN) PDF Download

TUV Certificate (RCP-2000)(EN) PDF Download

Test reports1

Test Report(RCP-2000-12)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RCP-2000-12 for 12V industrial automation or control systems with high current demand?

Yes, this constant-voltage model delivers 12V at up to 100A with a 1200W power rating, which suits larger 12V industrial control and automation loads. Its 90-264VAC input range also supports use across varied AC supply conditions.

Is the RCP-2000-12 appropriate for embedded, test, or DC bus applications that need a strong 12V source?

It can fit centralized 12V DC platforms that need substantial current capacity, because it provides up to 100A output. Programmable output voltage also helps in systems where the 12V rail needs controlled adjustment within the product's supported range.

Can this power supply be used in modular 12V power systems that may grow over time?

Yes, active current sharing up to 6000W makes it relevant for 12V systems that combine multiple supplies for higher-capacity operation. Hot-swap support also makes it practical for modular systems where uptime and replacement speed matter.

Is the RCP-2000-12 suitable for cold or hot environments, and can it be used outdoors?

The specified operating temperature range is -35°C to +70°C, which is broader than many indoor power supplies. No IP rating is listed in the provided specs, so outdoor suitability is not confirmed by the available product data.

How does the RCP-2000-12 compare with related RCP models?

Among the listed 12V models, RCP-1000-12 is 720W and 60A, RCP-1000-12-C is 1000W and 60A, RCP-1600-12 is 1500W and 125A, RCP-1UT is 3000W and 60A, and RCP-2000-12 is 1200W and 100A. The listed 24V models are RCP-1000-24 at 960W and 40A, RCP-1600-24 at 1608W and 67A, and RCP-2000-24 at 1920W and 80A. The listed 48V models are RCP-1000-48 at 1008W and 21A, RCP-1600-48 at 1608W and 33.5A, and RCP-2000-48 at 2016W and 42A.
