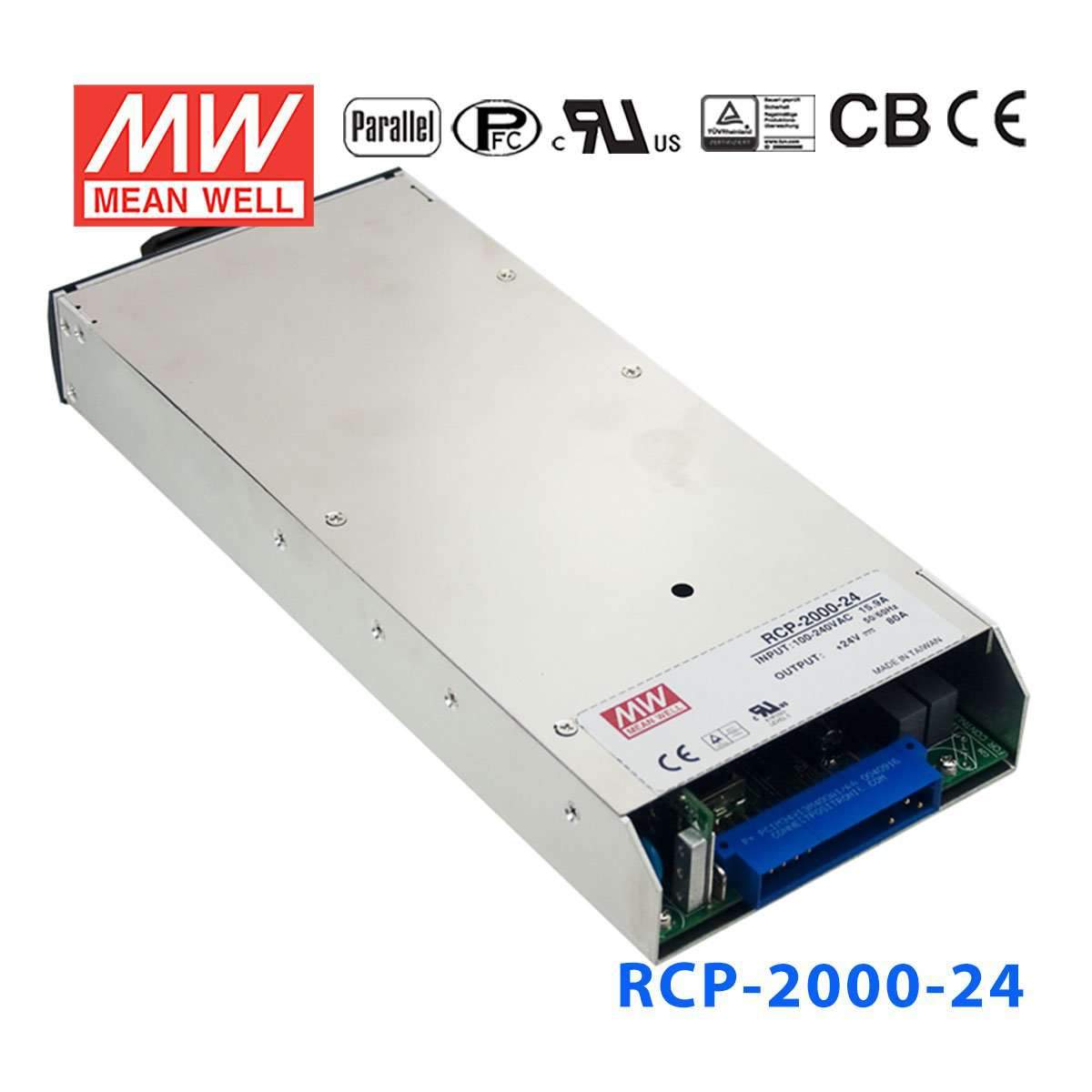

Mean Well RCP-2000-24 power supply 2000W 24V 80A

high efficiency up to 92%output voltage programmableactive currecnt sharing up to 6000Wsupport hot swap

SKU RCP-2000-24

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RCP-2000-24 is the 24V output model of this series: rated current 80A, rated power 1920W, typical efficiency 90.5%.

RCP-2000 is a 2KW single output rack mountable front end AC/DC power supply with a 1U low profile and a high power density up to 25W/inch 3. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control, working for the temperature up to 70℃. RCP-2000 provides vast design flexibility by equipping various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 18000W via three 19" rack shelves, RKP-1U), remote control, auxiliary power, alarm signal, external control/monitor via the control model RKP-CMU1, etc. Maximum number that can be monitored by master controller in communication shall be 9 power supplies.

Features

Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
High efficiency up to 92%
Forced air cooling by built-in DC fan
Output voltage programmable
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 6000W for one 19" rack shelf
Built-in I2C interface, PMBus protocol
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RCP-2000-24Specifications from the official datasheet (2026-04-24 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 80A
CURRENT RANGE: 0 ~ 80A
RATED POWER: 1920W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 21 ~ 28V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.5,6: 90 ~ 264VAC 250 ~ 320VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.98/230VAC at full load
EFFICIENCY (Typ.): 90.5%
AC CURRENT (Typ.): 16A/115VAC 10A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <1.1mA / 230VAC

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
OVER VOLTAGE: 29.5 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

AUXILIARY POWER: 5V @ 0.3A, 12V @ 0.8A
REMOTE ON-OFF CONTROL: Please refer to the Function Manual
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V
OUTPUT VOLTAGE PROGRAMMABLE: Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage. Please refer to the Function Manual.
DC OK SIGNAL: The isolated TTL signal out, Please refer to the Installation Manual
AC OK SIGNAL: The isolated TTL signal out, Please refer to the Installation Manual
OVER TEMP WARNING: Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal
FAN FAIL SIGNAL: The isolated TTL signal out, Please refer to the Installation Manual

ENVIRONMENT

WORKING TEMP.: -35 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 444.9K hrs min. Telcordia SR-332 (Bellcore) ; 37.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 295*127*41mm (L*W*H)
PACKING: 2Kg; 6pcs/13Kg/1.04CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Under parallel operation of more than one rack connecting together, ripple of the output voltage may be higher than the SPEC at light load condition. It will go back to normal ripple level once the output load is more than 10%.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Please contact MEANWELL for 320~370VDC application.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RCP-2000-24 Block Diagram — Block Diagram

RCP-2000-24 Static Characteristics — Static Characteristics

RCP-2000-24 Derating Curve — Derating Curve

RCP-2000-24 Function Manual — Function Manual

RCP-2000-24 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates4

EMC Certificate(RCP-2000)(EN) PDF Download

UL Certificate (RCP-2000)(EN) PDF Download

CB Certificate (RCP-2000)(EN) PDF Download

TUV Certificate (RCP-2000)(EN) PDF Download

Test reports1

Test Report(RCP-2000-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RCP-2000-24 for a 24V industrial control cabinet with multiple DC loads?

Yes, this model is a 24V constant voltage power supply rated for 1920W and 80A. That output level suits higher-demand 24V control cabinets where several industrial or automation loads share one DC bus. Its 90-264VAC input also helps when the AC source varies across installations.

Is the RCP-2000-24 suitable for 24V embedded or automation systems that need hot-swappable rack power?

It is designed for high-power 24V systems and supports hot swap, which fits rack-based embedded or automation platforms built around serviceable power modules. The unit provides 1920W at 24V with up to 80A output. That makes it relevant where uninterrupted 24V bus capacity is a requirement.

Can I use this power supply for a 24V DC bus in industrial test or production equipment?

For equipment built around a 24V constant voltage bus, this model offers substantial headroom at 1920W and 80A. The output voltage is also programmable, which can help when the system needs a controlled 24V-class DC rail. Its CB, CE, EAC, TÜV, and UL certifications are also useful in regulated industrial environments.

Is the RCP-2000-24 meant for outdoor environments or harsh temperature ranges?

The published temperature range is -35°C to +70°C, which supports use across a wide operating range. No IP rating is listed in the provided specs, so these specs do not establish outdoor ingress protection. Environment planning should therefore rely on the stated temperature range and the fact that no IP code is provided here.

How does the RCP-2000-24 compare with other RCP series models?

Within the provided sibling list, the lower-power options are RCP-1000-12 at 720W 12V 60A, RCP-1000-12-C at 1000W 12V 60A, RCP-1000-24 at 960W 24V 40A, and RCP-1000-48 at 1008W 48V 21A. Mid-range models are RCP-1600-12 at 1500W 12V 125A, RCP-1600-24 at 1608W 24V 67A, and RCP-1600-48 at 1608W 48V 33.5A, while the higher-output entries are RCP-1UT at 3000W 12V 60A, RCP-2000-12 at 1200W 12V 100A, this RCP-2000-24 at 1920W 24V 80A, and RCP-2000-48 at 2016W 48V 42A. The sibling names RCP-1U, RCP-1UI, and RCP-MU are listed without power, voltage, or current values in the provided data.
