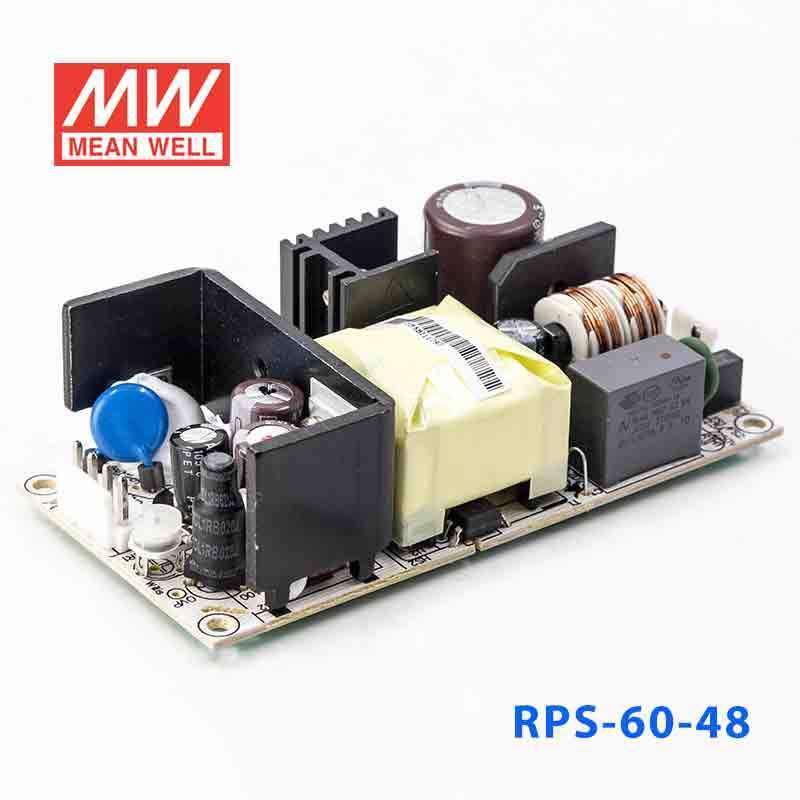

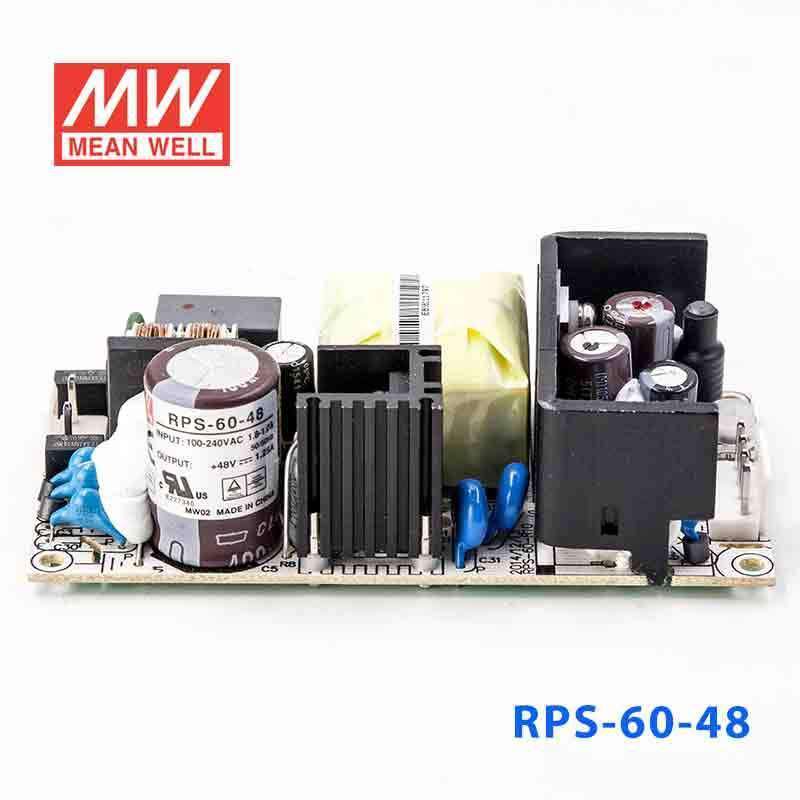

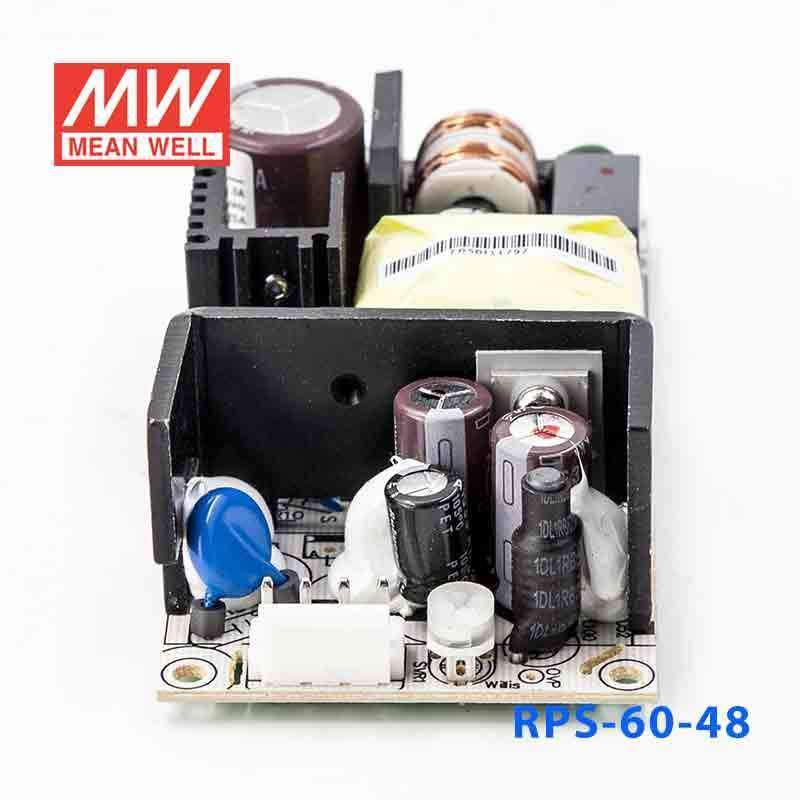

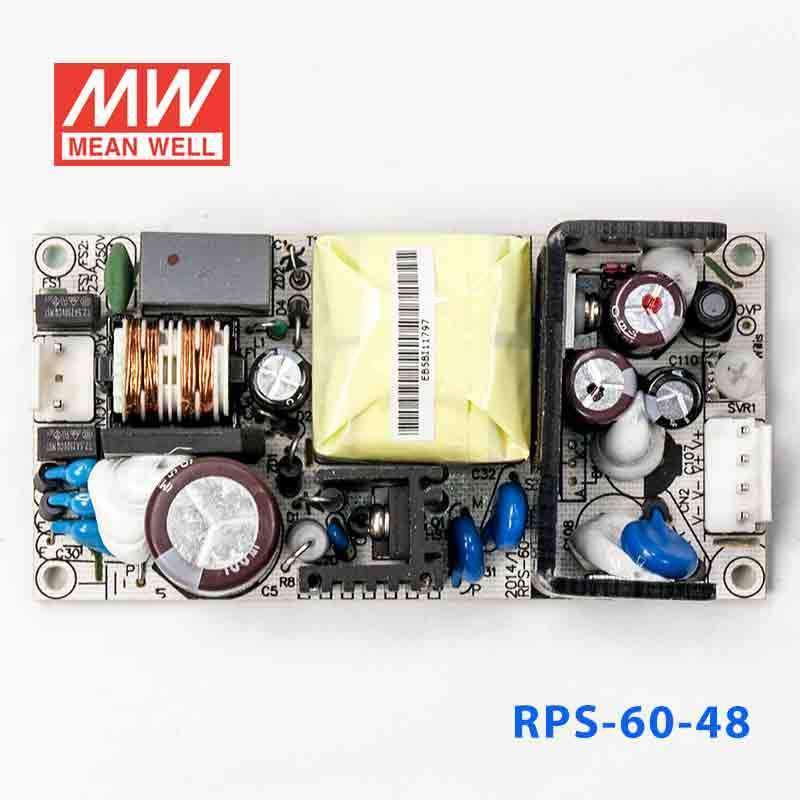

Mean Well RPS-60-48 Green Power Supply W 48V 1.25A - Medical Power Supply
Notify me when it's back in stock
Mean Well RPS-60-48 Green Power Supply W 48V 1.25A - Medical Power ...
Log in to see priceThe RPS-60 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.9 cm
-
Weight0.15 kg
::specification::
Frequently Asked Questions
Can I use the RPS-60-48 for 48V telecom or communications equipment?
It can be used where the equipment requires a constant 48V output and the load stays within 1.25A and 60W. The 90-264VAC input range also supports equipment that may be deployed across different AC mains environments.
Is the RPS-60-48 a good fit for 48V industrial control or monitoring systems?
Yes, if the control or monitoring system needs a regulated 48V supply and draws no more than 1.25A. This model is a constant-voltage design, so it fits equipment that expects a fixed 48V DC rail rather than current-controlled output.
Can this model power 48V medical or lab equipment?
It is medical safety approved and specified with extremely low leakage current, which is relevant for medical and laboratory equipment selection. It is appropriate for 48V systems whose total demand remains within 60W and 1.25A.
Would the RPS-60-48 work for embedded or OEM equipment that needs a compact 48V supply?
This model is compact at 101.6 x 50.8 x 29.0 mm and weighs 0.15 kg, so it can suit space-constrained embedded or OEM assemblies. It is still important that the equipment needs 48V constant voltage and stays within the 60W output limit.
Is the RPS-60-48 suitable for outdoor equipment cabinets?
The unit is rated for operation from -20°C to +70°C, so the temperature range is broad. However, no IP rating is provided, so the product itself does not specify dust or water ingress protection and would rely on the cabinet or enclosure for environmental protection.
