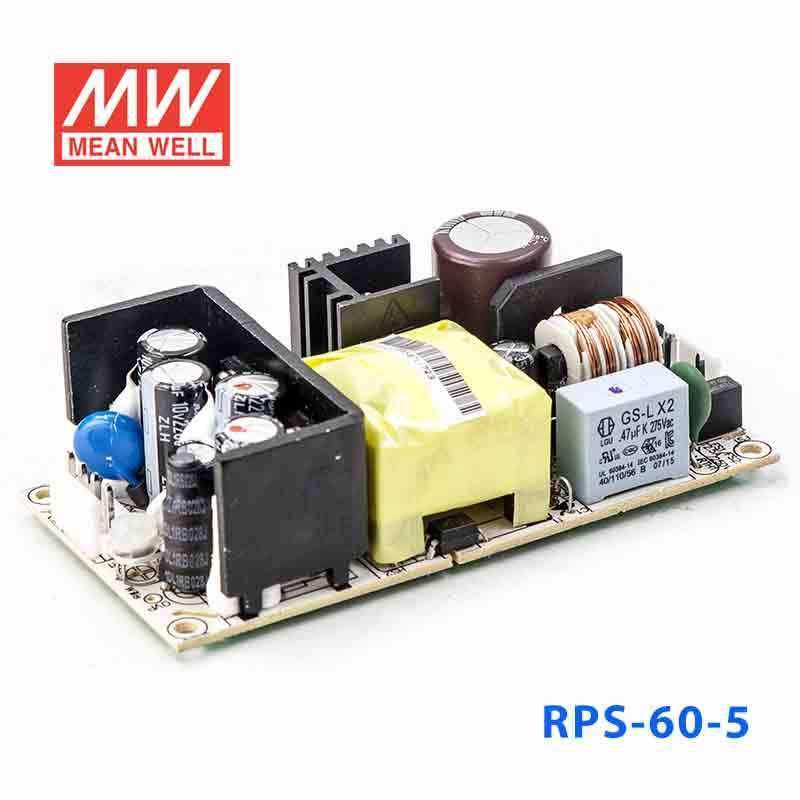

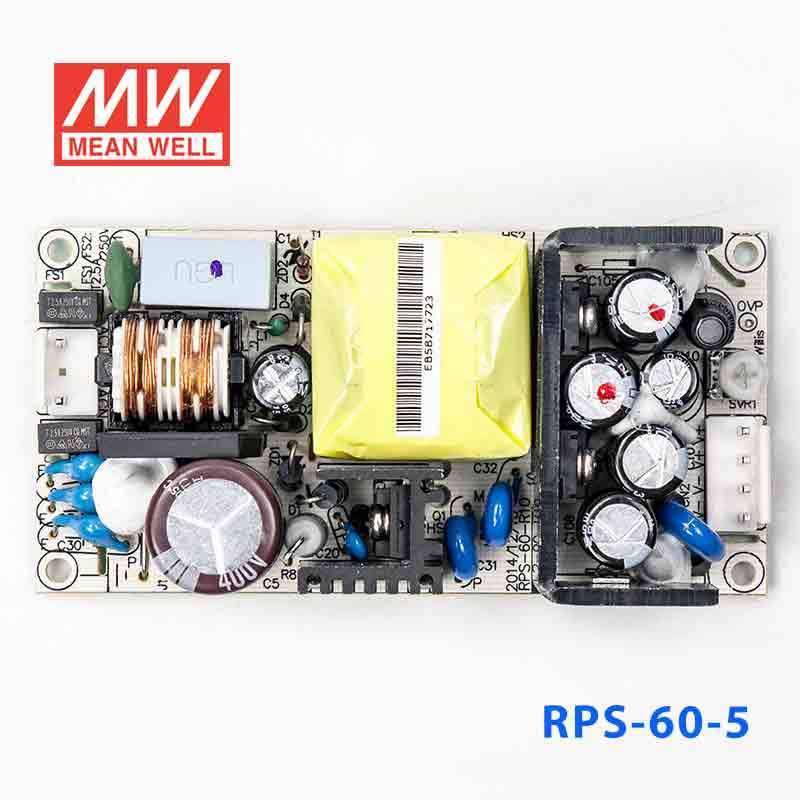

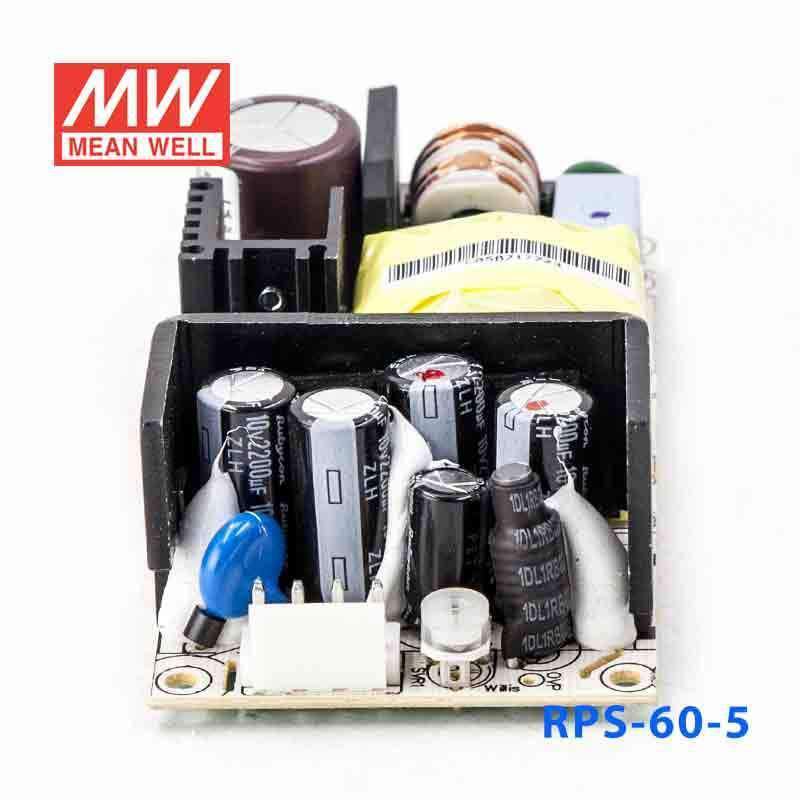

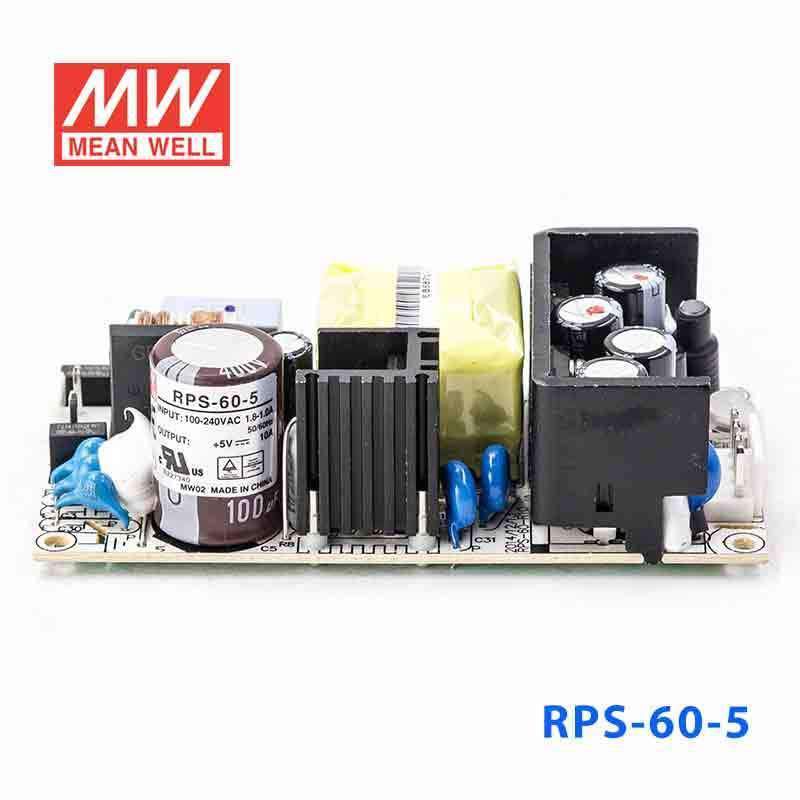

Mean Well RPS-60-5 Green Power Supply 50W 5V 10A - Medical Power Supply

4" x 2" compact sizemedical safety approvedno load power consumption < 0.75Wextremely low leakage current

SKU RPS-60-5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RPS-60-5 is the 5V output model of this series: rated current 10A, rated power 50W, typical efficiency 79%.

RPS-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4” by 2” footprint. It accepts 90~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 86% and the extremely low no load power consumption is down below 0.75W. RPS-60 is able to be used for ClassⅠ (with FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international IT and medical regulations (2*MOPP) and EMC BS EN/EN55022/BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.

Features

4"×2" compact size
IT & Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 , IEC/BS EN/EN60601-1 and IEC/BS EN/EN/UL 62368-1
Suitable for BF application with appropriate system consideration
Cooling by free air convection
EMI class B for class Ⅰ configuration
No load power consumption<0.75W
Protections: Short circuit / Overload / Over voltage
Operating altitude up to 3000 meters
3 years warranty

Specifications

RPS-60-5Specifications from the official datasheet (2026-02-28 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 11A
RATED POWER: 50W
PEAK LOAD(10sec.)^Note.2: 55W
RIPPLE & NOISE (max.)^Note.3: 60mVp-p
VOLTAGE ADJ. RANGE: 4.75 ~ 5.5V
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 79%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC 30A/115VAC
LEAKAGE CURRENT(max.)^Note.5: Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVER LOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.7 ~ 6.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 3000 meters

SAFETY & EMC (Note 8)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 -----; BS EN/EN55035 ， BS EN/EN60601-1-2
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3	-----; BS EN/EN55035 ， BS EN/EN60601-1-2

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 5153.0K hrs min. Telcordia SR-332 (Bellcore) ; 353.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): 101.6*50.8*29mm or 4" * 2" *1.141" inch
PACKING: 0.15Kg; 96pcs/15.4Kg/0.89CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Touch current was measured from primary input to DC output.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. Heat Sink HS1,HS2 can not be shorted.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-60-5 Mechanical Specification — Mechanical Specification

RPS-60-5 AC Input Connector (CN1) : JST B3P-VH or equivalent — AC Input Connector (CN1) : JST B3P-VH or equivalent

RPS-60-5 DC Output Connector (CN2) : JST B4P-VH or equivalent — DC Output Connector (CN2) : JST B4P-VH or equivalent

Typical applications

Oral irrigator
Hemodialysis machine
Medical computer monitors
Sleep apnea devices

Downloads

Certificates5

EMC Certificate (RPS-60)(EN) PDF Download

UL(e183223)Certificate(RPS-60)(EN) PDF Download

CB Certificate (RPS-60)(EN) PDF Download

TUV Certificate (RPS-60)(EN) PDF Download

UL(e227340)Certificate(RPS-60)(EN) PDF Download

Test reports1

Test Report(RPS-60-5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-60-5 for 5V embedded computers, controllers, or USB-powered electronics?

It provides a constant 5V output up to 10A, with 50W total power available. That makes it suitable for 5V embedded electronics as long as the combined load stays within those limits.

Is the RPS-60-5 appropriate for industrial 5V logic and control hardware?

Yes, for industrial logic or control hardware that needs a regulated 5V rail and no more than 10A output current. The wide 90-264VAC input range is also useful for equipment that may be installed in different mains regions.

Can this power supply be used for 5V medical or diagnostic devices?

This model is medical safety approved and includes extremely low leakage current, which matters when selecting a supply for medical or diagnostic electronics. It is a fit for 5V systems whose load remains within 50W and 10A.

Would the RPS-60-5 work for a 5V test bench, automation fixture, or OEM assembly?

It can work well in compact OEM or fixture builds because the unit measures 101.6 x 50.8 x 29.0 mm and weighs 0.15 kg. The electrical fit still depends on the application requiring constant 5V output within the 50W rating.

Can the RPS-60-5 be used in outdoor or dusty locations?

The specified operating temperature is -20°C to +70°C (output derates at higher ambient temperatures, per the derating curve), but no IP rating is listed. That means the temperature range is defined, while environmental sealing is not, so outdoor or dusty use depends on the final enclosure.
