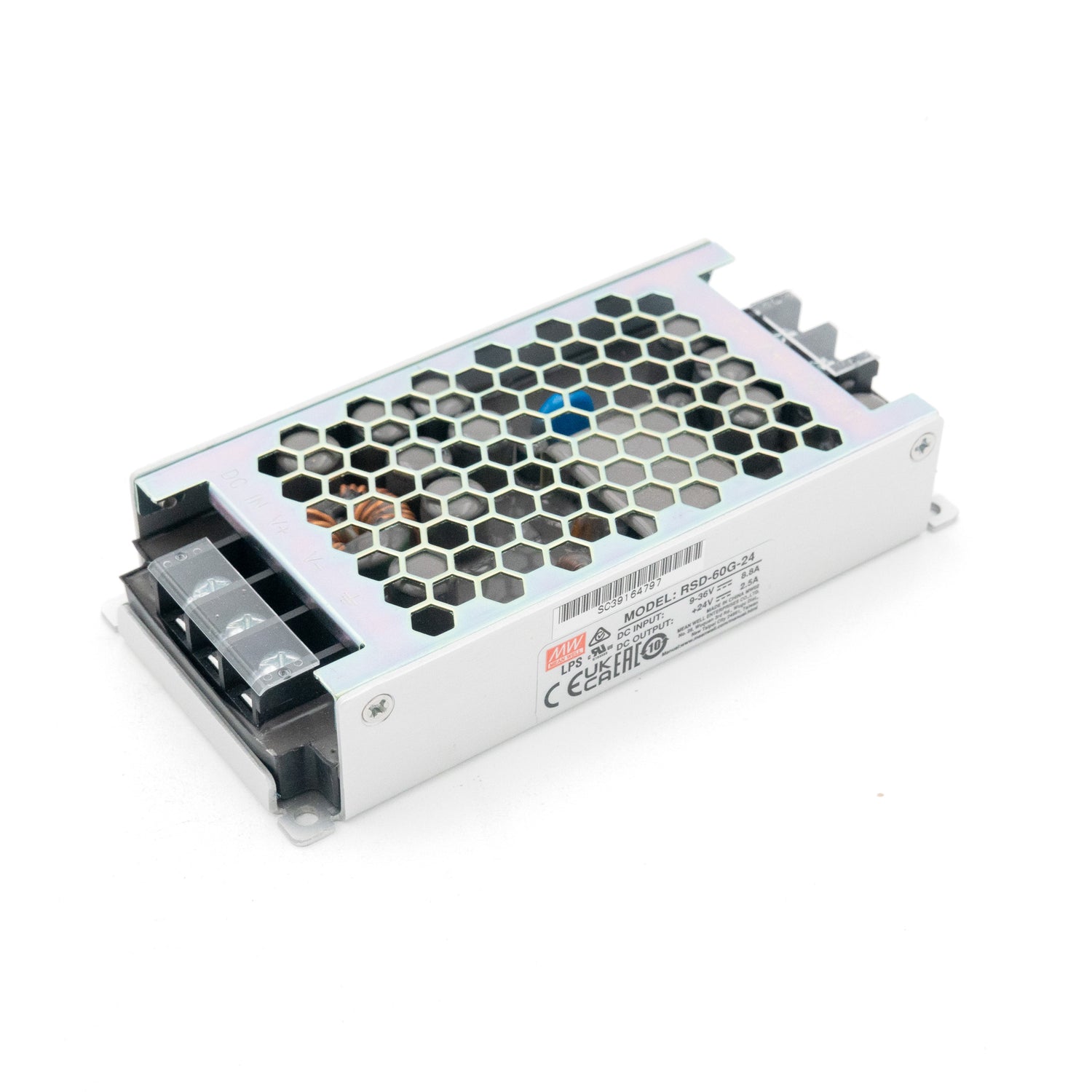

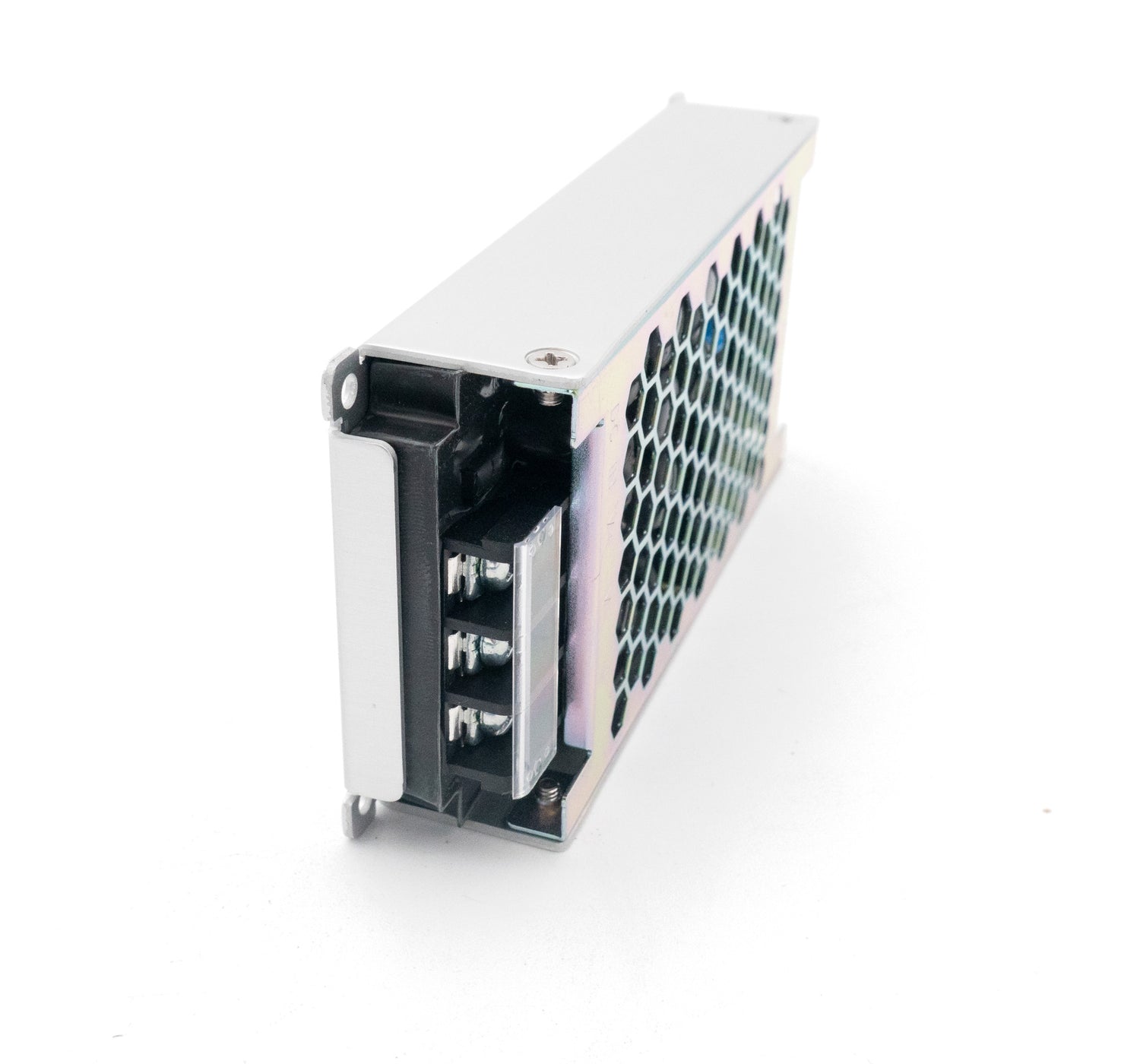

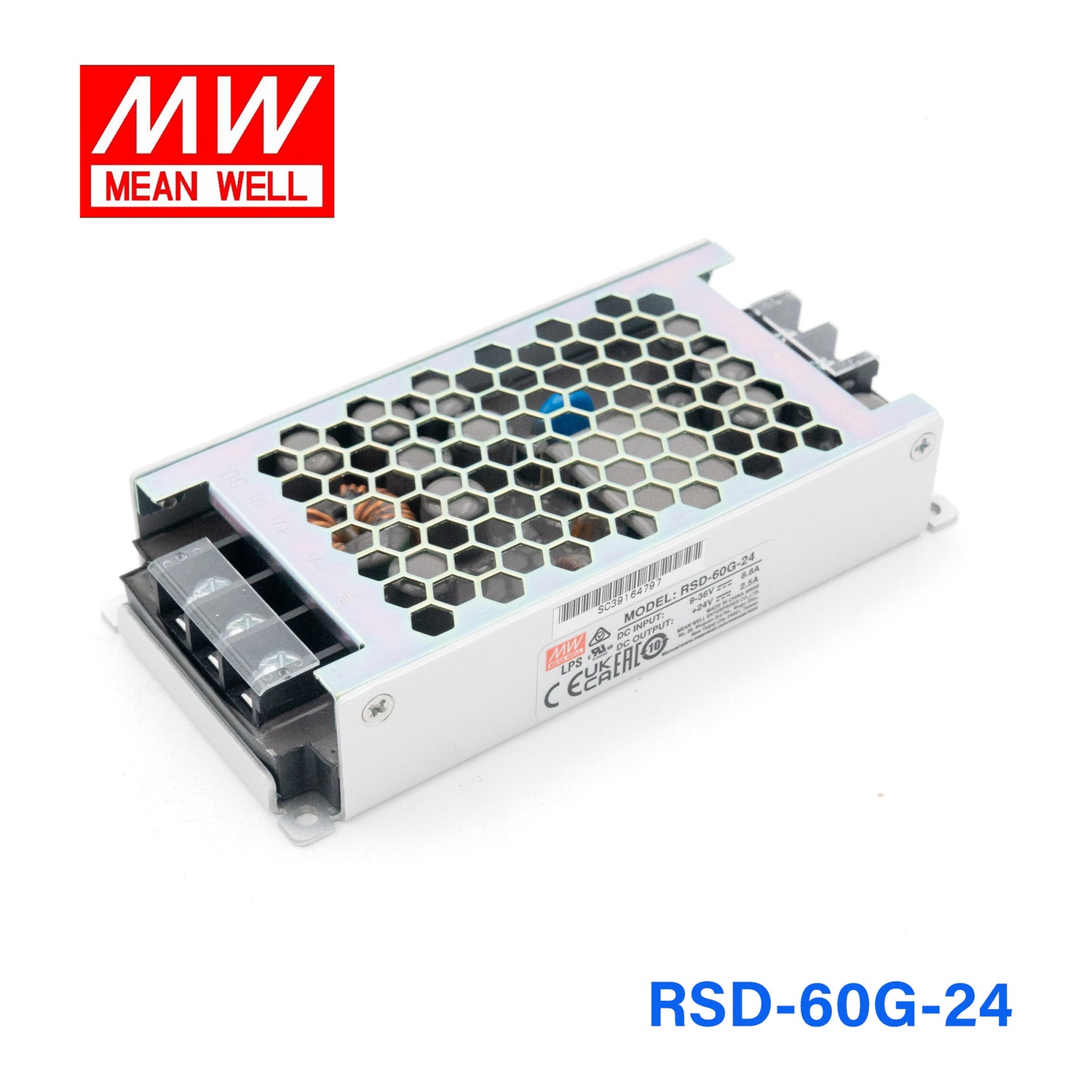

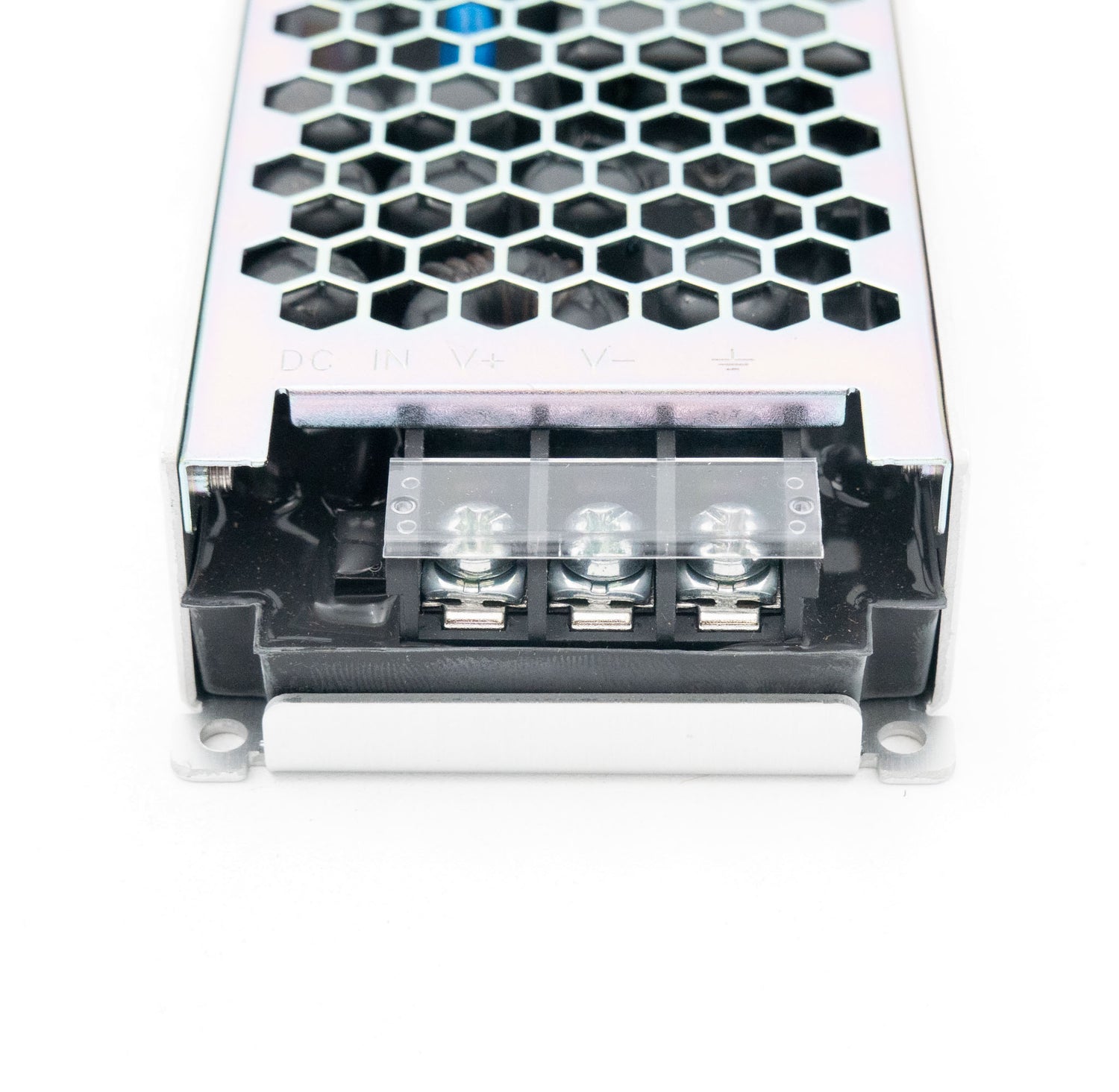

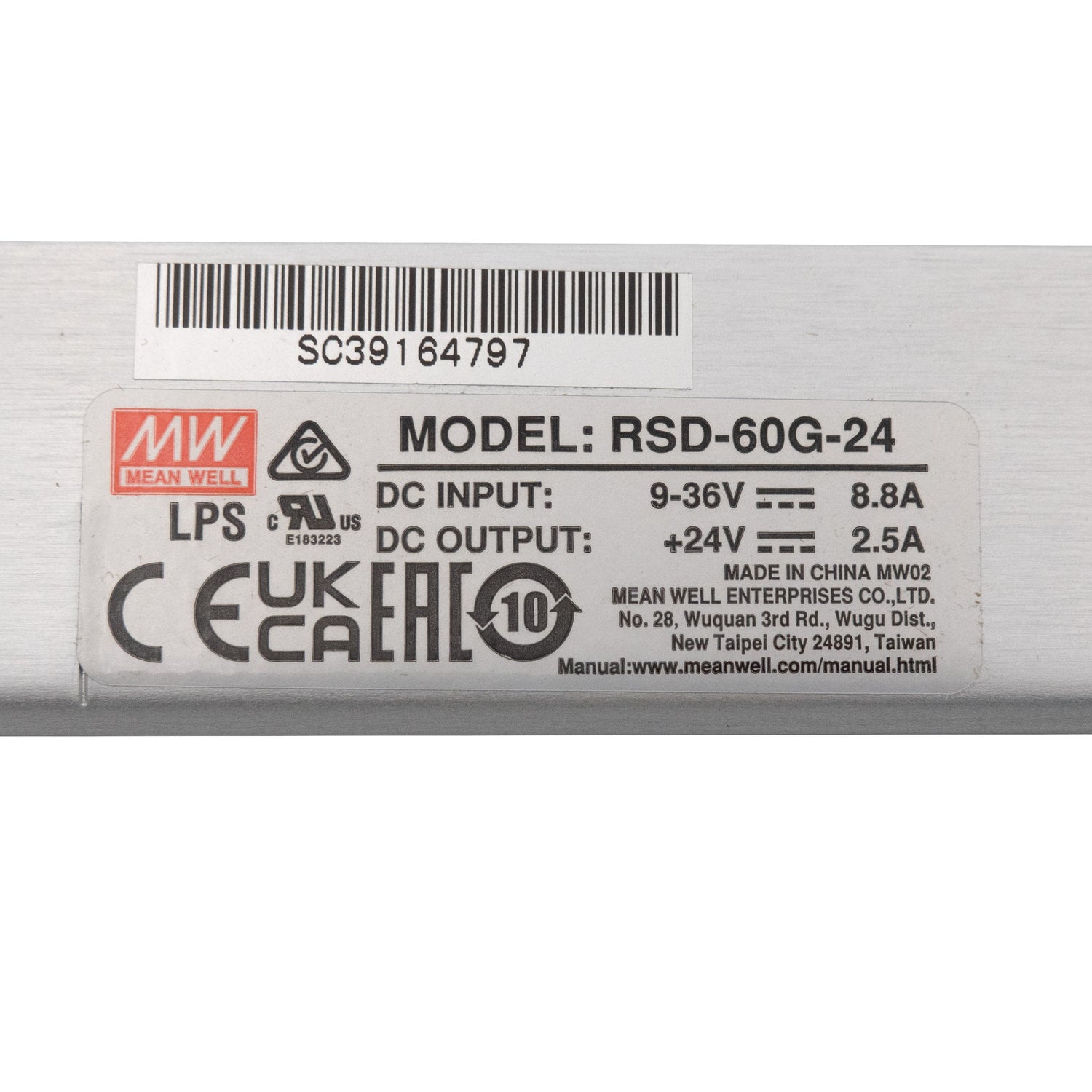

Mean Well RSD-60G-24 DC-DC Converter - 30W - 9~36V in 24V out

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RSD-60G-24

Please for Pricing

Notify me when it's back in stock

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard

Ultra compact and 1U low profile(25mm

4:1 wide input range

No minimum load required

Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.

4000VDC I / O isolation

Half encapsulated, cooling by free air convection

-40~+70℃ wide working temperature

The built-in constant current limiting circuit

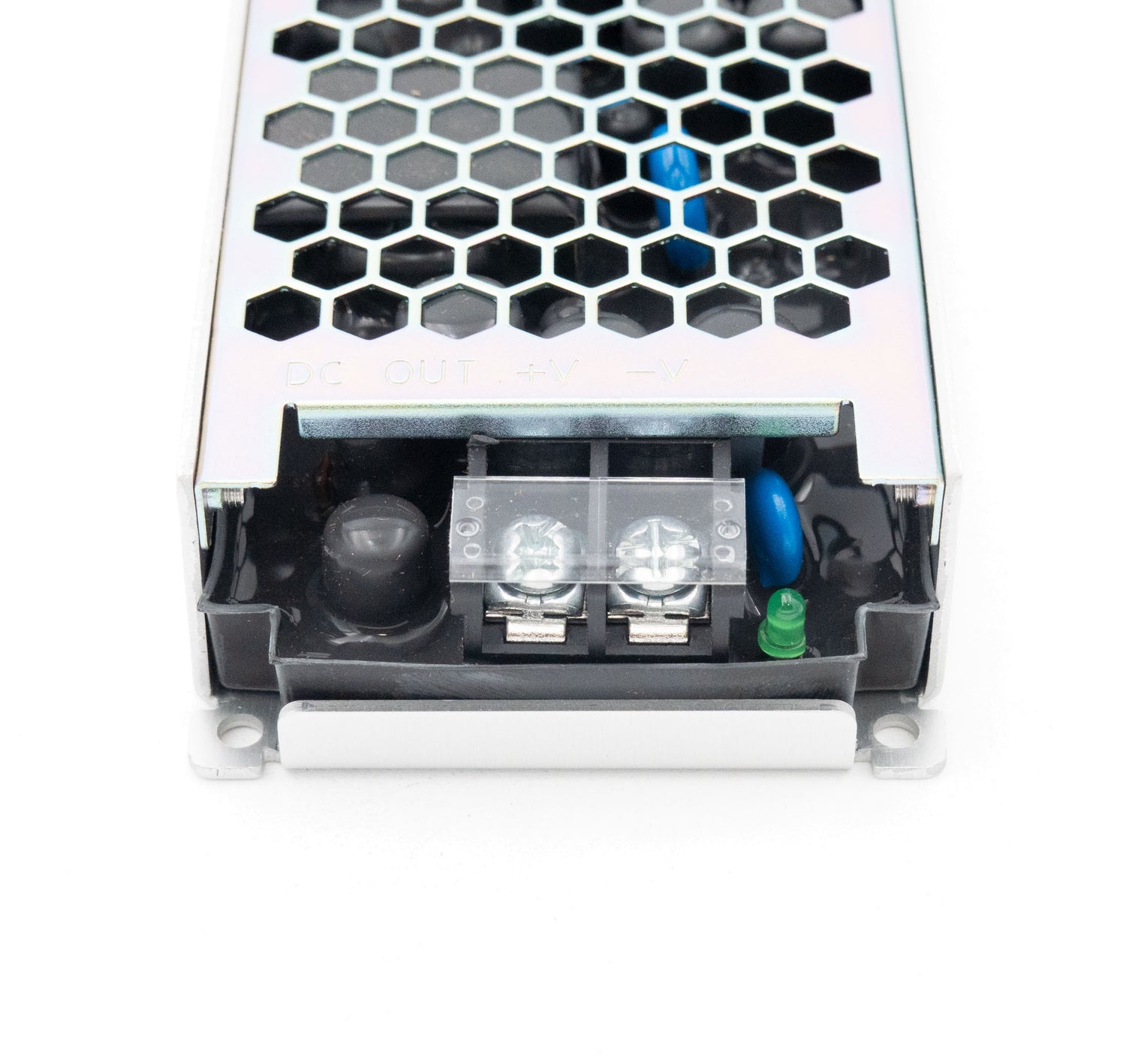

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.5%
Overload protection Range	105% ~ 135%
Overload protection Type	Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage	I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-40 ~ + 85°C (refer to output derating curve)
Safety standards	IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards	EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard	EN50155 / IEC60571
Dimension (LxWxH) (mm)	128 x 60 x 25mm
Packing	0.29Kg; 48pcs/14.9Kg/0.75CUFT

Specifications

Brand

Mean Well
Series

RSD Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

2.5 Ampere
Input Voltage

9V~36V
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

12.8 cm
Width

6 cm
Height

2.5 cm
Weight

0.29 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RSD-60G-24 for a small 24V PLC or industrial control load?

Yes, as long as the load stays within 24V, 2.5A, and 30W. The converter is a constant-voltage model, so it is intended for equipment that requires a regulated 24V supply.

Is this converter a good fit for 24V field devices in a compact machine or panel?

It is suited to compact 24V loads because the body measures 128.0 × 60.0 × 25.0 mm and weighs 0.29 kg. Electrically, it provides up to 2.5A at 24V with 30W total output power.

Can the RSD-60G-24 be used in transportation or mobile automation equipment?

It can fit mobile equipment because it is specified to withstand 5G vibration. Its wide operating temperature range of -40°C to +70°C also supports use in equipment exposed to changing ambient conditions.

Would this model work for a 24V communications or monitoring device powered from a wide DC source?

It can, provided the device needs a constant 24V output and draws no more than 2.5A or 30W. The listed input range is 9-36VAC, which allows a broad input window in the published specifications.

Is the RSD-60G-24 rated for outdoor installation?

The converter is specified for operation from -40°C to +70°C, so the temperature rating is broad. No IP rating is included in the provided specs, so direct weather exposure should be avoided unless the unit is placed in a suitable enclosure.

Model	Power	Voltage	Current	IP Rating
Mean Well RSD-60G-12 DC-DC Converter - 60W - 9~36V in 12V out	30W	12V	5A	Indoor	View
Mean Well RSD-60G-5 DC-DC Converter - 30W - 9~36V in 5V out	30W	5V	12A	Indoor	View
Mean Well RSD-60G-3.3 DC-DC Converter - 19.8W - 9~36V in 3.3V out	19.8W	3.3V	12A	Indoor	View
