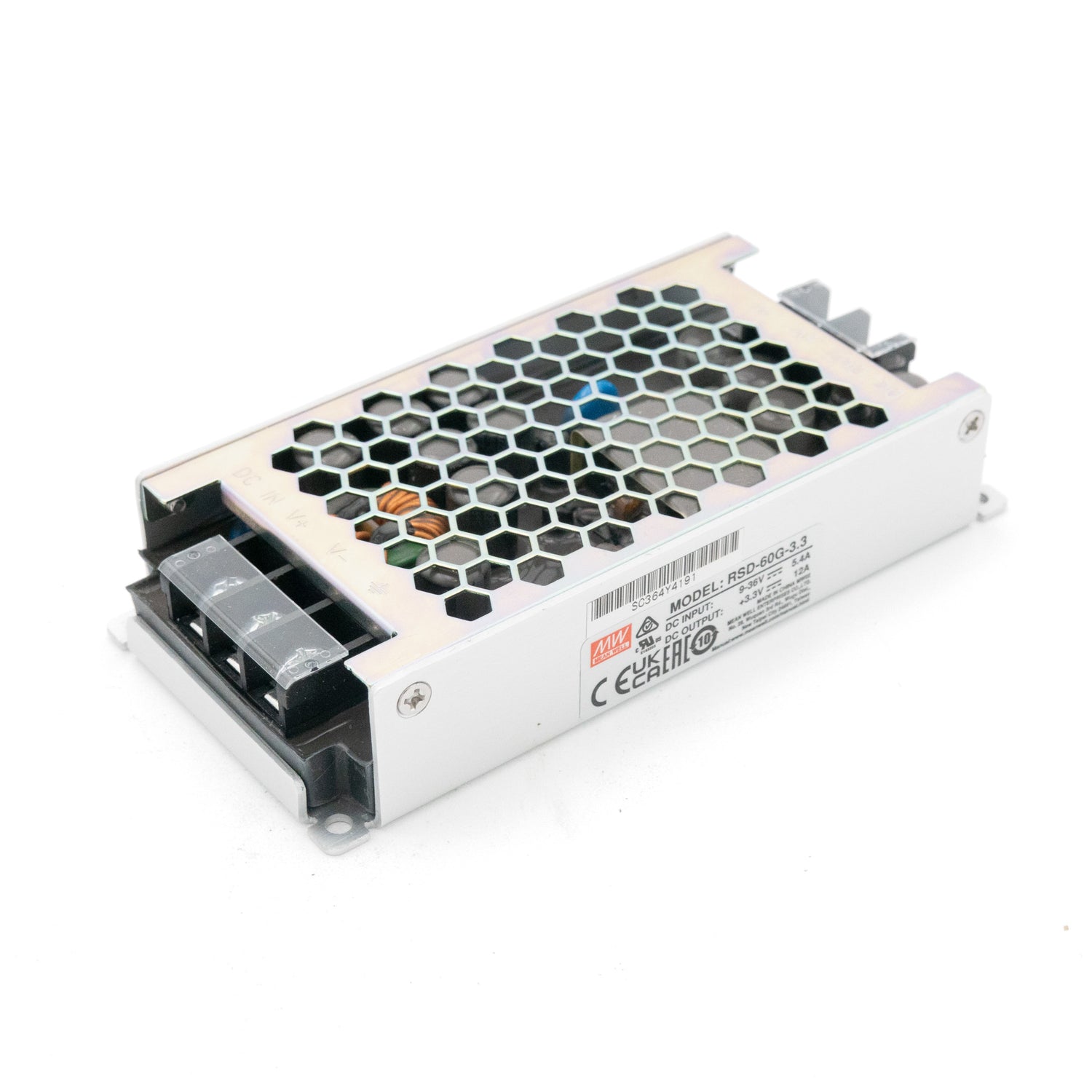

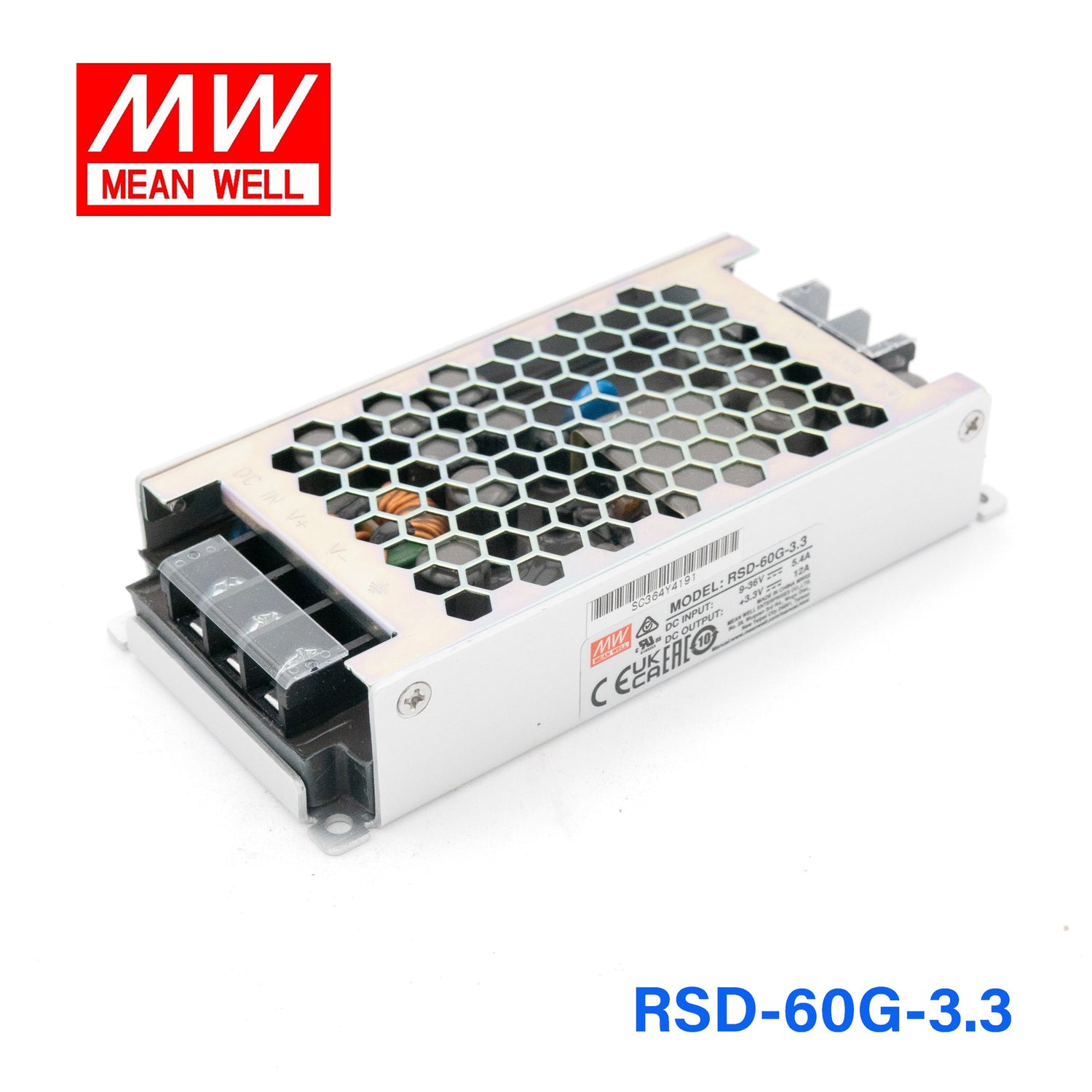

Mean Well RSD-60G-3.3 DC-DC Converter - 19.8W - 9~36V in 3.3V out

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RSD-60G-3.3

Please for Pricing

Notify me when it's back in stock

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard

Ultra compact and 1U low profile(25mm

4:1 wide input range

No minimum load required

Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.

4000VDC I / O isolation

Half encapsulated, cooling by free air convection

-40~+70℃ wide working temperature

The built-in constant current limiting circuit

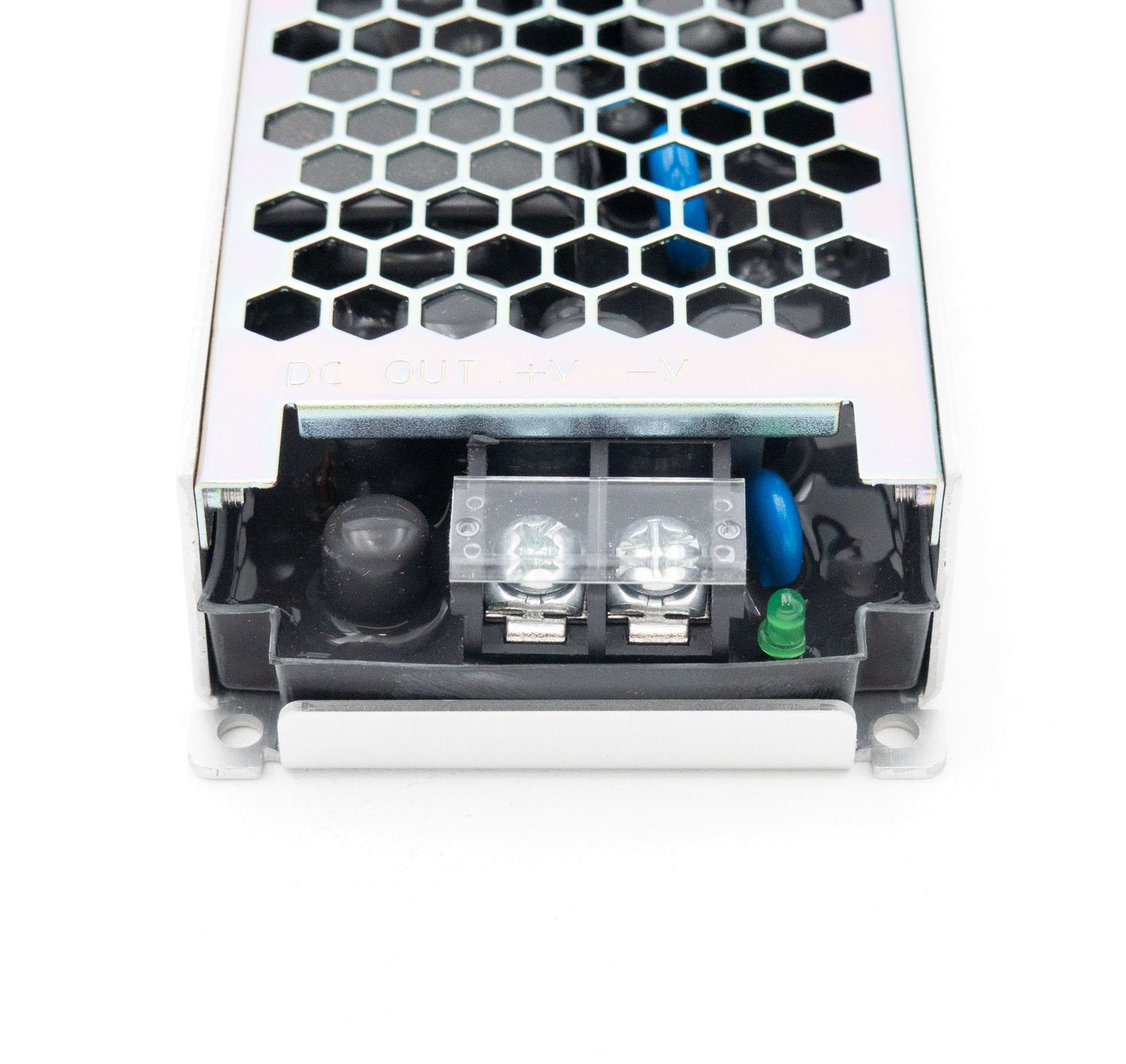

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.5%
Overload protection Range	105% ~ 135%
Overload protection Type	Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage	I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-40 ~ + 85°C (refer to output derating curve)
Safety standards	IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards	EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard	EN50155 / IEC60571
Dimension (LxWxH) (mm)	128 x 60 x 25mm
Packing	0.29Kg; 48pcs/14.9Kg/0.75CUFT

Specifications

Brand

Mean Well
Series

RSD Series
Power Rating

19.8 Watt
Output Voltage

3.3 Volt
Rated Current

12 Ampere
Input Voltage

9V~36V
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

12.8 cm
Width

6 cm
Height

2.5 cm
Weight

0.29 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RSD-60G-3.3 to power 3.3V embedded processors or logic boards from a higher-voltage source?

Yes. This converter provides a constant 3.3V output at up to 12A, with 19.8W total output power. The listed input range is 9-36VAC.

Is the RSD-60G-3.3 suitable for low-voltage industrial electronics that need high current at 3.3V?

It is intended for 3.3V loads that need more current rather than higher wattage, since it can supply up to 12A at 3.3V. Total output power is capped at 19.8W, so the full load still has to stay within that power rating.

Can this model be used for 3.3V control boards in compact automation hardware?

Yes, for compact control electronics that require a regulated 3.3V rail and remain within 12A and 19.8W. Its enclosure size is 128.0 × 60.0 × 25.0 mm, and its weight is 0.29 kg.

Would the RSD-60G-3.3 fit mobile or vibration-exposed embedded systems?

It is specified to withstand 5G vibration, which is relevant for mobile or mechanically stressed electronics. The published operating temperature range is -40°C to +70°C.

Can the RSD-60G-3.3 be used in outdoor or harsh environments?

The operating temperature range is -40°C to +70°C, so it is rated for wide temperature conditions. No IP rating is provided in the listed specs, so exposed outdoor use should be treated as requiring a protective enclosure.

Model	Power	Voltage	Current	IP Rating
Mean Well RSD-60G-12 DC-DC Converter - 60W - 9~36V in 12V out	30W	12V	5A	Indoor	View
Mean Well RSD-60G-5 DC-DC Converter - 30W - 9~36V in 5V out	30W	5V	12A	Indoor	View
Mean Well RSD-60G-24 DC-DC Converter - 30W - 9~36V in 24V out	30W	24V	2.5A	Indoor	View
