Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

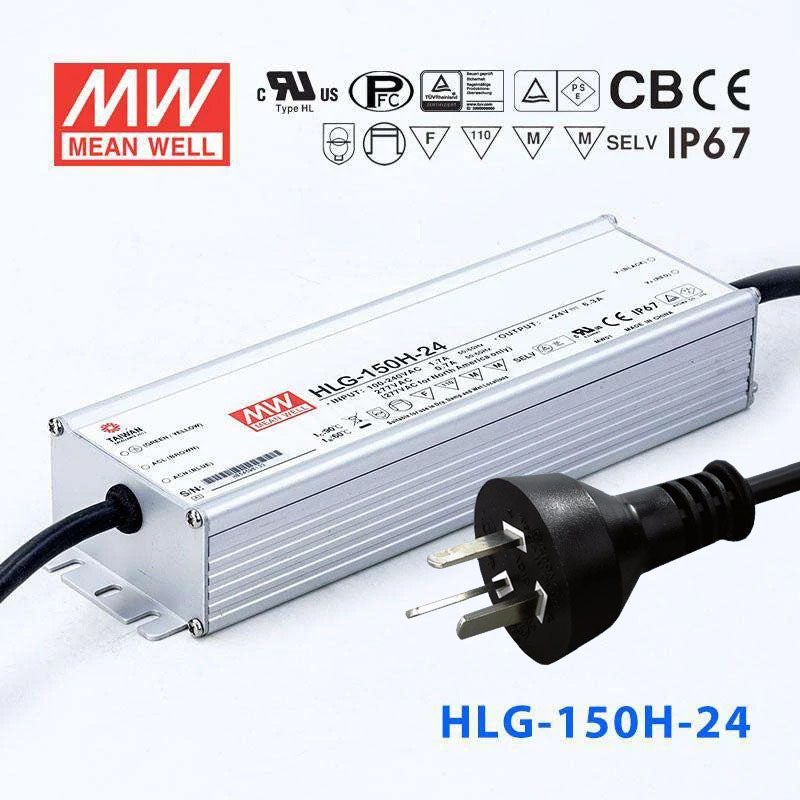

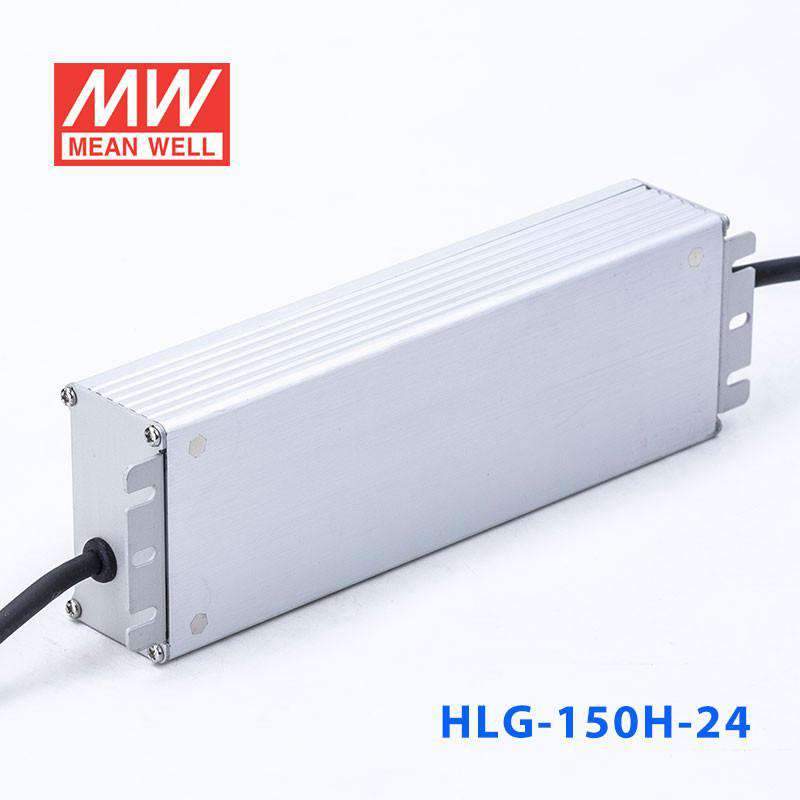

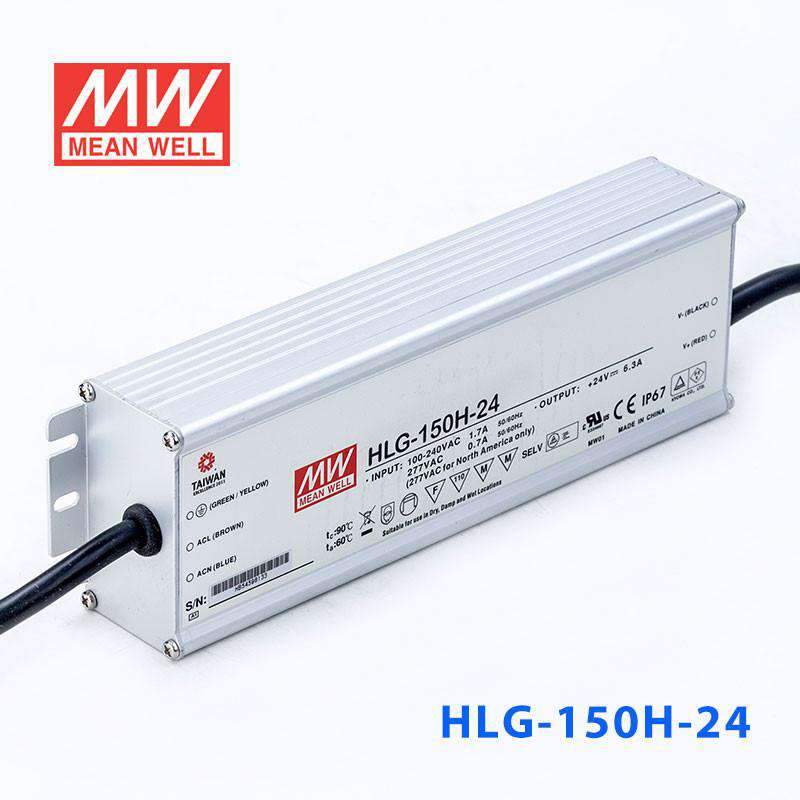

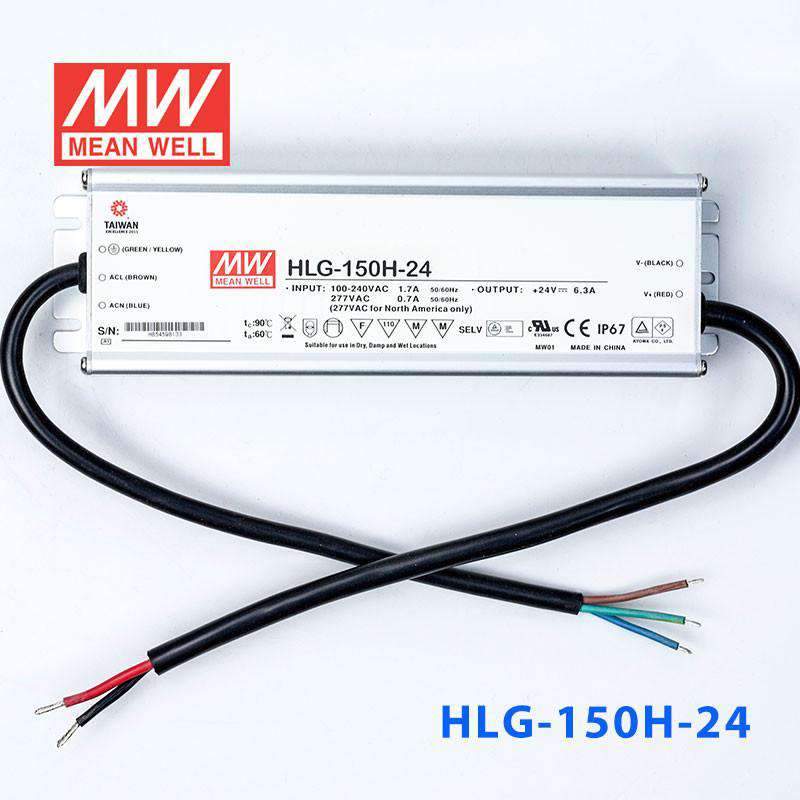

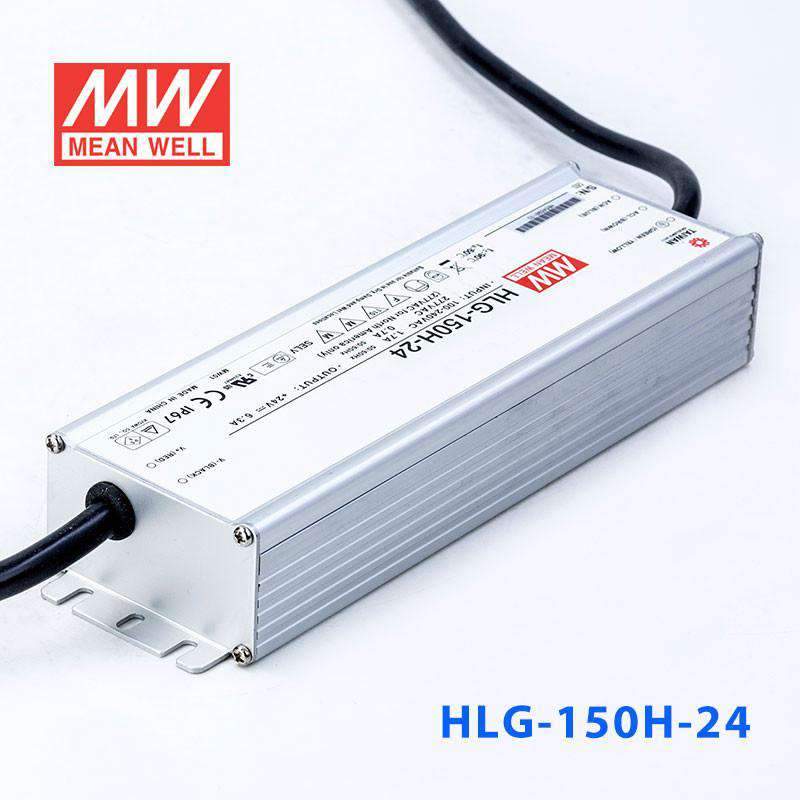

Mean Well S-HLG-150H-24 Power Supply 150W 24V with AU/NZ plug 6.3A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU S-HLG-150H-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

S-HLG-150H-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 93%.

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

S-HLG-150H-24Specifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
24V
CONSTANT CURRENT REGIONNote.4
12 ~ 24V
RATED CURRENT
6.3A
RATED POWER
151.2W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE
22 ~ 27V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
3.8 ~ 6.3A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
28 ~ 34V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213 (except for D-type) ;IP65 or IP67; J61347-1, J61347-2-13 (except for D-type) ,BIS Is15885( for A,B type only), EAC TP TC 004; KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type), EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2176.1K hrs min. Telcordia SR-332(Bellcore) ; 166.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type
H
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

S-HLG-150H-24 BLOCK DIAGRAM
BLOCK DIAGRAM
S-HLG-150H-24 DIMMING OPERATION
DIMMING OPERATION
S-HLG-150H-24 Illustration (page 5)
Illustration (page 5)
S-HLG-150H-24 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
S-HLG-150H-24 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
S-HLG-150H-24 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
S-HLG-150H-24 ※B-Type
※B-Type
S-HLG-150H-24 Dimensions (mm)
Dimensions (mm)
S-HLG-150H-24 ※AB-Type
※AB-Type
S-HLG-150H-24 Dimensions (mm)
Dimensions (mm)
S-HLG-150H-24 WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type "H" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

What is the output rating of the Mean Well S-HLG-150H-24?

This model provides a 24V output with a 151.2W power rating. Its rated output current is 6.3A, making it suitable for 24V LED lighting loads within that capacity.

Is the S-HLG-150H-24 suitable for outdoor or wet-area use?

Yes. The S-HLG-150H-24 is described with IP67 / IP65 design for indoor or outdoor installations. That makes it a practical option for lighting projects where resistance to dust and water exposure is important.

What types of applications is this power supply designed for?

This model is intended for LED lighting and street lighting applications. Its 24V output, high efficiency, and outdoor-rated enclosure make it a good fit for commercial and industrial lighting environments.

Does the Mean Well S-HLG-150H-24 support dimming control?

No. The datasheet offers 3-in-1 dimming (1-10V, 10V PWM or resistance) only on the B and AB types; this model has no dimming input. If your project requires integrated dimming functionality, you would need to consider a different power supply model.

What input range and efficiency does the S-HLG-150H-24 offer?

This unit accepts a wide 90-305VAC (127-431VDC) input and includes a PFC circuit (PF≥0.95 at 230VAC, full load). Its typical efficiency is 93%, which helps reduce wasted energy in demanding lighting applications.

What protection and durability features does this model include?

The S-HLG-150H-24 includes protection for short circuit, over current, over voltage, and over temperature. It is specified for a case temperature (Tcase) of -40°C to +90°C and a typical life expectancy of over 62,000 hours at a Tcase of about 80°C or less, supporting long-term use in demanding environments.
