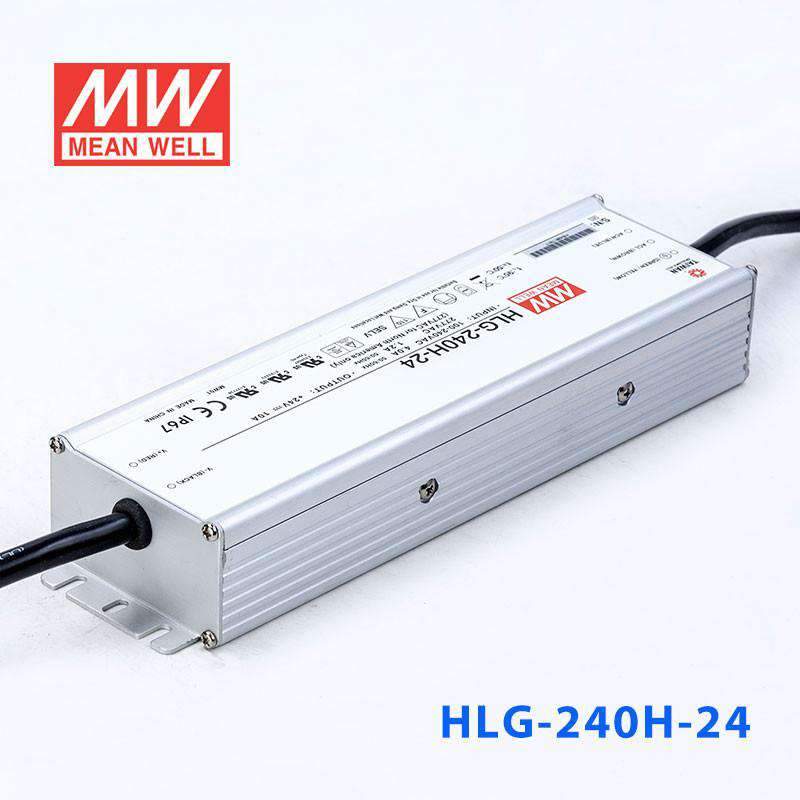

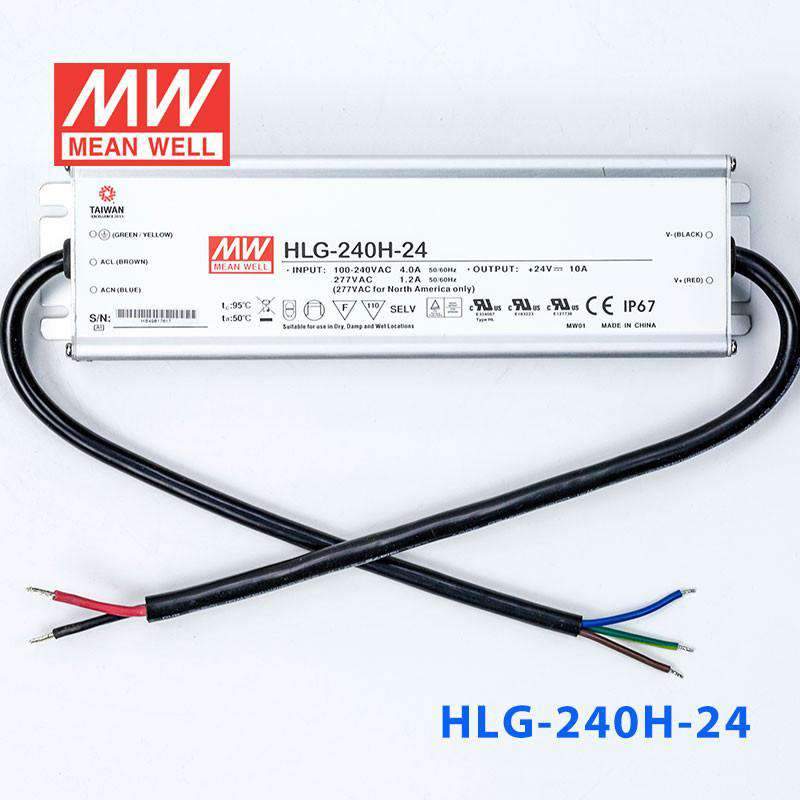

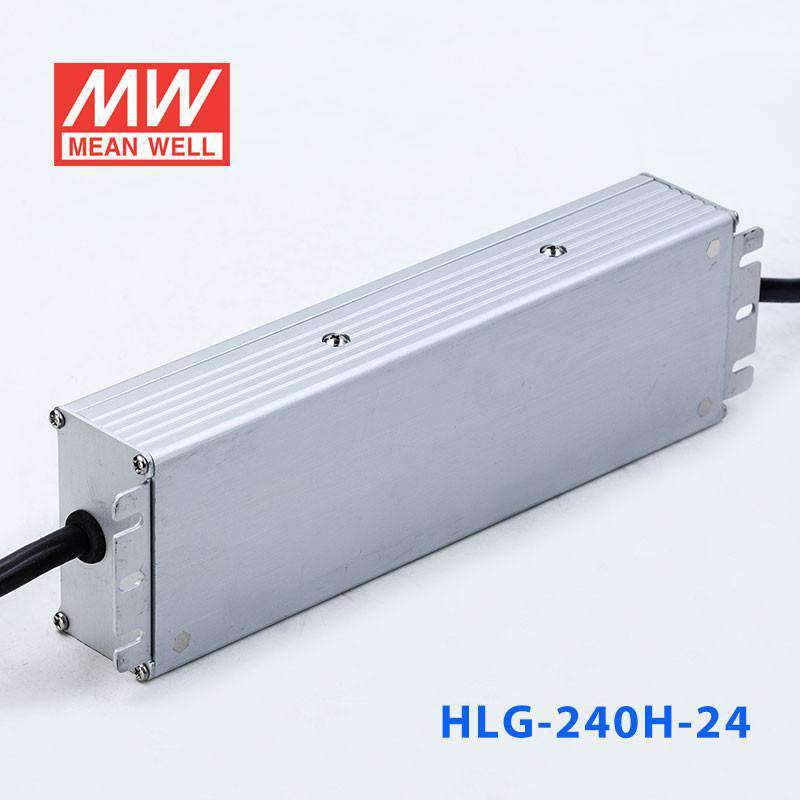

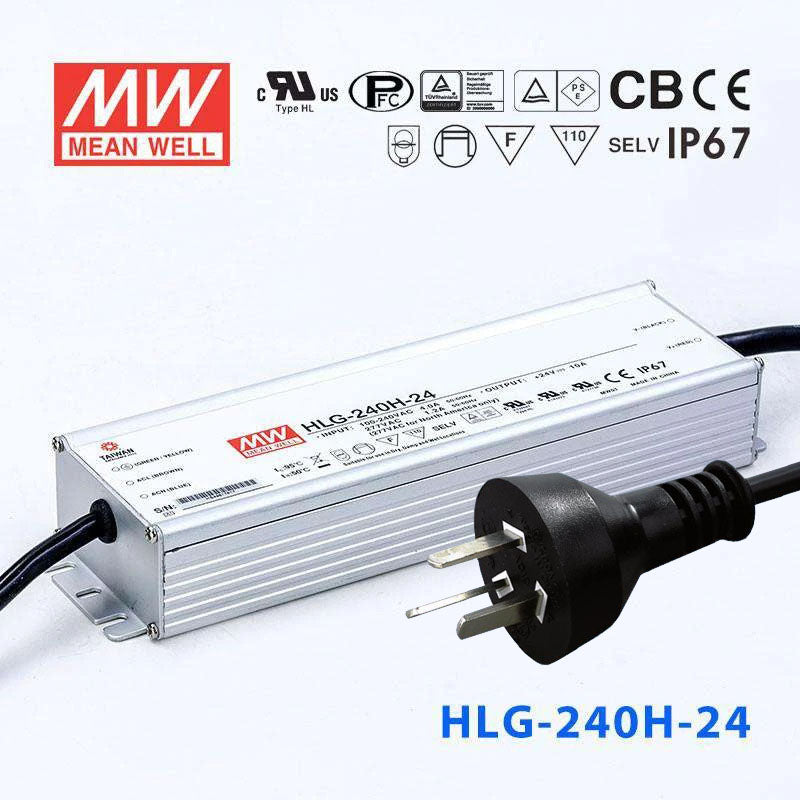

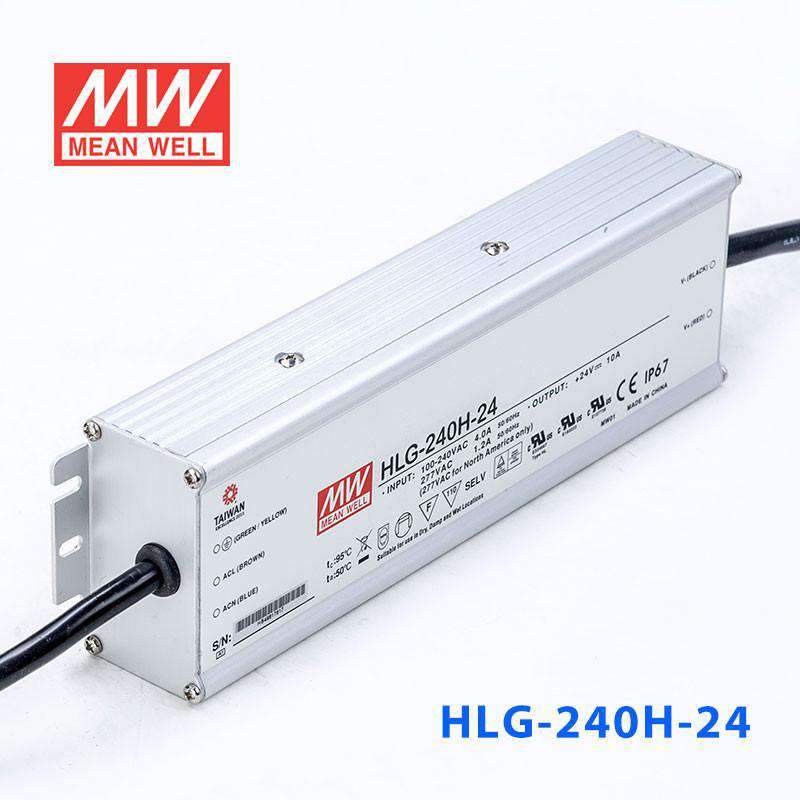

Mean Well S-HLG-240H-24 Power Supply 240W 24V with AU/NZ plug
Please Login for Pricing
Description
Description
The S-HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length24.42 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.46 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well S-HLG-240H-24 best suited for?
This model is suited to higher-power 24V LED lighting applications where a constant 24V output and up to 240W capacity are needed. Typical commercial use cases include LED lighting and street lighting projects that benefit from a robust enclosed power supply with weather-resistant protection.
What are the key output specifications of the S-HLG-240H-24?
The Mean Well S-HLG-240H-24 is rated for 240W total output with a 24V DC output and 10A rated current. That makes it appropriate for 24V systems that need a higher-capacity power supply within this output class.
Can the S-HLG-240H-24 be used indoors or outdoors?
Yes. This model has an IP67 / IP65 design and is described as suitable for indoor or outdoor installations. Its sealed design also supports use in environments where dust or water exposure is a concern.
Does the S-HLG-240H-24 support dimming control?
No. The product data for this model lists dimming control as none. If your project requires integrated dimming, you would need a different driver or power supply variant with a supported dimming interface.
What input and efficiency features stand out on the S-HLG-240H-24?
This model supports universal AC input up to 305VAC and is specified as full range, which is useful for commercial supply conditions. It also offers efficiency up to 95% and built-in active PFC, with power factor above 0.9 at 60% load or higher.
What protection and durability features does the S-HLG-240H-24 include?
The S-HLG-240H-24 includes short circuit, over current, over voltage, and over temperature protection. It is also specified for operation from -40°C to 90°C, uses free air convection cooling, and comes with a 7-year warranty.
