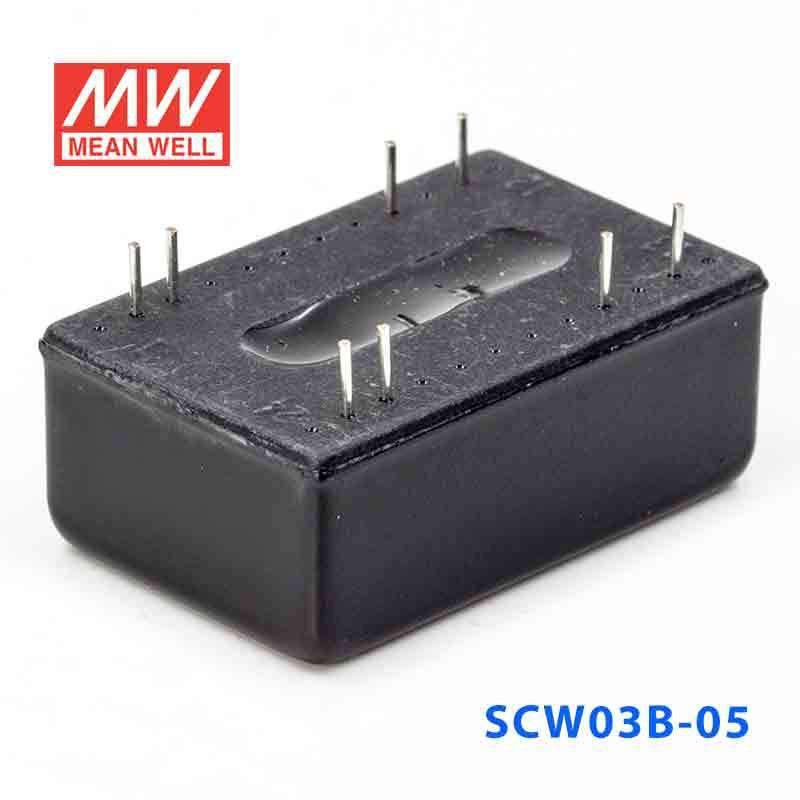

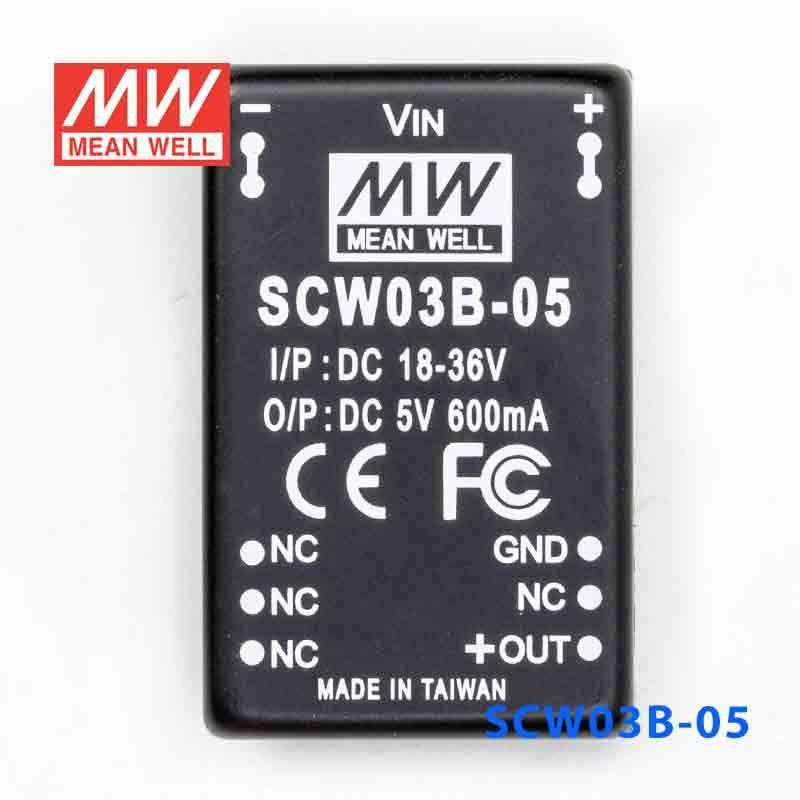

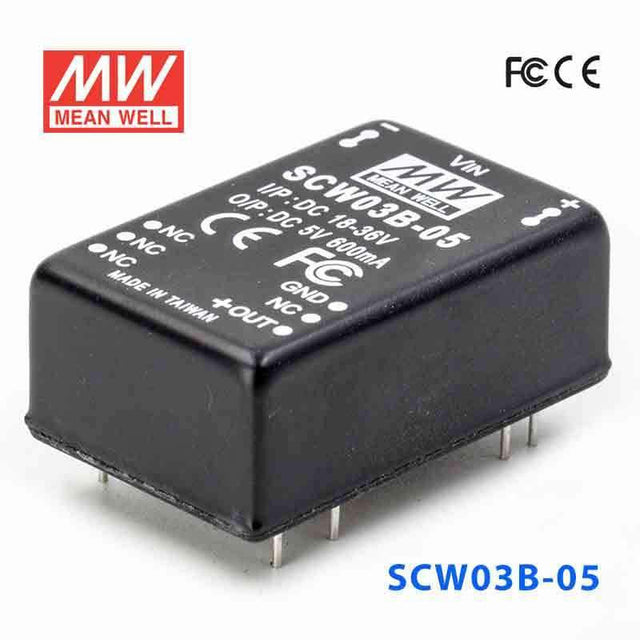

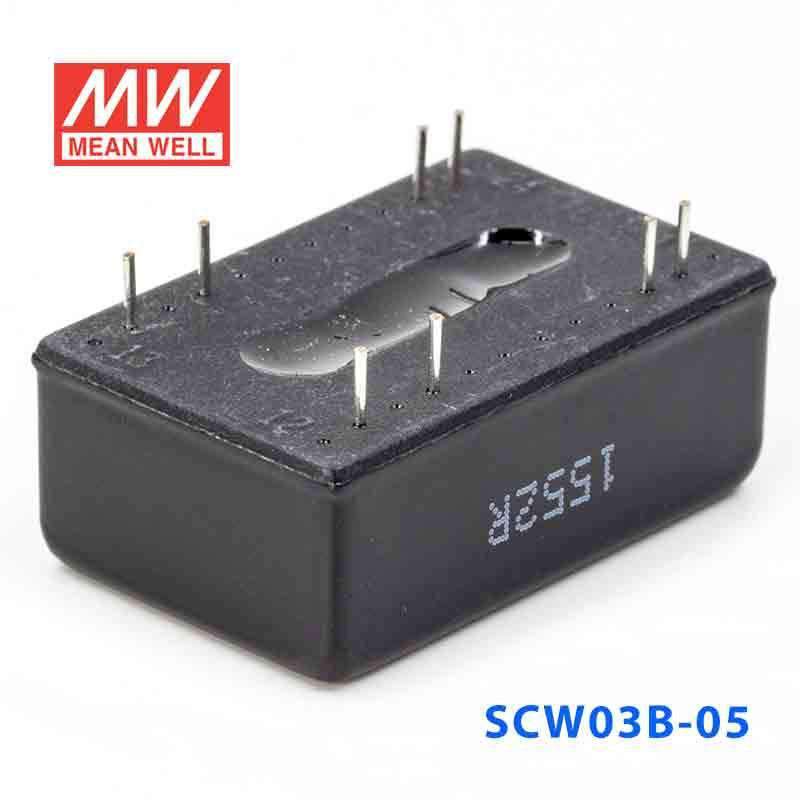

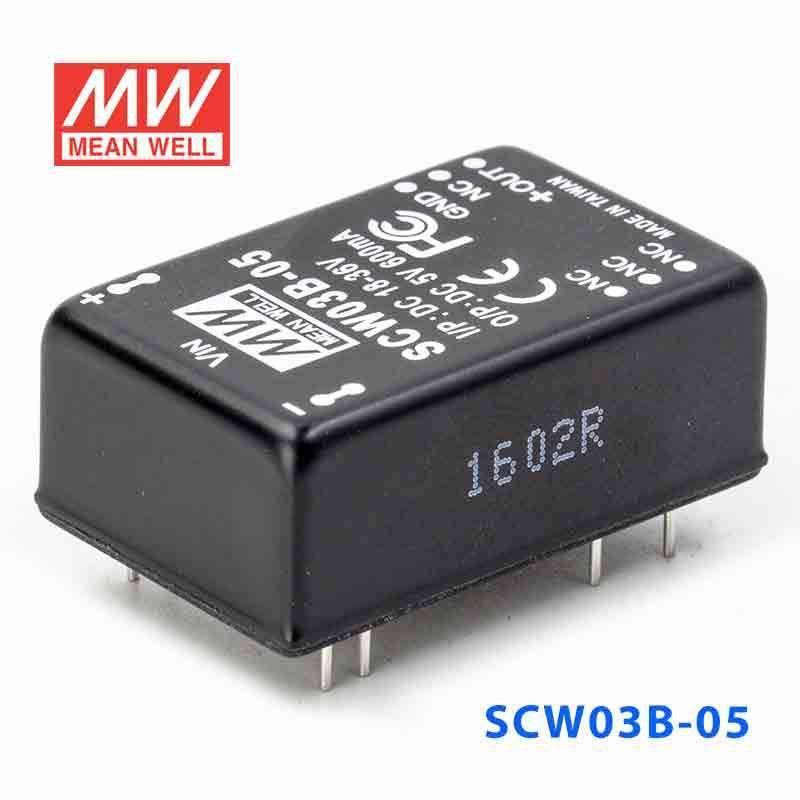

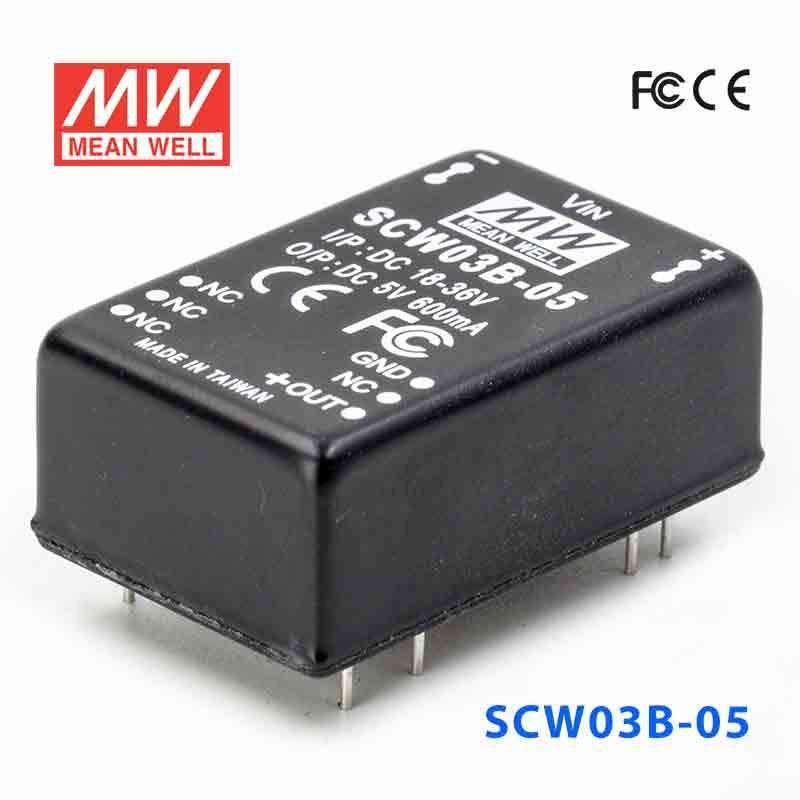

Mean Well SCW03B-05 DC-DC Converter - 3W 18~36V DC in 5V out 600mA
Please Login for Pricing
Description
Description
The SCW03B is a 3W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage18V~36V
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the main function of the Mean Well SCW03B-05?
The SCW03B-05 is a 3W DC-DC converter designed to take an 18 to 36V DC input and provide a regulated 5V DC output. It is intended for applications that need isolated DC power conversion in a compact DIP24 package.
What are the input and output ratings for this model?
This model accepts a 2:1 input range of 18 to 36V DC and delivers a 5V DC output. Its rated output current is 0.6A, with a total power rating of 3W.
What protections are included in the SCW03B-05?
The SCW03B-05 includes continuous short circuit protection, overload protection, and input under-voltage protection. These built-in protections help support reliable operation in industrial and embedded power designs.
Is the SCW03B-05 suitable for demanding temperature environments?
Yes, this converter is specified for operation from -40°C up to +90°C, with the provided product data also listing a maximum temperature of 71°C. Buyers should confirm the intended operating conditions against the full datasheet limits for their application.
Does this converter require a minimum load to regulate properly?
No, the SCW03B-05 is specified with no minimum load requirement. That makes it useful in systems where load conditions may vary or remain very light during standby operation.
What makes the SCW03B-05 a practical choice for compact OEM designs?
This model uses an industry-standard DIP24 package and offers 3KVDC input-to-output isolation, which can be important in space-constrained equipment. It also delivers high efficiency up to 87%, helping reduce wasted power in low-power DC conversion applications.
