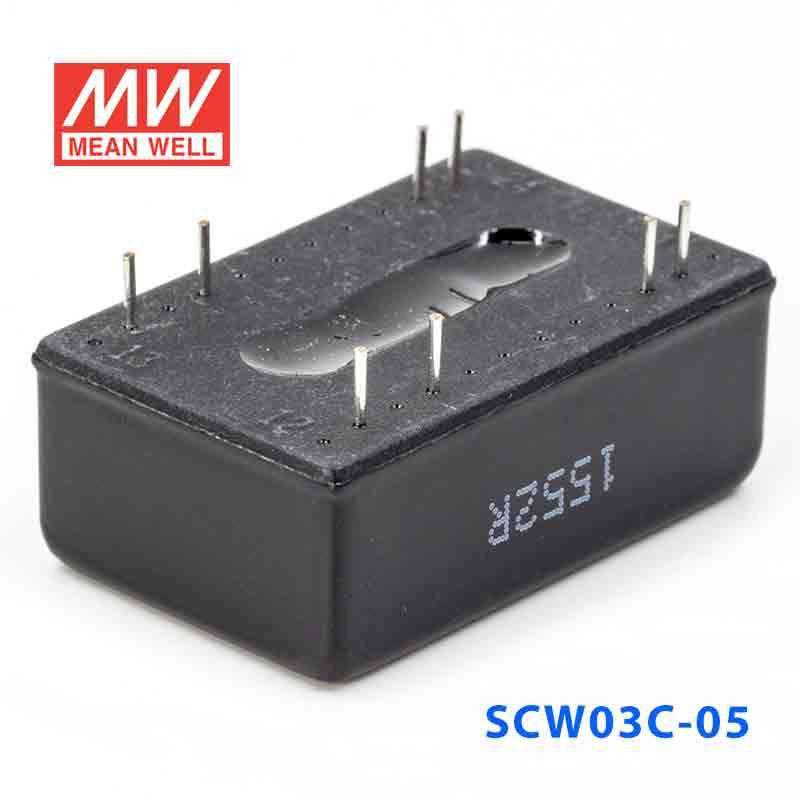

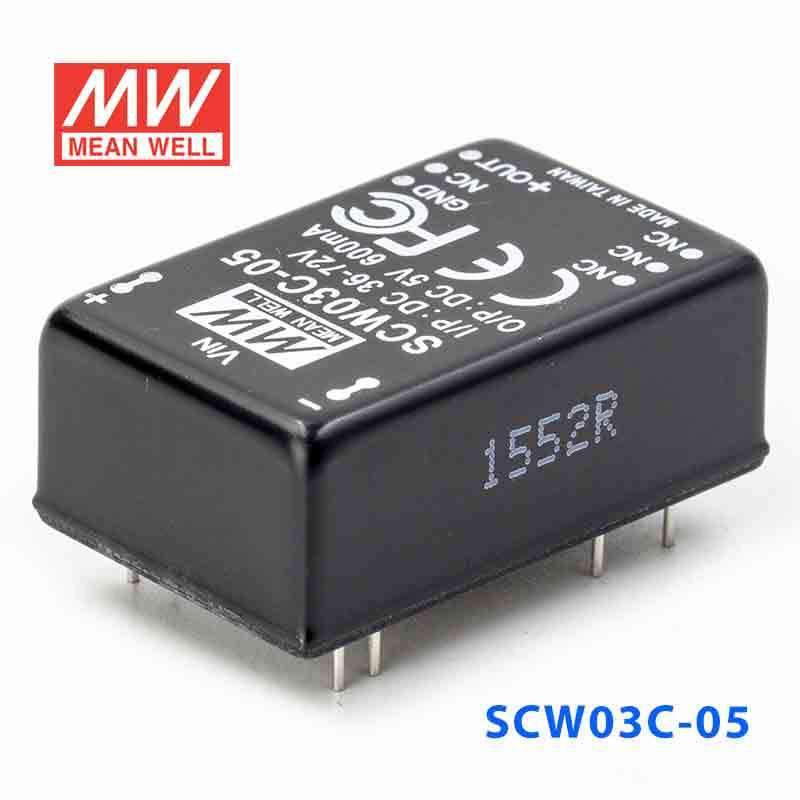

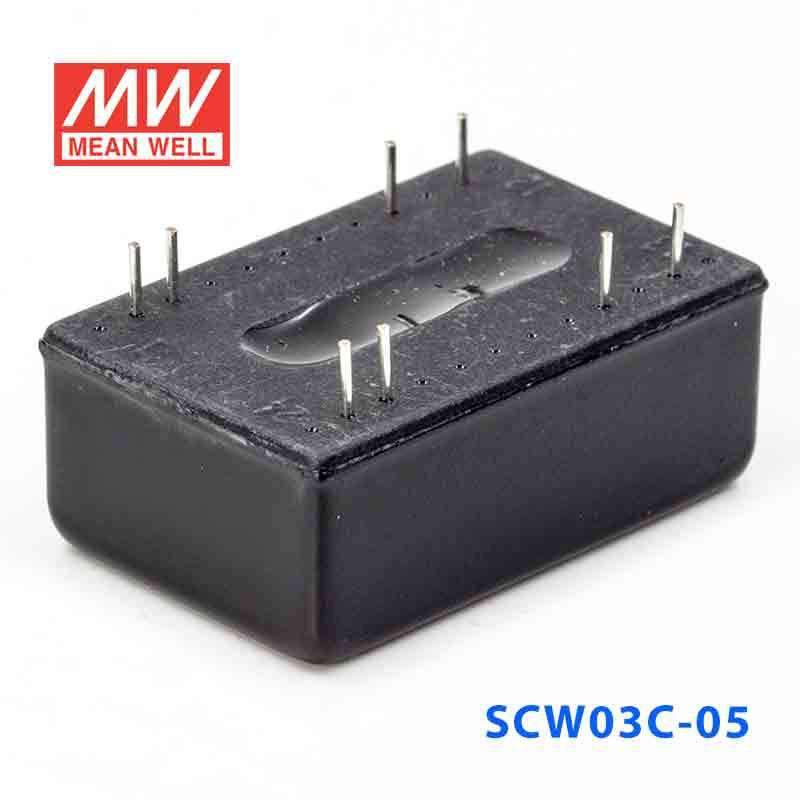

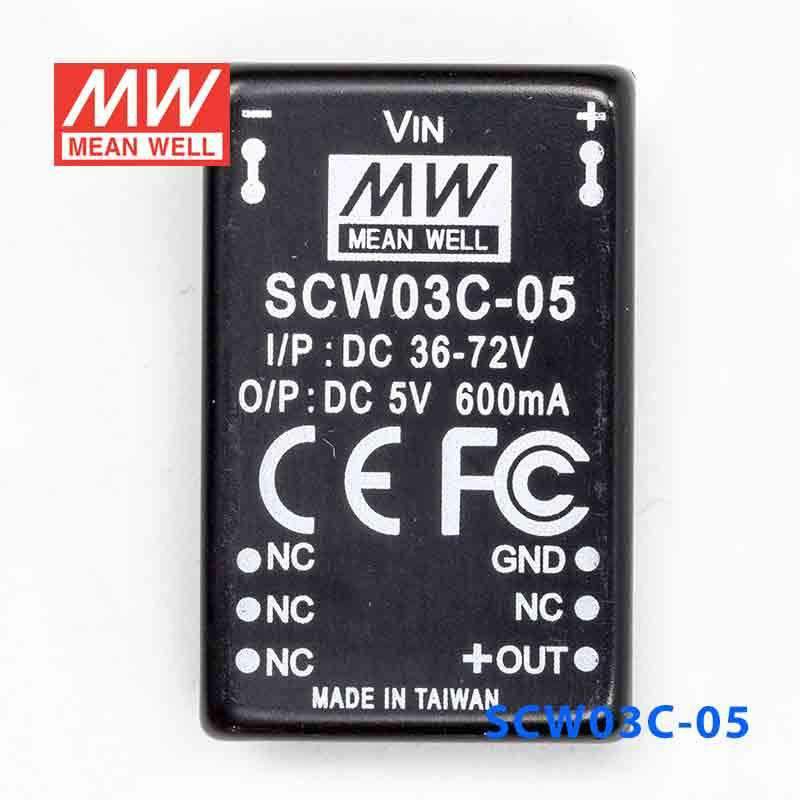

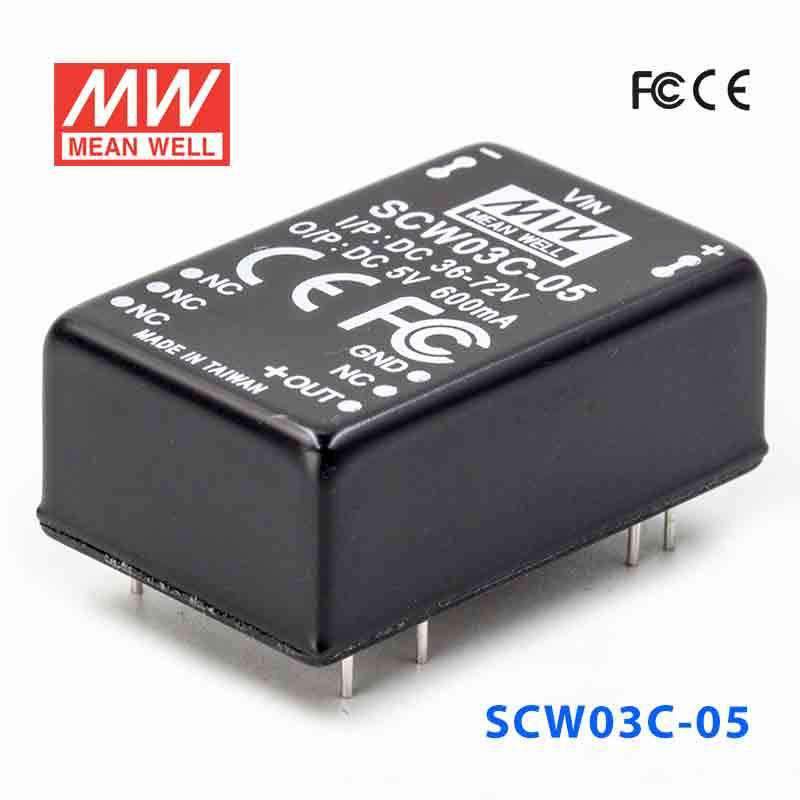

Mean Well SCW03C-05 DC-DC Converter - 3W 36~72V DC in 5V out
Please Login for Pricing
Description
Description
Features
| DIP24 package with industry-standard pinout |
| 2:1 wide input range |
| Operating temperature range -40 ~ +90°C |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High efficiency up to 87% |
| Protections: Short circuit (Continuous) / Overload / Input under voltage |
| 3KVDC I/O isolation |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±1.5% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | Single output models: 0.5%, Dual output models: 1% |
| Overload protection | 120 ~ 250% rated output power |
| Efficiency | 87% (typical) |
| Short circuit protection | Protection type: Continuous, automatic recovery |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | 100MQ(min.)@500VDC |
| Isolation capacitance | 250pF (max.) |
| Working temperature | -40 ~ +90°C (Refer to "Derating Curve") |
| Storage temperature | +100°C max |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ±0.03% / °C (max.) |
| Dimension (LxWxH) (mm) | 31.8 x 20.3 x 10.2mm (1.25 x 0.8 x 0.4 inch) |
| Case material | Five-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage36V~72V
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
