Mean Well SCW20A-15 DC-DC Converter - 20W 9~18V DC in 15V out 1.333A

SKU SCW20A-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SCW20A-15 is the 15V output model of this series: rated power 20W, typical efficiency 87%.

SCW20 series is 20W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+80℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A with additional components, continuous-mode short circuit protection, etc. The additional components, models account for different input voltage 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 5V/12V/15V for single output, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +80℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A with additional components
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

SCW20A-15Specifications from the official datasheet (2025-07-28 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 12V (9 ~ 18V)
INPUT CURRENT NO LOAD: 25mA
INPUT CURRENT FULL LOAD: 1915mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 1333mA
EFFICIENCY (TYP.): 87%
CAPACITOR LOAD (MAX.): 220μF

INPUT

VOLTAGE RANGE: 9~18Vdc ,
FILTER: Pi type
PROTECTION: Fuse recommended. 12Vin models: 4A Slow-Blow Type, 24Vin models: 2A Slow-Blow Type, 48Vin models: 1A Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±2%
RATED POWER: 20W
RIPPLE & NOISE^Note.2: 80mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Min.): 400KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 190% rated output power Protection type : Recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin > 2.5VDC or open ; Power OFF: R.C. ~ -Vin < 0.8VDC or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1200pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A with additional components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A with additional components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 224Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL: Five-sided shield metal case

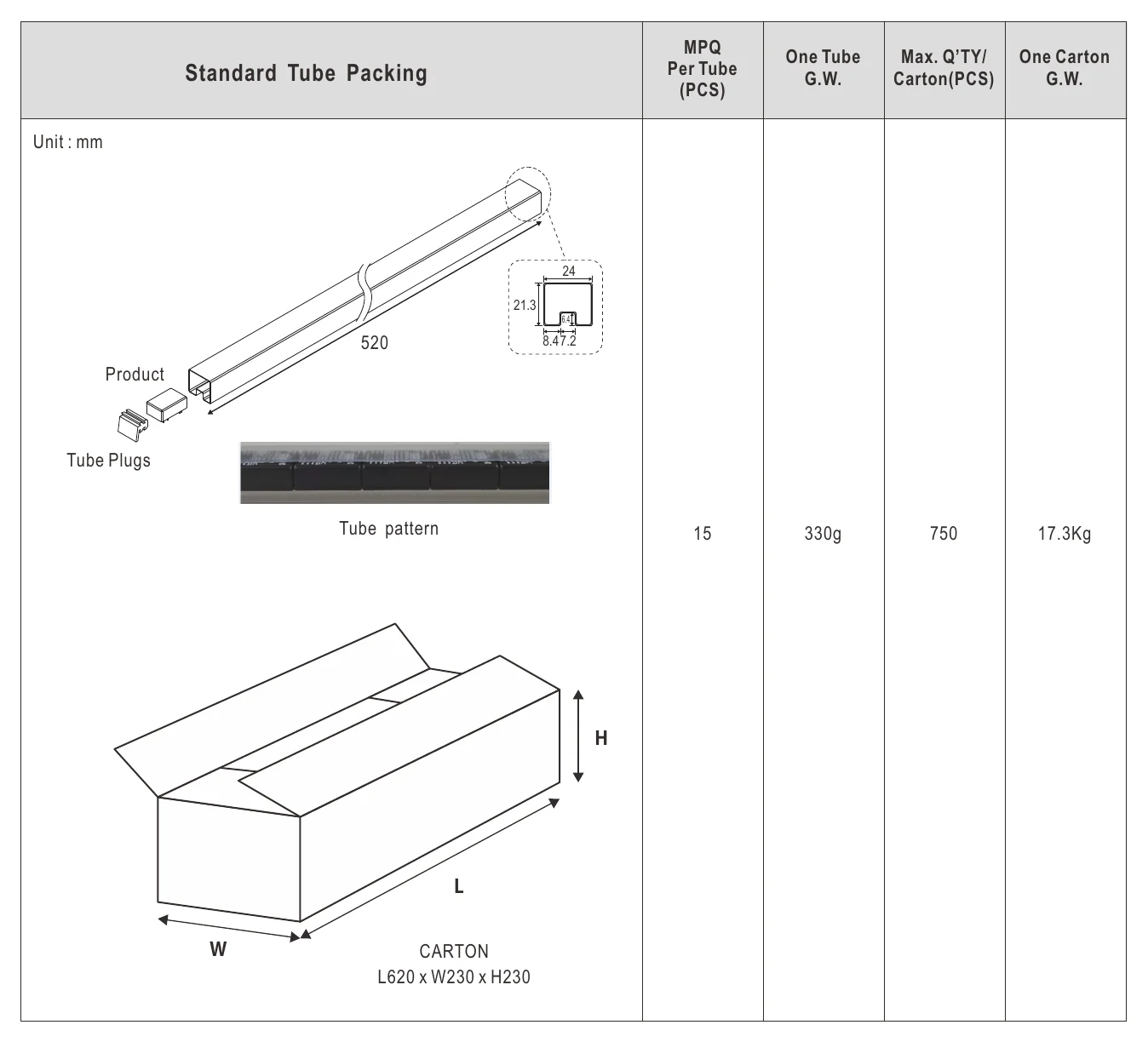

PACKING: 18.5g ; 15pcs/per tube, 750pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

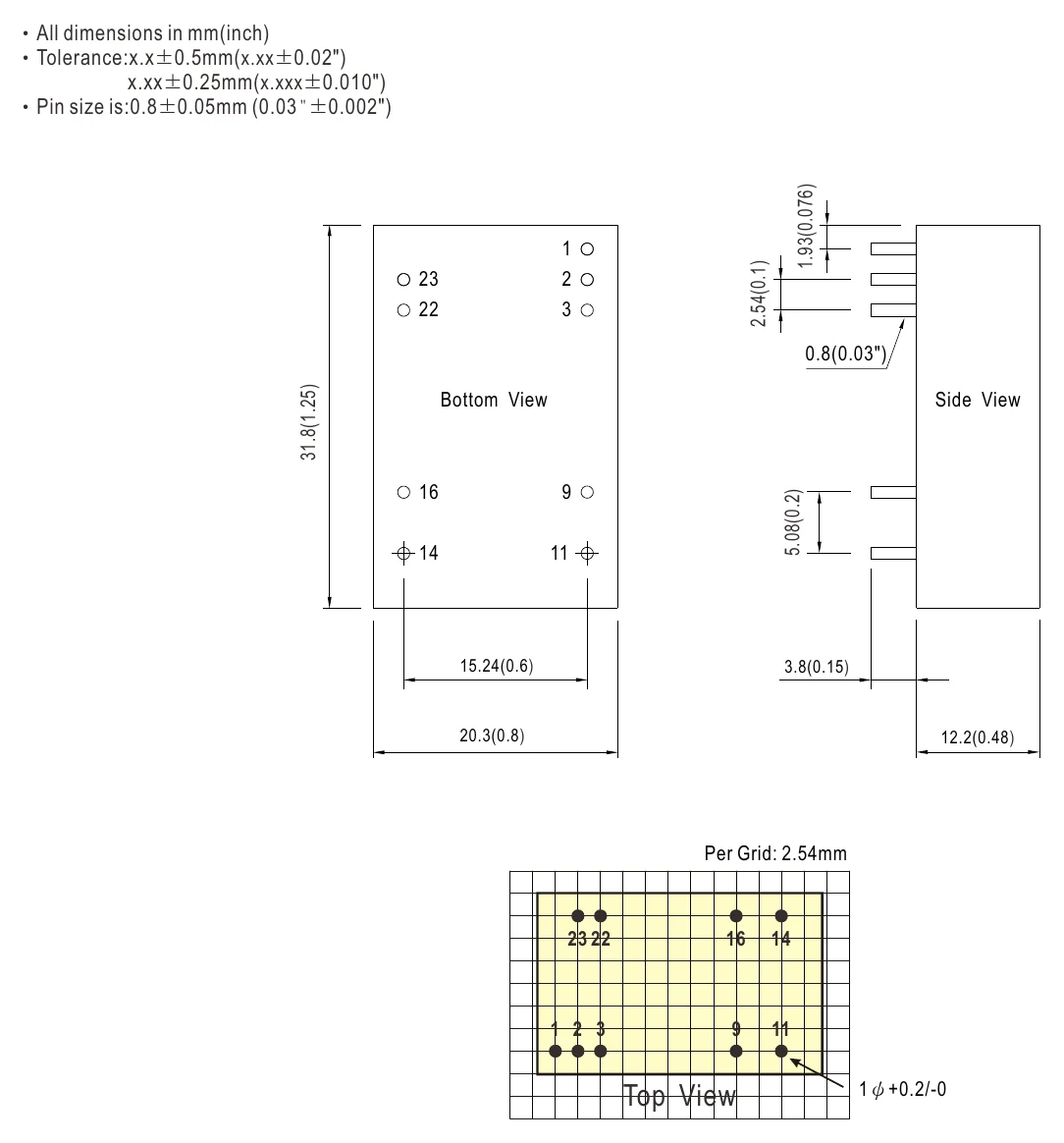

SCW20A-15 Mechanical Specification — Mechanical Specification

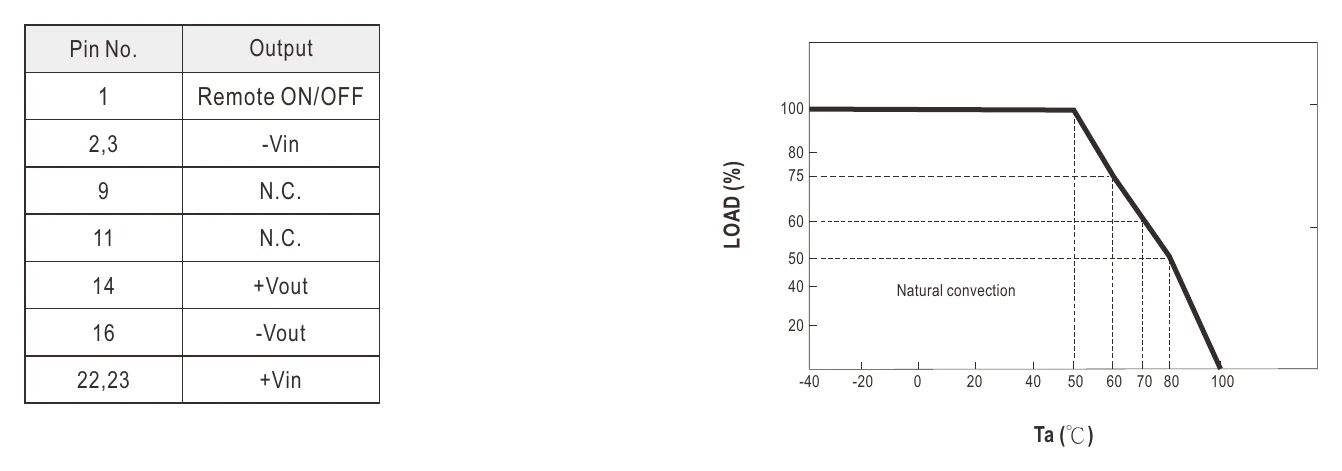

SCW20A-15 Pin Assignment — Pin Assignment

SCW20A-15 S C W 2 0 series — S C W 2 0 series

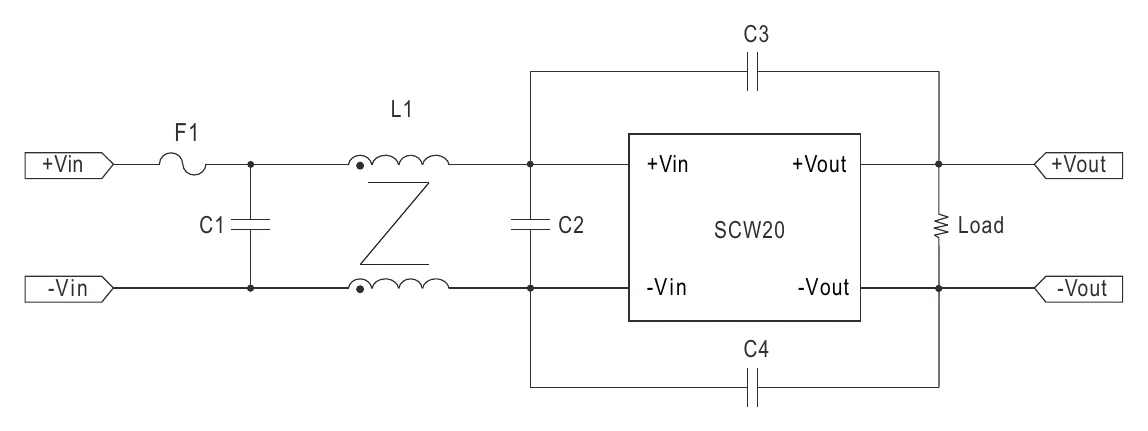

SCW20A-15 S C W 2 0 series (2) — S C W 2 0 series (2)

Typical applications

Downloads

Certificates3

CE Certificate(SCW/DCW-1220)(EN) PDF Download

EMC Certificate(SCW/DCW-1220)(EN) PDF Download

EAC Certificate(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SCW20A-15 to power 15V industrial sensors or control electronics from a 9~18V DC source?

Yes, it converts a 9~18V DC input to a constant 15V output. It can supply up to 1.33A with a total output power of 20W, which suits many lower-power industrial sensors and control devices that require 15V DC.

Is the SCW20A-15 suitable for embedded systems that need a regulated 15V rail?

It is a fit for embedded or instrumentation designs that need a fixed 15V output from a 9~18V DC source. The output limit is 1.33A, so it is best for lower-power 15V electronics rather than heavier 15V loads.

Can this model be used in compact automation equipment where board space is limited?

Yes, the housing is only 31.8 × 20.3 × 12.2 mm and the unit weighs 0.0185 kg. That compact size makes it practical for small automation assemblies that still need a 15V, 20W DC-DC converter.

Would the SCW20A-15 work for test and measurement devices powered from a low-voltage DC system?

It can be used where the available source is within 9~18V DC and the instrument needs a regulated 15V output. The constant-voltage design and 1.33A maximum output are appropriate for lighter-duty measurement and control circuits.

What is the difference between the SCW20A-15 and the other SCW20A versions?

The SCW20A-15 delivers 15V at 1.33A, while the SCW20A-12 delivers 12V at 1.67A and the SCW20A-05 delivers 5V at 4A. All three are 20W models in the same series.

Can the SCW20A-15 be used in cold or hot operating conditions?

The specified operating temperature range is -40°C to +80°C, with the load derated at higher ambient temperatures per the derating curve. No IP rating is listed in the provided data, so the specs do not confirm direct outdoor exposure resistance.
