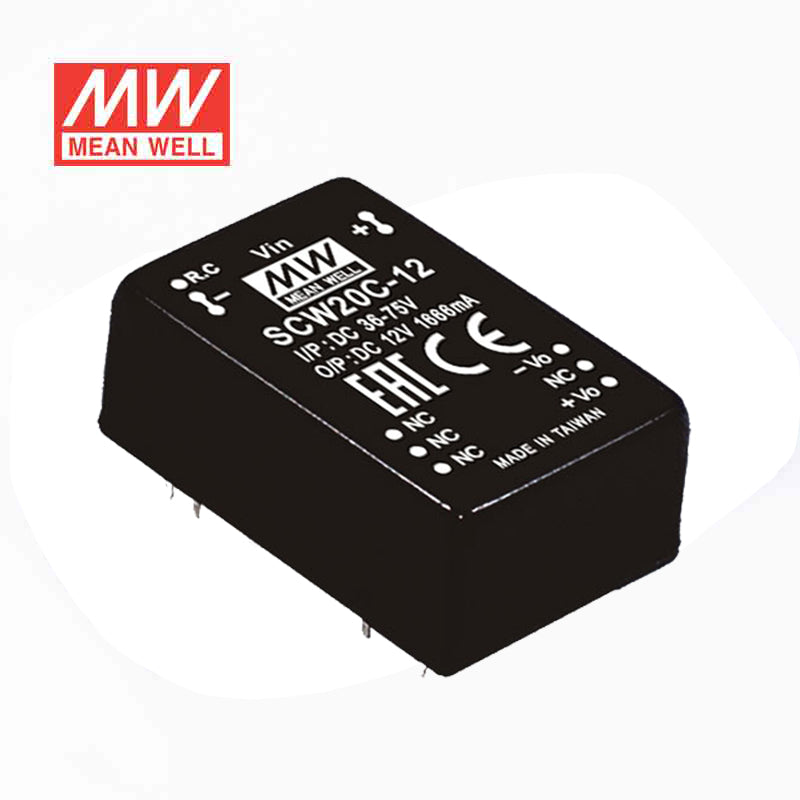

Mean Well SCW20C-12 DC-DC Converter - 20W 36~75V DC in 12V out 1.666A

SKU SCW20C-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SCW20C-12 is the 12V output model of this series: rated power 20W, typical efficiency 87%.

SCW20 series is 20W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+80℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A with additional components, continuous-mode short circuit protection, etc. The additional components, models account for different input voltage 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 5V/12V/15V for single output, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +80℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A with additional components
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

SCW20C-12Specifications from the official datasheet (2025-07-28 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 48V (36 ~ 75V)
INPUT CURRENT NO LOAD: 15mA
INPUT CURRENT FULL LOAD: 479mA
OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 1666mA
EFFICIENCY (TYP.): 87%
CAPACITOR LOAD (MAX.): 220μF

INPUT

VOLTAGE RANGE: 36~75Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 12Vin models: 4A Slow-Blow Type, 24Vin models: 2A Slow-Blow Type, 48Vin models: 1A Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±2%
RATED POWER: 20W
RIPPLE & NOISE^Note.2: 80mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Min.): 400KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 190% rated output power Protection type : Recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin > 2.5VDC or open ; Power OFF: R.C. ~ -Vin < 0.8VDC or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1200pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A with additional components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A with additional components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 224Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL: Five-sided shield metal case
PACKING: 18.5g ; 15pcs/per tube, 750pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SCW20C-12 Mechanical Specification — Mechanical Specification

SCW20C-12 Pin Assignment — Pin Assignment

SCW20C-12 S C W 2 0 series — S C W 2 0 series

SCW20C-12 S C W 2 0 series (2) — S C W 2 0 series (2)

Typical applications

Downloads

Certificates3

CE Certificate(SCW/DCW-1220)(EN) PDF Download

EMC Certificate(SCW/DCW-1220)(EN) PDF Download

EAC Certificate(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SCW20C-12 to run a 12V automation device from a 36~75V DC source?

Yes, this converter provides constant-voltage 12V output with up to 1.67A output current. With a 20W rating and 36~75V DC input range, it is suited to 12V automation loads that stay within those limits.

Is the SCW20C-12 suitable for 12V relays, control modules, or interface hardware in industrial equipment?

It can be used for 12V industrial control hardware when the load fits within 12V, 1.67A, and 20W. This makes it a practical match for regulated 12V auxiliary electronics in embedded and automation systems.

Can this model power 12V monitoring or communication electronics on a higher-voltage DC bus?

It is intended to step a 36~75V DC input down to a constant 12V output. As long as the connected electronics do not exceed 1.67A output current or 20W, it is an appropriate 12V DC conversion option.

How does the SCW20C-12 compare with the other SCW20C output options?

The SCW20C-12 shares the same 20W series platform as the other versions but changes the output rating. The sibling options are 5V at 4A for SCW20C-05, 12V at 1.67A for SCW20C-12, and 15V at 1.33A for SCW20C-15.

Can the SCW20C-12 be used in cold or hot industrial environments?

The published operating temperature range is -40°C to +80°C with free-air convection cooling; at higher ambient temperatures the load must be derated according to the derating curve. No IP rating is listed, so the provided specs do not confirm outdoor or washdown use.
