Can I use the SD-15A-24 to run a small 24V industrial sensor or transmitter from a 9-18 input source?

Yes, if the device needs a constant 24V output and draws no more than 0.62A. This converter provides 15W total and accepts a 9-18 input range, so it is intended for low-power 24V industrial or embedded loads.

Is the SD-15A-24 a good choice for a compact 24V automation accessory in a tight enclosure?

It is designed for small low-power 24V loads, with a 78.0 × 51.0 × 28.0 mm housing and 0.18 kg weight. The output is limited to 24V at 0.62A, so it fits light auxiliary devices rather than higher-current 24V equipment.

Can this model power a 24V embedded or control module from a low-voltage source?

It can when the source stays within the 9-18 input range and the module requires constant voltage output. The 15W capacity makes it suitable for smaller 24V control or embedded electronics that remain under 0.62A.

Is the SD-15A-24 suitable for outdoor installations or wide temperature swings?

The specified operating temperature range is -20°C to +85°C. However, no IP rating is provided in the listed specs, so the product data does not state outdoor or weather-exposed suitability.

How does the SD-15A-24 compare with the other SD-15A output options?

The SD-15A family includes SD-15A-5 at 15W, 5V, 3A; SD-15A-12 at 15W, 12V, 1.25A; and SD-15A-24 at 15W, 24V, 0.62A. Each version uses the same 9-18 input range, constant voltage mode, -20°C to +85°C temperature range, 78.0 × 51.0 × 28.0 mm dimensions, 0.18 kg weight, EAC certification, and 3-year warranty.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

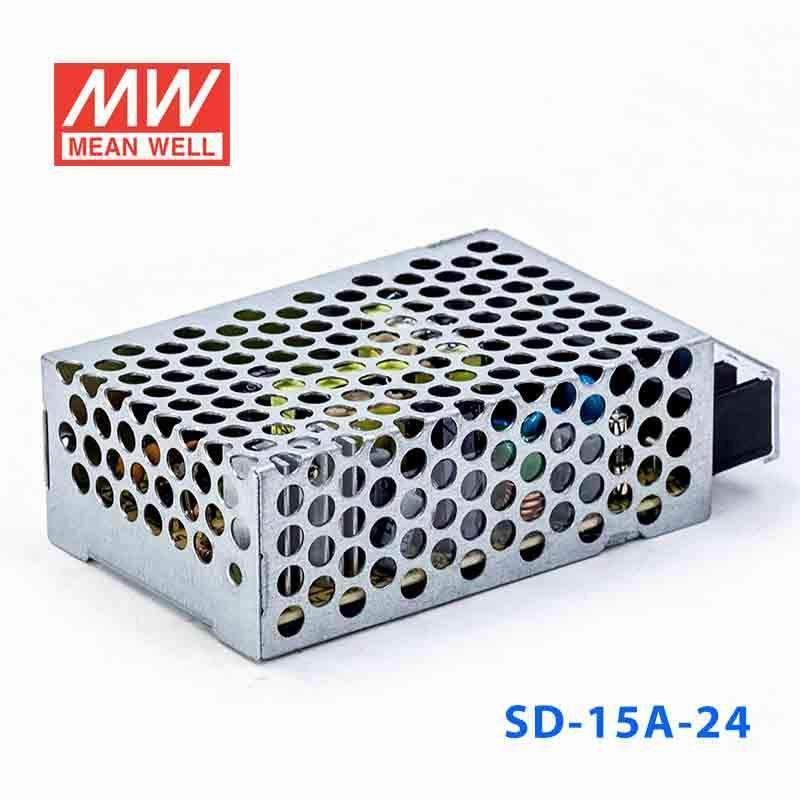

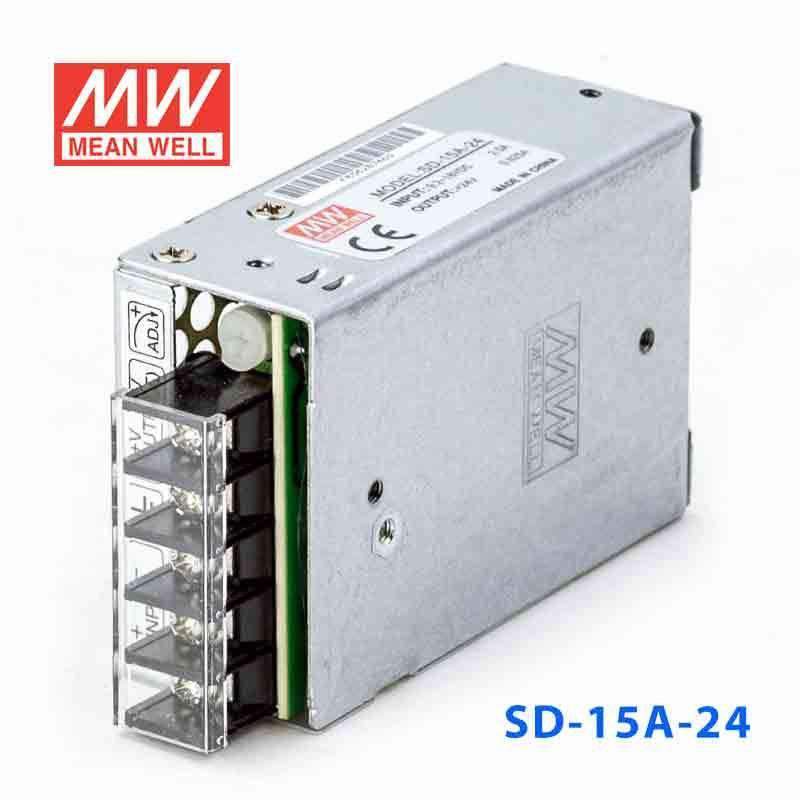

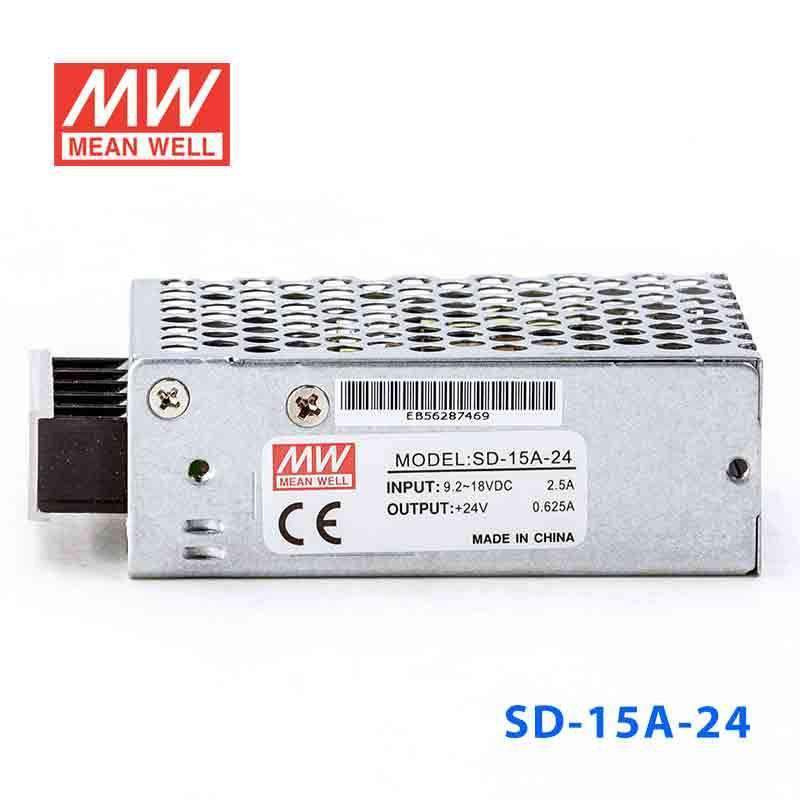

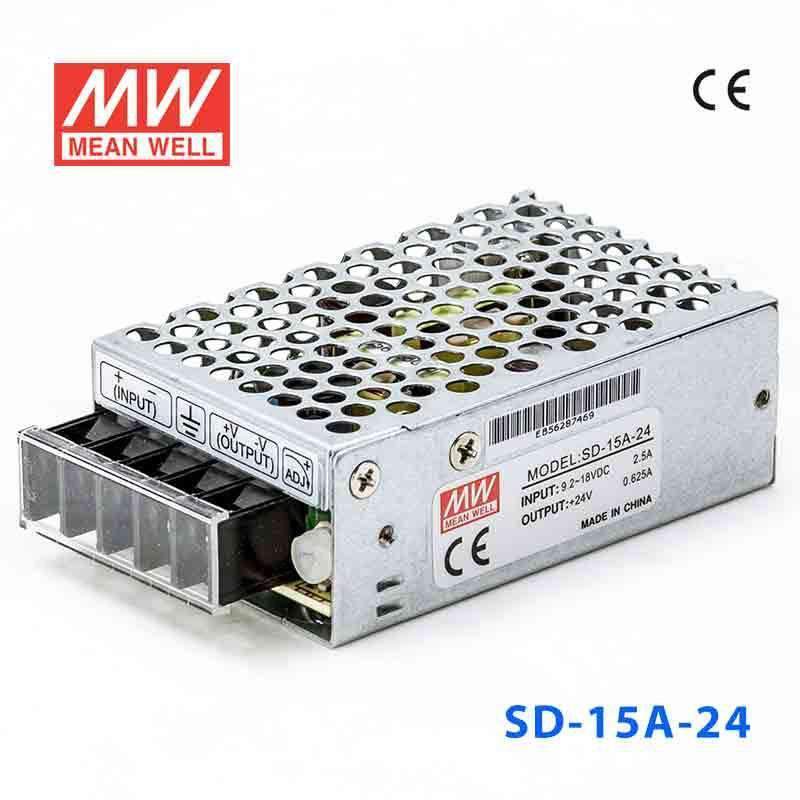

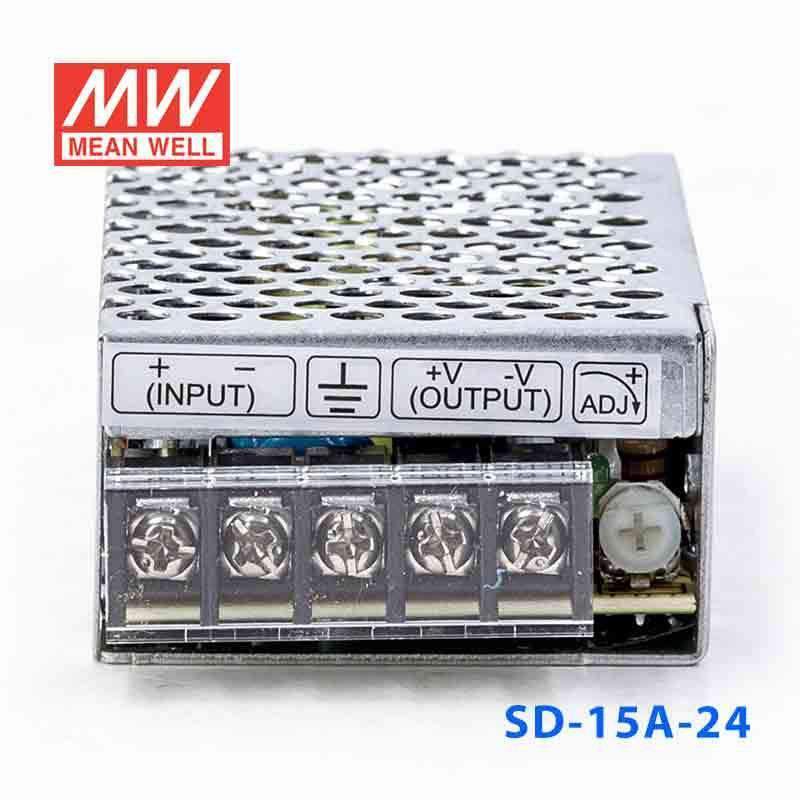

Mean Well SD-15A-24 DC-DC Converter - 15W - 9.2~18V in 24V out 625mA

2:1 wide input range1.5~2KVAC isolation by models

SKU:

SD-15A-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SD-15A is a 15W Mean Well power converter.

Key Features

✓ 1.5KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: EAC TP TC 004
✓ 3 years warranty
