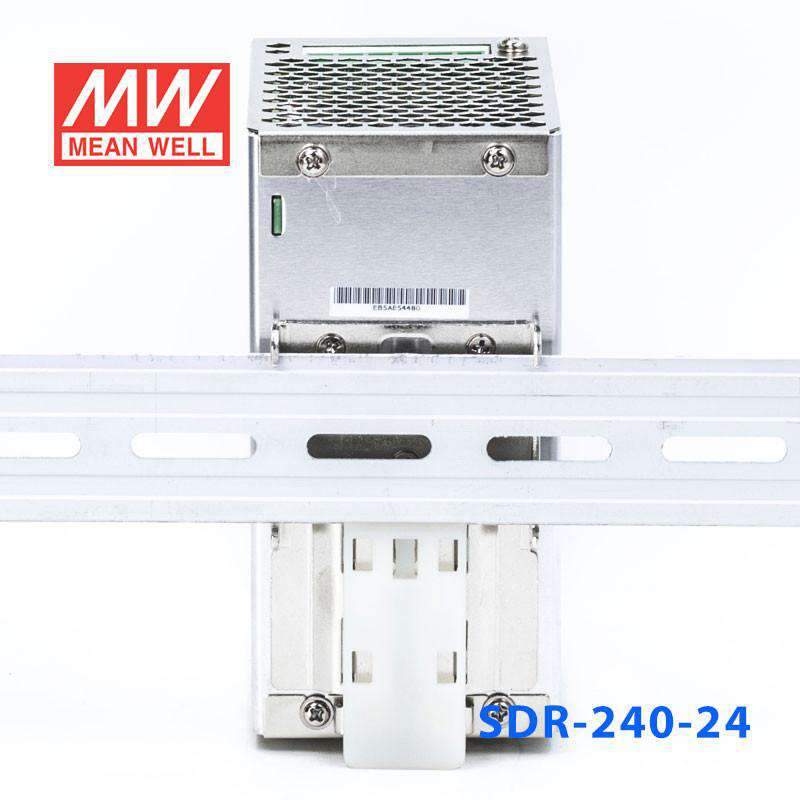

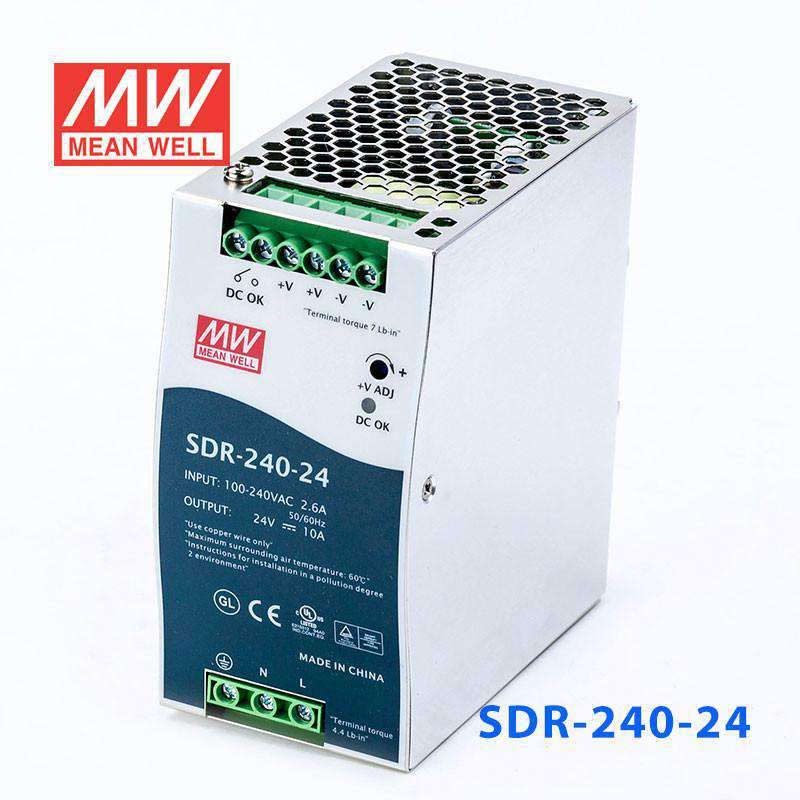

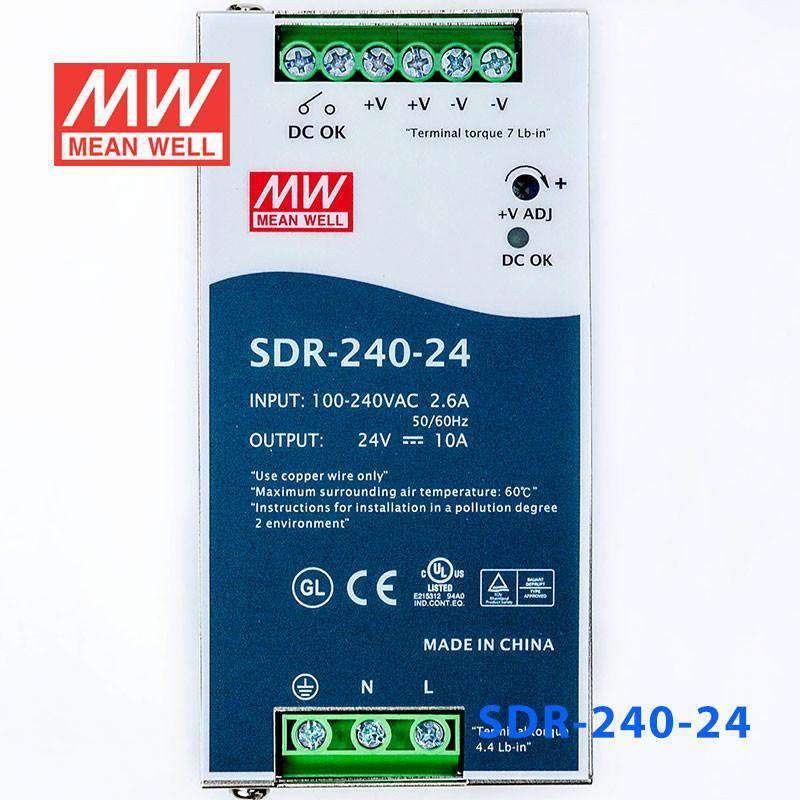

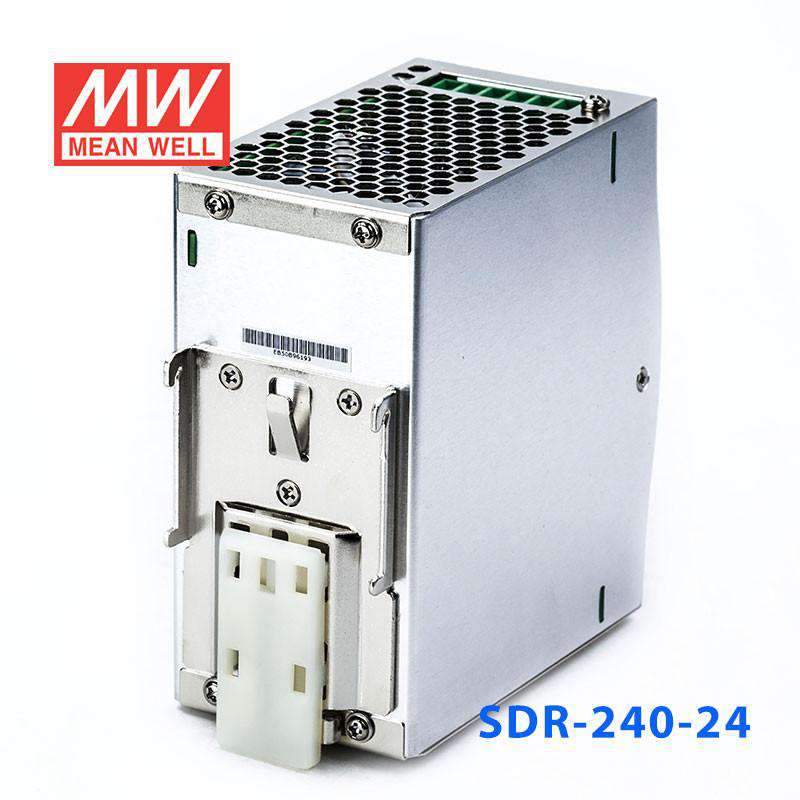

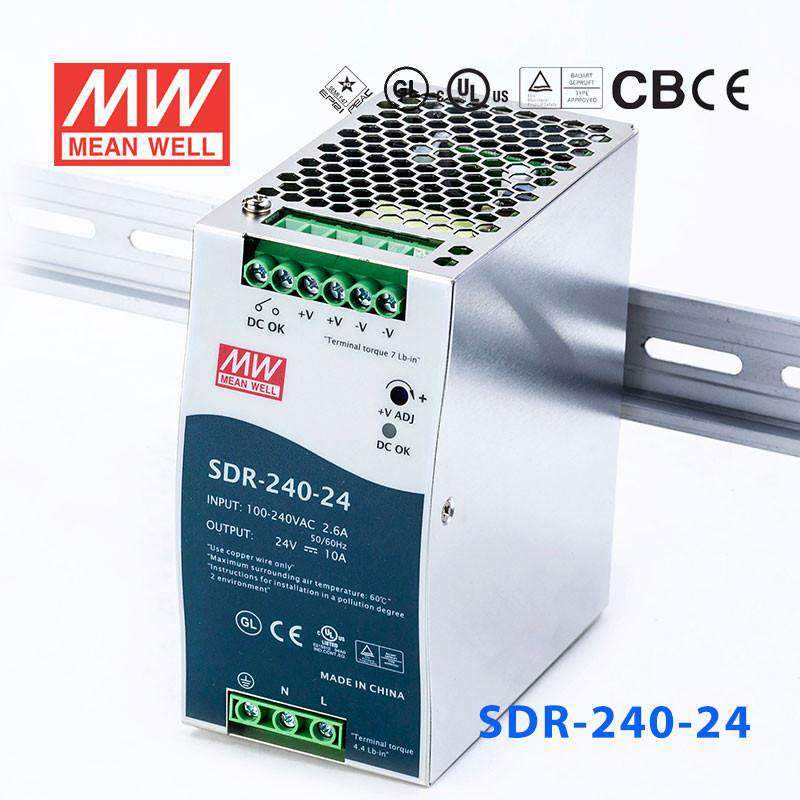

Mean Well SDR-240-24 Single Output Industrial Power Supply 240W 24V - DIN Rail

SKU:
SDR-240-24

|

Description

Features

High efficiency up to 94%
Universal AC input / Full range
Built-in active PFC function
Built-in DC OK relay contact
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35 / 7.5 or 15
UL508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
150% peak load capability
Comply with, Comply with SEMI F47
3 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current (max.) Cold start, 65A at 230VAC
DC adjustment range 24V: 24~28V, 48V: 48~55V
Overload protection Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75)
Overload protection >150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
Over voltage protection Range 29~33V for 24V model, 56~65V for 48V model
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Over temp. protection Recovers automatically after temperature goes down
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC
Working temperature -25~+70°C (refer to output derating curve)
Safety standards UL508, TUV EN60950-1, GL approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI, GL
Connection I/P: 3 poles, O/P: 6 poles screw DIN terminal
Dimension (WxHxD)(mm) 63x125.2x113.5

Specifications

  • Brand
    Mean Well
  • Series
    SDR Series
  • Power Rating
    240 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,GL,TUV
  • Operating Temperature
    -25°C~70°C
  • Warranty
    3 Year
  • Length
    12.52 cm
  • Width
    11.35 cm
  • Height
    6.3 cm
  • Weight
    1.03 kg
