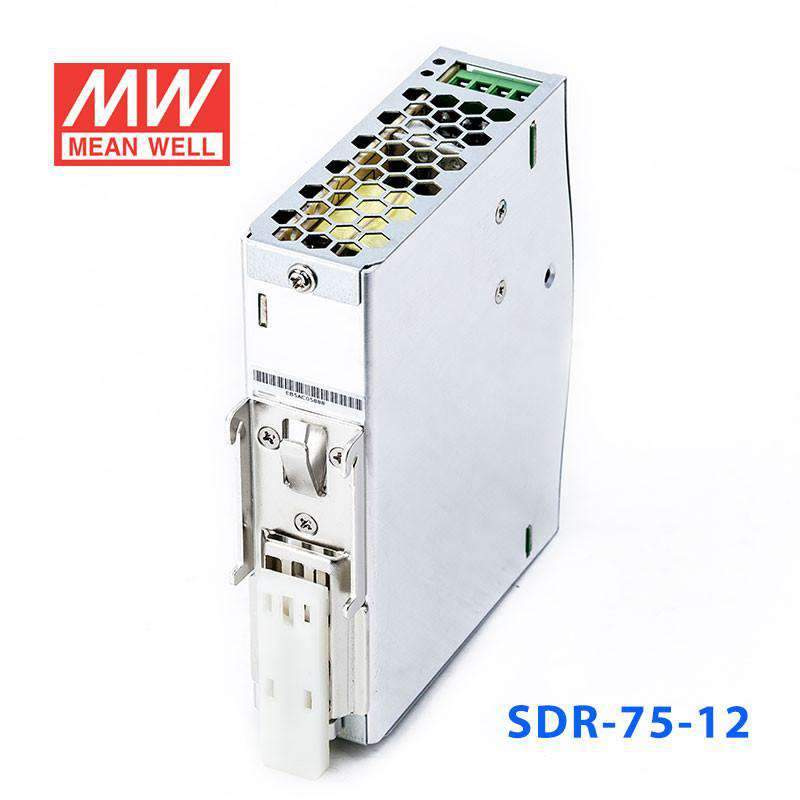

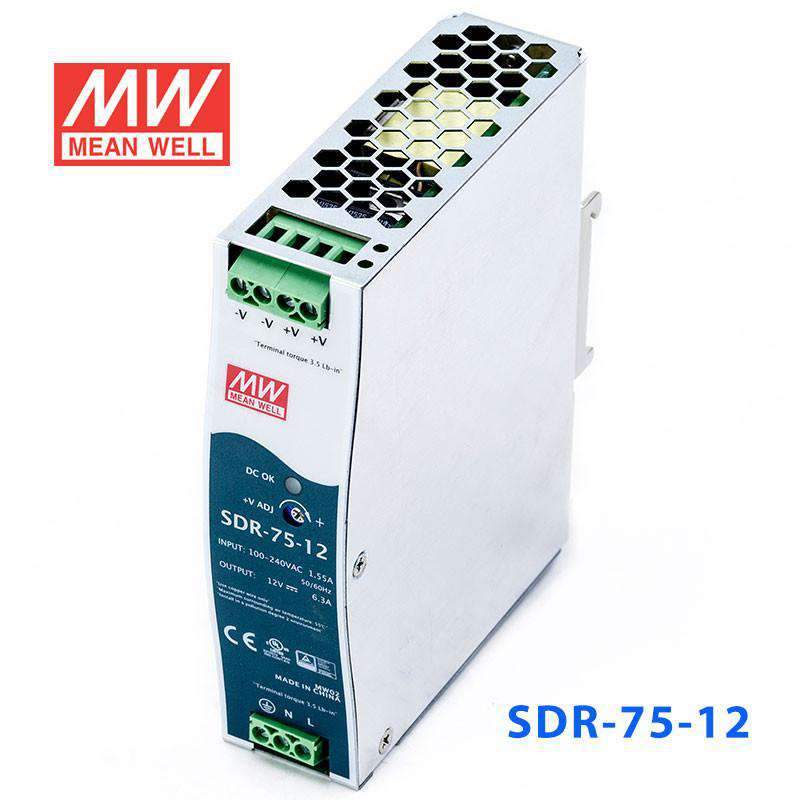

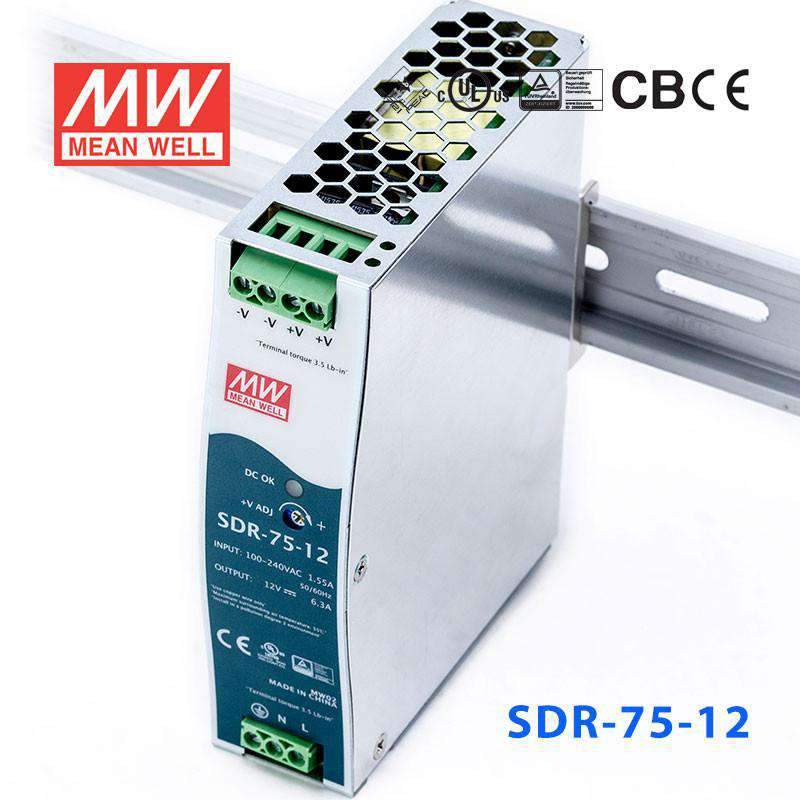

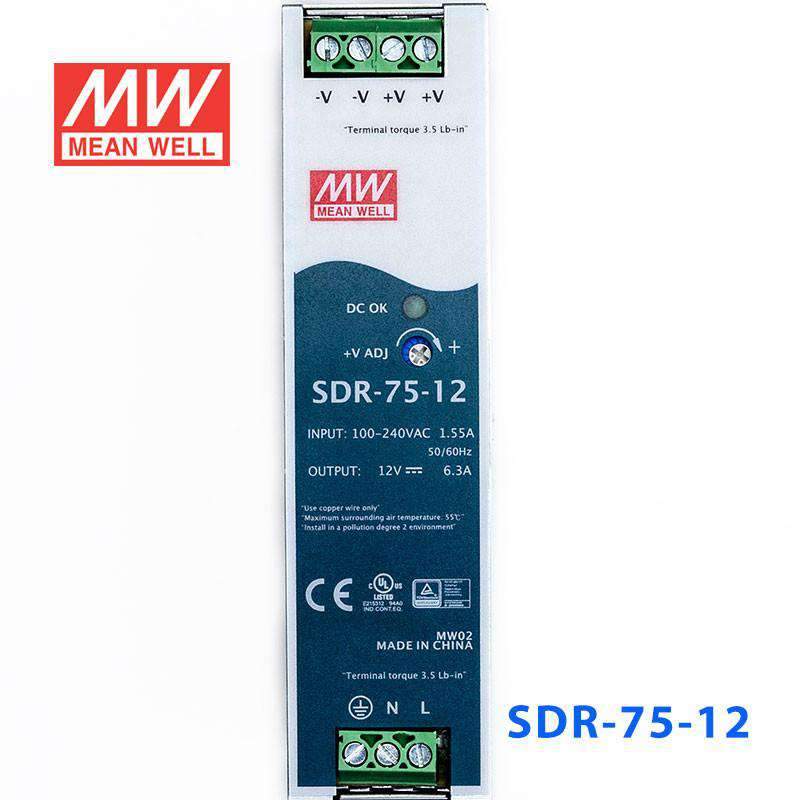

Mean Well SDR-75-12 Single Output Industrial Power Supply 75W 12V 6.3A - DIN Rail

metal caseslim size94% high efficiency and complete functionsbuilt-in active PFC130%~150% peak load capabolity
SKU SDR-75-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 2 in this family

SDR-75-12
In stock
|

Overview

SDR-75-12 is the 12V output model of this series: rated current 6.3A, rated power 75.6W, typical efficiency 88.5%.

Features

  • High efficiency 90% and low power dissipation
  • 150% peak load capability
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection

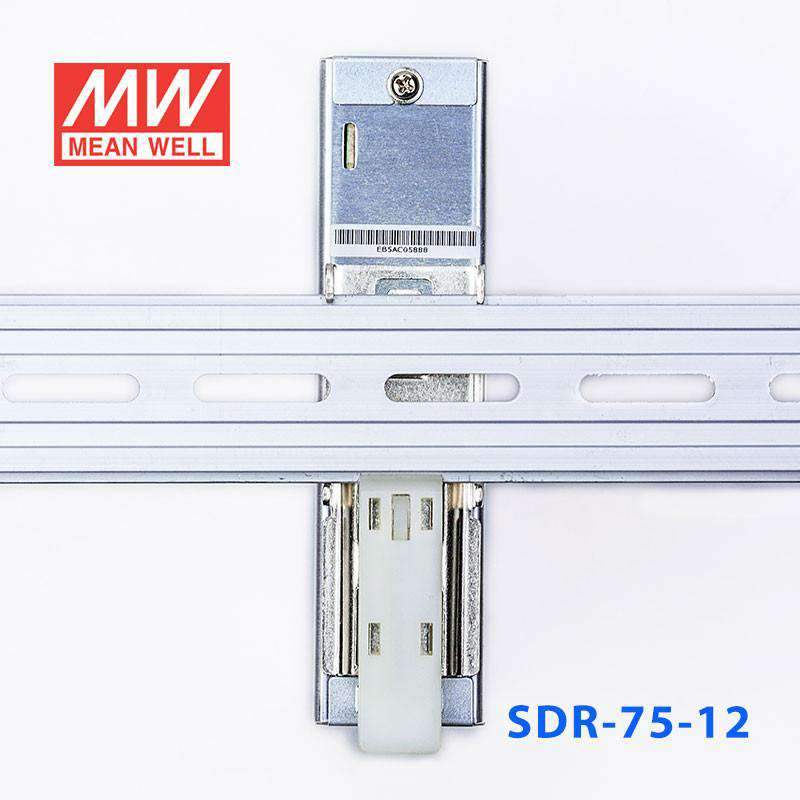

  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 3 years warranty

Specifications

SDR-75-12Specifications from the official datasheet (2025-06-09 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
6.3A
CURRENT RANGE
0 ~ 6.3A
RATED POWER
75.6W
PEAK CURRENT
9.375A
PEAK POWERNote.6
112.5W (3 sec.)
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
12 ~ 14V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGENote.7
88 ~ 264VAC 124 ~ 370VDC [DC input operation possible by connecting AC/L(+),AC/N(-)]
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
88.5%
AC CURRENT (Typ.)
1.4A/115VAC 0.85A/230VAC
INRUSH CURRENT (Typ.)
30A/115VAC 50A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-powr on to recover 150 ~ 170% rated power, constant current limiting with auto-recovery within 3 seconds, and then shut down o/p voltage after 3 seconds, re-powr on to recover
OVER VOLTAGE
14 ~ 17V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
100℃±10℃ (RTH2) detect on main of power transistor Protection type : Shut down o/p voltage, re-powr on to recover after temperature goes down

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved, design refer to GL ;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32). BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020, SEMI F47 approved

OTHERS

MTBF
2670.8K hrs min. Telcordia SR-332 (Bellcore) ; 479.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
32*125.2*102mm (W*H*D)
PACKING
0.51Kg; 28pcs/15.3Kg/1.23CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
  6. 6. 3 seconds max., please refer to peak loading curves.
  7. 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

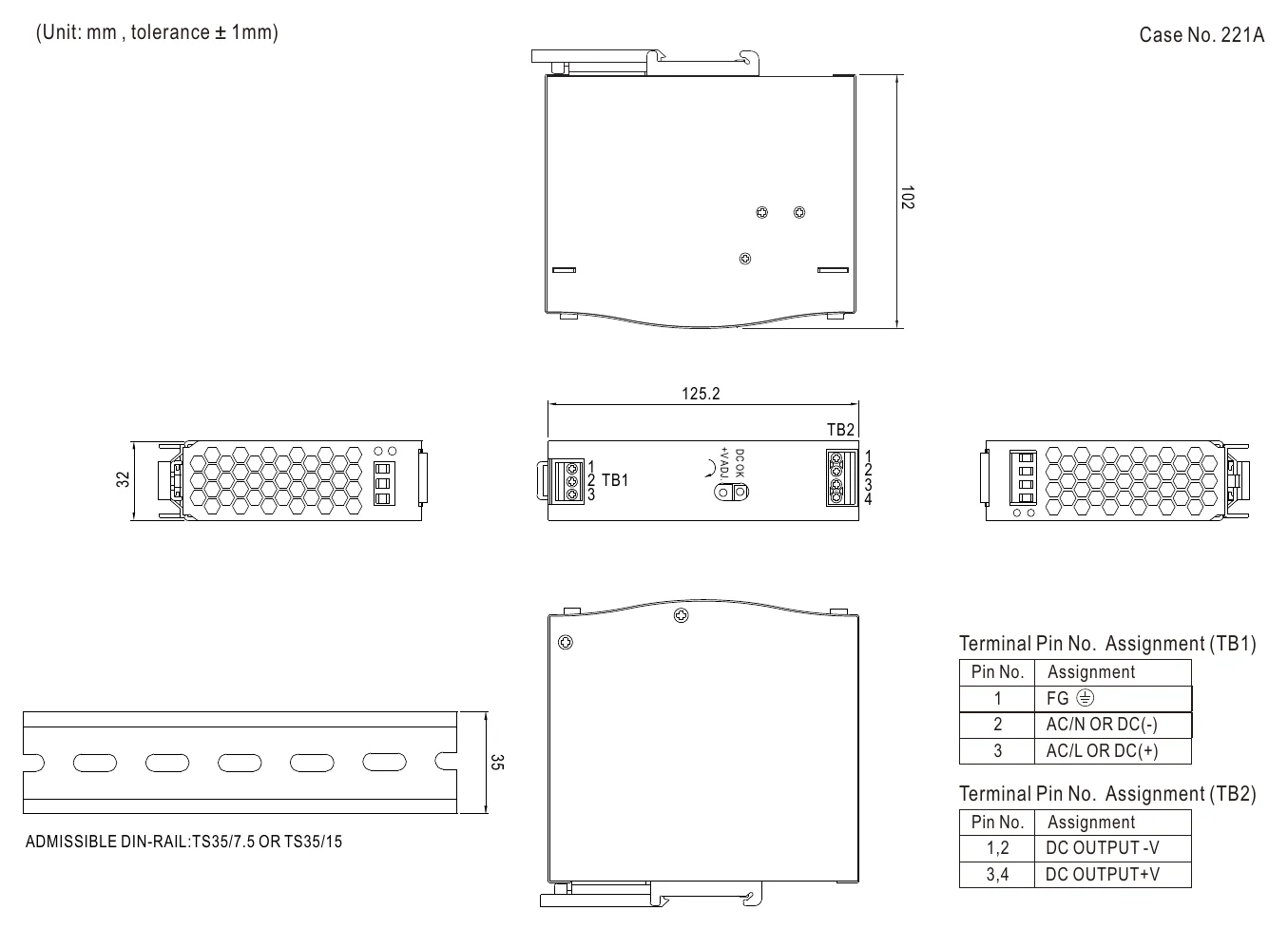

SDR-75-12 Mechanical Specification
Mechanical Specification

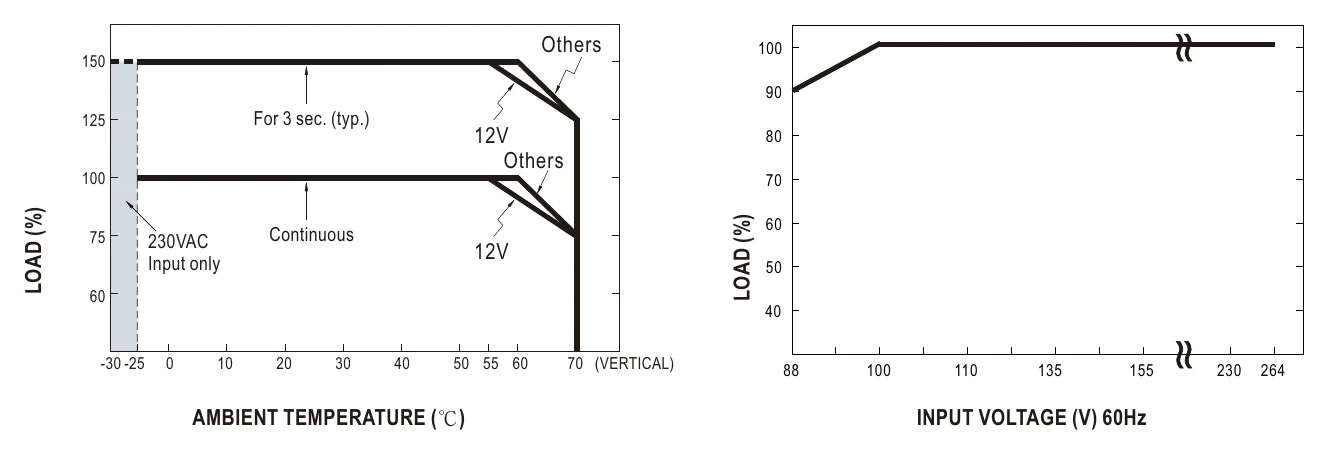

SDR-75-12 Derating Curve
Derating Curve

Downloads

FAQ

Can the SDR-75-12 be used for 12V PLC I/O and small control panels?

Yes. The SDR-75-12 delivers 12V at up to 6.3A with 75.6W total output, which fits smaller PLC I/O groups, relays, and control panel assemblies that run on 12V DC. Its DIN rail design also makes it suitable where panel space is limited.

Is the SDR-75-12 suitable for compact industrial automation cabinets?

It is a practical choice for compact automation cabinets that need a 12V DIN rail supply up to 75.6W and 6.3A. The slim 32 mm width helps when rail space is tight; depth is 102 mm.

Can I use the SDR-75-12 in a building management enclosure with 12V control devices?

Yes, if the 12V control load remains within 6.3A and 75.6W. Its 88-264VAC input range supports common AC-fed control enclosures, and the slim 32 mm wide housing suits DIN rail mounting in space-constrained panels.

How does the SDR-75-12 compare with other Mean Well SDR DIN rail power supplies?

Within the SDR-75 series, the siblings are the SDR-75-24 at 76.8W, 24V, 3.2A and the SDR-75-48 at 76.8W, 48V, 1.6A. The SDR-75-12 provides 75.6W at 12V, 6.3A, and all three share the 88-264VAC input, 32 mm wide DIN rail housing, and 112.5W peak power for up to 3 seconds.

Is the SDR-75-12 intended for control cabinet use in challenging temperatures?

Yes. It is rated for operation from -30°C to +70°C, with output derating at higher ambient temperatures per the derating curve, which suits a wide range of indoor cabinet conditions when ambient temperature is controlled within that range. The DIN rail form factor also aligns with enclosed control cabinet installation.
