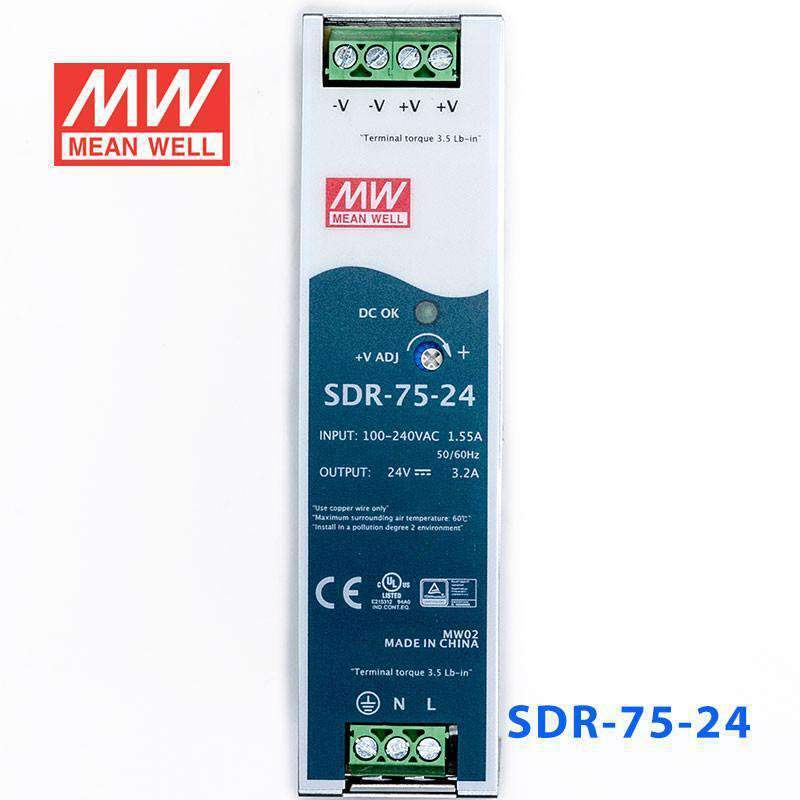

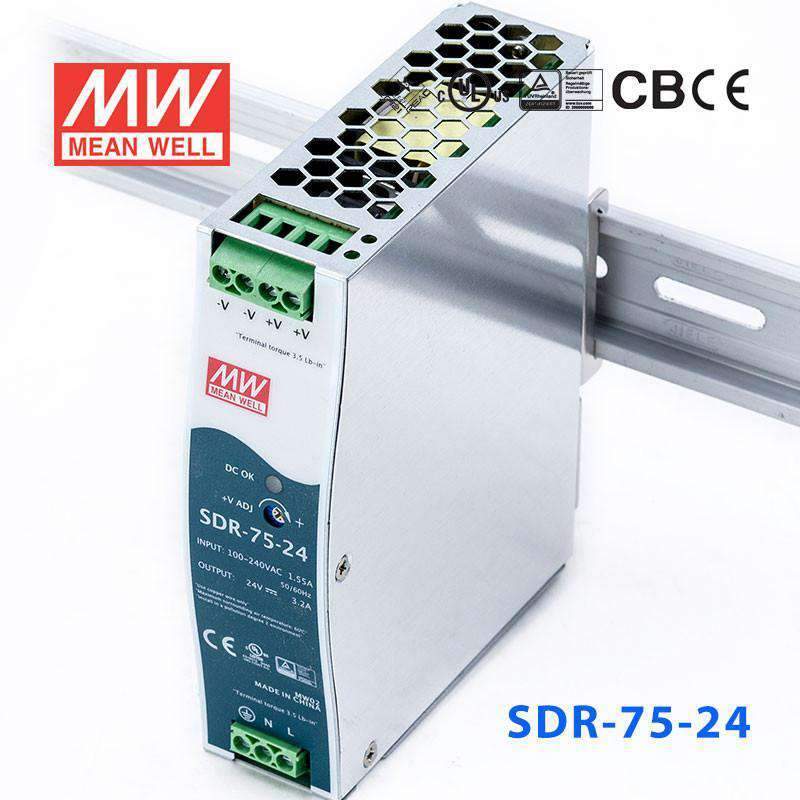

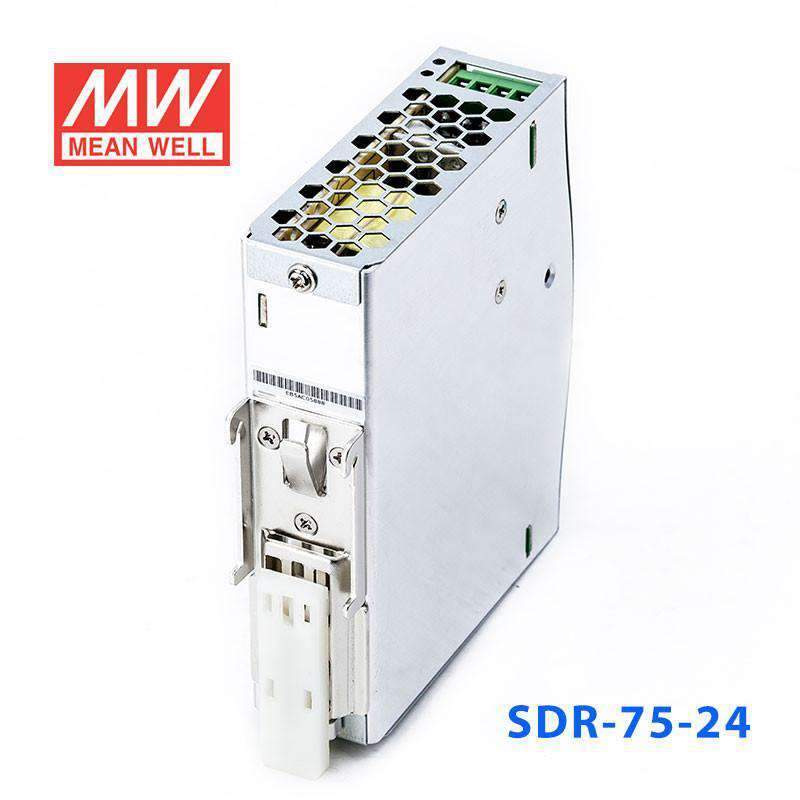

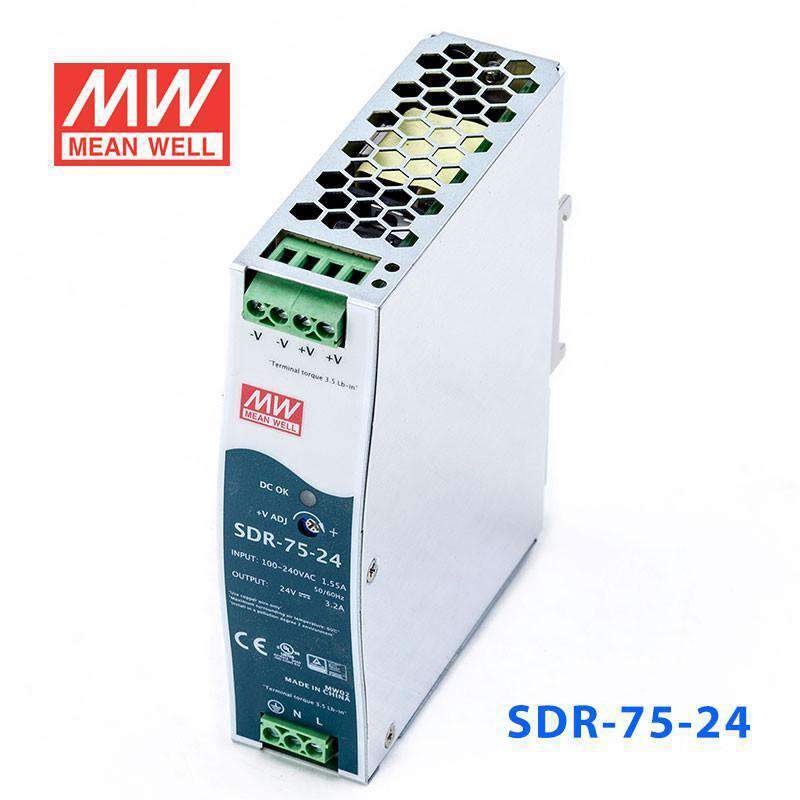

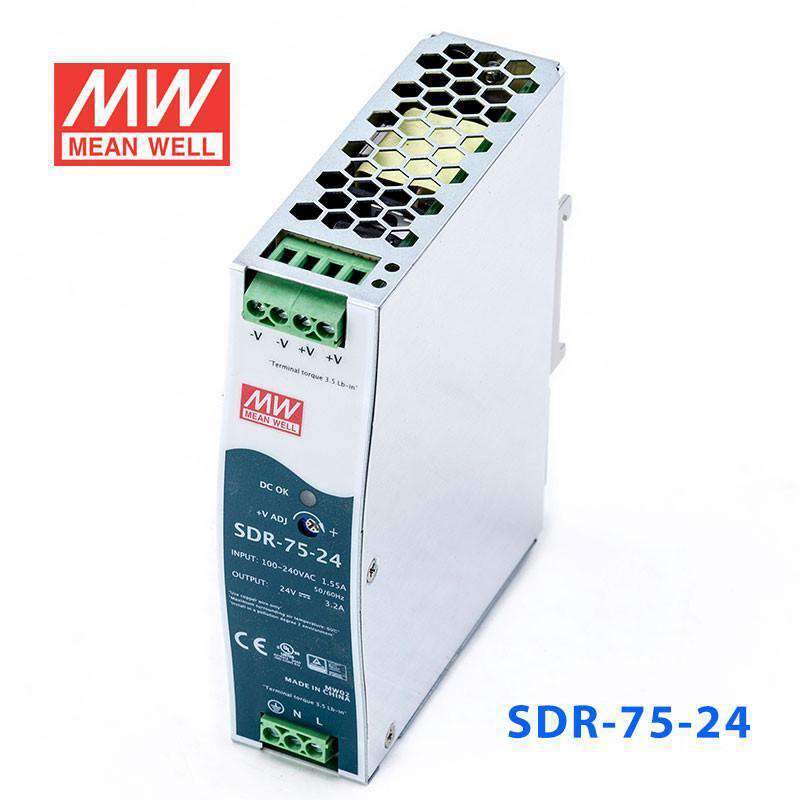

Mean Well SDR-75-24 Single Output Industrial Power Supply 75W 24V -...
Please Login for Pricing
Description
Description
The SDR-75 is a 75W Mean Well power converter (input range: 88~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60068-2-6 UL508, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating76.8 Watt
-
Output Voltage24 Volt
-
Rated Current3.2 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,cUL,EAC,TUV
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.52 cm
-
Width10.2 cm
-
Height3.2 cm
-
Weight0.51 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the SDR-75-24 power 24V sensors and small automation loads in a control panel?

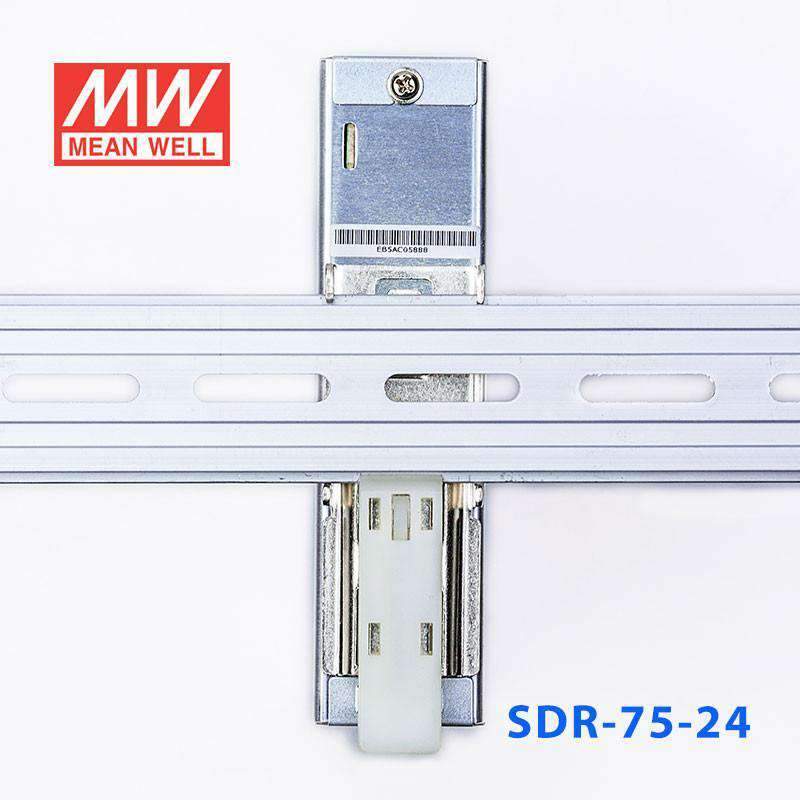

Yes. The SDR-75-24 supplies 24V at up to 3.2A with 76.8W total power, which fits smaller 24V sensor groups, relays, and control components in automation panels. Its DIN rail mounting is intended for organized cabinet installation.
Is the SDR-75-24 a good fit for compact PLC and building automation enclosures?
It can be a good fit where the 24V load is within 3.2A and 76.8W. The slim 32.0 mm width helps in compact DIN rail enclosures where panel space is limited.
Can I use the SDR-75-24 in a narrow control cabinet where space is tight?
Yes. This model measures 125.2 × 102.0 × 32.0 mm and weighs 0.51 kg, so it is one of the slimmer SDR options for space-conscious cabinet layouts. It still provides a full 24V output up to 3.2A for smaller control loads.
What are the main SDR series alternatives to the SDR-75-24?
The listed SDR family includes SDR-75-12 at 75.6W, 12V, 6.3A and SDR-75-48 at 76.8W, 48V, 1.6A, along with SDR-120-12 at 120W, 12V, 10A; SDR-120-24 at 120W, 24V, 5A; and SDR-120-48 at 120W, 48V, 2.5A. Higher-capacity siblings shown are SDR-240-24 at 240W, 24V, 10A; SDR-240-48 at 240W, 48V, 5A; SDR-480-24 at 480W, 24V, 20A; SDR-480-48 at 480W, 48V, 10A; SDR-480P-24 at 480W, 24V, 20A; SDR-480P-48 at 480W, 48V, 10A; SDR-960-24 at 960W, 24V, 40A; and SDR-960-48 at 960W, 48V, 20A.
Is the SDR-75-24 suitable for enclosed industrial cabinets across a wide temperature range?
Yes. It is rated for -30°C to +70°C operation, which supports enclosed control cabinet use across a broad ambient range. The metal case and DIN rail format are consistent with industrial cabinet installation rather than exposed open-area placement.
Other SDR-75 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SDR-75-48 Single Output Industrial Power Supply 75W 48V - DIN Rail | 76.8W | 48V | 1.6A | Indoor | View |
| Mean Well SDR-75-12 Single Output Industrial Power Supply 75W 12V - DIN Rail | 75.6W | 12V | 6.3A | Indoor | View |
