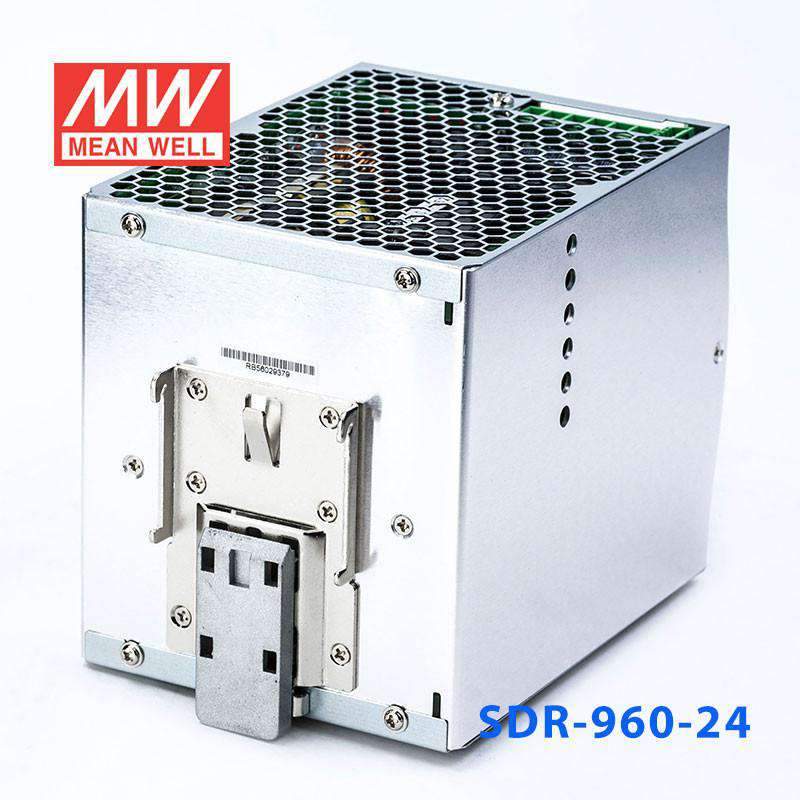

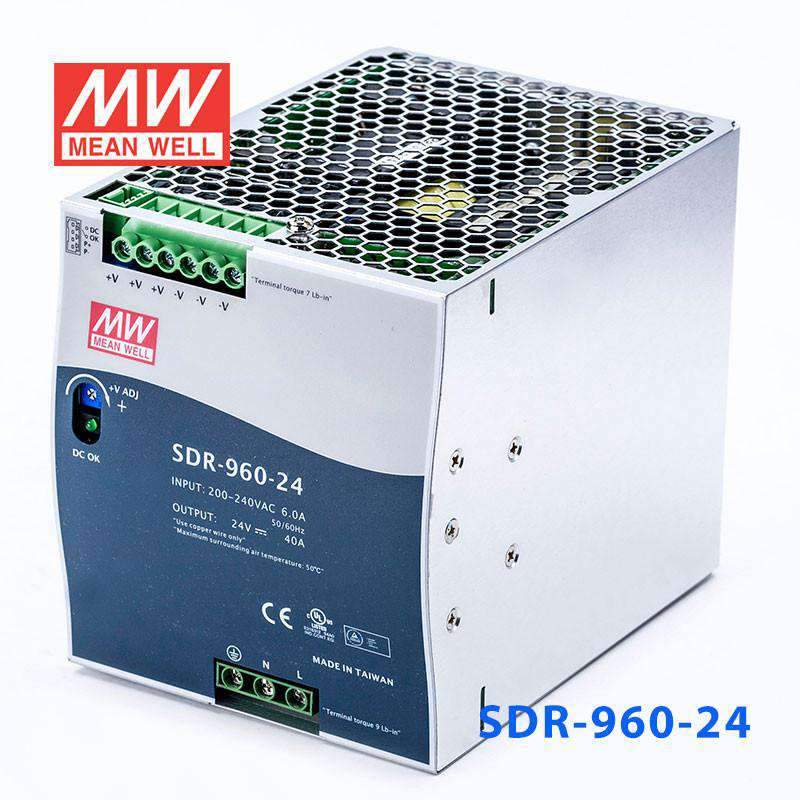

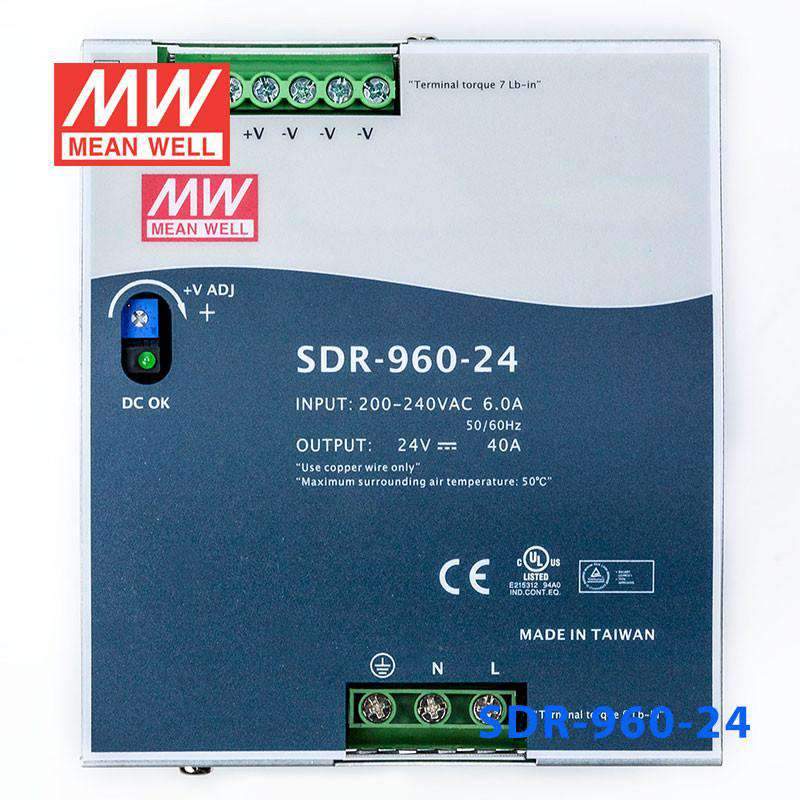

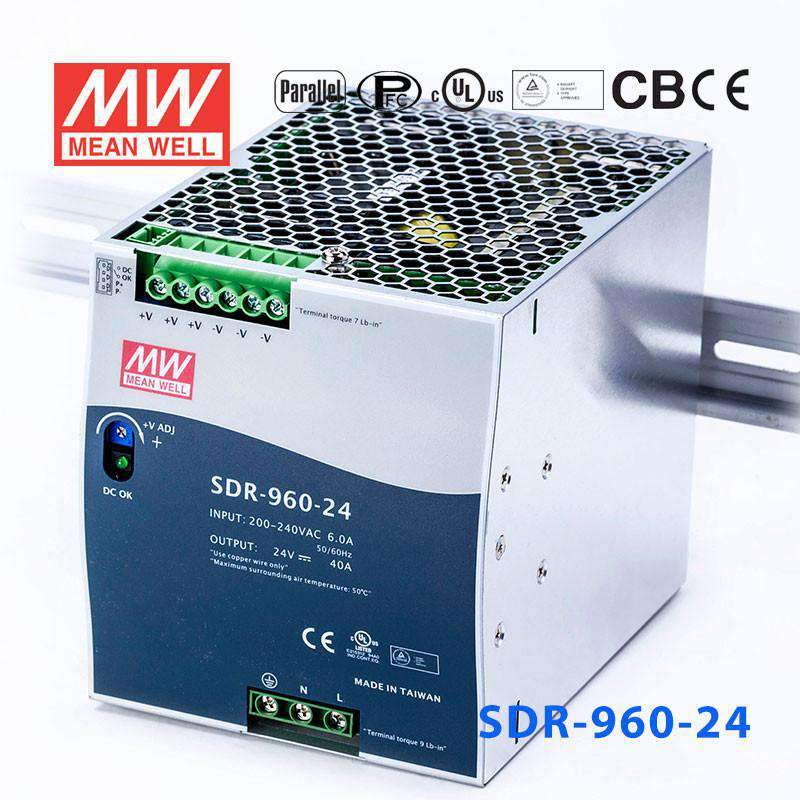

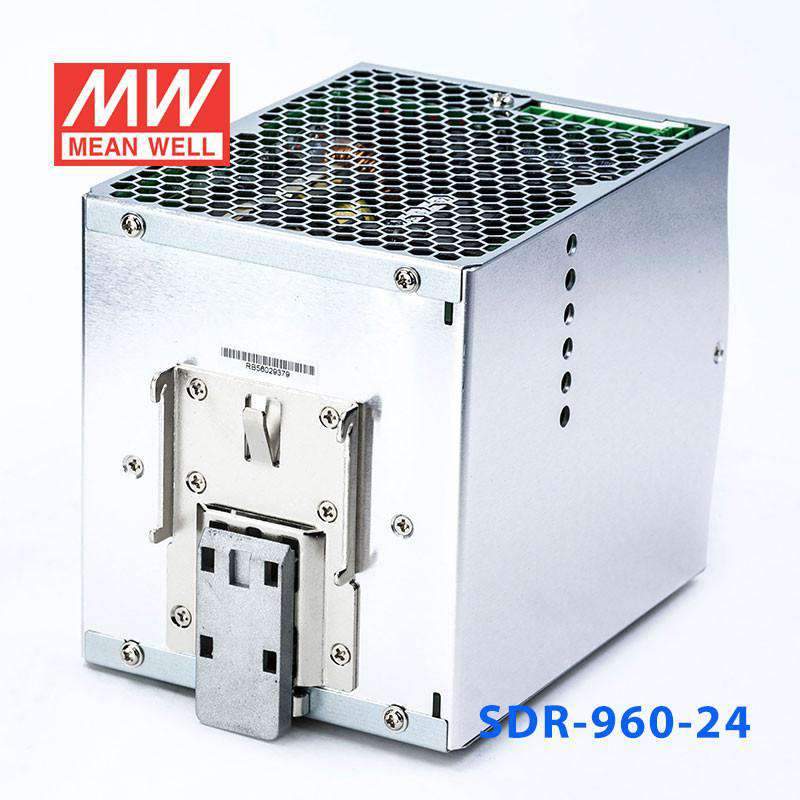

Mean Well SDR-960-24 AC-DC Industrial DIN rail power supply 24Vdc 40A


|

Description

Features

High efficiency up to 94%
AC input 180~264VAC only
Built-in active PFC function
Built-in DC OK relay contact
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

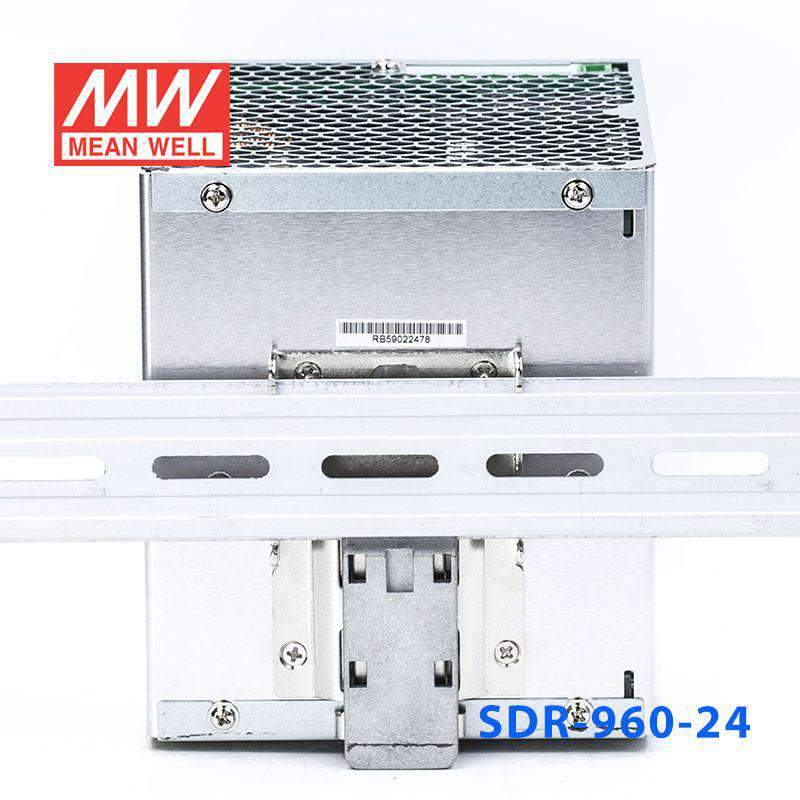

Can be installed on DIN rail TS-35 / 7.5 or 15
UL508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
130% peak load capability
Current sharing up to 3840W (3+1)
3 years warranty

General Specification

AC input voltage range 180~264VAC; 254~370VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range 24V: 24~28V, 48V: 48~55V
Overload protection Normally works within 105%~130% rated output power for 3 seconds and then shut down o/p voltage with auto-recovery after 30 seconds if the peak load condition is removed
Overload protection Constant current limiting within 130%~150% rated output power for more than 3 seconds and then shut down o/p voltage, re-power on to recover
Over voltage protection Range 29~33V for 24V model, 56~65V for 48V model
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Over temp. protection Recovers automatically after temperature goes down
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC
Working temperature -30~+70°C
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3;
Connection I/P:3 poles, O/P: 6 poles screw DIN terminal
Dimension (WxHxD)(mm) 110x125.2x150

Specifications

  • Brand
    Mean Well
  • Series
    SDR Series
  • Power Rating
    960 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    180V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,TUV
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    15 cm
  • Width
    12.52 cm
  • Height
    11 cm
  • Weight
    2.47 kg
