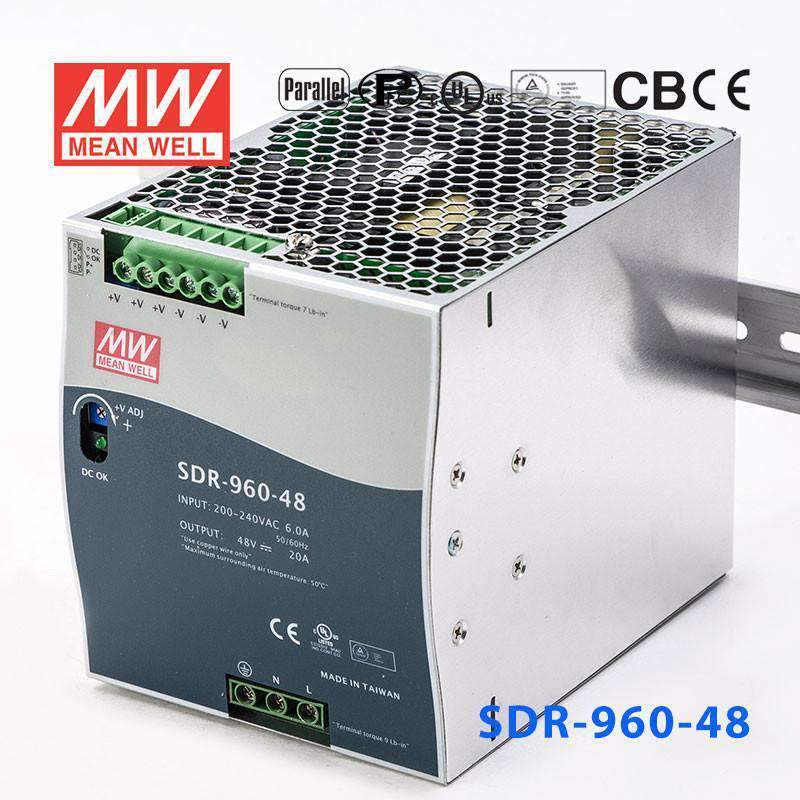

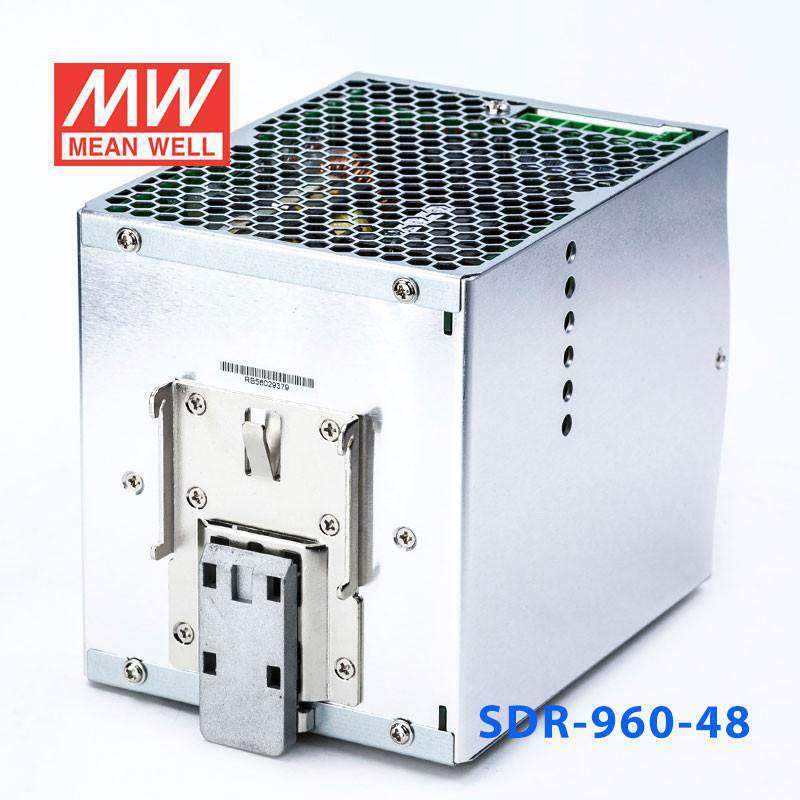

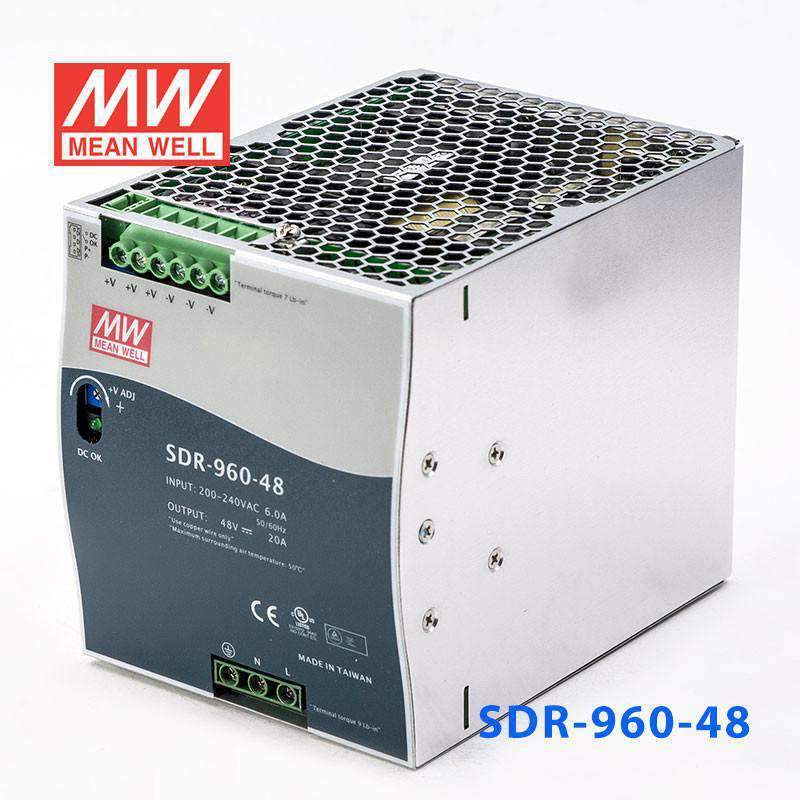

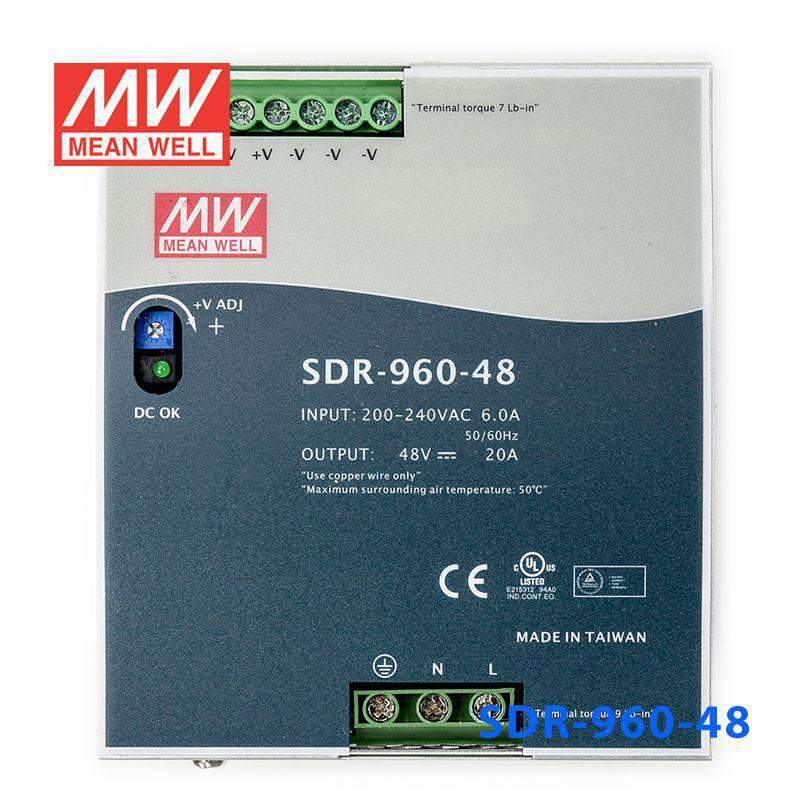

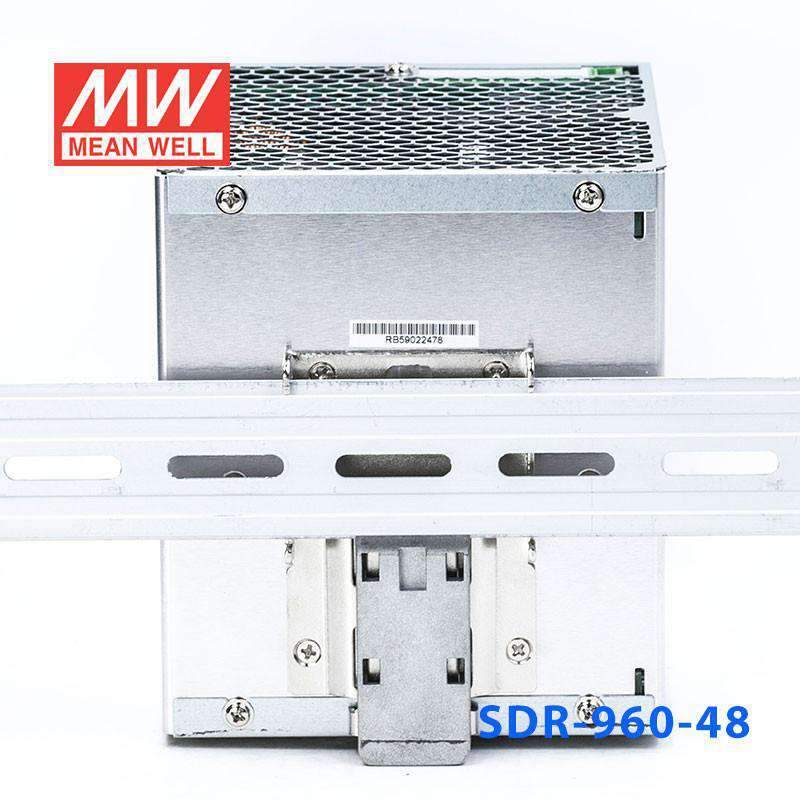

Mean Well SDR-960-48 Single Output Industrial Power Supply 960W 48V 20A - DIN Rail

SKU SDR-960-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 6 in this family

SDR-960-48

SDR-75-48 Fixed output Low stock

SDR-120-48 Fixed output Low stock

SDR-240-48 Fixed output In stock

SDR-480-48 Fixed output Low stock

SDR-480P-48 PFC Backorder

SDR-960-48 Fixed output Low stock

Product variants

Notify me when it's back in stock

The SDR-960 is a 960W Mean Well power converter (input range: 180~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 180~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Safety approvals: -40 ~ +85 ± 0.03%/ ℃ ℃ , 10 ~ 95% RH (0 ~ 50 ) ℃ Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 UL508, TUV EN60950-1
✓ 3 years warranty

Frequently Asked Questions

Can I use the SDR-960-48 for a 48V industrial control cabinet with higher current demand?

Yes, this model is designed for high-output DIN rail cabinet use where a 48V DC bus is required. It delivers 48V at 20A with 960W total power, which suits larger 48V control systems better than smaller SDR units.

Is the SDR-960-48 suitable for building management or automation panels that run on 48V DC?

It can be a fit when the panel uses 48V DC equipment and the combined load stays within 20A and 960W. The DIN rail format also makes it appropriate for structured enclosure builds rather than bench or open-frame use.

Can the SDR-960-48 power multiple 48V devices in one enclosure?

Yes, as long as the total 48V load remains within 20A and 960W. With dimensions of 150.0 x 125.2 x 110.0 mm, it is better suited to larger control cabinets that can accommodate a high-power DIN rail supply.

Does the SDR-960-48 make sense when a 48V panel needs one centralized DIN rail power supply?

It does when the design goal is to feed a larger 48V DC bus from one supply inside the cabinet. Its 180-264VAC input and 48V, 20A, 960W output place it in the highest-capacity 48V group within the listed SDR siblings.

Can this model be installed in harsh exposed locations, or is it meant for enclosure use?

This unit should be treated as an enclosure-mounted DIN rail power supply. The listed operating temperature range is -30°C to +70°C, but no IP rating is provided for exposed outdoor or direct-spray environments.

How does the SDR-960-48 compare with related SDR DIN rail power supplies?

Within the 48V group, SDR-75-48 is 76.8W and 1.6A, SDR-120-48 is 120W and 2.5A, SDR-240-48 is 240W and 5A, SDR-480-48 is 480W and 10A, SDR-480P-48 is 480W and 10A, and SDR-960-48 is 960W and 20A. The 24V group includes SDR-75-24 at 76.8W and 3.2A, SDR-120-24 at 120W and 5A, SDR-240-24 at 240W and 10A, SDR-480-24 at 480W and 20A, SDR-480P-24 at 480W and 20A, and SDR-960-24 at 960W and 40A. The listed 12V models are SDR-75-12 at 75.6W and 6.3A and SDR-120-12 at 120W and 10A.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SDR-960-24 AC-DC Industrial DIN rail power supply 24Vdc 40A	960W	24V	40A	Indoor	View
