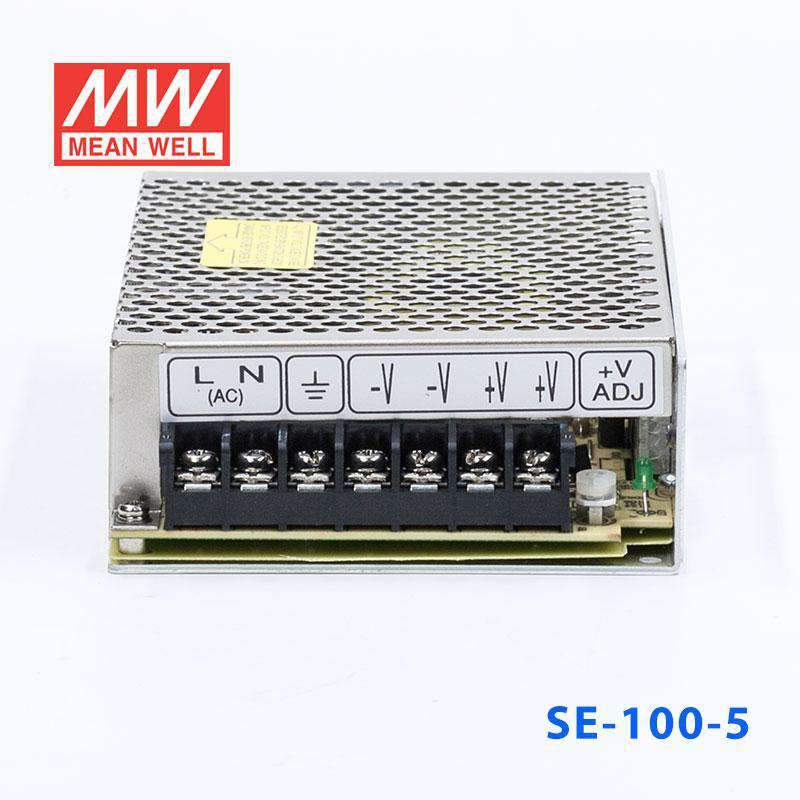

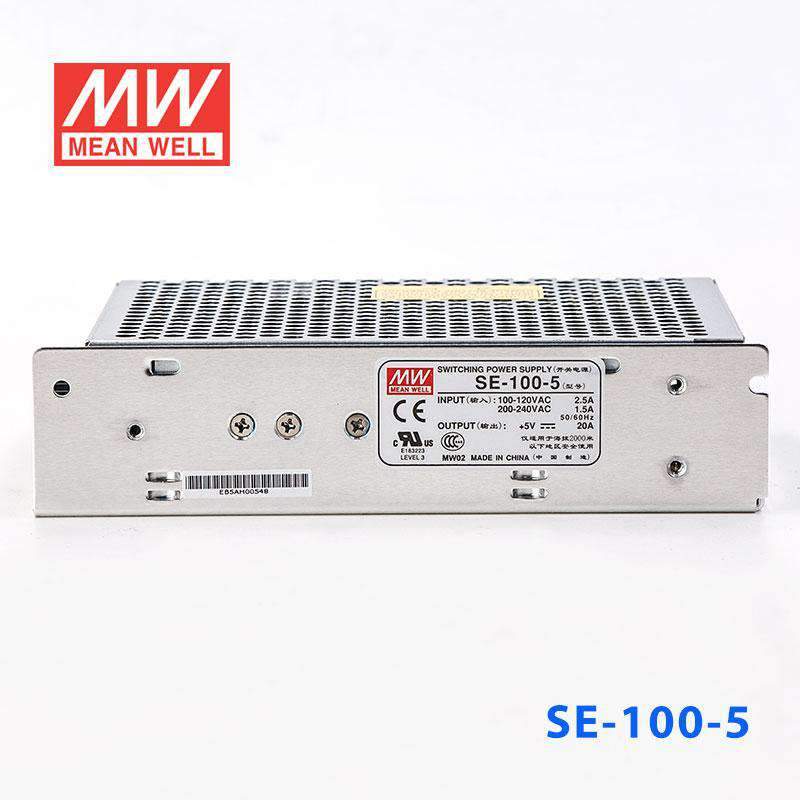

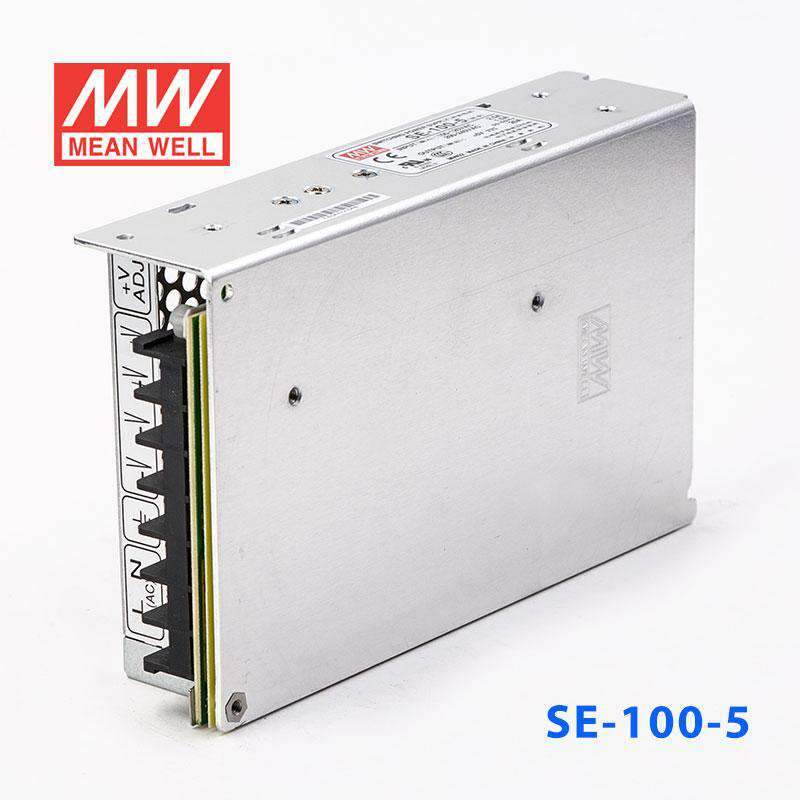

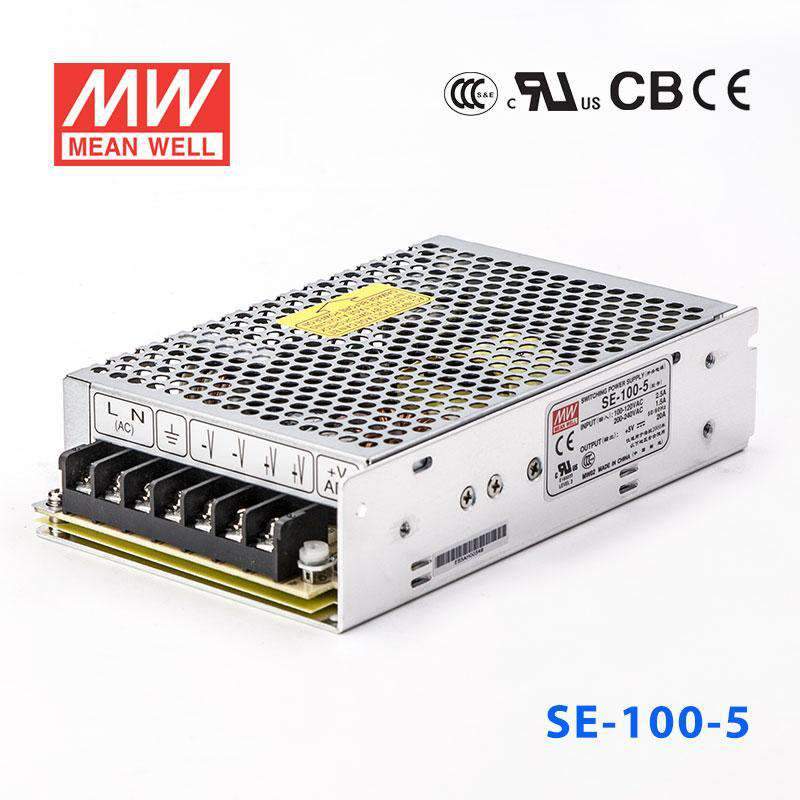

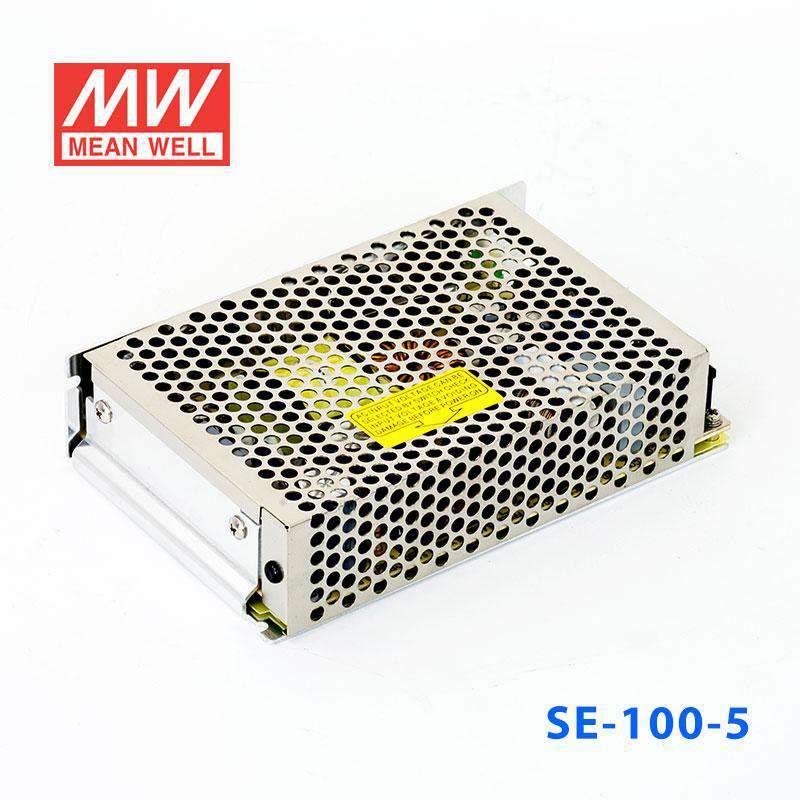

Mean Well SE-100-5 Power Supply 100W 5V

economical model medium to high power(450W~1500W)
SKU:
SE-100-5

|

Description

Features

AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Withstand 5G vibration test
100% full load burn-in test
LED indicator for power on
2 years warranty


General Specification

AC input voltage range 115/230VAC by switch
AC inrush current (max.) Cold start, 36A at 230VAC
DC adjustment range -5%~10% rated output voltage
Overload protection Range 110%~150%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection 115%~145%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60°C
Safety standards UL60950-1
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,
Connection 9P/9.5mm pitch terminal block with cover
Dimension (LxWxH) 159x 97x 38
Case No. 901
Packing 30pcs / 17.5kg

Specifications

  • Brand
    Mean Well
  • Series
    SE Series
  • Power Rating
    100 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    20 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    2 Year
  • Length
    15.9 cm
  • Width
    9.7 cm
  • Height
    3.8 cm
  • Weight
    0.55 kg

File Downloads
