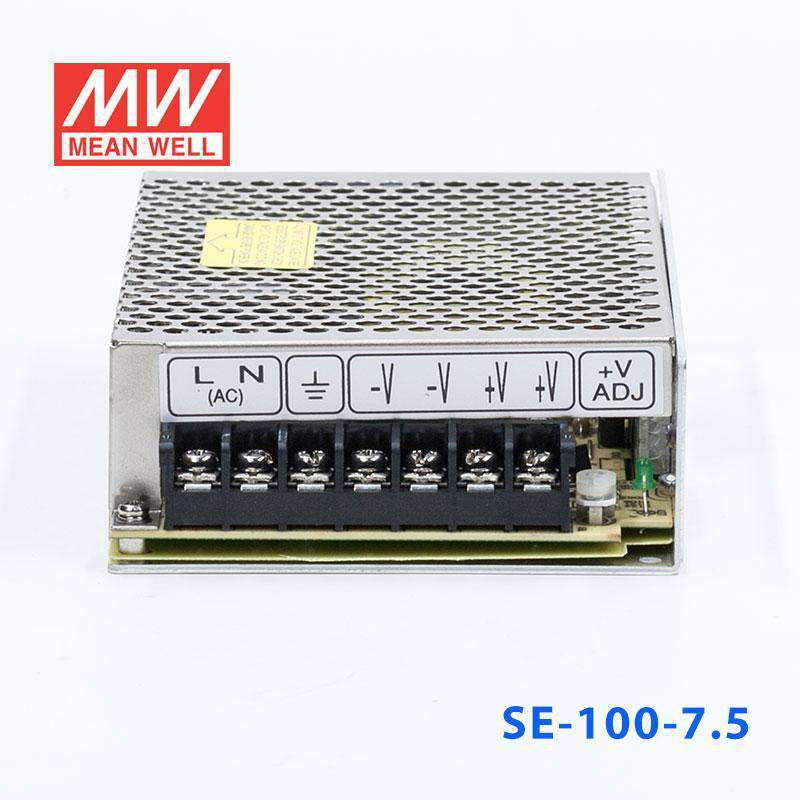

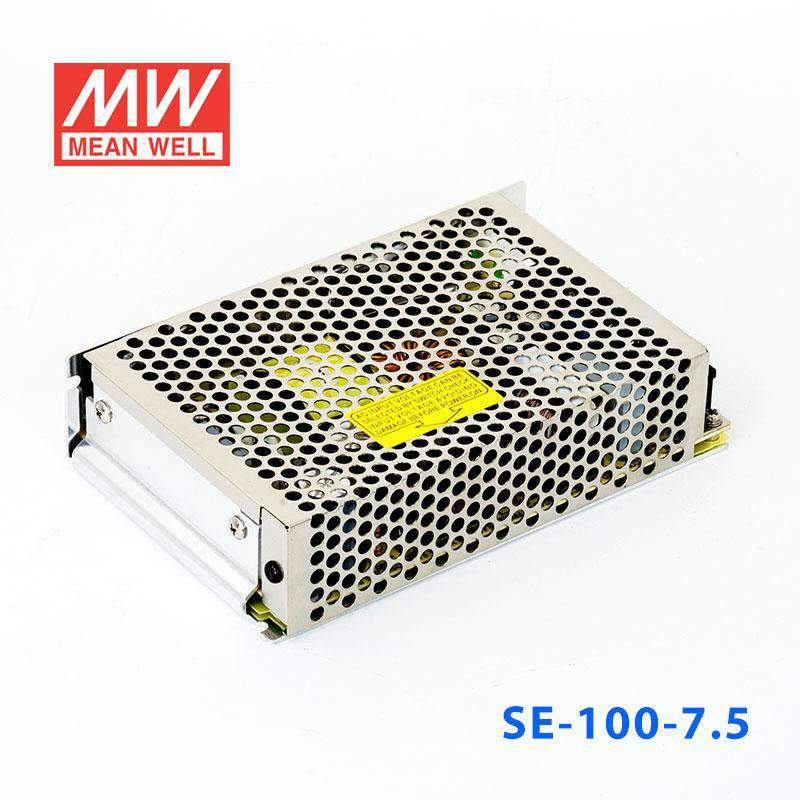

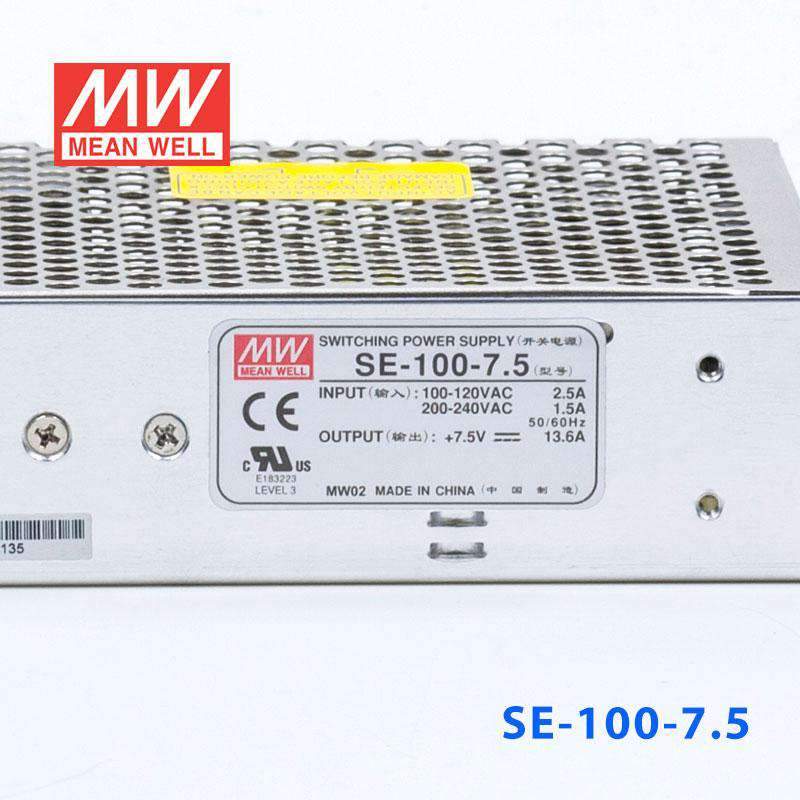

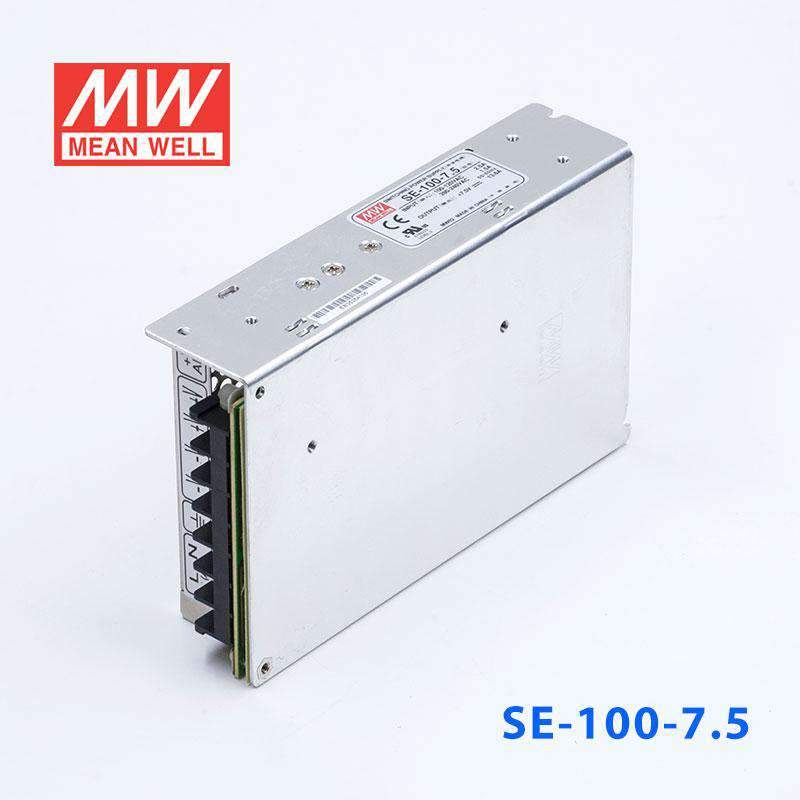

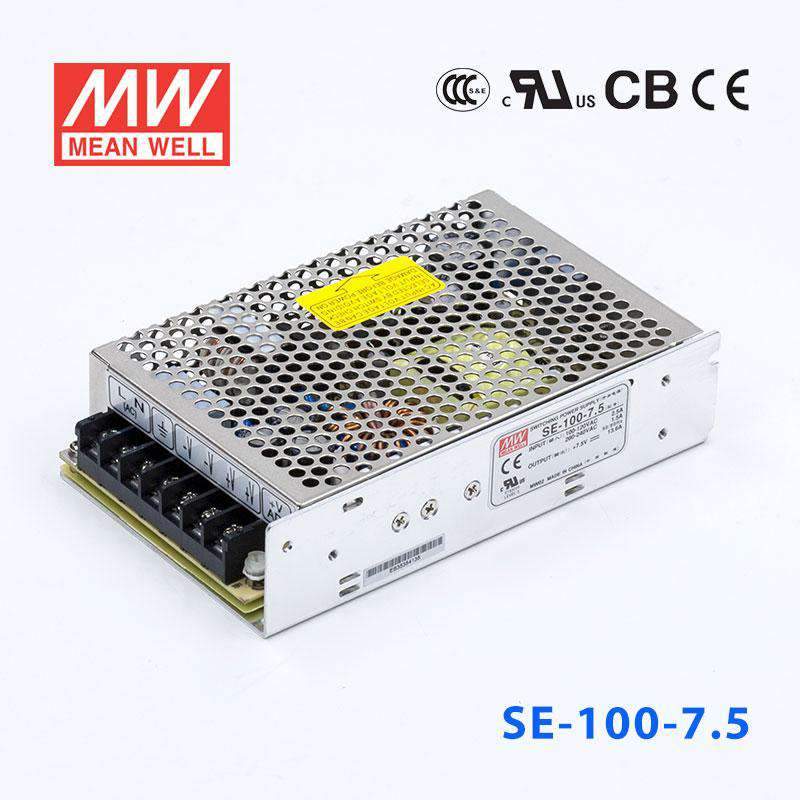

Mean Well SE-100-7.5 Power Supply 100W 7.5V
Please Login for Pricing
Description
Description
Features
| AC input selectable by switch |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Withstand 5G vibration test |
| 100% full load burn-in test |
| LED indicator for power on |
| 2 years warranty |
General Specification
| AC input voltage range | 115/230VAC by switch |
| AC inrush current (max.) | Cold start, 36A at 230VAC |
| DC adjustment range | -5%~10% rated output voltage |
| Overload protection Range | 110%~150% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, |
| Connection | 9P/9.5mm pitch terminal block with cover |
| Dimension (LxWxH) | 159x 97x 38 |
| Case No. | 901 |
| Packing | 30pcs / 17.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesSE Series
-
Power Rating102 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.6 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.55 kg
