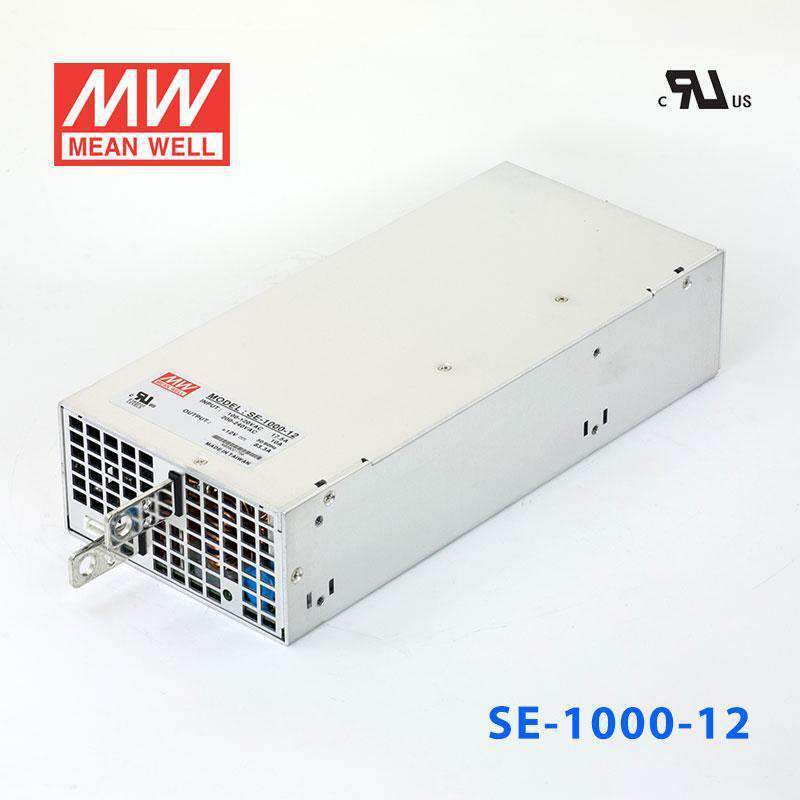

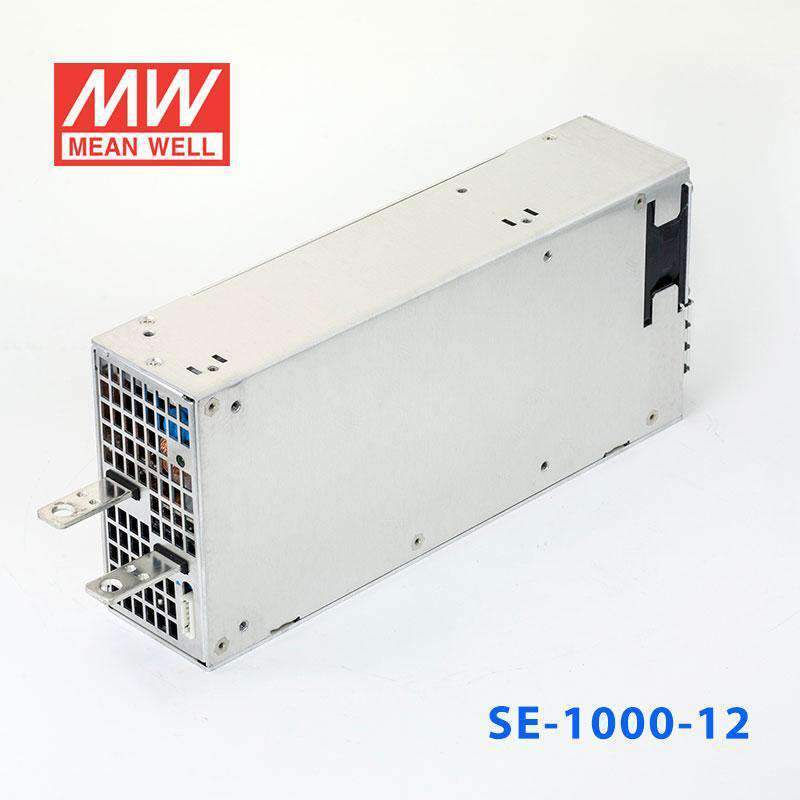

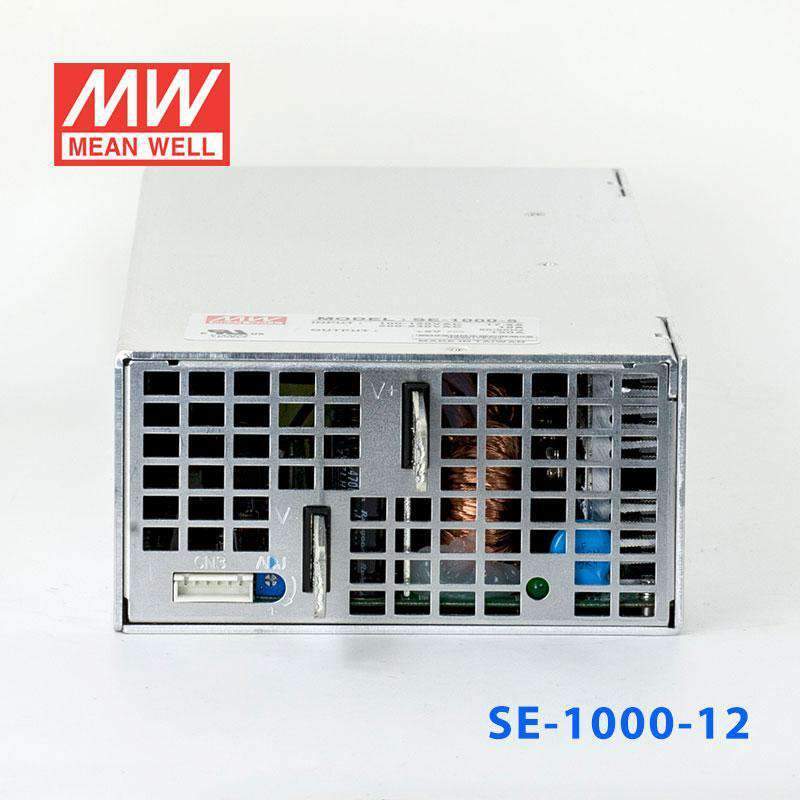

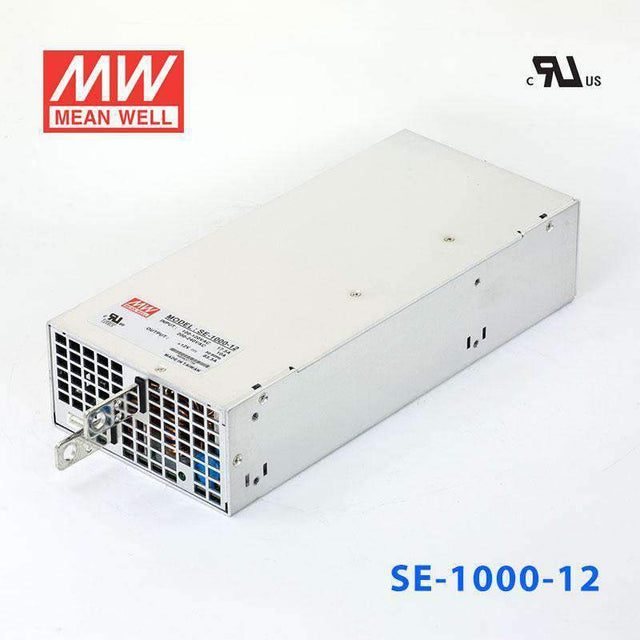

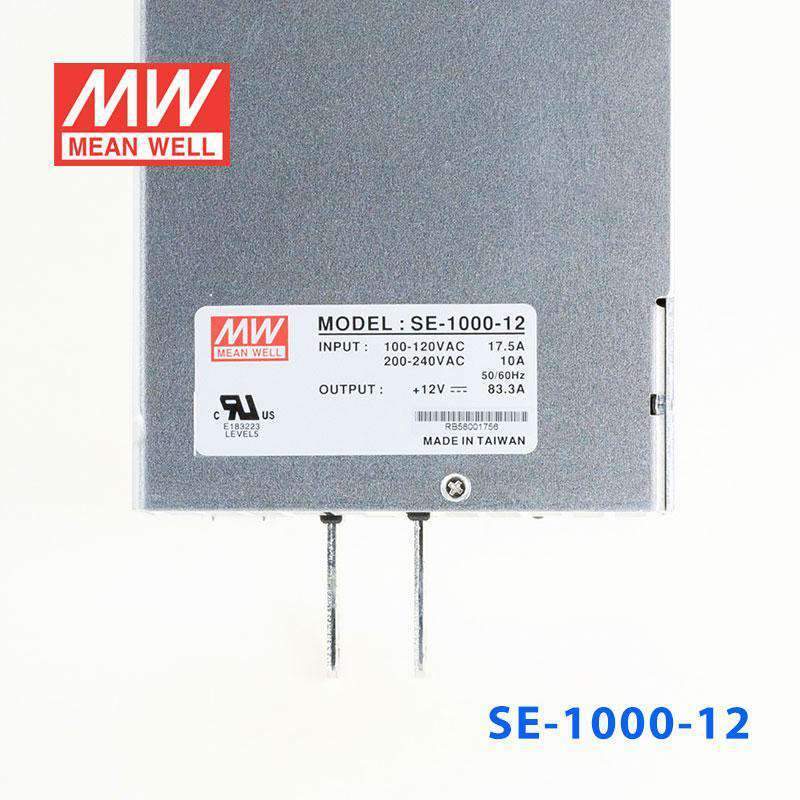

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SE-1000-12 Power Supply 1000W 12V 83.3A

economical model medium to high power(450W~1500W)

SKU SE-1000-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

SE-1000-12

SE-450-12 450W 12V Backorder

SE-1000-12 1000W 12V Backorder

SE-1500-12 1500W 12V Backorder

SE-600-12 600W 12V Backorder

Product variants

End of Life, Succeeded by LRS-1200-12

Available to order

Overview

SE-1000-12 is the 12V output model of this series: rated current 83.3A, rated power 999.6W, typical efficiency 85%.

Features

AC input active surge current limiting
AC input range selected by switch
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC ball bearing fan
High power density 7.3w/inch³
With DC_OK signal output
Built-in remote ON-OFF control
Built-in remote sense function
UL / CUL approved
Low cost
2 years warranty

Specifications

SE-1000-12Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 83.3A
CURRENT RANGE: 0 ~ 83.3A
RATED POWER: 999.6W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 10 ~ 13.5V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC 15ms/115VAC at full load

INPUT

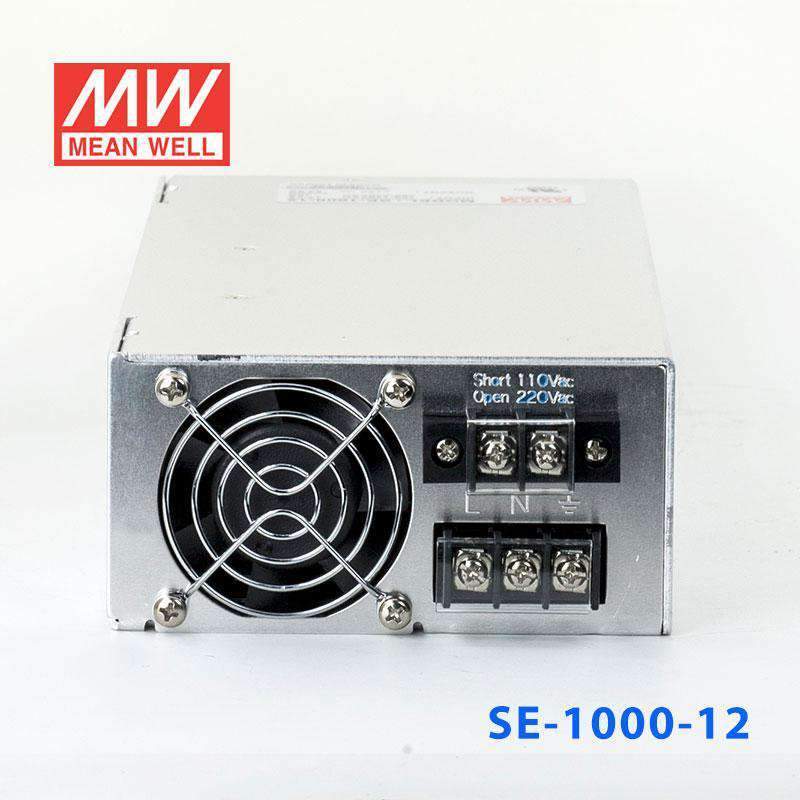

VOLTAGE RANGE: 90 ~ 132VAC / 180 ~ 264VAC selected by TB2 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 17.5A/115VAC 10A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 55A/230VAC
LEAKAGE CURRENT: <2.5mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC_OK SIGNAL: PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V
REMOTE CONTROL: RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off

ENVIRONMENT

WORKING TEMP.: -20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32),CNS15936 Class A
Radiated BS EN/ EN55032 (CISPR32),CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-6-2 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Radiated	BS EN/ EN55032 (CISPR32),CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-6-2	1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 1273.6K hrs min. Telcordia SR-332 (Bellcore) ; 251.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*127*63.5mm (L*W*H)
PACKING: 2.5Kg; 6pcs/16Kg/1.38CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. By using UVP circuit, PSU will not turn on direct by in AC continue ON/OFF condition within 5 sec.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-1000-12 Mechanical Specification — Mechanical Specification

SE-1000-12 Block Diagram — Block Diagram

SE-1000-12 Derating Curve — Derating Curve

Downloads

Certificates1

UL Certificate (SE-1000)(EN) PDF Download

Test reports1

Test Report (SE-1000-12)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SE-1000-12 for a large 12V industrial control panel or automation cabinet?

Yes, this is a constant-voltage 12V power supply rated for 83.3A and 999.6W. That output level fits high-demand 12V DC control panels, machine control cabinets, and other industrial systems that need a single high-capacity 12V source.

Is the SE-1000-12 suitable for powering multiple 12V embedded or communications devices from one supply?

It can be a fit when the combined load is 12V DC and stays within 83.3A and 999.6W. That makes it appropriate for centralized 12V distribution in embedded, industrial IT, or communications equipment where many devices share one high-power DC supply.

Can I use this 12V power supply for high-current 12V test benches or burn-in racks?

Yes, the 12V constant-voltage output and 83.3A current rating make it suitable for high-load 12V bench or rack use, as long as the total load stays within 999.6W.

Is the SE-1000-12 appropriate for indoor or outdoor environments?

The listed operating temperature is -20°C to +60°C, so that is the defined temperature range for use. No IP rating is provided in the listed specs, so the environmental sealing level is not specified and outdoor exposure suitability cannot be confirmed from the provided data alone.

How does the SE-1000-12 compare with other SE-1000 models?

Within the SE-1000 family, the 12V model is rated at 83.3A and 999.6W. Other listed versions are SE-1000-15 at 15V, 66.7A, 1000.5W; SE-1000-24 at 24V, 41.7A, 1000.8W; SE-1000-48 at 48V, 20.8A, 998.4W; SE-1000-9 at 9V, 100A, 900W; and SE-1000-5 at 5V, 150A, 750W.
