Mean Well

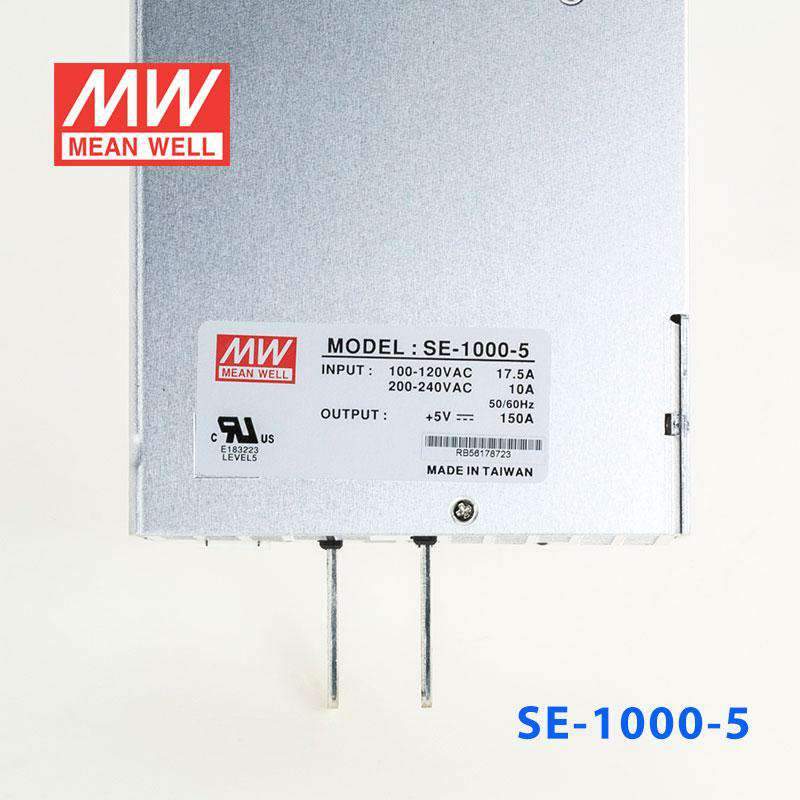

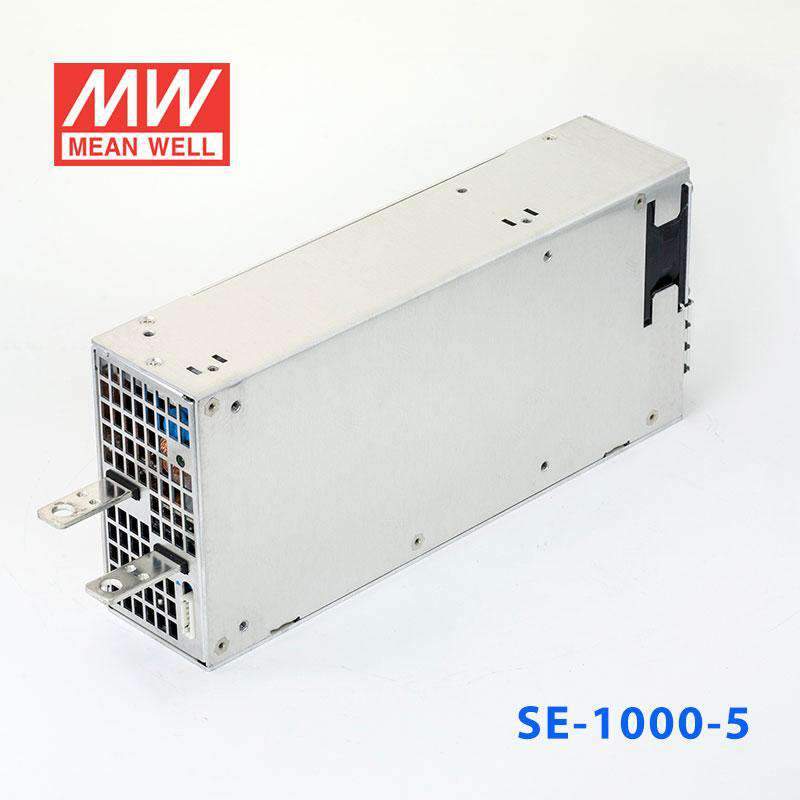

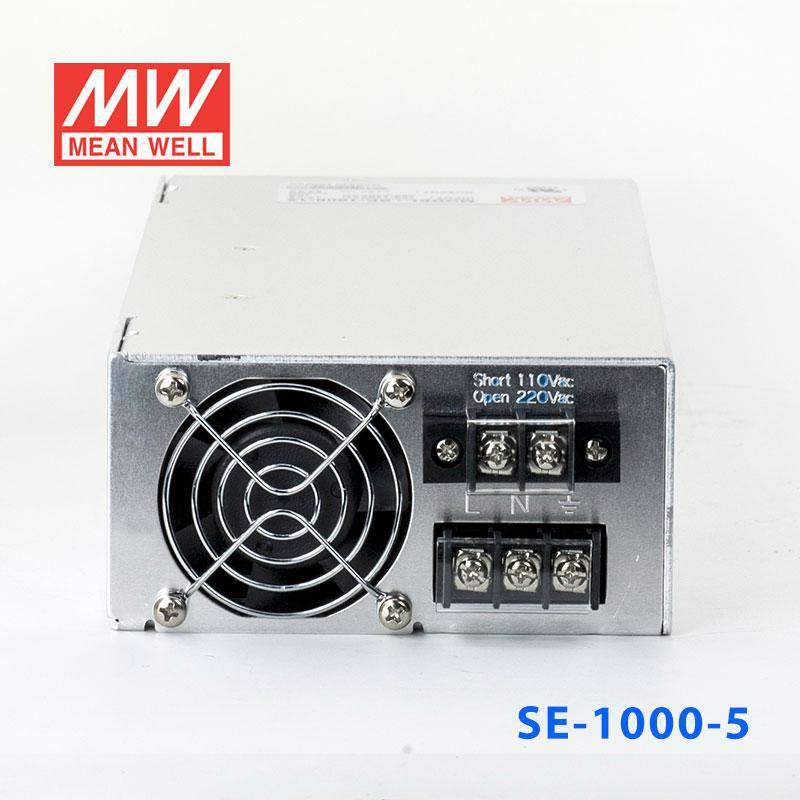

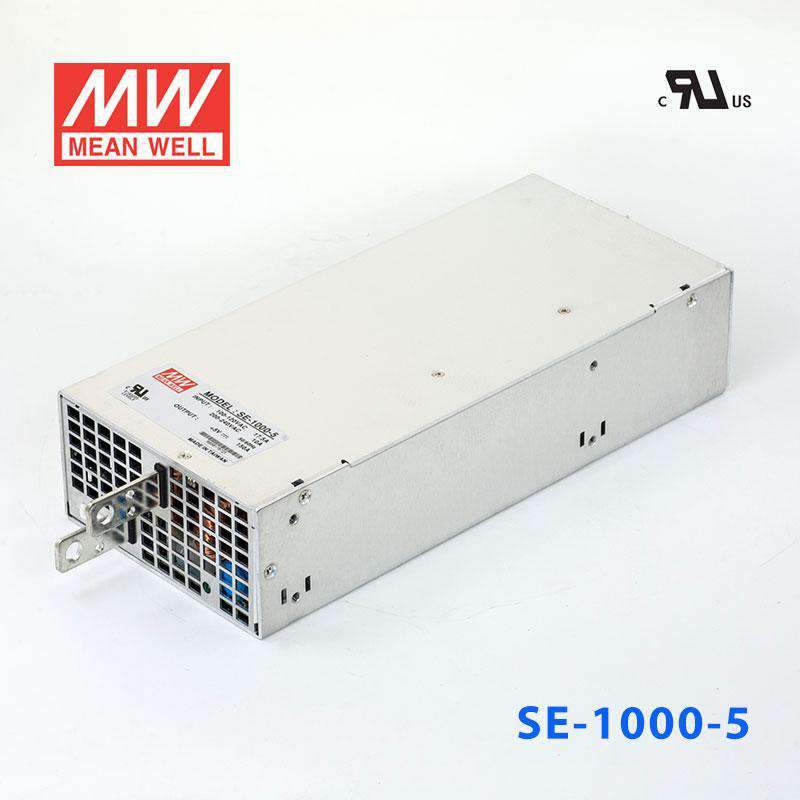

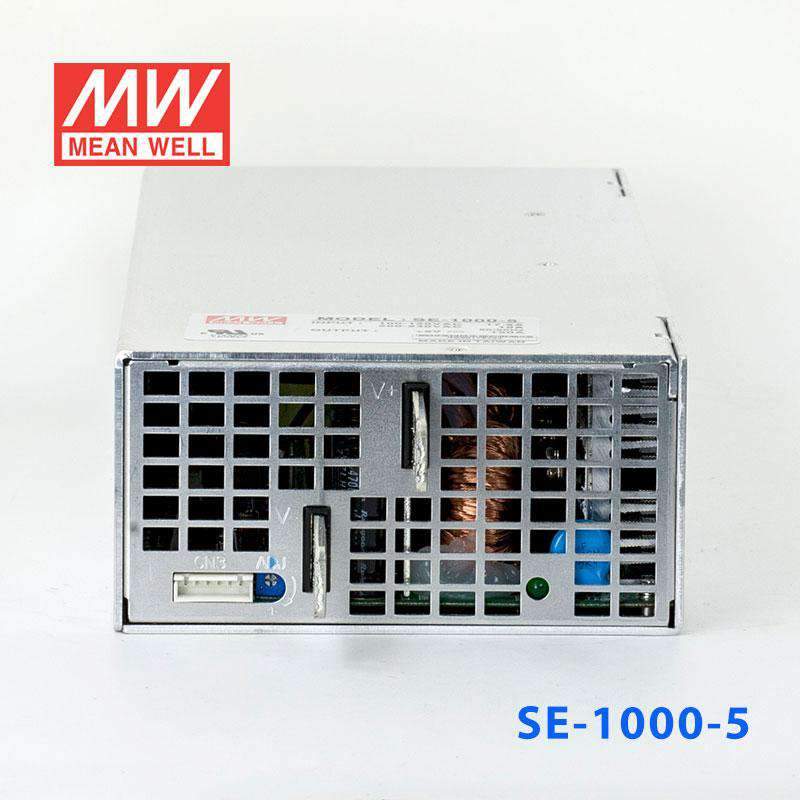

Mean Well SE-1000-5 Power Supply 750W 5V 150A

economical model medium to high power(450W~1500W)
SKU SE-1000-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

SE-1000-5 is the 5V output model of this series: rated current 150A, rated power 750W, typical efficiency 81%.

Features

  • AC input active surge current limiting
  • AC input range selected by switch
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC ball bearing fan
  • High power density 7.3w/inch³
  • With DC_OK signal output
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • UL / CUL approved
  • Low cost
  • 2 years warranty

Specifications

SE-1000-5Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
150A
CURRENT RANGE
0 ~ 150A
RATED POWER
750W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
3.3 ~ 5.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 132VAC / 180 ~ 264VAC selected by TB2 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
81%
AC CURRENT (Typ.)
17.5A/115VAC 10A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 55A/230VAC
LEAKAGE CURRENT
<2.5mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC_OK SIGNAL
PSU turn on:3.3V ~ 5.6V PUS turn off:0 ~ 1V
REMOTE CONTROL
RC+/RC-: 0 ~ 0.8V power on; 4 ~ 10V power off

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/ EN55032 (CISPR32),CNS15936Class A
RadiatedBS EN/ EN55032 (CISPR32),CNS15936Class A
Harmonic CurrentBS EN/ EN61000-3-2
Voltage FlickerBS EN/ EN61000-3-3
EMC IMMUNITY

BS EN/ EN55035, BS EN/ EN61000-6-2

ParameterStandardTest Level
ESDBS EN/ EN61000-4-2Level 3, 8KV air; Level 2, 4KV contact
RadiatedBS EN/ EN61000-4-3Level 3
EFT / BurstBS EN/ EN61000-4-4Level 3
SurgeBS EN/ EN61000-6-21KV/Line-Line 2KV/Line-Earth
ConductedBS EN/ EN61000-4-6Level 3
Magnetic FieldBS EN/ EN61000-4-8Level 4
Voltage Dips and InterruptionsBS EN/ EN61000-4-11>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF
1273.6K hrs min. Telcordia SR-332 (Bellcore) ; 251.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
278*127*63.5mm (L*W*H)
PACKING
2.5Kg; 6pcs/16Kg/1.38CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  5. 5. By using UVP circuit, PSU will not turn on direct by in AC continue ON/OFF condition within 5 sec.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  7. 7. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-1000-5 Mechanical Specification
Mechanical Specification
SE-1000-5 Block Diagram
Block Diagram
SE-1000-5 Derating Curve
Derating Curve
SE-1000-5 Mechanical Specification
Mechanical Specification

Downloads

FAQ

Can I use the SE-1000-5 for high-current 5V industrial electronics?

Yes, this model provides constant-voltage 5V output with up to 150A. That makes it suitable for high-current 5V industrial electronics as long as the total load remains within 750W.

Is the SE-1000-5 suitable for powering multiple 5V embedded systems from one supply?

It can support multiple 5V embedded systems when they share a common 5V DC power requirement. The combined load should stay within 150A and 750W.

Can this 5V supply work for a test bench or burn-in setup with heavy 5V loads?

It is a constant-voltage 5V supply with substantial current capacity for large 5V DC loads. For bench or burn-in use, the connected equipment should not exceed 150A total output current or 750W total power.

How does the SE-1000-5 compare to the other SE-1000 power supplies?

The listed SE-1000 variants are SE-1000-5 at 5V, 150A, 750W; SE-1000-9 at 9V, 100A, 900W; SE-1000-12 at 12V, 83.3A, 999.6W; SE-1000-15 at 15V, 66.7A, 1000.5W; SE-1000-24 at 24V, 41.7A, 1000.8W; and SE-1000-48 at 48V, 20.8A, 998.4W. Compared with the higher-voltage versions, this model provides the highest current in the group but the lowest wattage rating.

Can the SE-1000-5 be used in outdoor or low-temperature environments?

The provided specs list an operating temperature range of -20°C to +60°C. No IP rating is shown, so the data here does not confirm outdoor or wet-location use.
