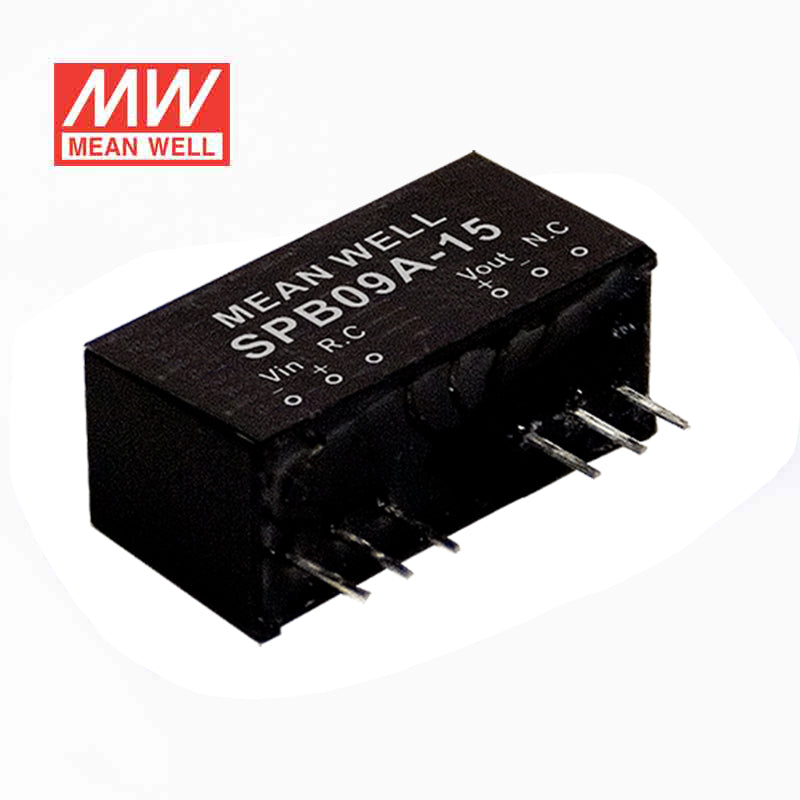

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SPB09A-12 DC-DC Converter - 9W - 9~18V in 12V out 750mA

SKU SPB09A-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SPB09A-12 is the 12V output model of this series: rated power 9W, typical efficiency 88%.

SP B09 and DP B09 series are 9 W isolated and regulated module type DC-DC converter with SIP 8 package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+ 90℃, 1 . 5 KVDC I/P-O/P isolation voltage, continuous -mode short circuit protection, etc. The models account for different input voltage 9~18V and 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3 . 3V /5V/12V/15V /24V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control
9V model available(optional)
3 years warranty

Specifications

SPB09A-12Specifications from the official datasheet (2024-08-02 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 12V (9 ~ 18V)
INPUT CURRENT NO LOAD: 12mA
INPUT CURRENT FULL LOAD: 852mA
OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 0 ~ 750mA
EFFICIENCY (TYP.): 88%
CAPACITOR LOAD (MAX.): 220μF

INPUT

VOLTAGE RANGE: 9~18Vdc ,
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 12Vin models: 2A Slow-Blow, 24Vin models: 1A Slow-Blow Type, 48Vin models: 600mA Slow-Blow Type

OUTPUT

VOLTAGE ACCURACY: ±1.5%
RATED POWER: 9W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: 0.5%
LOAD REGULATION^Note.4: Single output models: ±0.5% (±1% for 3.3Vout model), Dual output models:±0.5%
SWITCHING FREQUENCY (Min.): 400KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.8Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +115℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 70℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 275Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 24*9.6*11.2mm (0.94*0.38*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 5g ; 21pcs/per tube, 2100pcs/100 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SPB09A-12 Mechanical Specification — Mechanical Specification

SPB09A-12 Plug Assignment — Plug Assignment

SPB09A-12 Remote ON/OFF Control — Remote ON/OFF Control

Typical applications

Downloads

Certificates3

Certificate (SPB09-DPB09-EMC)(EN) PDF Download

Certificate (SPB09-DPB09-CE-dec)(EN) PDF Download

Certificate (SPB-DPB09-UK-dec)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPB09A-12 for 12V control, relay, or interface loads in industrial equipment?

Yes, if the load needs 12V constant voltage and stays within the unit's 9W rating. This model takes 9-18VDC input and provides 12V output with a listed output current of 750mA.

Is the SPB09A-12 a fit for small 12V automation modules inside compact control hardware?

It is physically compact at 24 × 9.6 × 11.2 mm and weighs 5g, which suits tight equipment layouts. From an electrical standpoint, it is intended for 12V constant voltage applications within its 9W output rating.

Can this model be used where a 12V rail is needed from a 9-18VAC source in embedded equipment?

That is the intended conversion range shown in the specs: 9-18VDC input and 12V output. It is best matched to embedded or control-system loads that require 12V constant voltage and fit within 9W.

How does the SPB09A-12 compare with the other SPB09A models?

All SPB09A versions are 9W converters with the same 9-18VDC input range. The series outputs are 3.3V at 2A, 5V at 1.6A, 12V at 750mA, 15V at 600mA, and 24V at 375mA.

Can the SPB09A-12 be used in hot, cold, or exposed environments?

The specified operating temperature range is -40°C to +90°C, so it is rated for broad temperature conditions. There is no IP rating in the provided specs, so the data does not confirm suitability for outdoor or wet locations.
