Mean Well

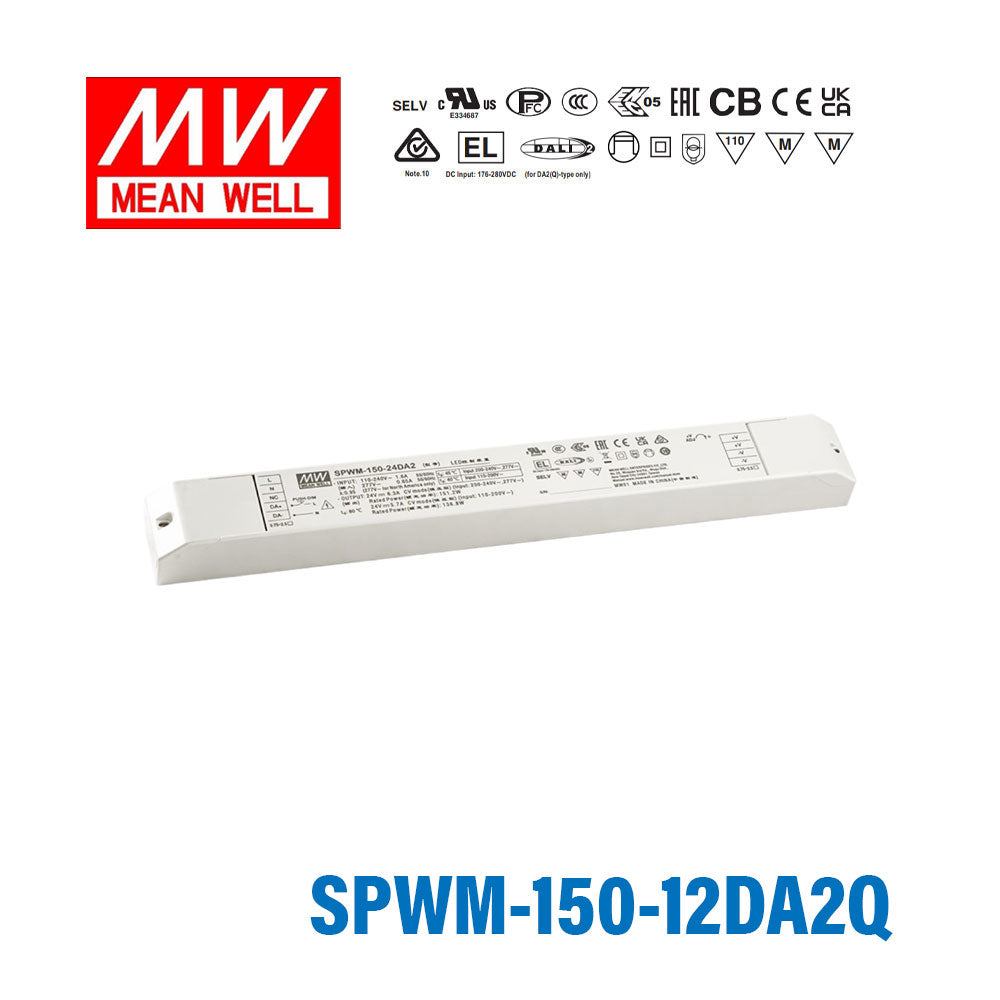

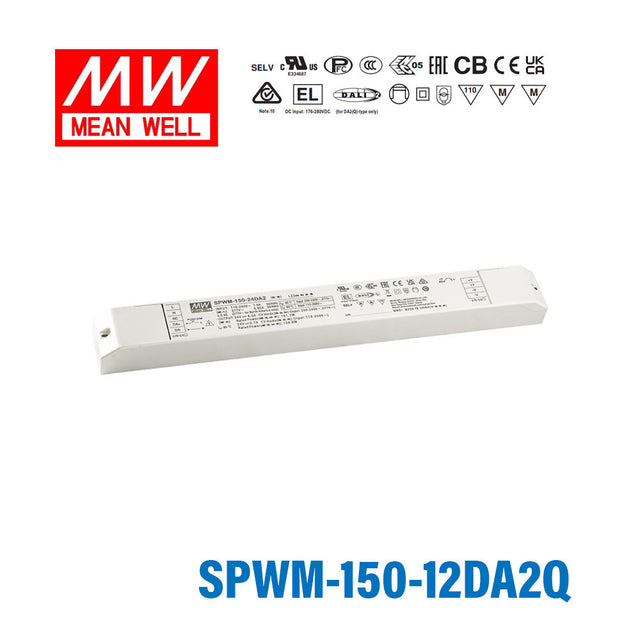

MEAN WELL SPWM-150-12DA2Q 150W 12V CV LED Driver 12.5A

DALI2 DT8, PUSH dimming,fliker free, minimum dimming level 0.1%, 4 channel,voltage adjustable 11-14V
SKU:
SPWM-150-12DA2Q
Please for Pricing
|

Description

The MEAN WELL SPWM-150DA2Q series is a 150W constant voltage PWM LED driver designed for advancedDALI-2 DT8 multi-channel lighting control, supporting RGBW and tunable white LED strip applications. Featuring four independently controlled output channels, the DA2Q variant enables precise colour mixing, colour temperature adjustment, and brightness control via DALI-2 or PUSH dimming interfaces. With high efficiency up to 93%, flicker-free output, and fanless convection cooling, the SPWM-150DA2Q series is ideal for intelligent architectural lighting, decorative installations, and dynamic lighting scenes within DALI-based control systems.

Key Features

Specifications
  • Brand
    Mean Well
  • Series
    SPWM Series
  • Power Rating
    150 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    12.5 Ampere
  • Input Voltage
    100V~305V
  • Standards Met
    CB,CE,EAC,RCM,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    34 cm
  • Width
    3.8 cm
  • Height
    2.85 cm
  • Weight
    0.4 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the MEAN WELL SPWM-150-12DA2Q designed for?

The SPWM-150-12DA2Q is a 150W constant voltage LED driver for advanced lighting systems that use 12V LED strips. This model is aimed at applications that need multi-channel control, including RGBW and tunable white lighting. It is positioned for projects where precise dimming and colour adjustment are important.

Does the SPWM-150-12DA2Q support DALI lighting control?

Yes. This model supports DALI-2 DT8 control and also supports PUSH dimming. That makes it suitable for lighting projects where central dimming control or tunable white and RGBW management is required.

What are the main electrical ratings of the SPWM-150-12DA2Q?

This LED driver is rated at 150W with a 12V constant voltage output. Its rated current is 12.5A. These specifications make it suitable for higher-power 12V LED lighting loads within the product's rated capacity.

How is the SPWM-150-12DA2Q different from a standard single-channel 12V LED driver?

The SPWM-150-12DA2Q is intended for advanced control scenarios rather than basic single-channel dimming. It supports DALI-2 DT8 multi-channel control and is described for RGBW and tunable white applications. That makes it a better fit when colour mixing or colour temperature adjustment is needed.

Is the SPWM-150-12DA2Q suitable for demanding indoor environments?

This model is specified for operation from -40°C to 80°C, which gives it a wide operating temperature range. It also uses fanless convection cooling, which can be useful where low maintenance and quiet operation are preferred. Buyers should still confirm that the full system design matches the environmental conditions of the project.

What warranty is provided with the MEAN WELL SPWM-150-12DA2Q?

The SPWM-150-12DA2Q is specified with a 5-year warranty period. That is consistent with a product intended for professional lighting applications. For B2B buyers, this can be relevant for project planning and long-term maintenance expectations.
