Mean Well

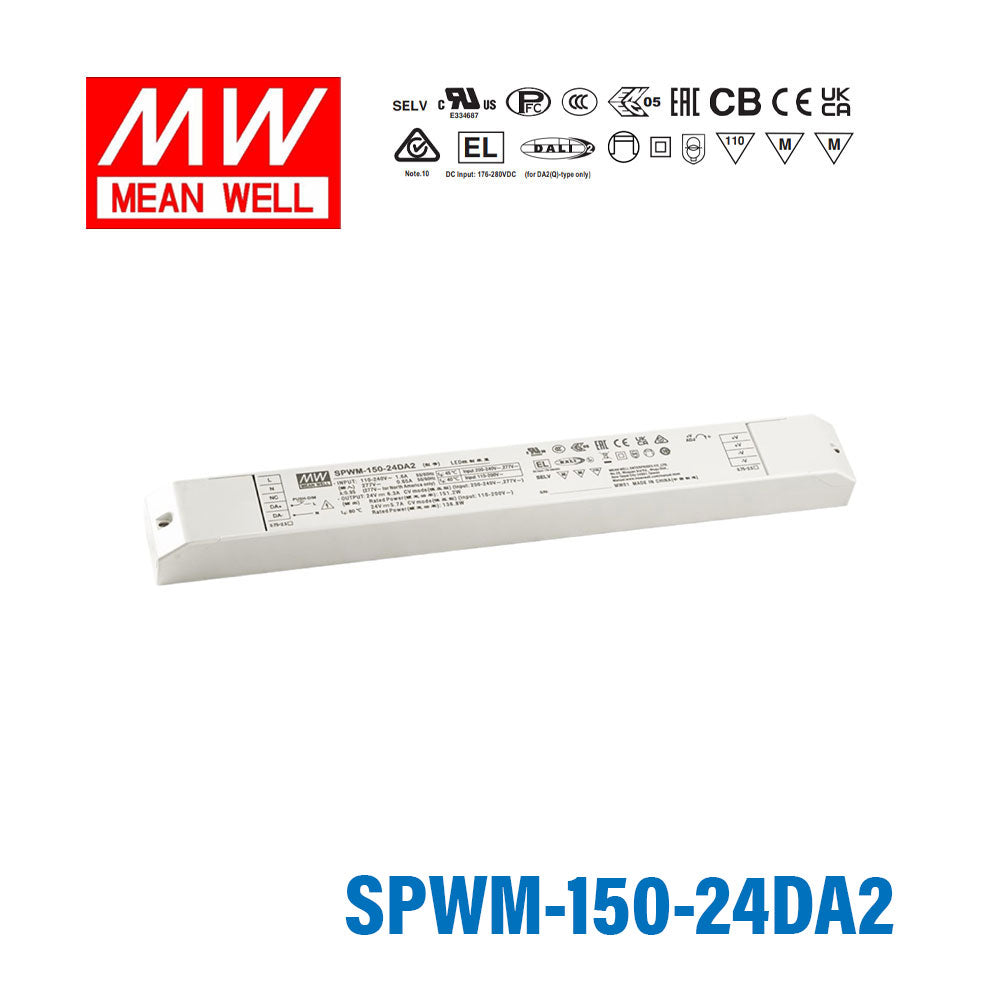

MEAN WELL SPWM-150-24DA2 151.2W 24V CV LED Driver 6.3A

DALI2 DT6, PUSH dimming,fliker free, minimum dimming level 0.1%, voltage adjustable 23-26V
SKU:
SPWM-150-24DA2
Please for Pricing
|

Description

The MEAN WELL SPWM-150DA2 series is a 150W constant voltage PWM LED driver featuringDALI-2 DT6 digital dimmingfor precise brightness control in professional lighting systems. In addition to AC input operation, DA2 models support DC input, enabling compatibility with emergency lighting and central battery systems. The driver supports both DALI-2 and PUSH dimming from the primary side, allowing flexible commissioning and local override control. With high efficiency, flicker-free performance, and fanless convection cooling, the SPWM-150DA2 series is well suited for commercial, architectural, and building automation lighting applications.

Key Features

Specifications
  • Brand
    Mean Well
  • Series
    SPWM Series
  • Power Rating
    151.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    6.3 Ampere
  • Input Voltage
    100V~305V
  • Standards Met
    CB,CE,EAC,RCM,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    34 cm
  • Width
    3.8 cm
  • Height
    2.85 cm
  • Weight
    0.4 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of LED applications is the MEAN WELL SPWM-150-24DA2 designed for?

This model is a 24V constant voltage PWM LED driver intended for professional lighting systems that need dimming control. It is suited to applications where stable 24V output and dimmable LED performance are required.

Does the SPWM-150-24DA2 support DALI dimming?

Yes. The SPWM-150-24DA2 supports DALI-2 DT6 digital dimming, which makes it suitable for lighting projects that use DALI-based control systems. It also supports PUSH dimming for local control flexibility.

What are the main electrical ratings of the SPWM-150-24DA2?

This model provides a 24V output with a rated current of 6.3A and a power rating of 151.2W. These specifications make it a high-power constant voltage driver for 24V LED loads.

Can the SPWM-150-24DA2 be used in emergency lighting or central battery systems?

Yes. In addition to AC input operation, the DA2 version supports DC input. That makes it compatible with applications such as emergency lighting and central battery system designs.

What makes the SPWM-150-24DA2 different from a standard non-dimmable 24V power supply?

Unlike a basic 24V power supply, this model is specifically designed as a PWM LED driver with integrated dimming support. Its DALI-2 DT6 and PUSH dimming capability make it a better fit for controlled lighting environments where brightness adjustment is required.

What operating temperature range does the SPWM-150-24DA2 support?

The specified operating temperature range is from -40°C to 80°C. This wide range helps it suit demanding commercial and professional lighting environments.

What warranty is offered for the SPWM-150-24DA2?

The SPWM-150-24DA2 is specified with a 5-year warranty period. That can be important for commercial buyers looking for longer-term support and reliability coverage.
