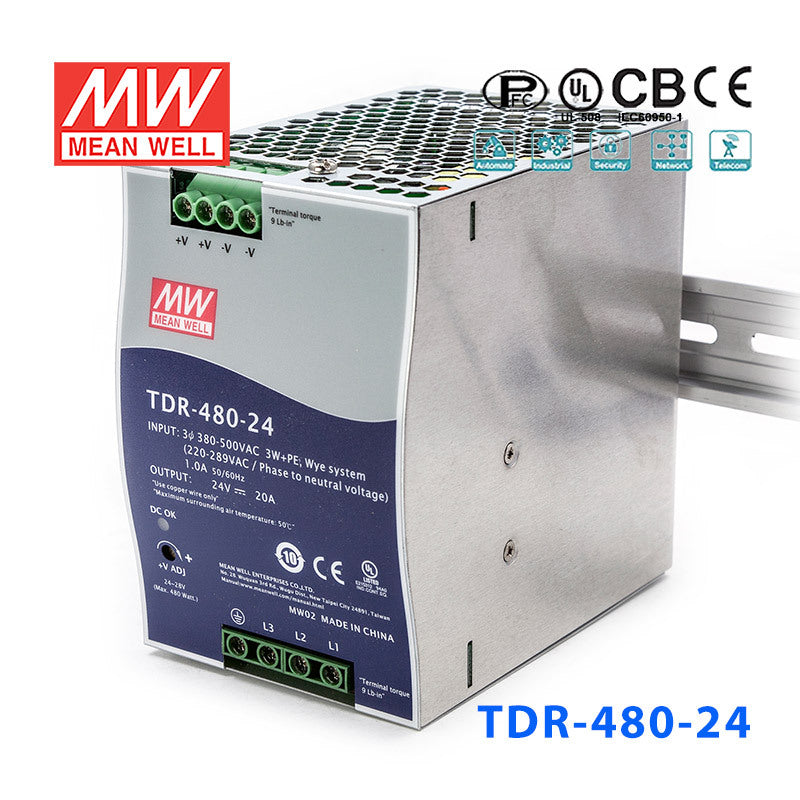

Mean Well TDR-480-24 Single Output Industrial Power Supply 480W 24V...
Please Login for Pricing
Description
Description
The TDR-480 is a 480W Mean Well power converter (input range: 340~550VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 340~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: -40 ~ +85 ± 0.03%/ ℃ ℃ , 10 ~ 95% RH (0 ~ 50 ) ℃ Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 UL508, IEC60950-1 CB
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesTDR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage340V~550V
-
Standards MetCE,cUL,EAC,TUV
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.85 cm
-
Width12.52 cm
-
Height8.55 cm
-
Weight1.51 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the TDR-480-24 for a larger 24V PLC cabinet with more I/O and control loads?
Yes, this model is suited to 24VDC control cabinets that need more capacity, up to 20A or 480W. Its 340-550VAC 3 phase input and DIN rail format make it appropriate for larger industrial panels fed from three-phase power.
Is the TDR-480-24 appropriate for 24V industrial automation panels with multiple control devices?
It can be a fit when the total 24VDC demand remains within 480W and 20A. The metal case, slim design, and efficiency up to 94.5% support compact enclosure layouts with higher current needs than the 240W versions.
Can this power supply be used for 24V building management panels with several controllers and field devices?
Yes, if the panel runs on 24VDC and the aggregate load stays at or below 20A and 480W. The DIN rail construction and 128.5 × 125.2 × 85.5 mm size make it suitable for control cabinets where a single higher-capacity supply is preferred.
Is the TDR-480-24 a good option when I need more 24V current without going to the 960W frame?
This model sits in the middle of the series at 24V, 20A, and 480W. It offers more output than the 24V 240W unit while keeping a smaller footprint and lower weight than the 24V 960W model, which is 2.47 kg.
How does the TDR-480-24 compare with the other TDR series power supplies?
The TDR-480-24 is rated at 480W, 24V, and 20A. The sibling models are TDR-240-24 at 240W, 24V, 10A; TDR-240-48 at 240W, 48V, 5A; TDR-480-48 at 480W, 48V, 10A; TDR-960-24 at 960W, 24V, 40A; and TDR-960-48 at 960W, 48V, 20A.
Can the TDR-480-24 be used inside a control enclosure with demanding ambient conditions?
The specified operating temperature is -30°C to +70°C, which supports use in many industrial cabinets and enclosed panels. The provided specs describe a metal case but do not list a separate exposed-location enclosure rating, so cabinet or enclosure use is the safer fit.
Other TDR-480 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well TDR-480-48 Single Output Industrial Power Supply 480W 48V - DIN Rail | 480W | 48V | 10A | Indoor | View |
