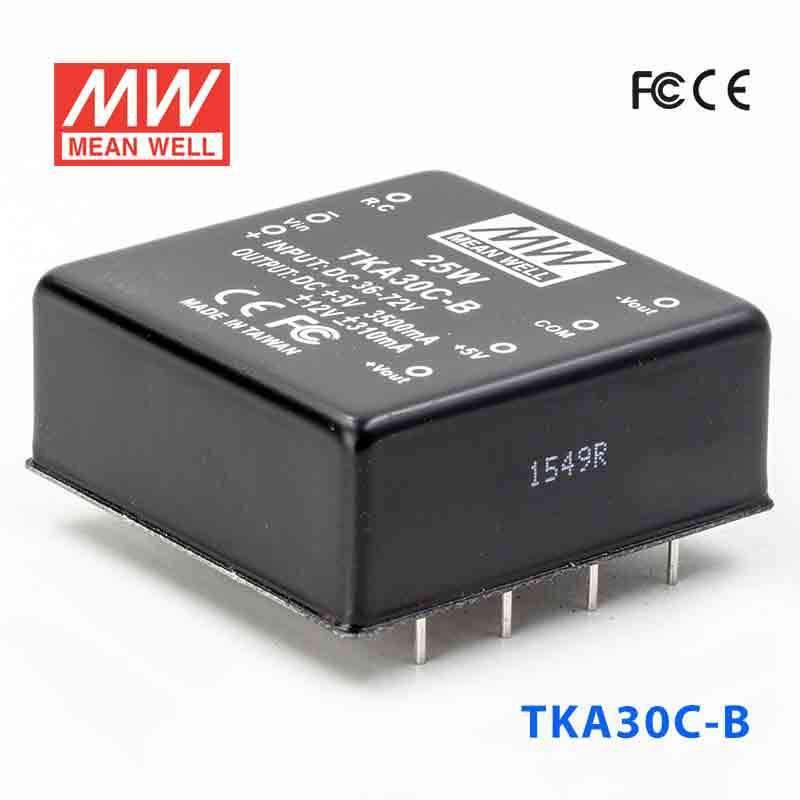

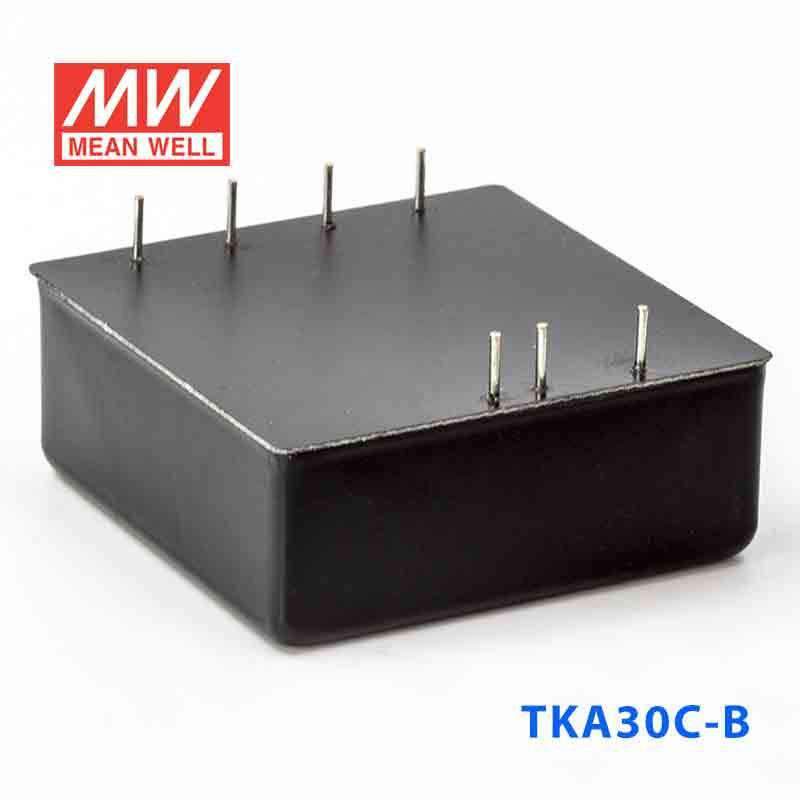

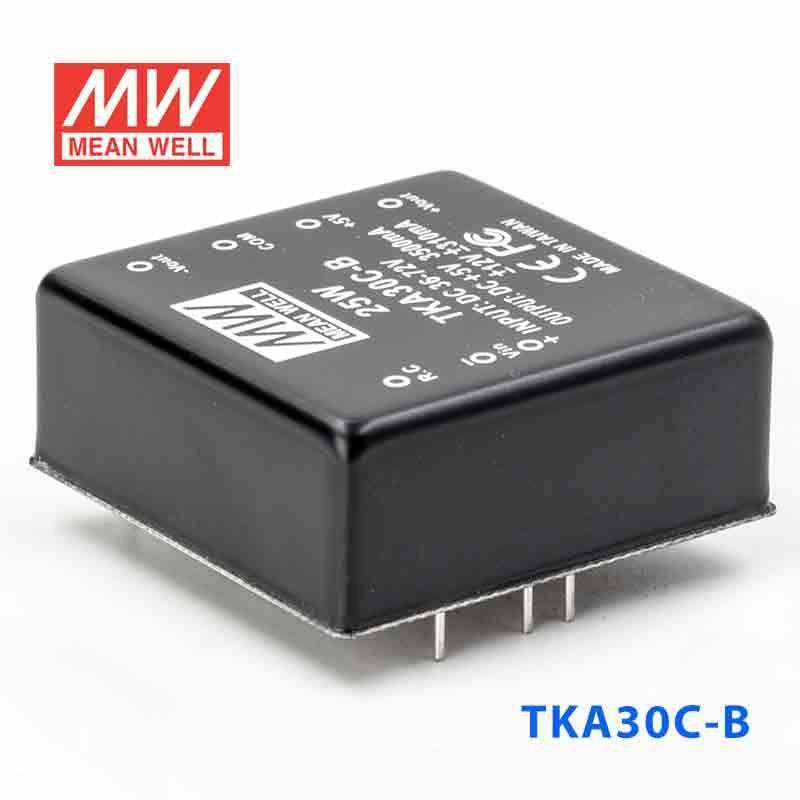

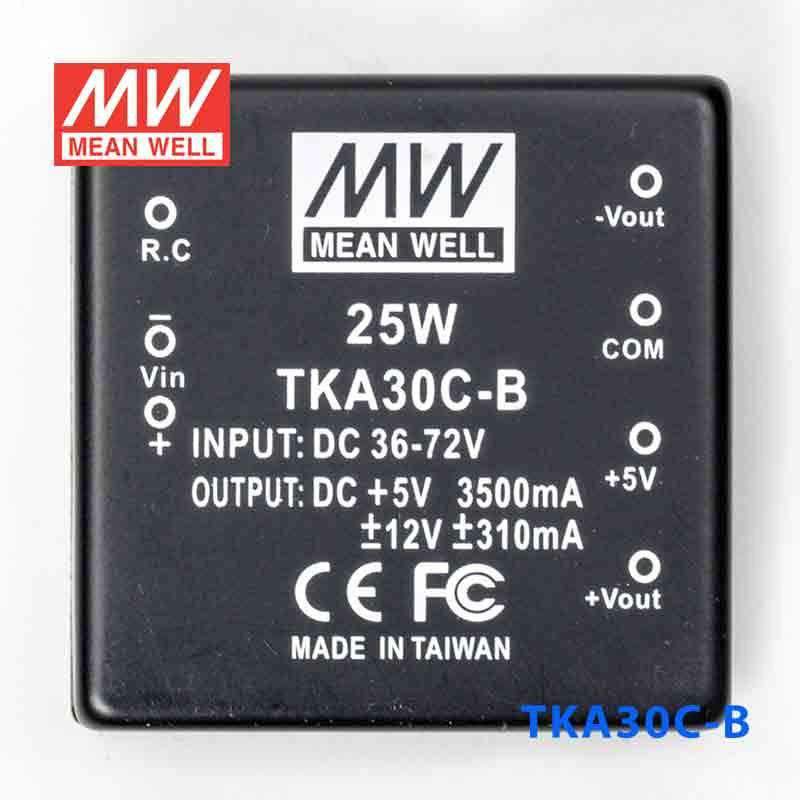

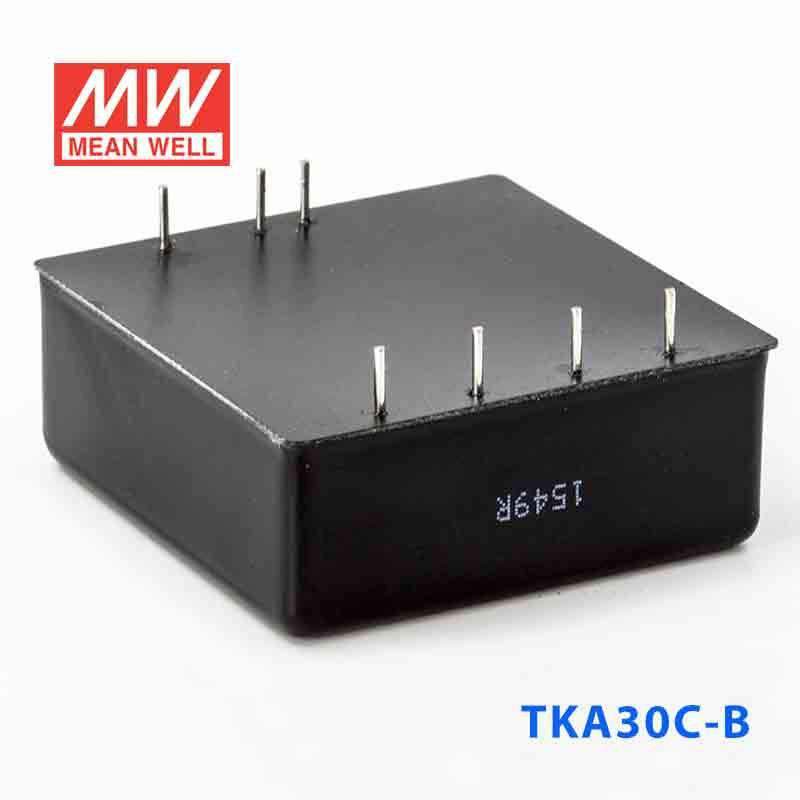

Mean Well TKA30C-B DC-DC Converter - 25W - 36~72V in ±12V out

SKU:

TKA30C-B

Please for Pricing

Notify me when it's back in stock

Description

"""

Features

1000VDC I/O isolation
2:1 wide input range
4:1 wide input range(option)
Remote ON-OFF control
Built-in EMI filter
Cooling by free air convection
Protections: Short circuit / Overload
Six-sided shield metal case
100% burn-in test
Epoxy encapsulated
Approvals: FCC / CE
2 years warranty

"""

Specifications

Brand

Mean Well
Series

TKA Series
Power Rating

25 Watt
Output Voltage

12 Volt
Rated Current

0.31 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

2.1 cm
Weight

0.11 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the TKA30C-B in a low-power industrial control panel that needs 12V output?

This model is a constant-voltage DC-DC converter with a 12V output and 25W power rating. It fits low-power industrial control or automation sections that stay within that 25W budget and use a 36-72VAC input range.

Is the TKA30C-B suitable for embedded electronics in equipment with a wide AC input range?

It is designed for 36-72VAC input, so it matches equipment that operates across that stated range. Its 12V constant-voltage output and 25W rating make it more appropriate for embedded control electronics than for higher-load 12V devices.

Can the TKA30C-B be used for automation subsystems where space is limited?

The unit measures 50.8 x 50.8 x 21.0 mm and weighs 0.11 kg, so it is relatively compact for enclosed automation hardware. It is still a 25W, 12V constant-voltage converter, so the load must fit within those limits.

What is the difference between the TKA30C-B and TKA30C-C?

Both models are 25W constant-voltage converters with 12V output, 36-72VAC input, 50.8 x 50.8 x 21.0 mm dimensions, 0.11 kg weight, -40 C to +85 C operating temperature, CE and c_emc certifications, and a 2-year warranty. The listed difference is output current: TKA30C-B is 310A and TKA30C-C is 250A.

Is the TKA30C-B suitable for outdoor or harsh-temperature use?

The specified operating range is -40 C to +85 C, which supports use across a wide temperature span. No IP rating is listed in the provided specs, so outdoor exposure or washdown suitability is not established from this product data.

Model	Power	Voltage	Current	IP Rating
Mean Well TKA30C-C DC-DC Converter - 25W - 36~72V in ±12V out	25W	12V	0.25A	Indoor	View
Mean Well TKA30B-C DC-DC Converter - 25W - 18~36V in ±12V out	25W	12V	0.25A	Indoor	View
Mean Well TKA30B-B DC-DC Converter - 25W - 18~36V in ±12V out	25W	12V	0.31A	Indoor	View
Mean Well TKA30A-C DC-DC Converter - 25W - 9~18V in 5V out	25W	5V	3.5A	Indoor	View
Mean Well TKA30A-B DC-DC Converter - 25W - 9~18V in 5V out	25W	5V	3.5A	Indoor	View
