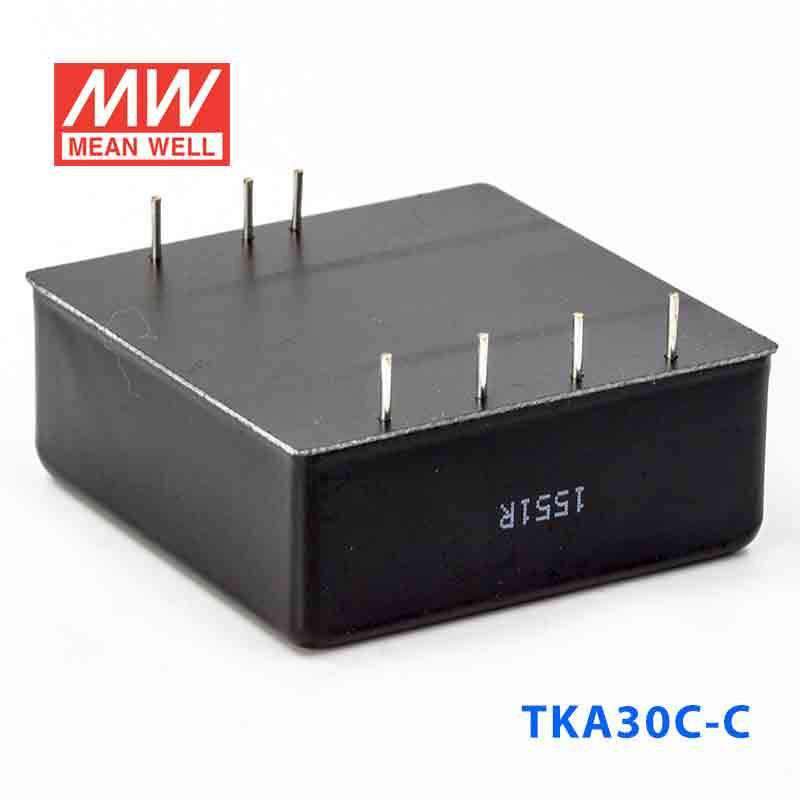

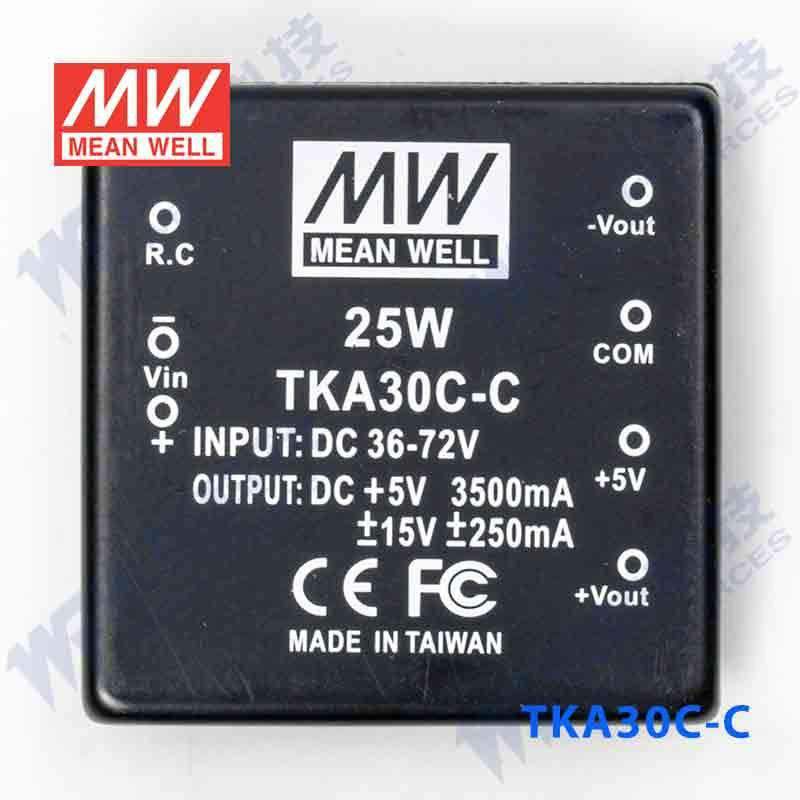

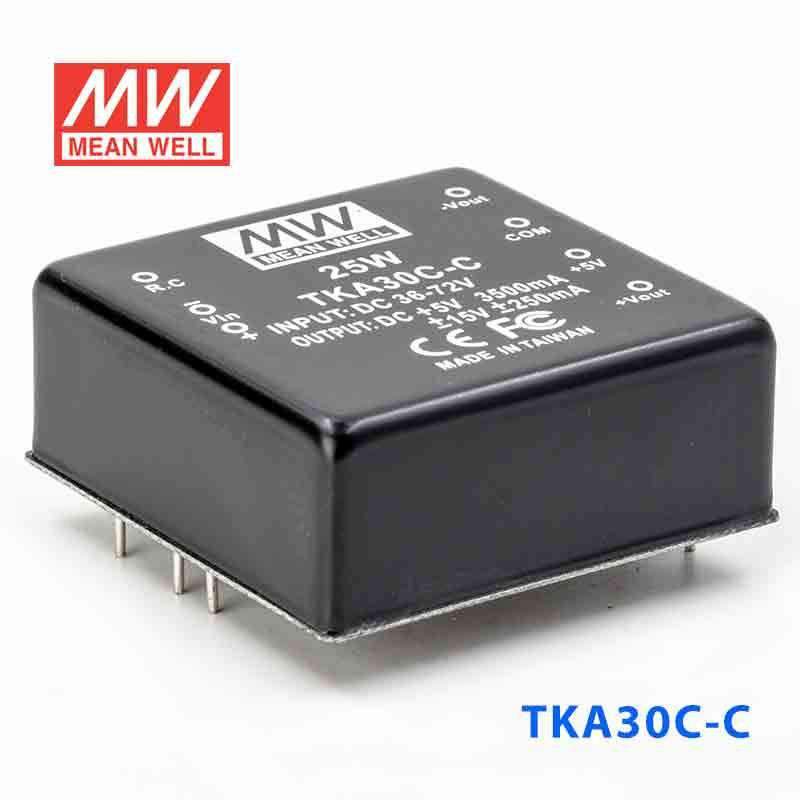

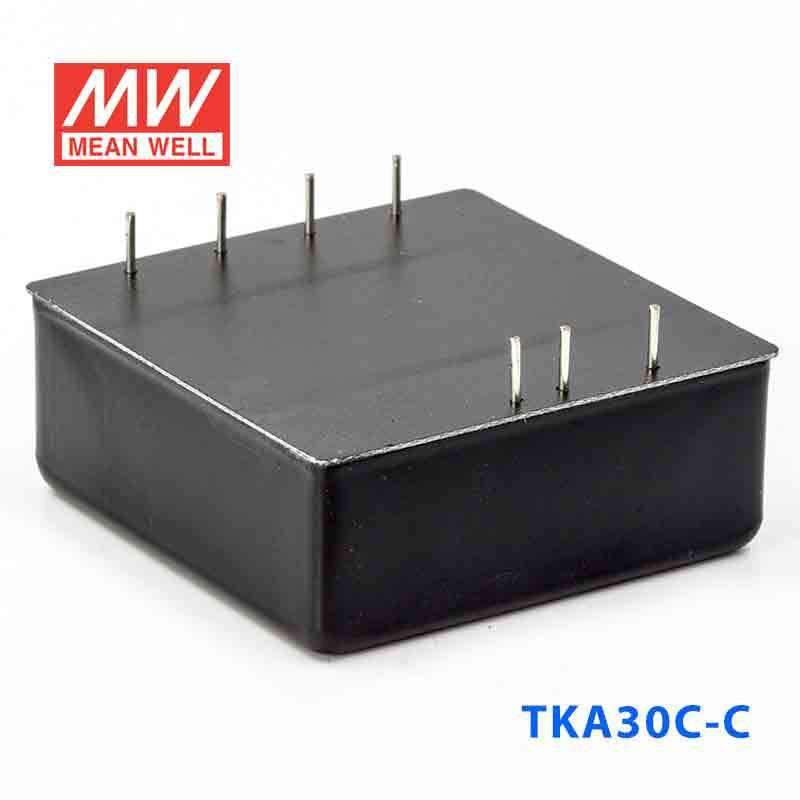

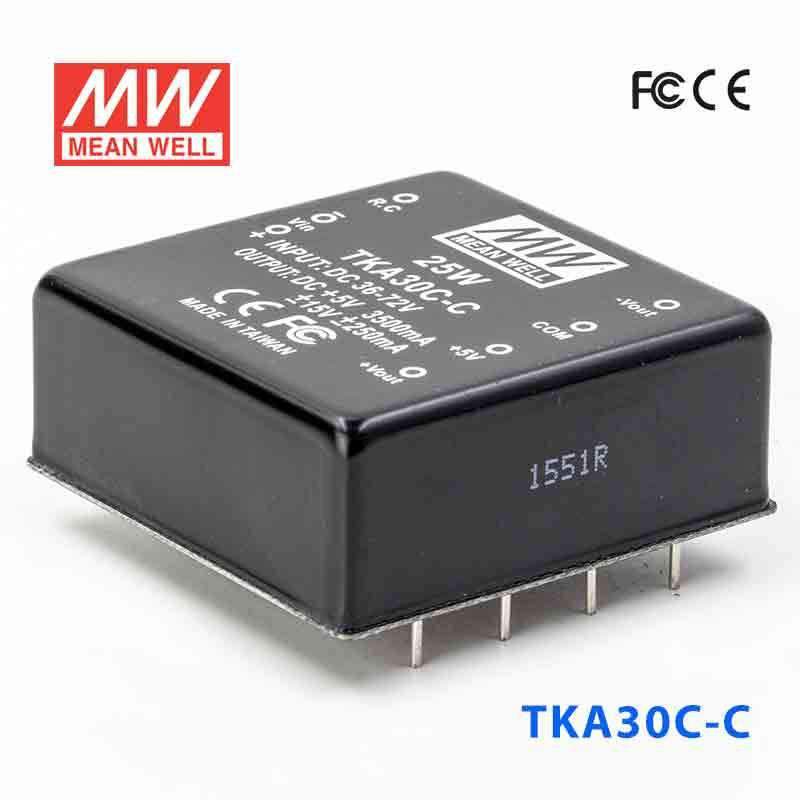

Mean Well TKA30C-C DC-DC Converter - 25W - 36~72V in ±12V out
Please Login for Pricing
Description
Description
Features
- 1000VDC I/O isolation
- 2:1 wide input range
- 4:1 wide input range(option)
- Remote ON-OFF control
- Built-in EMI filter
- Cooling by free air convection
- Protections: Short circuit / Overload
- Six-sided shield metal case
- 100% burn-in test
- Epoxy encapsulated
- Approvals: FCC / CE
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesTKA Series
-
Power Rating25 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage36V~72V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length5.08 cm
-
Width5.08 cm
-
Height2.1 cm
-
Weight0.11 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the TKA30C-C for a compact embedded control board that needs regulated 12V power?
This model provides constant-voltage 12V output with a 25W power rating. That makes it a fit for compact embedded control sections that are designed around a 36-72VAC input range and stay within 25W.
Is the TKA30C-C appropriate for low-power automation electronics inside industrial equipment?
It is intended for applications needing 12V constant-voltage output from a 36-72VAC input source. With a 25W rating, it is better aligned with low-power automation electronics than with larger 12V loads.
Can the TKA30C-C work in small control enclosures or equipment bays?
Its mechanical size is 50.8 x 50.8 x 21.0 mm and its weight is 0.11 kg, which helps where board area and overall mass matter. Electrically, it remains a 25W, 12V converter, so enclosure fit does not change the load limit.
How does the TKA30C-C compare with the TKA30C-B?
The two models share the same 25W rating, 12V output, 36-72VAC input range, constant-voltage operation, 50.8 x 50.8 x 21.0 mm dimensions, 0.11 kg weight, -40 C to +85 C operating range, CE and c_emc certifications, and 2-year warranty. The listed output current differs: TKA30C-C is 250A, while TKA30C-B is 310A.
Can the TKA30C-C be used in indoor equipment exposed to low or high ambient temperatures?
The operating temperature range is -40 C to +85 C, so the converter is specified for very cold and very warm conditions within that band. Because no IP rating is provided, the specs do not confirm suitability for direct outdoor exposure.
