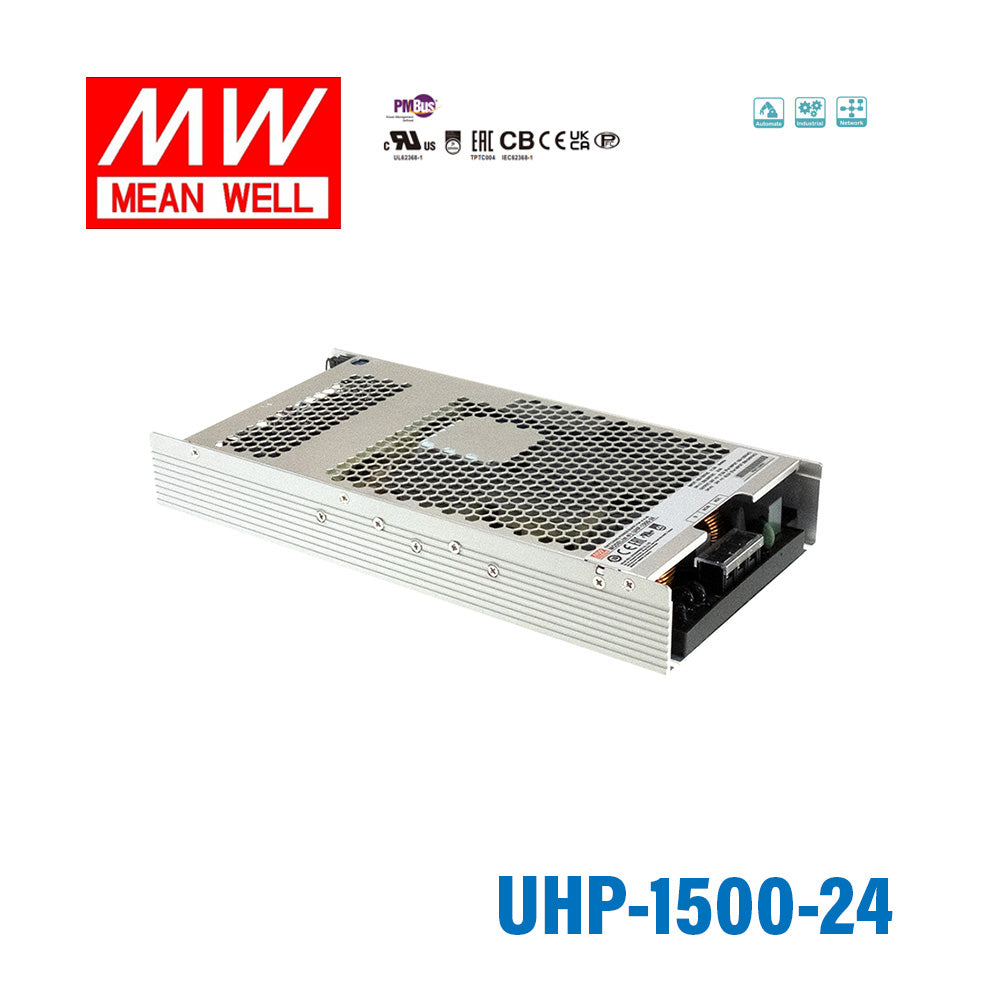

Mean Well UHP-1500-24 Power Supply 1500W 24V

slim and low profile, fanless design
SKU:
UHP-1500-24

|

Description

Features

Slim and Low profile (41mm)
Fanless and conduction-cooled design
Optional PMBus or CANBus protocol
Built-in active PFC function
-30~+70℃ working temperature
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 5000 meter
LED indicator for power on
5 years warranty

General Specification

AC input voltage range 90~264VAC  250~370VDC
AC inrush current Cold start :30A/115VAC 60A/230VAC
Overload protection 105~125% rated output power Protection type : Constant current limiting with delay shutdown after 3 seconds,re-power on to recover
Short circuit protection Protection type :Constant current limiting with delay shutdown after 3 seconds,re-power on to recover
Over voltage protection 24V:29~33V, 48V:59~66V Protection type :Shut down O/P voltage,re-power on to recover
Over temperature protection Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
Setup, rise, hold up time 1000ms,50ms/230VAC/115VAC at full load; 12ms/115VAC,230VAC
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature -30~+70℃(Refer to “Derating Curve)
Safety standards UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1
EMC standards EN55032 (CISPR32) Class B ;EN61000-3-2,3;EN61000-4-2,3,4,6,8,11
Dimension (LxWxH) 290×140×41mm
Packing 2.51Kg; 6pcs/16.06Kg

Specifications

  • Brand
    Mean Well
  • Series
    UHP Series
  • Power Rating
    1500 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    62.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,DEKRA,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    29 cm
  • Width
    14 cm
  • Height
    4.1 cm
  • Weight
    2.51 kg
