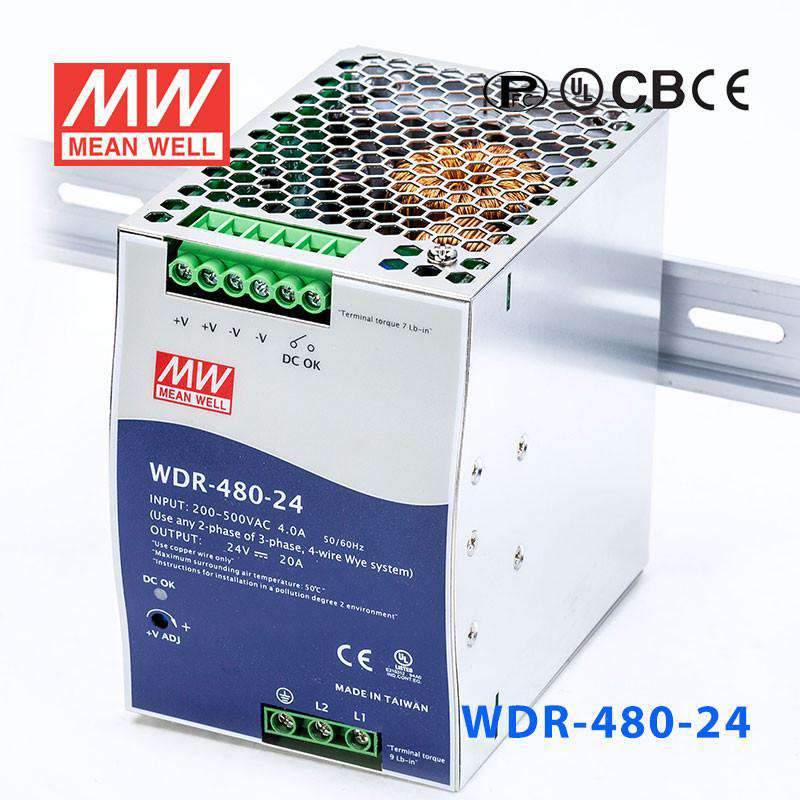

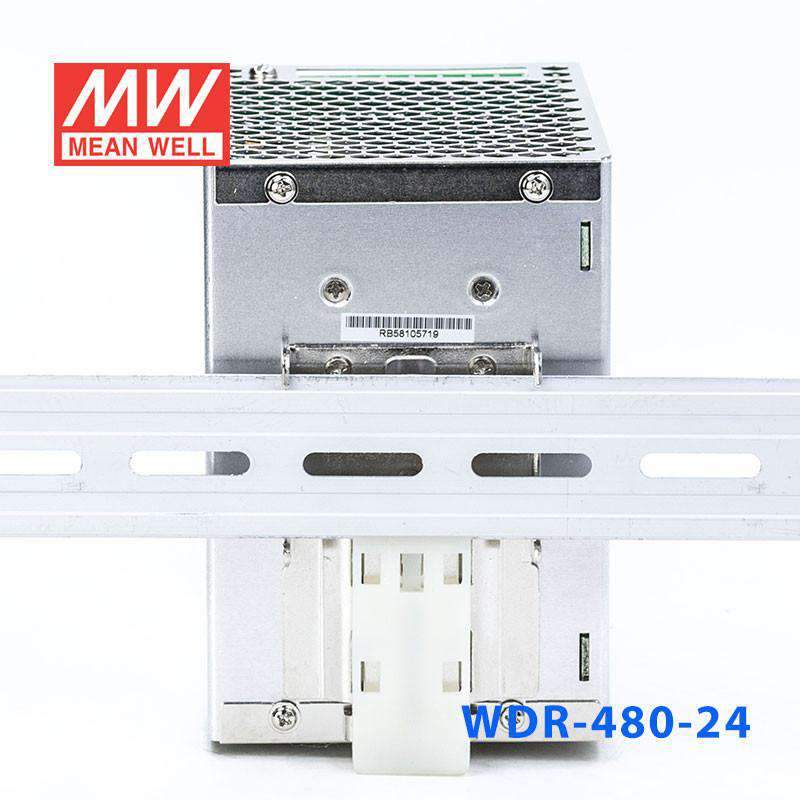

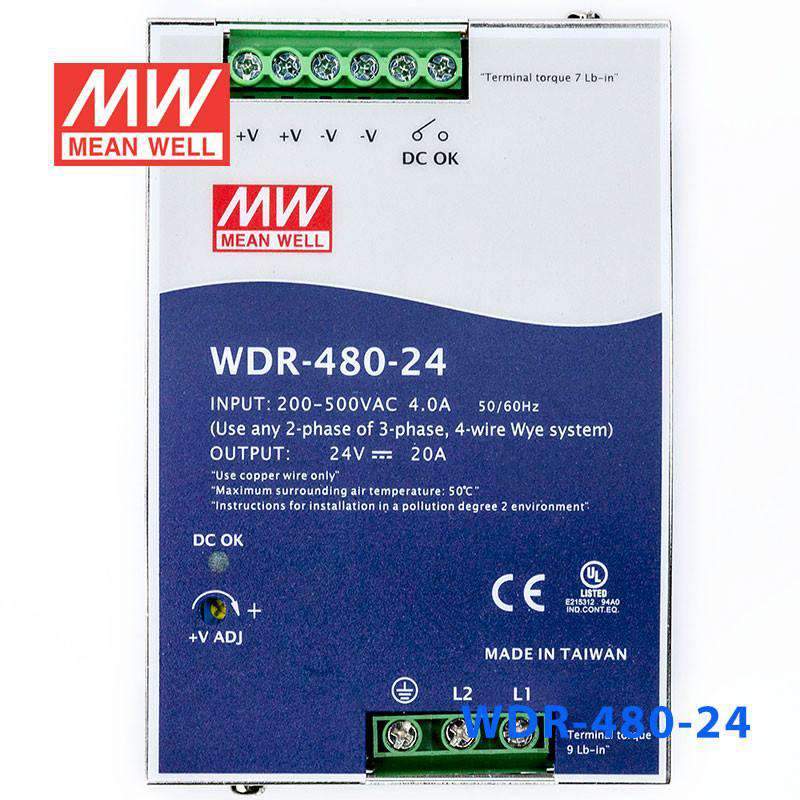

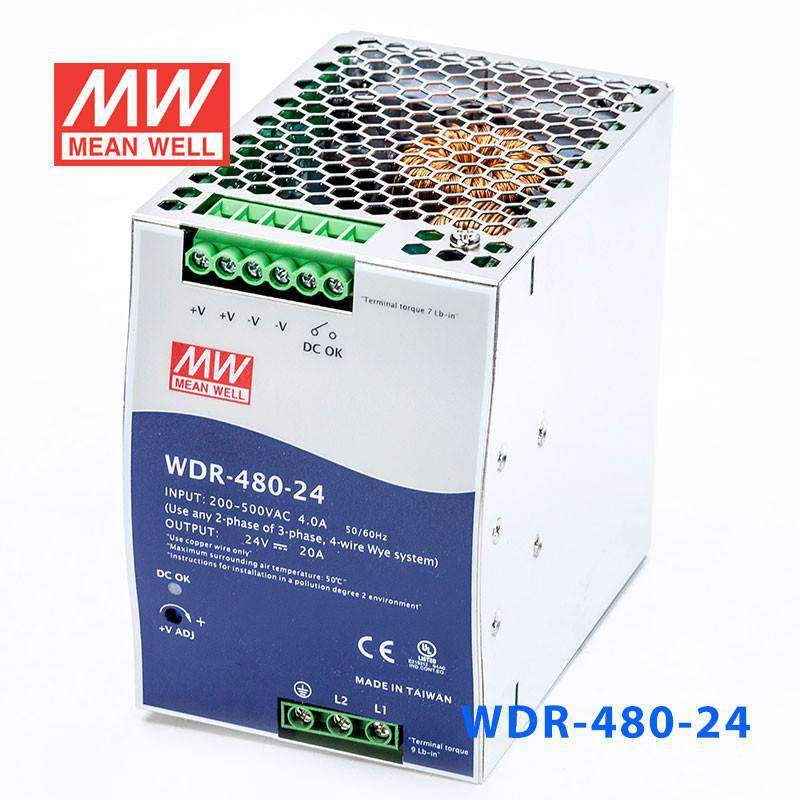

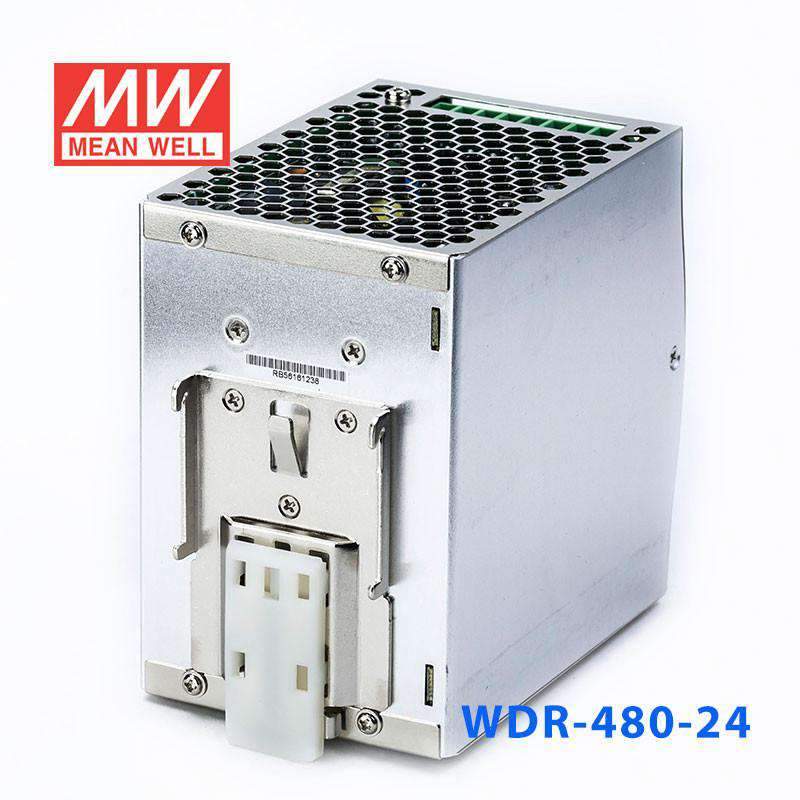

Mean Well WDR-480-24 Single Output Industrial Power Supply 480W 24V...
Please Login for Pricing
Description
Description
The WDR-480 is a 480W Mean Well power converter (input range: 180~550VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 180~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: SAFETY & WITHSTAND VOLTAGE EMC (Note 4) ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE ±0.03%/℃ (0 ~ 50℃) Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 Ul508
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage180V~550V
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.52 cm
-
Width12.52 cm
-
Height8.55 cm
-
Weight1.7 kg
File Downloads
File Downloads

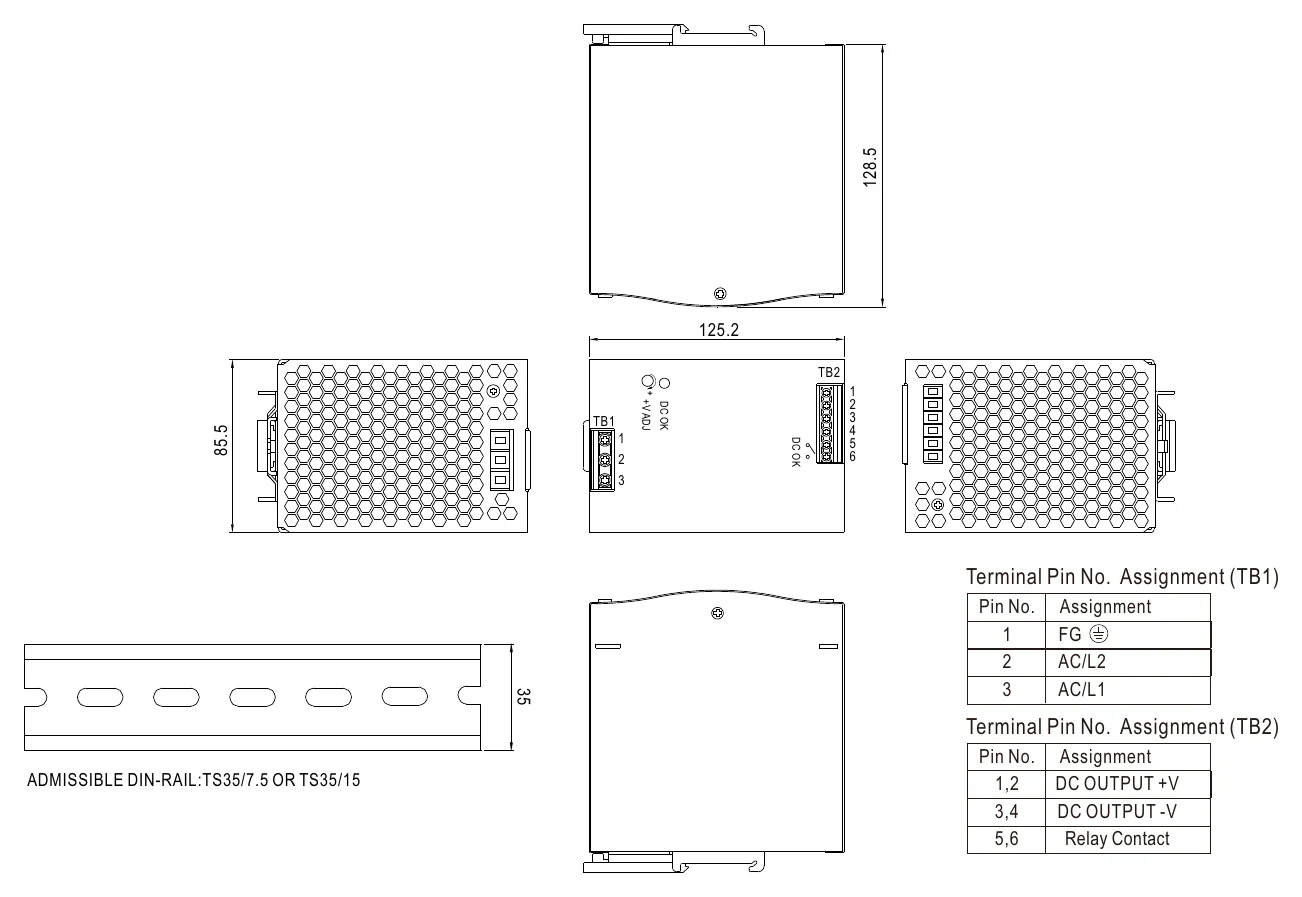

::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the WDR-480-24 for a 24V PLC cabinet with multiple devices?
Yes, this model is built for DIN rail industrial power applications where 24V DC is needed in a control cabinet. It delivers 480W at 24V with up to 20A output current, which suits higher-load 24V PLC and automation panels.
Is the WDR-480-24 a good fit for industrial automation panels with relays, sensors, and control components?
It is suitable for 24V DC industrial automation loads as long as the total requirement stays within 480W and 20A. The slim metal case supports DIN rail mounting in control enclosures where panel space matters.
Can this power supply be used in building management systems that standardize on 24V DC?
Yes, it can support building management and control systems that use a 24V DC bus and need more available current than smaller DIN rail units provide. The wide 180-550VAC input also fits facilities where input conditions vary across installations.
Can the WDR-480-24 be used inside a control enclosure in hotter or colder industrial areas?
It is intended for enclosed industrial cabinet use and has an operating temperature range of -30°C to +70°C. That range supports control enclosure applications across a broad set of indoor industrial conditions.
What are the main differences between the WDR-480-24 and other WDR series power supplies?
For 24V models, the WDR range includes WDR-60-24 at 60W, 2.5A; WDR-120-24 at 120W, 5A; WDR-240-24 at 240W, 10A; and WDR-480-24 at 480W, 20A. The rest of the sibling lineup is WDR-60-5 at 50W, 5V, 10A; WDR-60-12 at 60W, 12V, 5A; WDR-60-48 at 60W, 48V, 1.25A; WDR-120-12 at 120W, 12V, 10A; WDR-120-48 at 120W, 48V, 2.5A; WDR-240-48 at 240W, 48V, 5A; and WDR-480-48 at 480W, 48V, 10A.
Other WDR-480 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well WDR-480-48 Single Output Industrial Power Supply 480W 48V - DIN Rail | 480W | 48V | 10A | Indoor | View |
