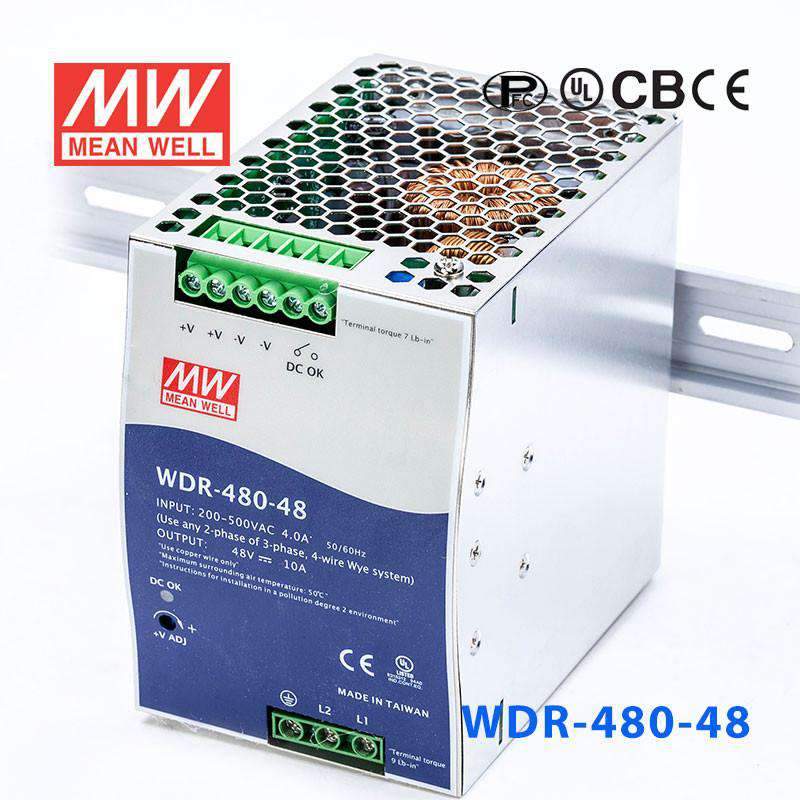

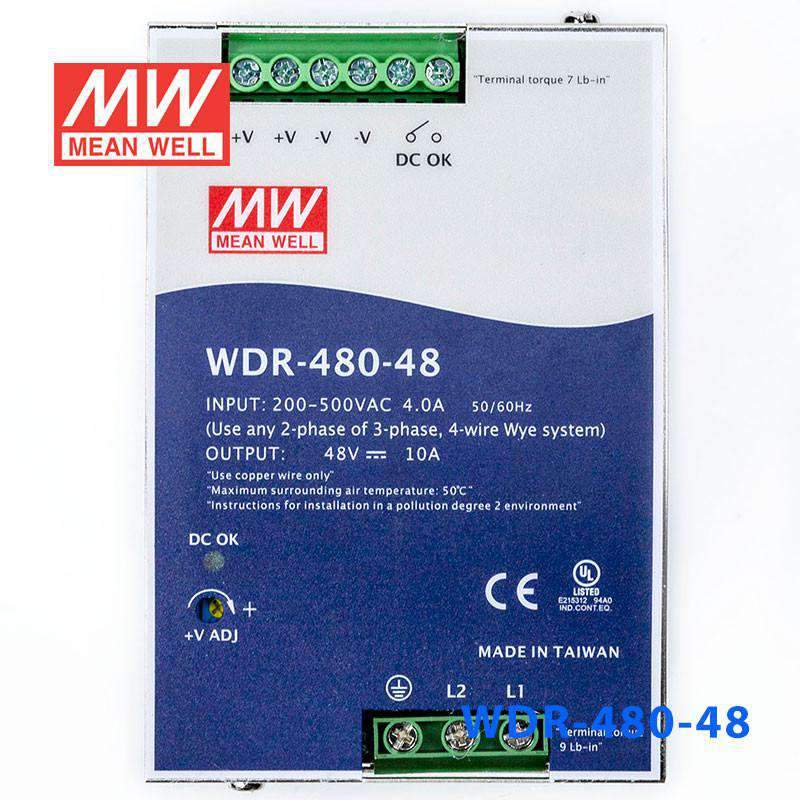

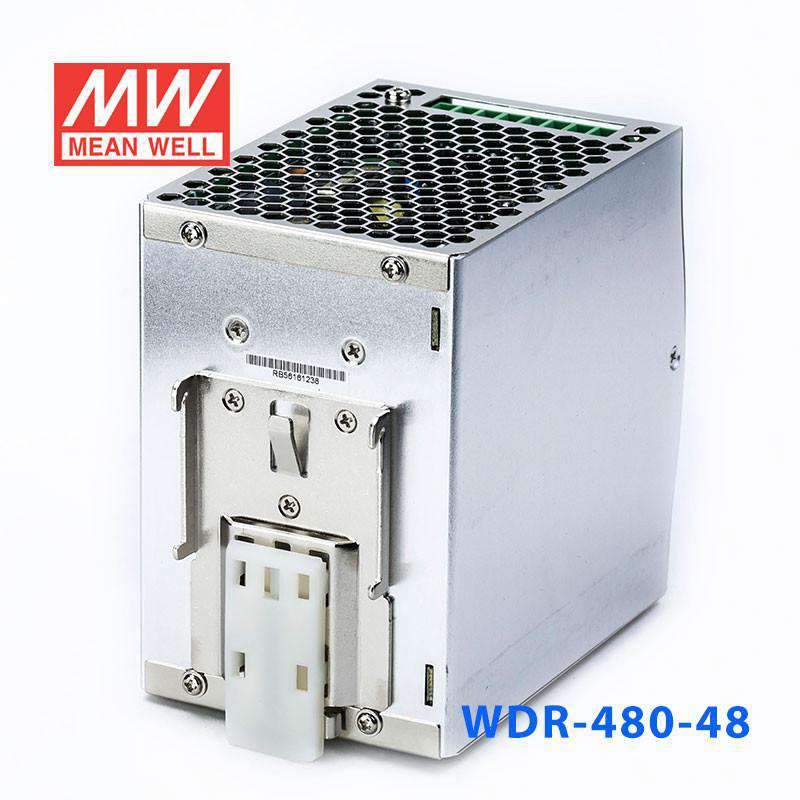

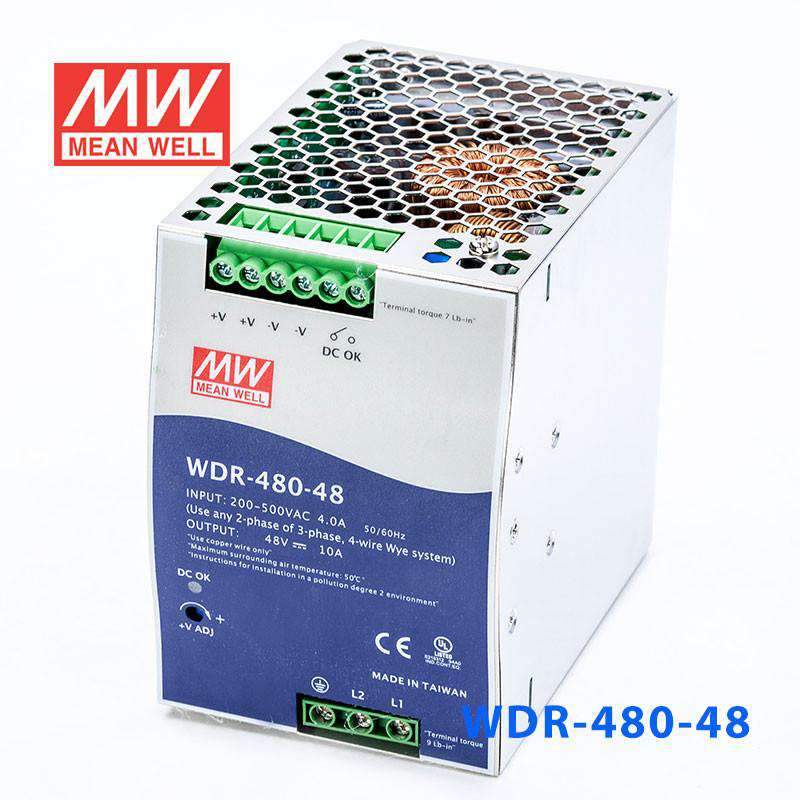

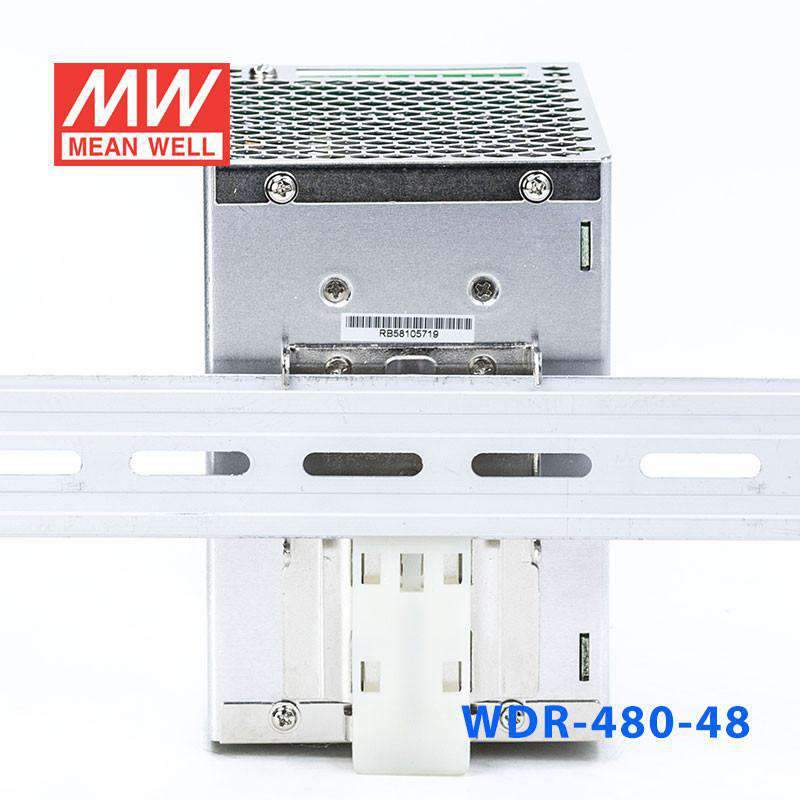

Mean Well WDR-480-48 Single Output Industrial Power Supply 480W 48V...
Please Login for Pricing
Description
Description
The WDR-480 is a 480W Mean Well power converter (input range: 180~550VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 180~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: SAFETY & WITHSTAND VOLTAGE EMC (Note 4) ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE ±0.03%/℃ (0 ~ 50℃) Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 Ul508
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~550V
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.52 cm
-
Width12.52 cm
-
Height8.55 cm
-
Weight1.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the WDR-480-48 for a 48V industrial control cabinet?
Yes, this unit is designed for DIN rail industrial power distribution where 48V DC is required inside a panel or enclosure. It provides 480W at 48V with 10A output current for higher-capacity 48V control loads.
Is the WDR-480-48 suitable for building automation panels that use 48V DC equipment?
It can be used for building automation or control systems that operate on 48V DC and fit within 480W and 10A. The slim metal housing and DIN rail form factor are intended for organized cabinet integration.
Can this model support multiple 48V devices in an industrial automation enclosure?
Yes, it is a higher-capacity WDR option for 48V DC systems, with 480W total output and 10A available current. That makes it appropriate when one DIN rail supply must support several 48V panel loads within those limits.
Is the WDR-480-48 appropriate for enclosed control cabinets in demanding temperature conditions?
It is intended for control cabinets and enclosures rather than exposed locations. The operating temperature range is -30°C to +70°C, and the metal-case DIN rail design aligns with enclosed industrial installations.
How does the WDR-480-48 compare with other models in the WDR family?
Among 48V versions, the WDR family includes WDR-60-48 at 60W, 1.25A; WDR-120-48 at 120W, 2.5A; WDR-240-48 at 240W, 5A; and WDR-480-48 at 480W, 10A. Other siblings are WDR-60-5 at 50W, 5V, 10A; WDR-60-12 at 60W, 12V, 5A; WDR-60-24 at 60W, 24V, 2.5A; WDR-120-12 at 120W, 12V, 10A; WDR-120-24 at 120W, 24V, 5A; WDR-240-24 at 240W, 24V, 10A; and WDR-480-24 at 480W, 24V, 20A.
Other WDR-480 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well WDR-480-24 Single Output Industrial Power Supply 480W 24V - DIN Rail | 480W | 24V | 20A | Indoor | View |
