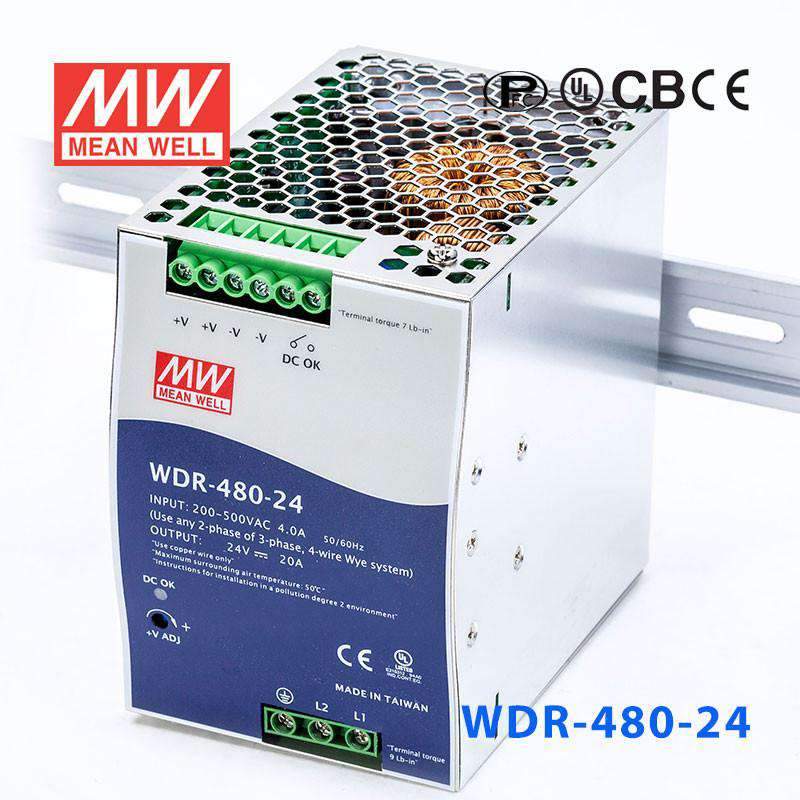

Mean Well WDR-480-24 Single Output Industrial Power Supply 480W 24V 20A - DIN Rail

metal caseslim size1&2 phase180~550VAC wide inputhigh efficiency up to 93%
SKU WDR-480-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

WDR-480-24
In stock
|

Overview

WDR-480-24 is the 24V output model of this series: rated current 20A, rated power 480W, typical efficiency 92%.

Features

  • Single and two phase wide input range 180~550VAC
  • Built-in active PFC circuit compliance to BS EN/EN61000-3-2
  • High efficiency 93% and low power dissipation
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508(industrial control equipment)approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty

Specifications

WDR-480-24Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
20A
CURRENT RANGE
0 ~ 20A
RATED POWER
480W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
24 ~ 28V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
800ms, 150ms/400VAC 2000ms, 150ms/230VAC at full load
HOLD UP TIME (Typ.)
18ms / 400VAC 16ms / 230VAC at full load

INPUT

VOLTAGE RANGENote.6
180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≥0.84/400VAC PF≥0.84/230VAC
EFFICIENCY (Typ.)
92%
AC CURRENT (Typ.)
1.6A/400VAC 4A/230VAC
INRUSH CURRENT (Typ.)
COLD START 50A
LEAKAGE CURRENT
<3.5mA / 530VAC

PROTECTION

OVERLOAD
105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. ,auto-recovery after 1 minute if the fault condition is removed
OVER VOLTAGE
29 ~ 33V Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
OVER TEMPERATURE
95℃±5℃ (TSW) detect on heatsink of power switch Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.)
60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

ENVIRONMENT

WORKING TEMP.Note.5
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508,EAC TP TC 004,BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) approved,IEC62368-1 CB approved by SIQ, design refer to BS EN/EN62368-1, AS/NZS 62368.1,GL; (meet BS EN/EN60204-1)
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020 approved

OTHERS

MTBF
825.4K hrs min. Telcordia SR-332 (Bellcore) ; 112.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
85.5*125.2*128.5mm (W*H*D)
PACKING
1.7Kg; 8pcs/14.6Kg/0.9CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
  6. 6. Derating may be needed under low input voltage. Please check the derating curve for more details.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

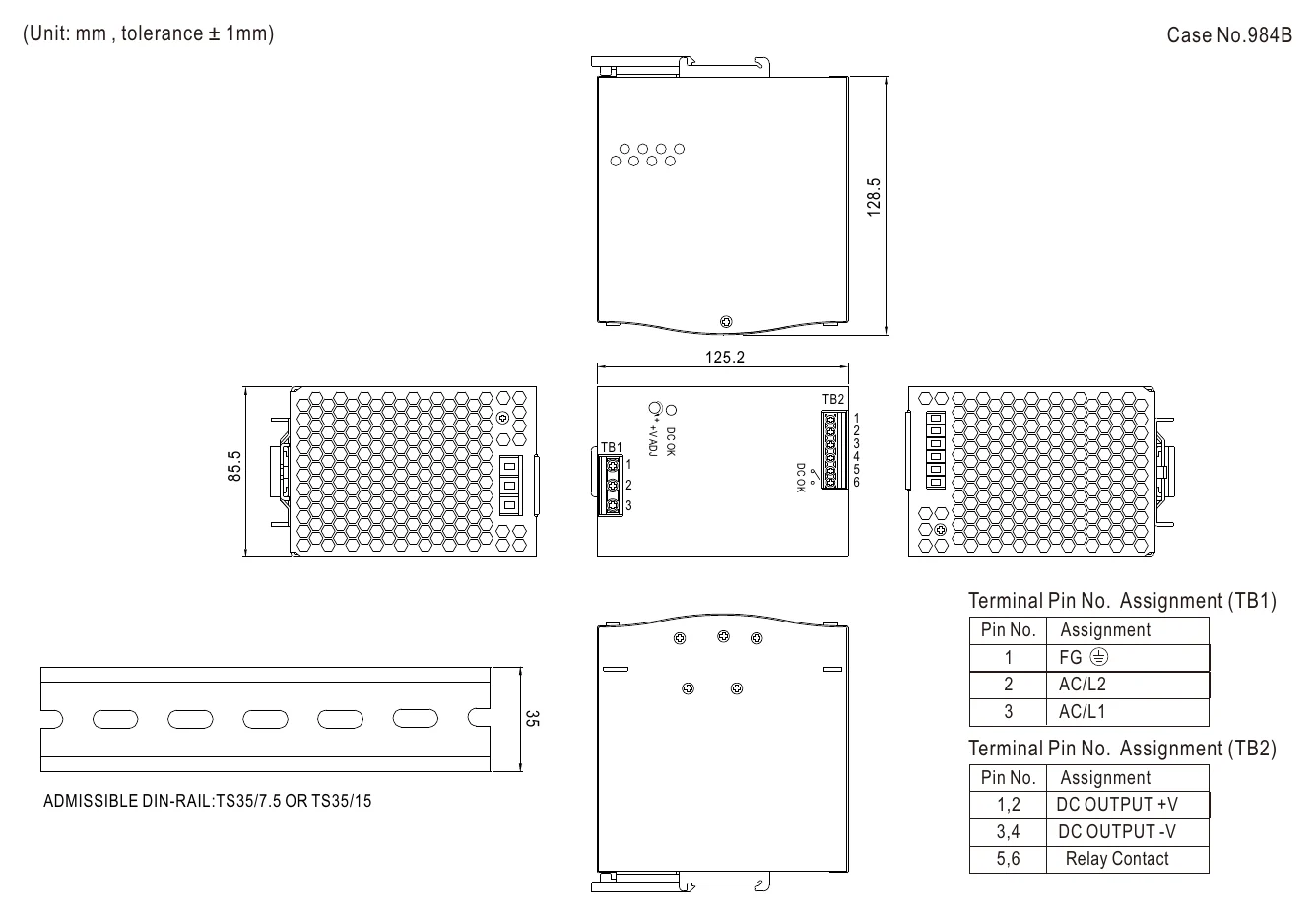

WDR-480-24 Mechanical Specification
Mechanical Specification
WDR-480-24 Block Diagram
Block Diagram
WDR-480-24 LOAD(%)
LOAD(%)

Downloads

FAQ

Can I use the WDR-480-24 for a 24V PLC cabinet with multiple devices?

Yes, this model is built for DIN rail industrial power applications where 24V DC is needed in a control cabinet. It delivers 480W at 24V with up to 20A output current, which suits higher-load 24V PLC and automation panels.

Is the WDR-480-24 a good fit for industrial automation panels with relays, sensors, and control components?

It is suitable for 24V DC industrial automation loads as long as the total requirement stays within 480W and 20A. The slim metal case supports DIN rail mounting in control enclosures where panel space matters.

Can this power supply be used in building management systems that standardize on 24V DC?

Yes, it can support building management and control systems that use a 24V DC bus and need more available current than smaller DIN rail units provide. The wide 180-550VAC input also fits facilities where input conditions vary across installations.

Can the WDR-480-24 be used inside a control enclosure in hotter or colder industrial areas?

It is intended for enclosed industrial cabinet use and has an operating temperature range of -30°C to +70°C. That range supports control enclosure applications across a broad set of indoor industrial conditions.

What are the main differences between the WDR-480-24 and other WDR series power supplies?

For 24V models, the WDR range includes WDR-60-24 at 60W, 2.5A; WDR-120-24 at 120W, 5A; WDR-240-24 at 240W, 10A; and WDR-480-24 at 480W, 20A. The rest of the sibling lineup is WDR-60-5 at 50W, 5V, 10A; WDR-60-12 at 60W, 12V, 5A; WDR-60-48 at 60W, 48V, 1.25A; WDR-120-12 at 120W, 12V, 10A; WDR-120-48 at 120W, 48V, 2.5A; WDR-240-48 at 240W, 48V, 5A; and WDR-480-48 at 480W, 48V, 10A.
