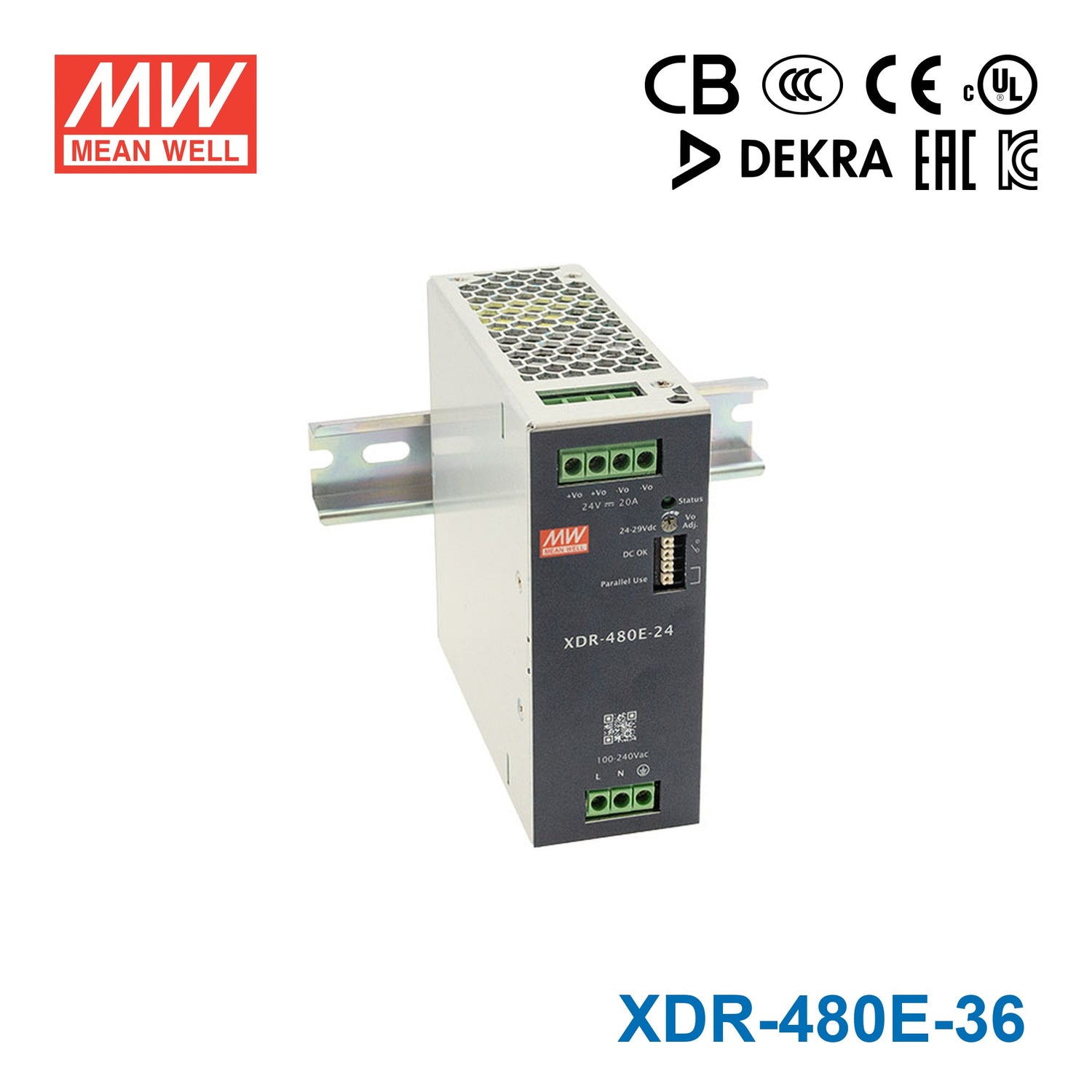

Mean Well XDR-480E-36 Economical Ultra Slim Din Rail Power Supply 4...
Please Login for Pricing
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓48mm slim width
- ✓High efficiency up to 96% and no-load power dissipation<1.2W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating478.8 Watt
-
Output Voltage36 Volt
-
Rated Current13.3 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight0.89 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well XDR-480E-36 provide?
The XDR-480E-36 is rated for 478.8 W of output power. It provides a 36 V DC output with a rated current of 13.3 A.
What types of applications is the XDR-480E-36 suited for?
This model is suited for industrial and commercial systems that require a 36 V DC DIN rail power supply. Its slim 48 mm width makes it useful where panel space is limited.
What operating temperature range does this power supply support?
The XDR-480E-36 supports operation from -40°C to +70°C. Output derating applies above +50°C, so buyers should account for the operating environment when selecting capacity.
What makes the XDR-480E-36 a slim DIN rail power supply?
This model has a 48 mm slim width, which helps reduce space usage in DIN rail power supply layouts. It also provides 478.8 W output, making it a high-power option in a compact format.
What input voltage range does the XDR-480E-36 accept?
The XDR-480E-36 supports an 85-264 VAC input range. This wide input range helps support use across global AC mains environments where the product certifications and system requirements are appropriate.
Does the XDR-480E-36 use a fan?
No, this model uses a fanless design with cooling by free air convection. That can be useful in applications where reduced moving parts and lower maintenance are important.
What certifications are listed for this model?
The listed certificates include ITE 62368-1, Industrial 61558-1/-2-16, and 61010. These certifications make the XDR-480E-36 relevant for buyers evaluating industrial and ITE power supply requirements.
What protection features are included with the XDR-480E-36?
The XDR-480E-36 includes protections for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
