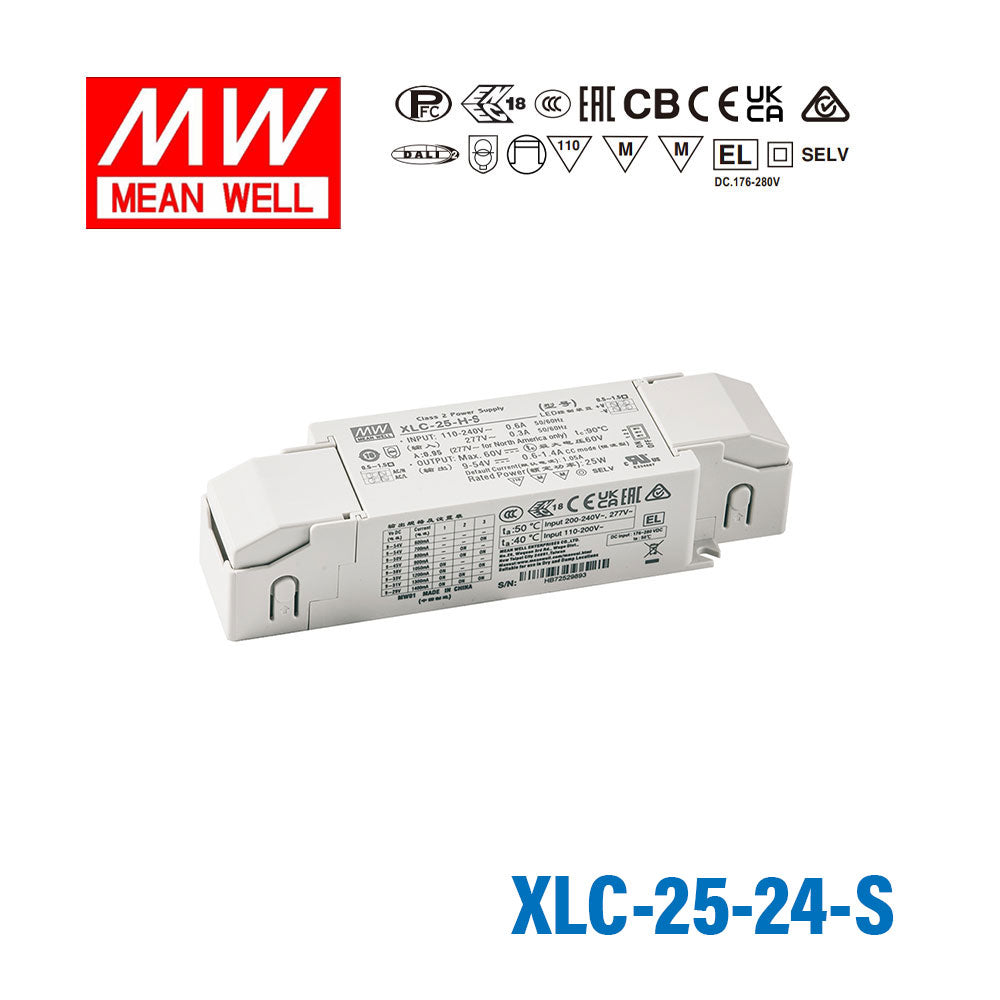

Mean Well XLC-25-24-S LED Driver 25.2W 24V with Strain-relief 1.05A
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-24-S to power 24V LED strips in a track lighting system?
Yes, the XLC-25-24-S outputs 24V constant voltage at up to 25.2W and is compatible with 24V LED strip track or surface-mount lighting. The strain-relief on the output cable is useful in track systems where the driver may be mounted at an angle or where the cable is routed through mechanical fixings that create stress on the wire.
Is the XLC-25-24-S suitable for powering 24V LED tape in furniture-integrated lighting?
Yes, the XLC-25-24-S is compact at 147.0 × 32.0 × 40.0 mm and suitable for concealed installation inside furniture cavities. The 24V output is compatible with a wide range of furniture-grade LED tape, and the strain-relief protects the output cable where it exits through tight cable channels or grommets in the furniture body.
Can the XLC-25-24-S power a 24V LED strip in a bathroom vanity mirror?
The XLC-25-24-S is not IP-rated, so it should not be installed in zones 0, 1, or 2 of a bathroom where direct water ingress is possible. It can be installed in zone 3 or outside the bathroom boundary in a dry, protected location. The driver can then feed a 24V LED strip inside the vanity mirror through appropriate wiring, provided the strip itself is rated for the bathroom zone.
How much 24V LED strip can the XLC-25-24-S support?
The XLC-25-24-S delivers up to 25.2W at 24V and 1.05A. For a 14.4 W/m strip, this supports approximately 1.75 m (25.2 ÷ 14.4 ≈ 1.75 m); for a 9.6 W/m strip, approximately 2.6 m. Check your strip's rated power per meter, and plan for no more than 80% of rated driver power for safe continuous operation.
What is the warranty period for the XLC-25-24-S?
The XLC-25-24-S carries a 5-year warranty from Mean Well. This reflects the driver's industrial-grade component quality and is consistent across the XLC series. The operating temperature range is -25°C to +90°C.
What certifications does the XLC-25-24-S have?
The XLC-25-24-S is certified to CB, CCC, CE, EAC, ENEC, and c_SELV standards. CE and ENEC cover EU and European safety and electromagnetic compatibility requirements, EAC covers the Eurasian Economic Union, and CB is an international safety certification. The c_SELV mark confirms the output circuit operates at safety extra-low voltage.
