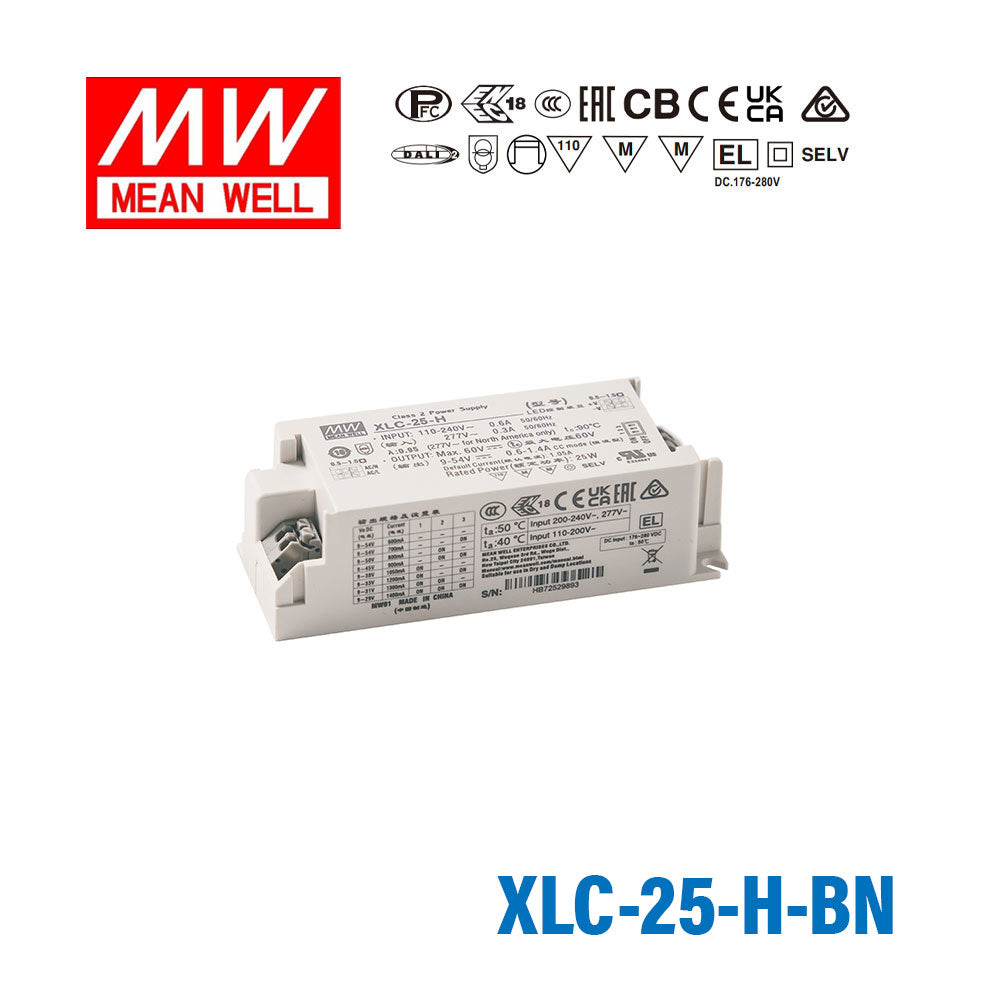

Mean Well XLC-25-H-BN LED Driver 25W 700mA 9~54V Constant Power, 3 ...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-25-H-BN in LED downlights that need field-adjustable current without opening the fixture?
Yes. The XLC-25-H-BN uses NFC for current setting, so the output current (adjustable from 0.3A to 1.05A) can be changed via a smartphone NFC app without physical access to the dip switch. This is advantageous in recessed luminaires or hard-to-reach installations.
Is the XLC-25-H-BN suitable for dimmable LED signage in a retail environment?
Yes. The XLC-25-H-BN supports 3-in-1 dimming and is rated flicker-free, making it appropriate for illuminated signage in retail or commercial settings. The NFC current setting also allows output adjustment during commissioning without accessing the driver directly.
Can the XLC-25-H-BN drive architectural LED arrays where scene control is required?
Yes. With 3-in-1 dimming (0–10V, PWM, resistance), the XLC-25-H-BN integrates with standard scene controllers. Its 700mA constant current output across a 9–54V range covers most mid-power LED array configurations used in architectural cove and accent lighting.
How does NFC current setting on the XLC-25-H-BN differ from dip switch setting on the XLC-25-H-B?
The XLC-25-H-BN uses NFC to program the output current (0.3–1.05A) wirelessly via a compatible smartphone, while the XLC-25-H-B uses physical dip switches on the driver body. Both models are otherwise identical in wattage, voltage range, and dimming capability. NFC is preferred when physical access is restricted after installation.
How many LEDs can the XLC-25-H-BN support in a series string?
The XLC-25-H-BN regulates current across a 9–54V compliance range. The number of series LEDs depends on each LED's forward voltage; there is no fixed LED count applicable to all LED types. Match the total series string voltage to the 9–54V window.
Can the XLC-25-H-BN be used in outdoor or semi-outdoor signage enclosures?
The XLC-25-H-BN is rated for built-in use and has no listed IP rating beyond the driver itself, so it requires installation inside a suitably rated enclosure for any outdoor or wet-location application. Its -25°C to +90°C operating range supports cold-climate outdoor enclosures when properly housed.
