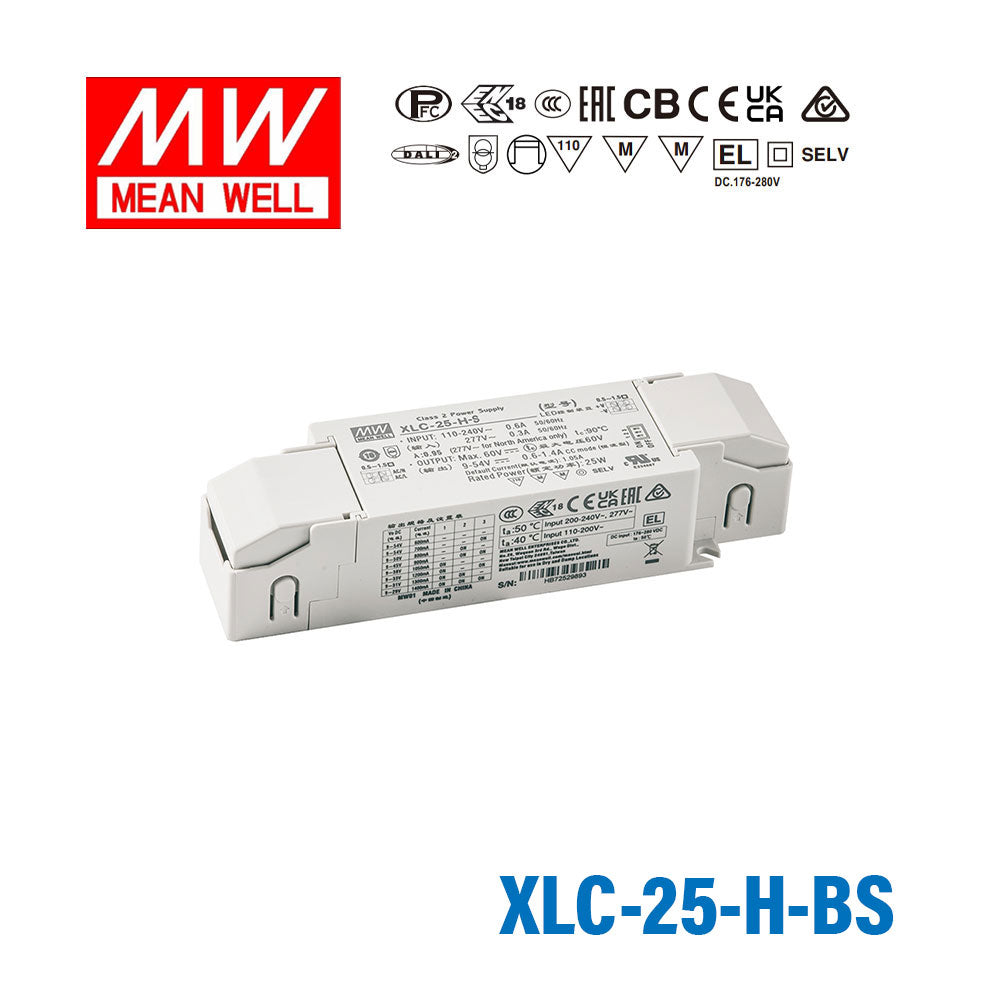

Mean Well XLC-25-H-BS LED Driver 25W 700mA 9~54V Constant Power, 3 ...
Please Login for Pricing
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length14.7 cm
-
Width3.2 cm
-
Height4 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-25-H-BS be used in LED downlight fixtures where mechanical strain on the cable is a concern?
Yes. The XLC-25-H-BS includes a built-in strain-relief fitting that secures the output cable at the driver body, reducing mechanical stress at the connection point. This is particularly useful in pendant, recessed, or vibration-prone fixture installations.
Is the XLC-25-H-BS suitable for dimmable LED track or accent lighting?
Yes. The XLC-25-H-BS supports 3-in-1 dimming and delivers 700mA constant current across a 9–54V range for up to 25W. The strain-relief design makes it a practical choice for track fixtures where the driver cable may be repeatedly flexed during re-aiming.
Can the XLC-25-H-BS power LED signage modules with adjustable brightness?
Yes. The XLC-25-H-BS supports 3-in-1 dimming and its output current is adjustable from 0.3A to 1.05A via dip switch, allowing it to be tuned to different LED signage module ratings while maintaining dimming control.
What is the difference between the XLC-25-H-BS and XLC-25-H-B?
Both models are 25W, 700mA constant current drivers with 3-in-1 dimming and dip switch current setting. The XLC-25-H-BS adds a strain-relief fitting for the cable, while the XLC-25-H-B does not include this mechanical feature. All other electrical specifications are identical.
Does the XLC-25-H-BS operate reliably in high-ambient-temperature luminaire enclosures?
Yes. The XLC-25-H-BS is rated for operating temperatures up to +90°C, which covers the elevated ambient conditions found inside recessed luminaire housings and enclosed fixtures. Its lower limit of -25°C also supports cold-climate installations.
How many series LEDs can the XLC-25-H-BS drive?
The XLC-25-H-BS provides constant current at 700mA across a 9–54V compliance range. The number of LEDs in the series string depends on individual LED forward voltages; the string voltage must fall within 9–54V for proper regulation.
